Front Door Panel: Service and Repair

Door Trim

To remove







Applies to the door trim for both front and rear doors.

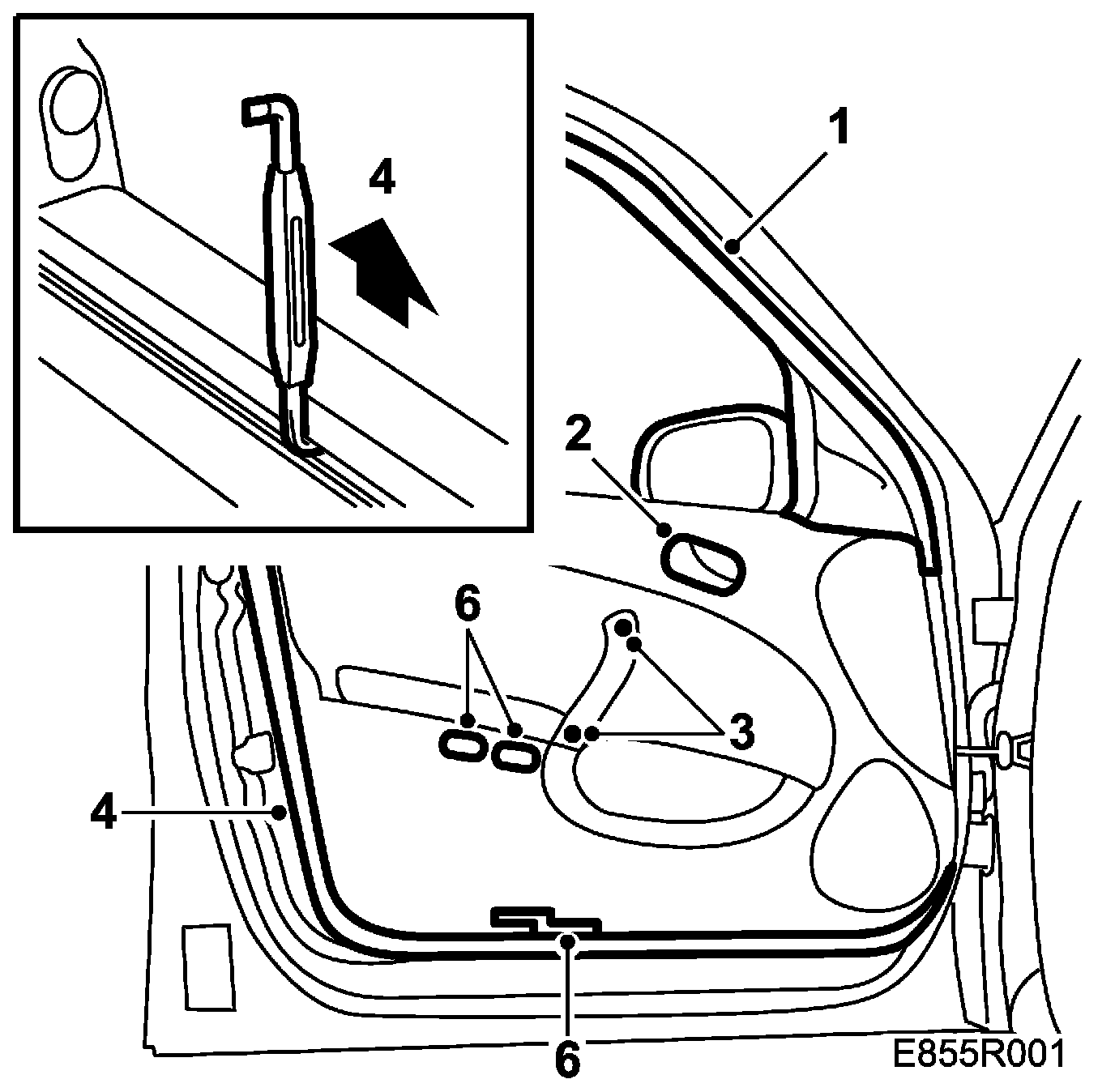

1. Remove the curved decor strip on the door frame (fastened with clips).
Door trim, driver's door:
Unplug the connector for the door mirror adjustment.

2. Remove the inside door handle, 1 cover piece and screw.
3. Remove the door pull, 2 cover pieces and screws.

IMPORTANT: Be careful not to damage the door trim.

4. Remove the door trim (fastened with clips). Use a screwdriver to undo the clips along the edge.
Remove the moulding using a screwdriver.

5. Lift the door trim away from the lock button.
6. Remove the door lamp from the trim.
Unplug and mark all connectors.

To fit

Fit in reverse order.
