Anti-Theft Alarm, Affix Labels

Anti-Theft Alarm, Affix Labels







- The remote controls must be supplied with the correct labels. Select the correct label from the various labels that accompany the car and fasten it in the recess on the side of the remote controls.

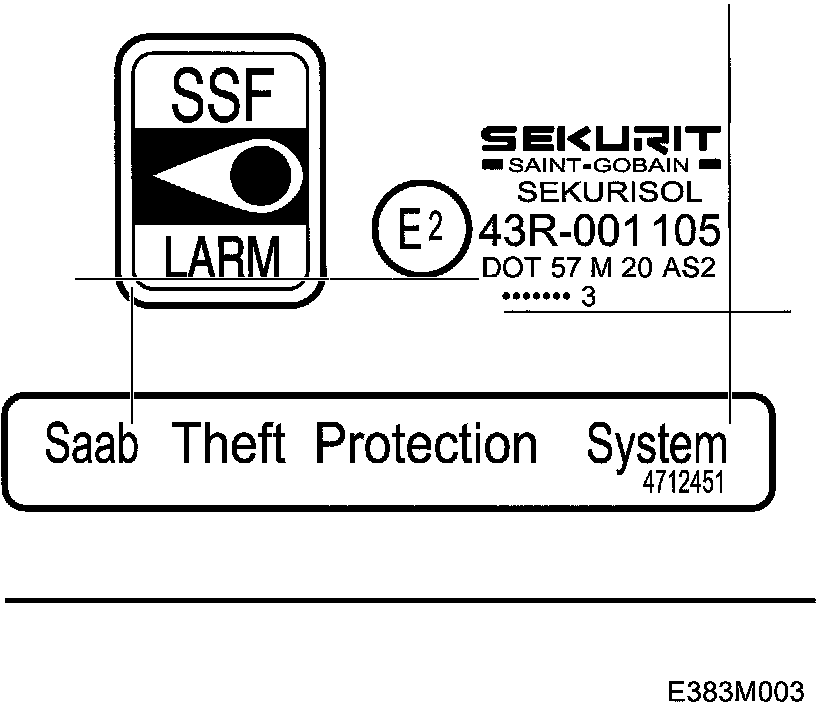

- Affix the anti-theft alarm labels as follows







a. Cars for Sweden and Norway markets:

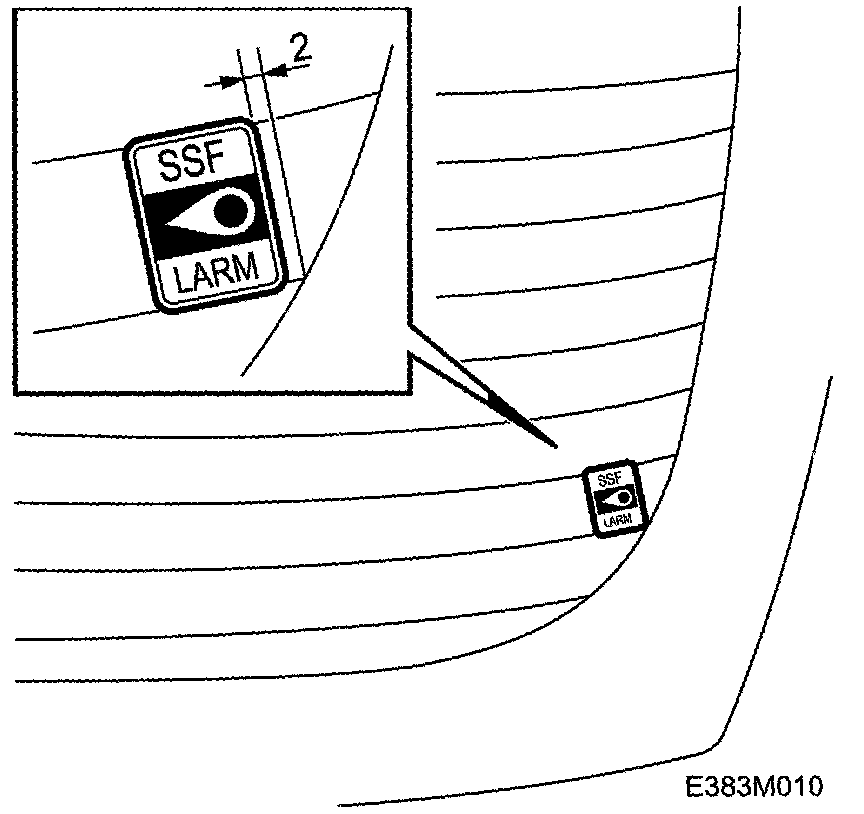

Affix anti-theft alarm labels on the left front window as illustrated.
Affix anti-theft alarm labels on the right front window as illustrated.

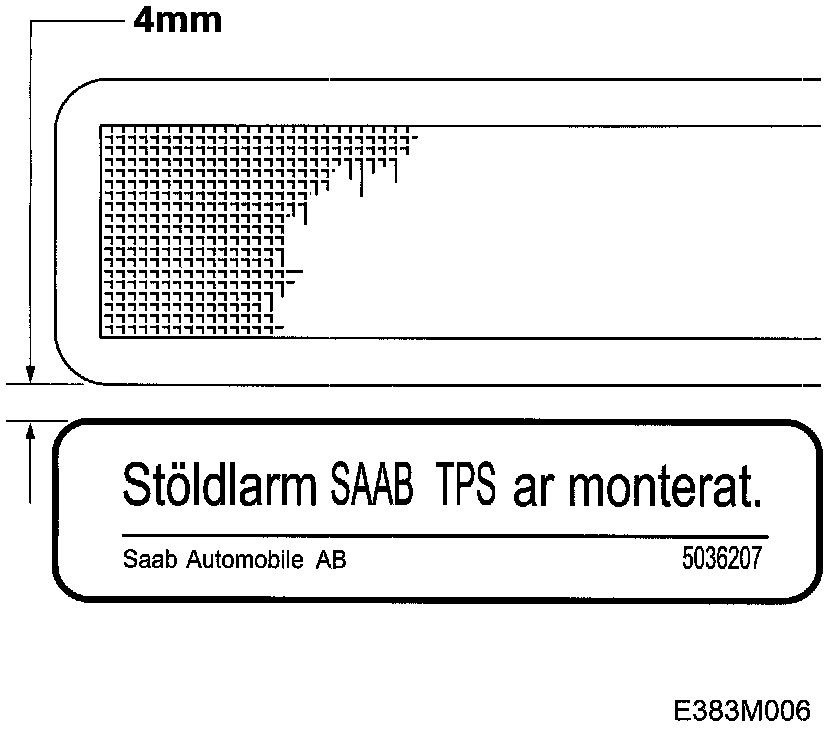

Fasten the anti-theft alarm label at the lower right corner of the rear window as shown in the illustration.







Affix anti-theft alarm label under the glove compartment lamp as illustrated







b. Cars for other markets







Affix anti-theft alarm labels on the left front window as illustrated.
Affix anti-theft alarm labels on the right front window as illustrated.
