Windshield Washer Spray Nozzle: Service and Repair

Windscreen Washer Nozzles







Removal

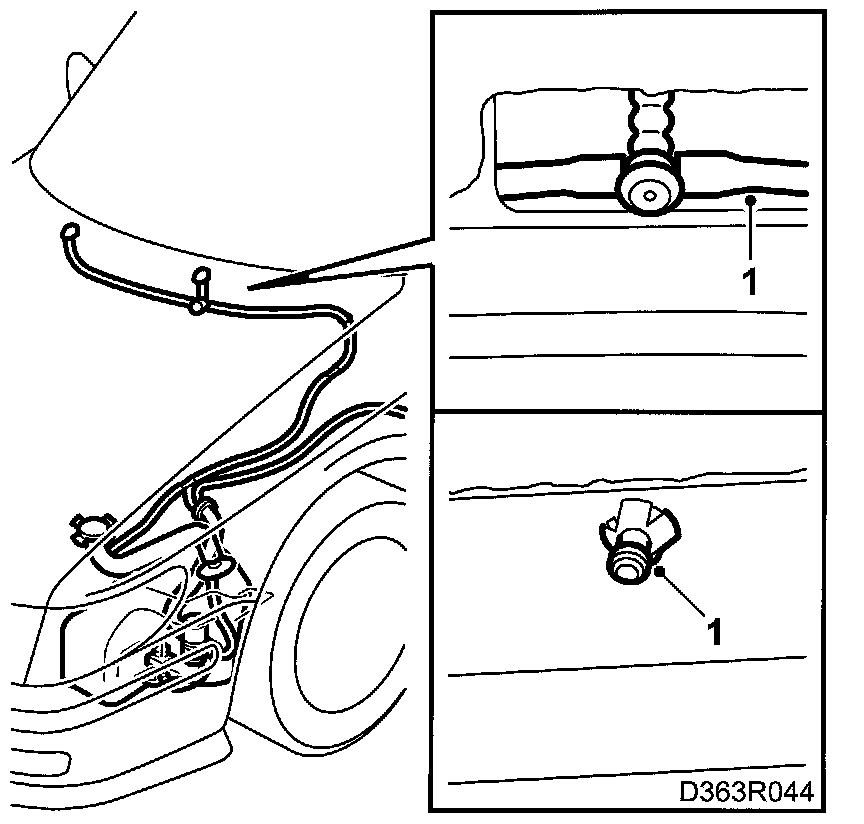

1. Disconnect the hose from the nozzle.

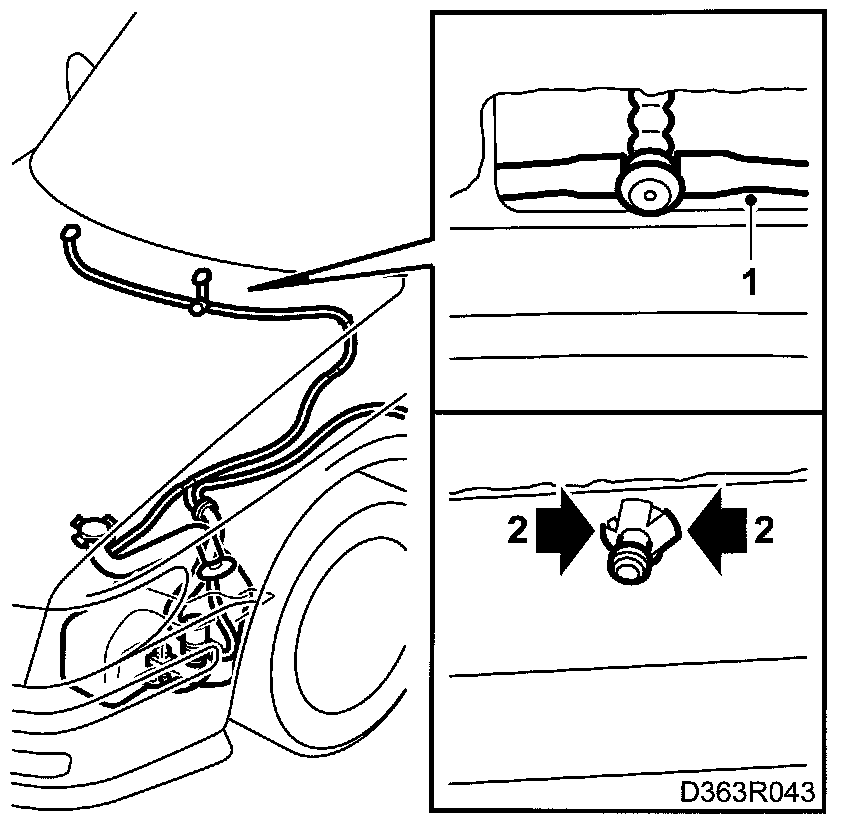

2. Remove the nozzle by pressing in the lock tabs.

Refitting







1. Press the new nozzle into place and connect the hose.
2. Close the bonnet. Adjust the nozzle jets.
