Windshield Washer Pump: Service and Repair

Washer Pump

Removal







1. Drain the washer fluid reservoir.
2. Raise the car and remove the wing liner at the front (3 screws).

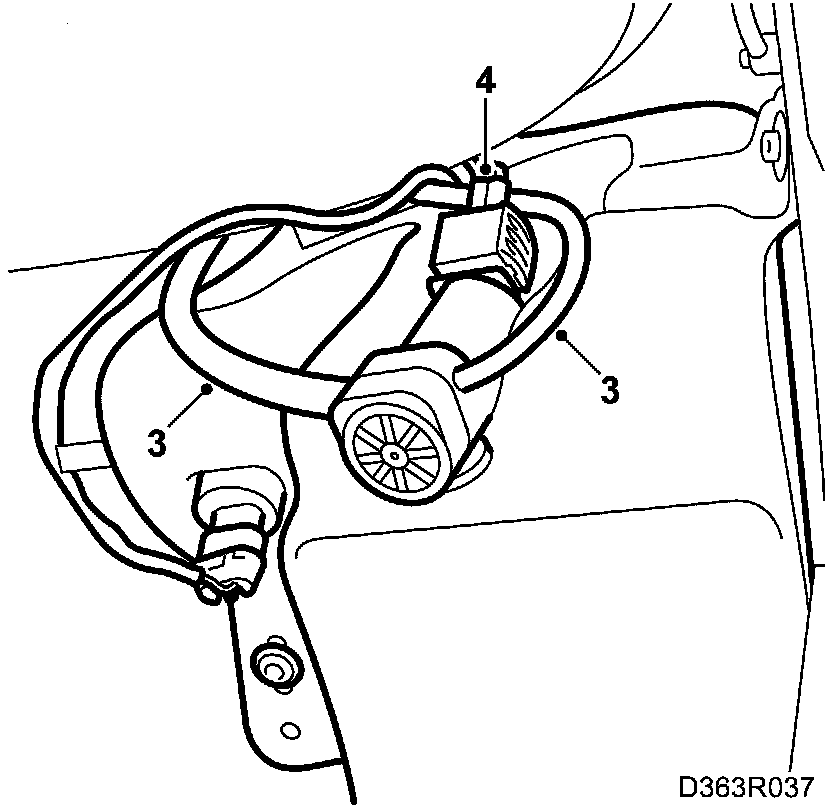

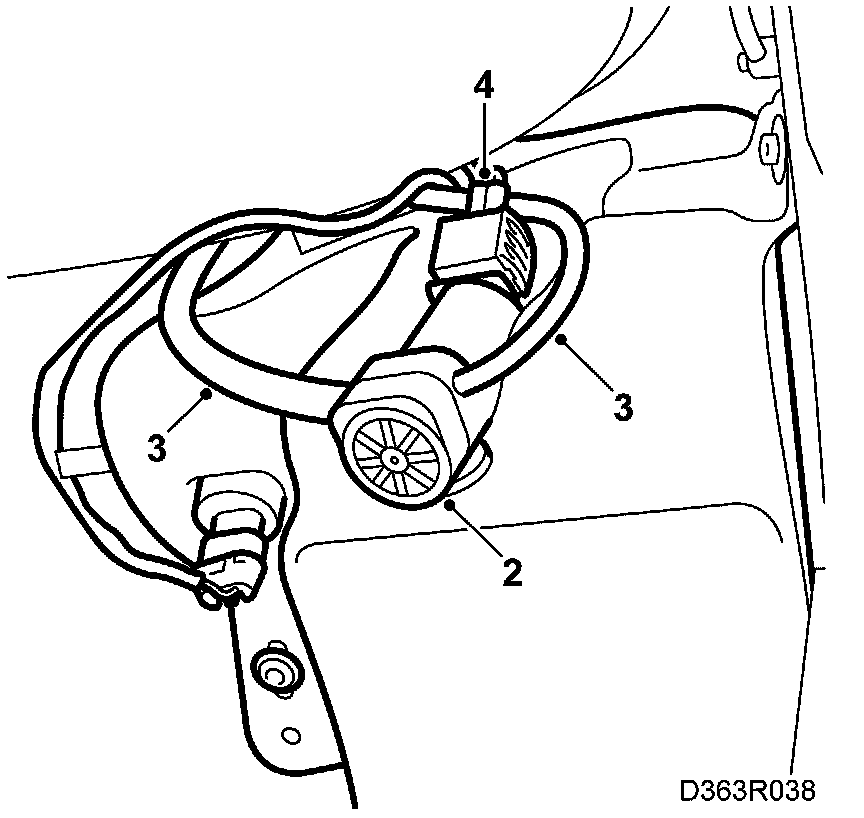

3. Detach the hoses at the pump and pull the pump up to remove it from the washer fluid reservoir.
4. Unplug the connector.


Refitting







1. Plug in the connector.
2. Press the pump into the washer fluid reservoir.
3. Reconnect the hoses.
4. Refit the wing liner (3 screws).
5. Lower the car.
6. Fill the washer fluid reservoir.
