Washer Fluid Level Switch: Service and Repair

Level Sensor

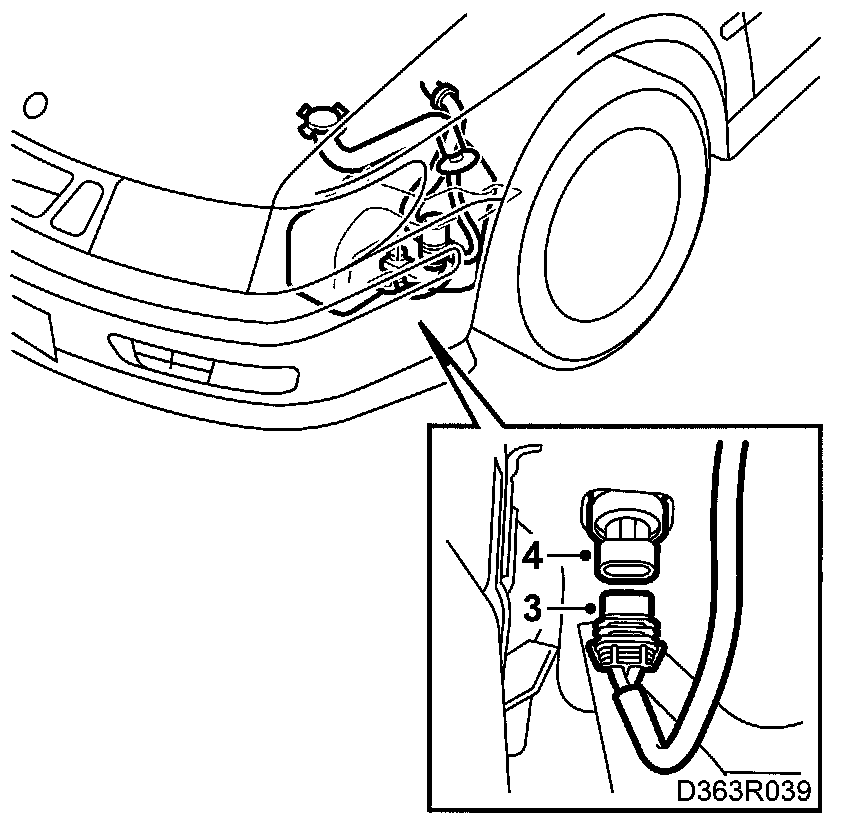

Removal


1. Drain the washer fluid reservoir.
2. Raise the car and remove the wing liner at the front (3 screws).
3. Unplug the connector.
4. Pull away the level sensor to remove it from the washer fluid reservoir.

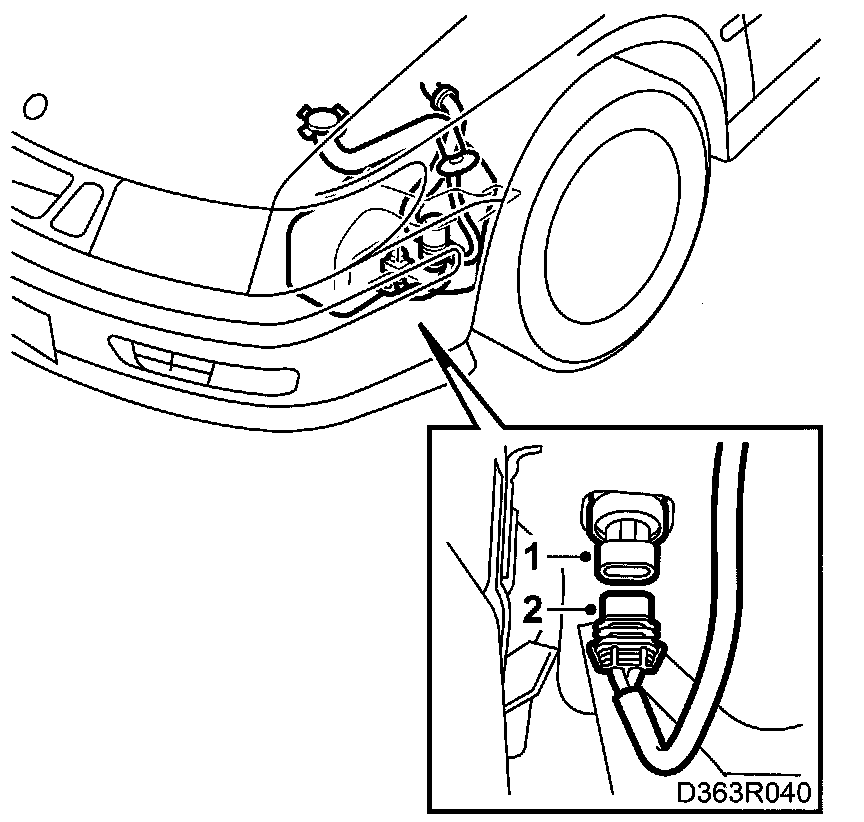

Refitting







1. Press the level sensor into the washer fluid reservoir with the float hanging down.
2. Plug in the connector.
3. Refit the wing liner (3 screws).
4. Lower the car.
5. Fill with washer fluid
