Wiper Switch: Service and Repair

Windscreen Wiper Switch







Removal


1. Move the steering wheel into its outermost position.

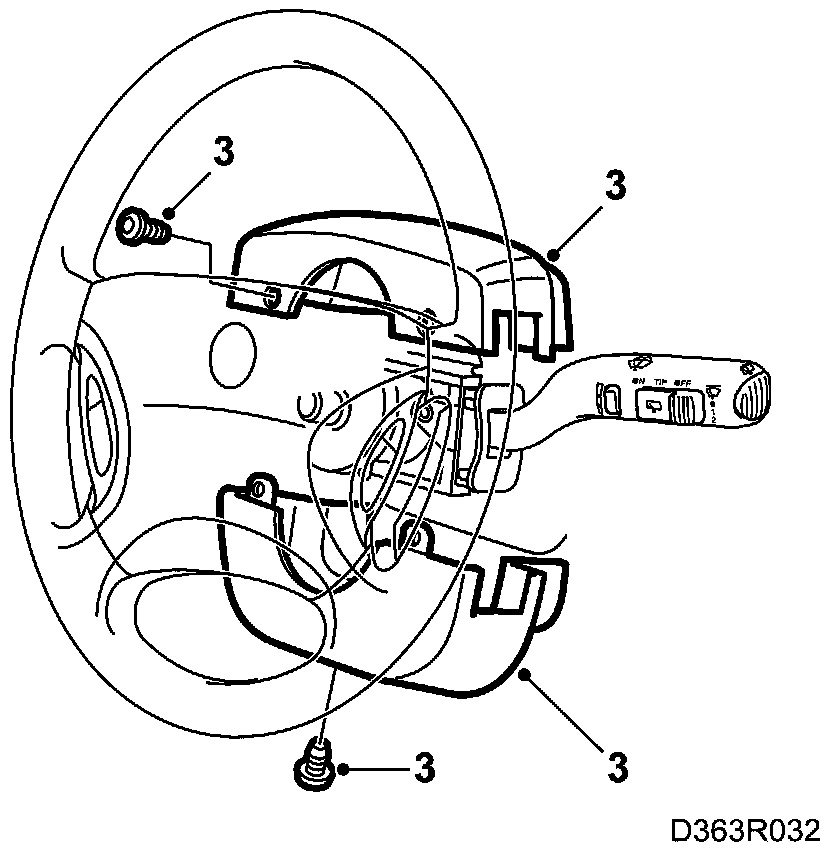

2. Remove the steering column cowling sections (3 screws).

NOTE: Be careful when removing the bracket cowls. The 4 snap connections can break.

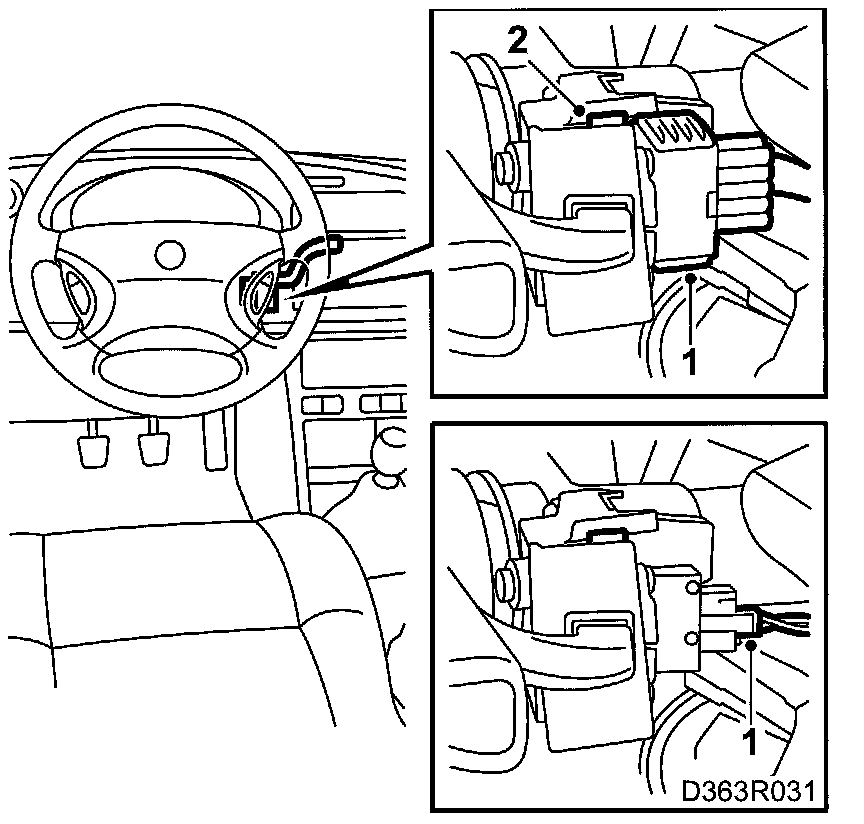

3. Pull out the switch, 2 clips (it is fitted into a groove).

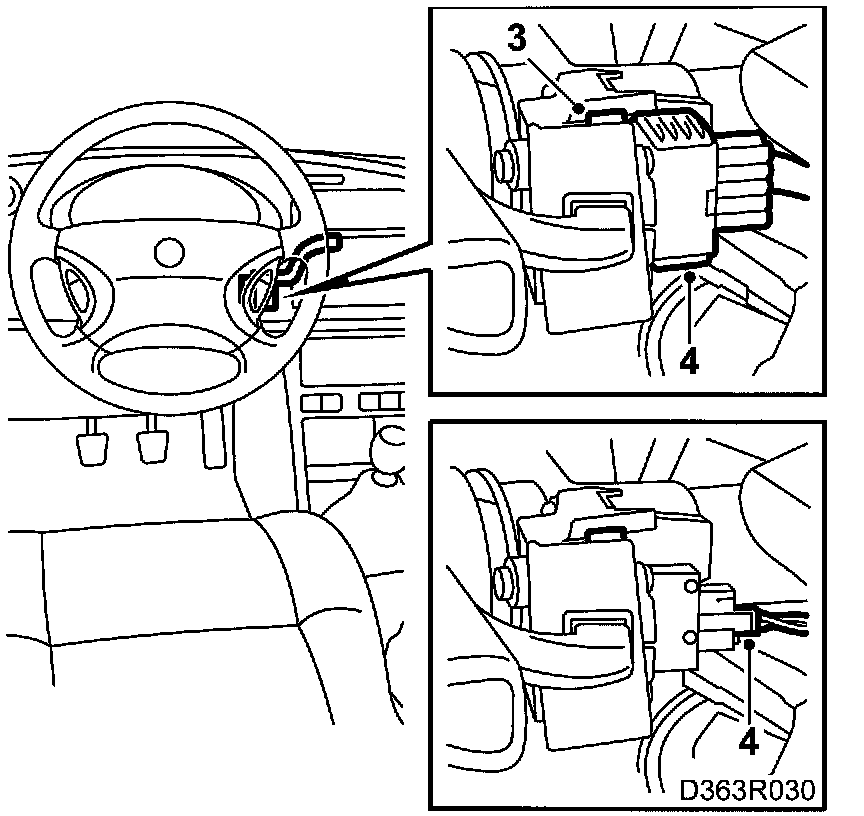

4. Unplug the switch's electrical connection.

Refitting







1. Plug in the switch's electrical connection.
2. Refit the switch.
3. Refit the steering column cowling sections.







4. Adjust the steering wheel to its original position.
