Headlamp Wiper Motor: Service and Repair

Headlamp Wipers

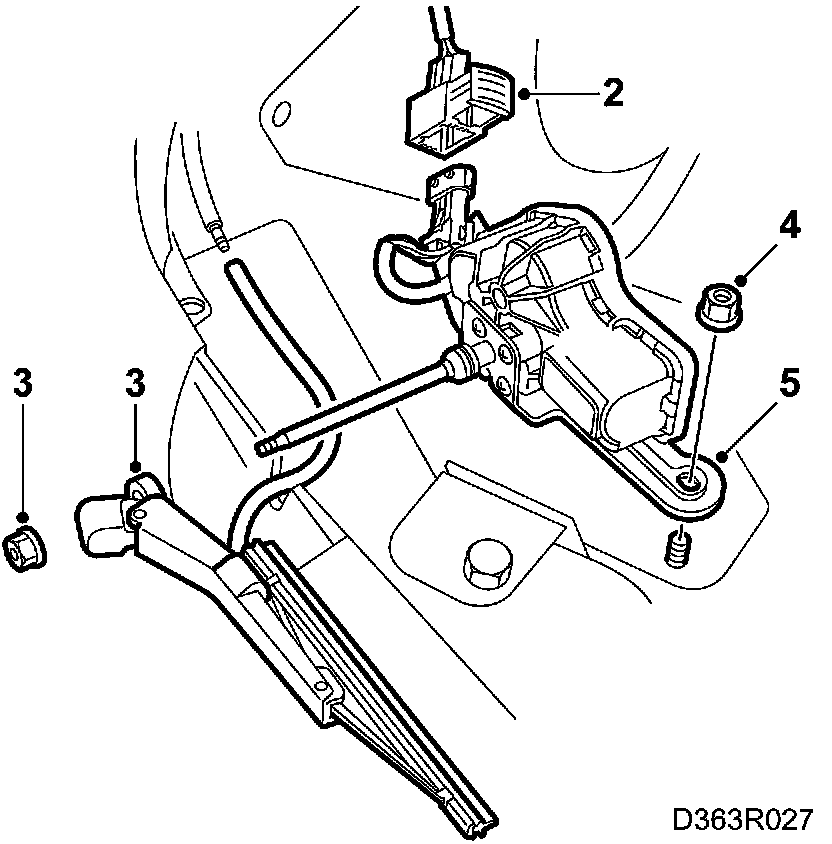

Removal







1. Remove the direction indicators and headlamps.
2. Unplug the connector.
3. Remove the wiper arm and blade from the motor.
4. Remove the wiper motor retaining screws.
5. Remove the motor.

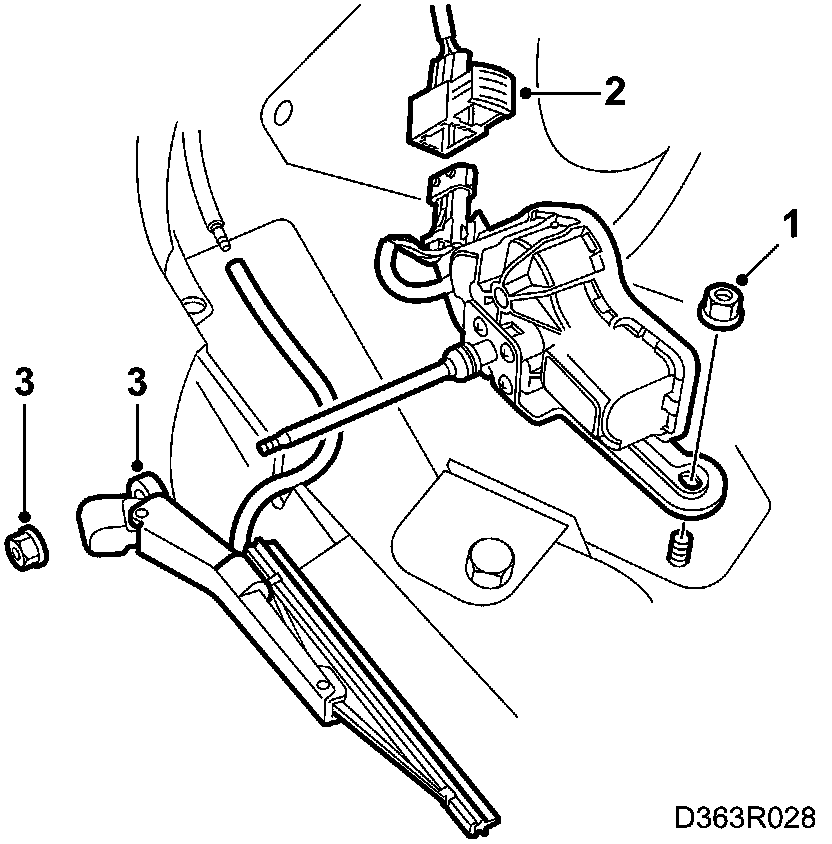

Refitting







1. Place the wiper motor in position and refit the retaining screws
2. Plug in the connector.
3. Refit the wiper arm and blade on to the motor.
4. Fit the direction indicators and headlamps.
