Headlamp Washer Hose: Service and Repair

Washer Hose, Headlamps

Removal
1. Remove the direction indicators and headlamps.

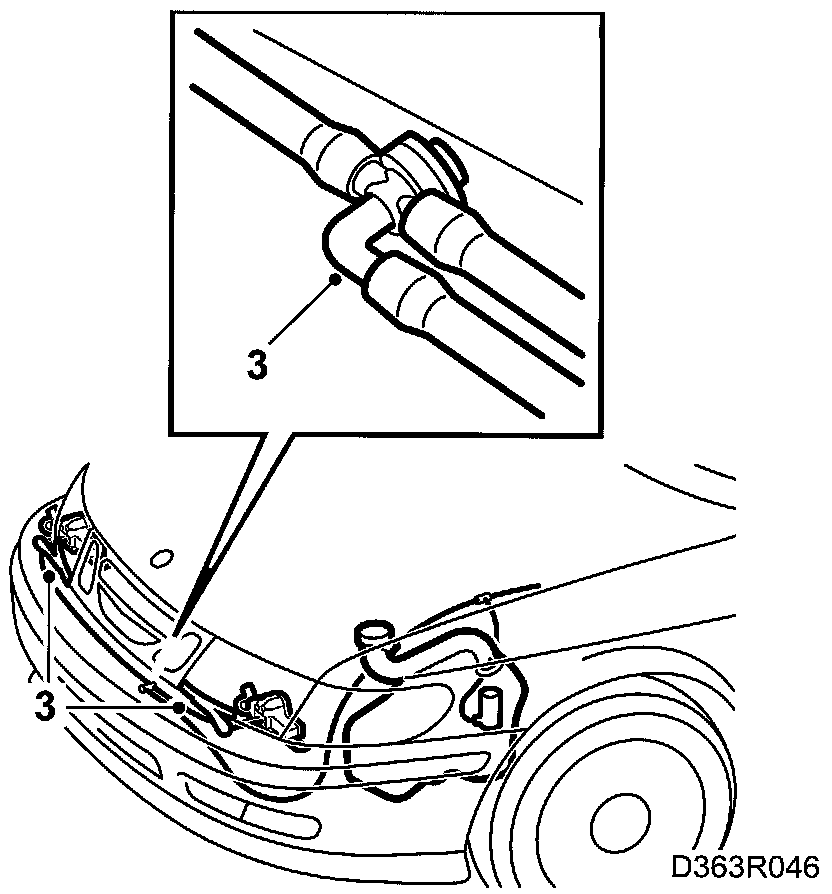

2. Remove the hose from the T-connection.

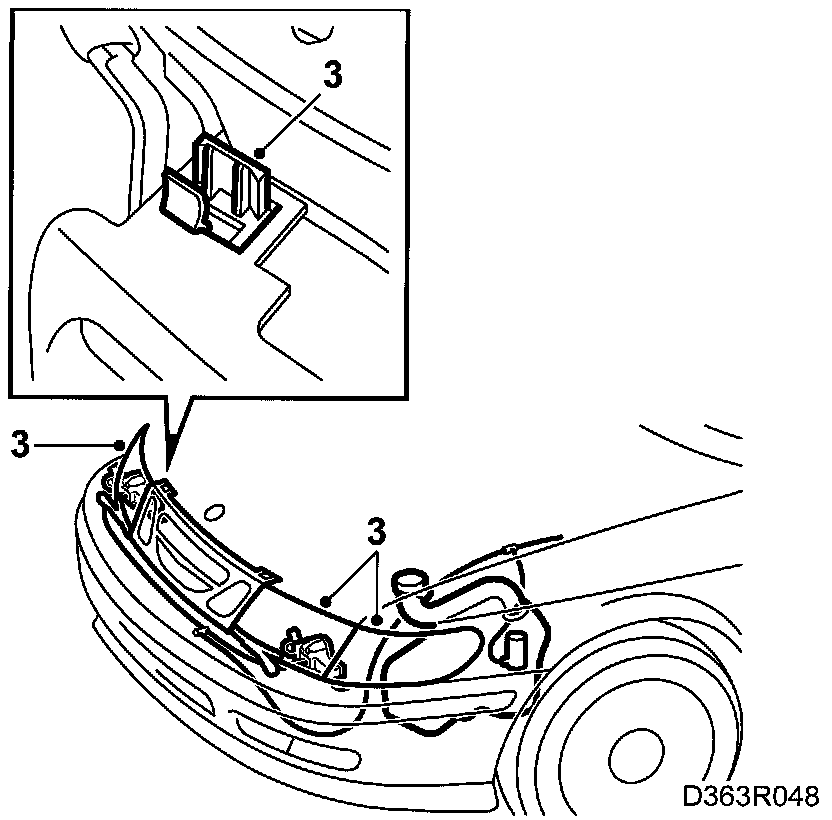

3. Remove the hose (2 clips).







Refitting

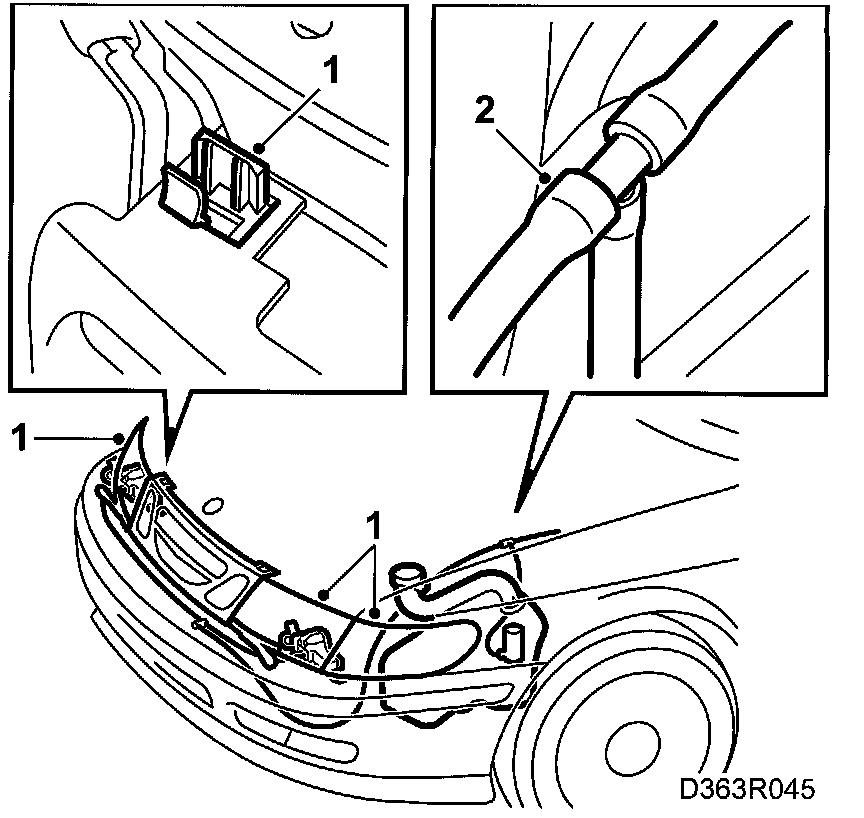

1. Refit the hose in the same position as it was previously (2 clips).
2. Connect the hose to the nozzles.
3. Fit the direction indicators and headlamps.
