Tool Numbers 87 92 004 Through 89 96 696

87 92 004 Press tool, 21 teeth
Pinion bearings
86 11 584 Tool board T4
Used together with 87 90 636 Fixture
Group: Manual gearbox

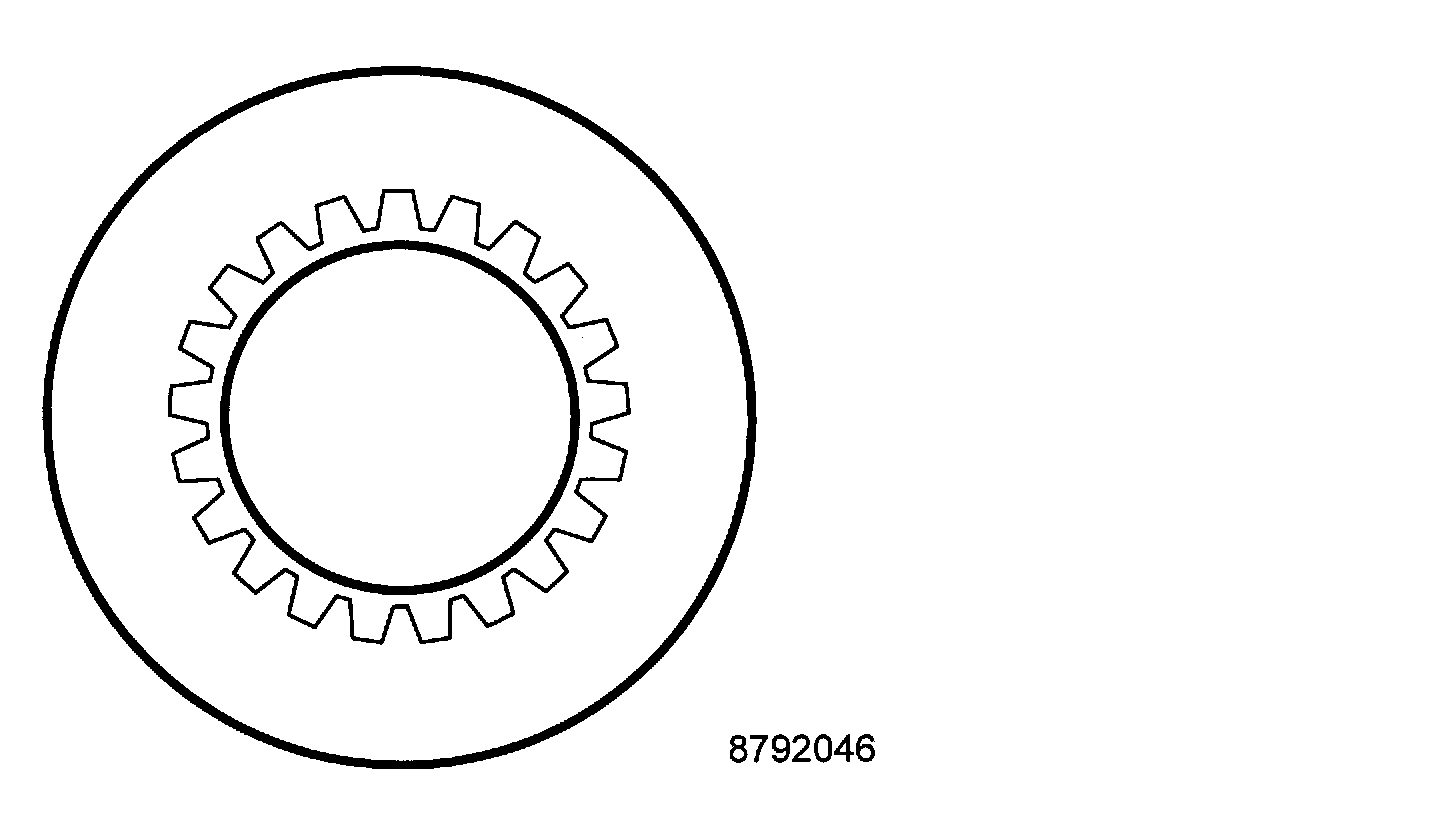

87 92 046 Press tool, 23 teeth
Pinion bearings
86 11 584 Toolboard T4
Used together with 82 90 636 Fixture
Group: Manual gearbox






87 92 053 Driver
For measuring bearing play
86 11 584 Toolboard T4
Group: Manual gearbox






87 92 061 Millimeter wheel, 27 mm
For adjusting pinion bearing pre-tension
86 11 584 Toolboard T4
Group: Manual gearbox

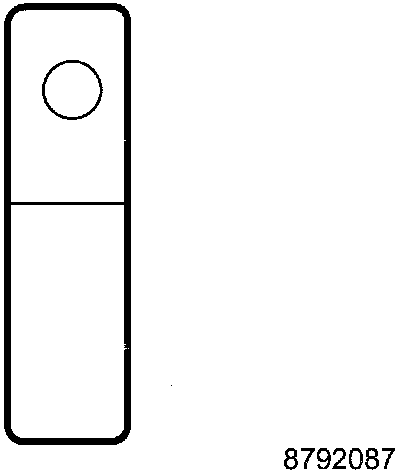

87 92 087 Mounting
Use with 87 92 194 Dial gauge kit
Group: Manual gearbox






87 92 095 Weight, differential bearing
For adjusting differential bearing pre-tension
Group: Manual gearbox






87 92 103 Assembly fixture, 1st and 2nd gear hubs
86 11 584 Toolboard T4
Group: Manual gearbox

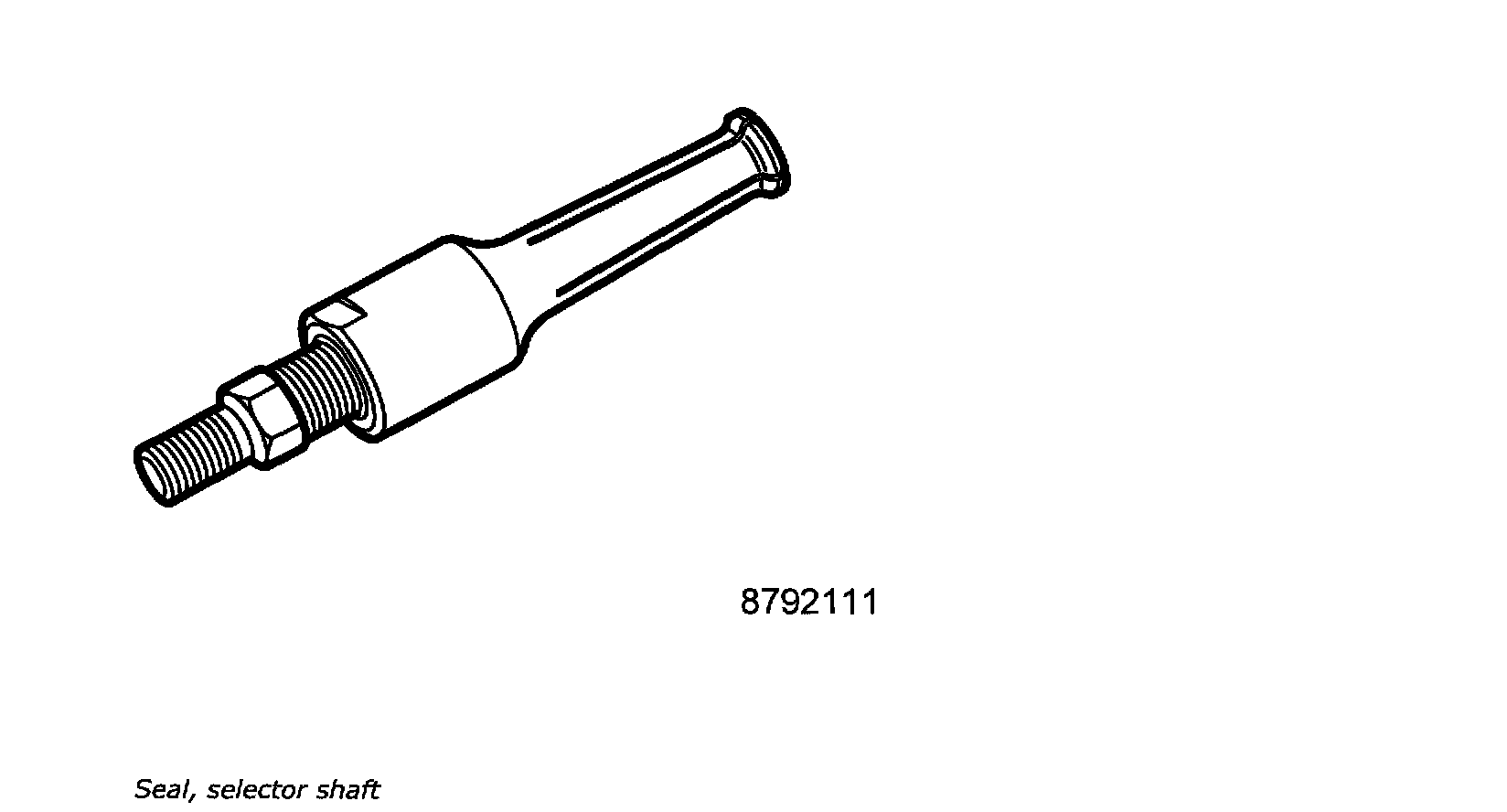

87 92 111 Puller
Seal, selector shaft
86 11 584 Toolboard T4
Used together with 87 92 319 Adapter, 318" - M10 and 83 90 270 sliding hammer
Group: Manual gearbox






87 92129 Attachment eye, puller (x2)
For removing the gearcase
86 11 584 Toolboard T4
Group: Manual gearbox






87 92 137 Ground bearing race
For adjusting differential bearing pre-tension
86 11 584 Toolboard T4
Use with 87 92 095 Weight, differential bearing
Group: Manual gearbox

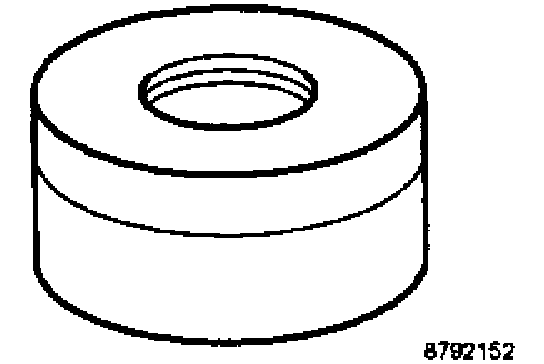

87 92 152 Puller
Bearing, input shaft
86 11 584 Toolboard T4
Use with 87 91 642 Basic tool
Group: Manual gearbox






87 92 160 Puller ring, 22 teeth
Pinion bearing
86 11 584 Toolboard T4
Use with 87 90 636 Fixture
Group: Manual gearbox

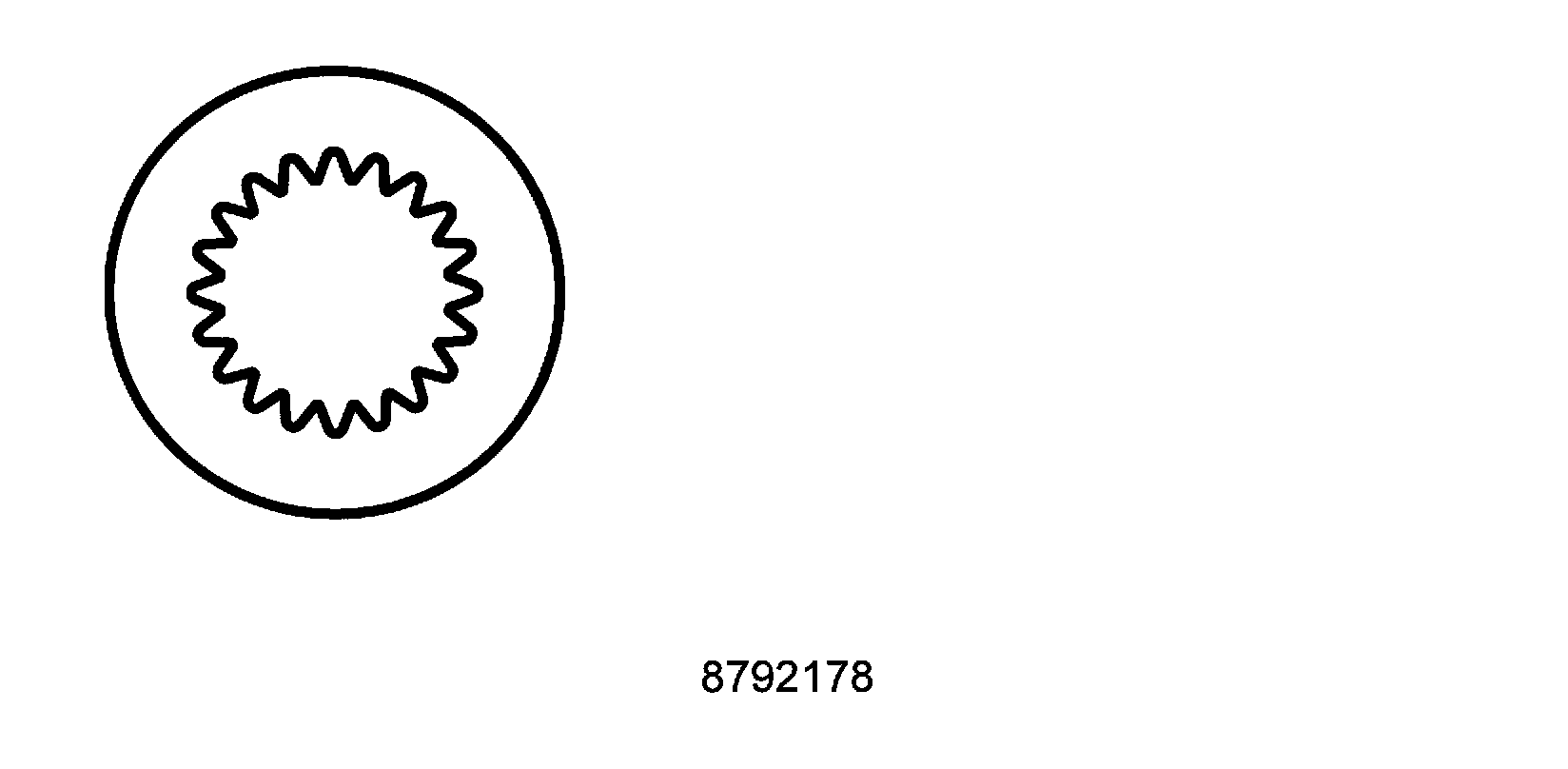

87 92 178 Press tool, 20 teeth
Pinion bearings
86 11 584 Tool board T4
Used together with 87 90 636 Fixture
Group: Manual gearbox






87 92 194 Kit, dial gauge
86 11 584 Toolboard T4
Group: Manual gearbox






87 92 202 Sleeve
For fitting pinion bearings and bearing races
86 11 584 Toolboard T4
Group: Manual gearbox

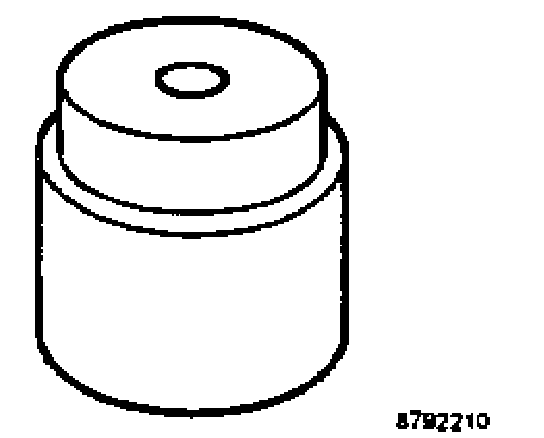

87 92 210 Support, differential bearing
86 11 584 Toolboard T4
Group: Manual gearbox






87 92 228 Holder, transmission
86 11 568 Toolboard T6
Use with 78 74 878 Floor stand
Group: Manual gearbox, Automatic transmission






87 92 244 Protective plugs, F25 drive shaft hole
86 11 584 Toolboard T4
Group: Manual gearbox, automatic transmission






87 92 319 Adapter, 3/8"- M10
86 11 584 Tool board T4
Used together with 83 90 270 Sliding hammer
Group: Manual gearbox






87 92 335 Locking pin
For adjusting gear lever position (x2)
86 11 618 Toolboard T1
Group: Manual gearbox






87 92 343 Puller, differential bearing, 5th gear hub
86 11 584 Toolboard T4
Group: Manual gearbox

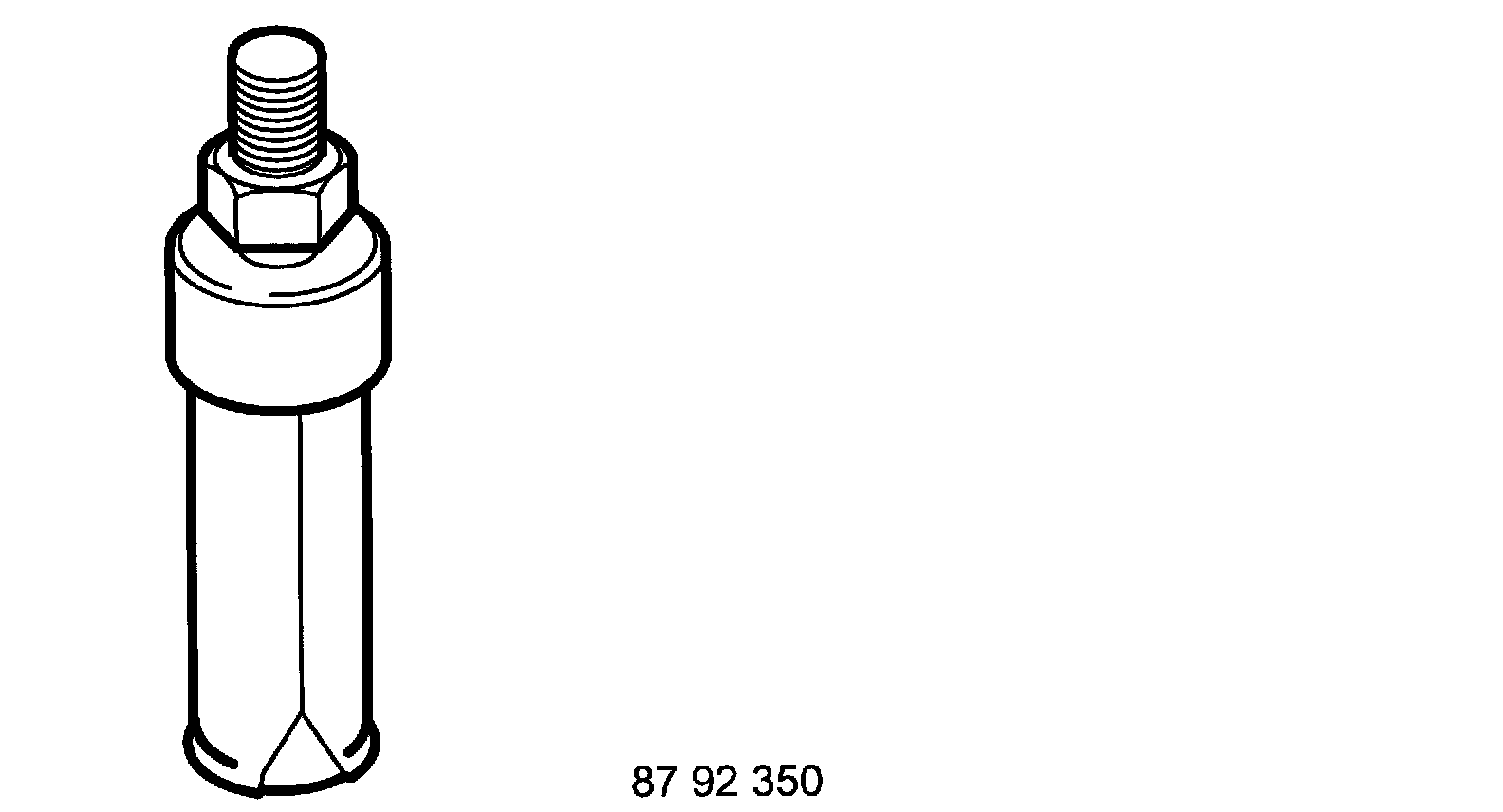

87 92 350 Puller, drive shaft seal
86 11 592 Toolboard T5
Use with 87 91 683 Puller
Group: Automatic transmission

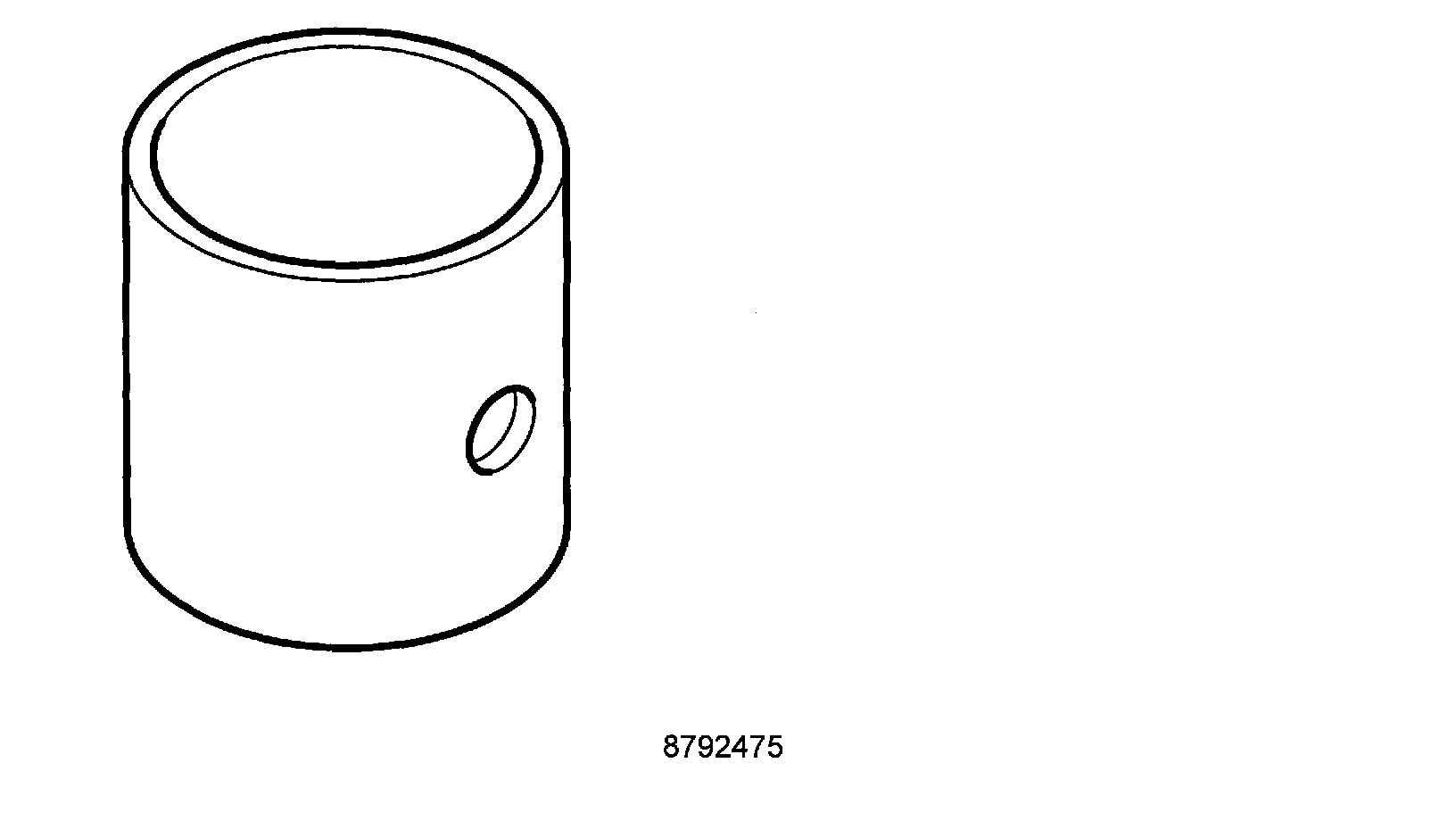

87 92 475 Press sleeve, differential bearing
86 11 584 Toolboard T4
Group: Manual gearbox

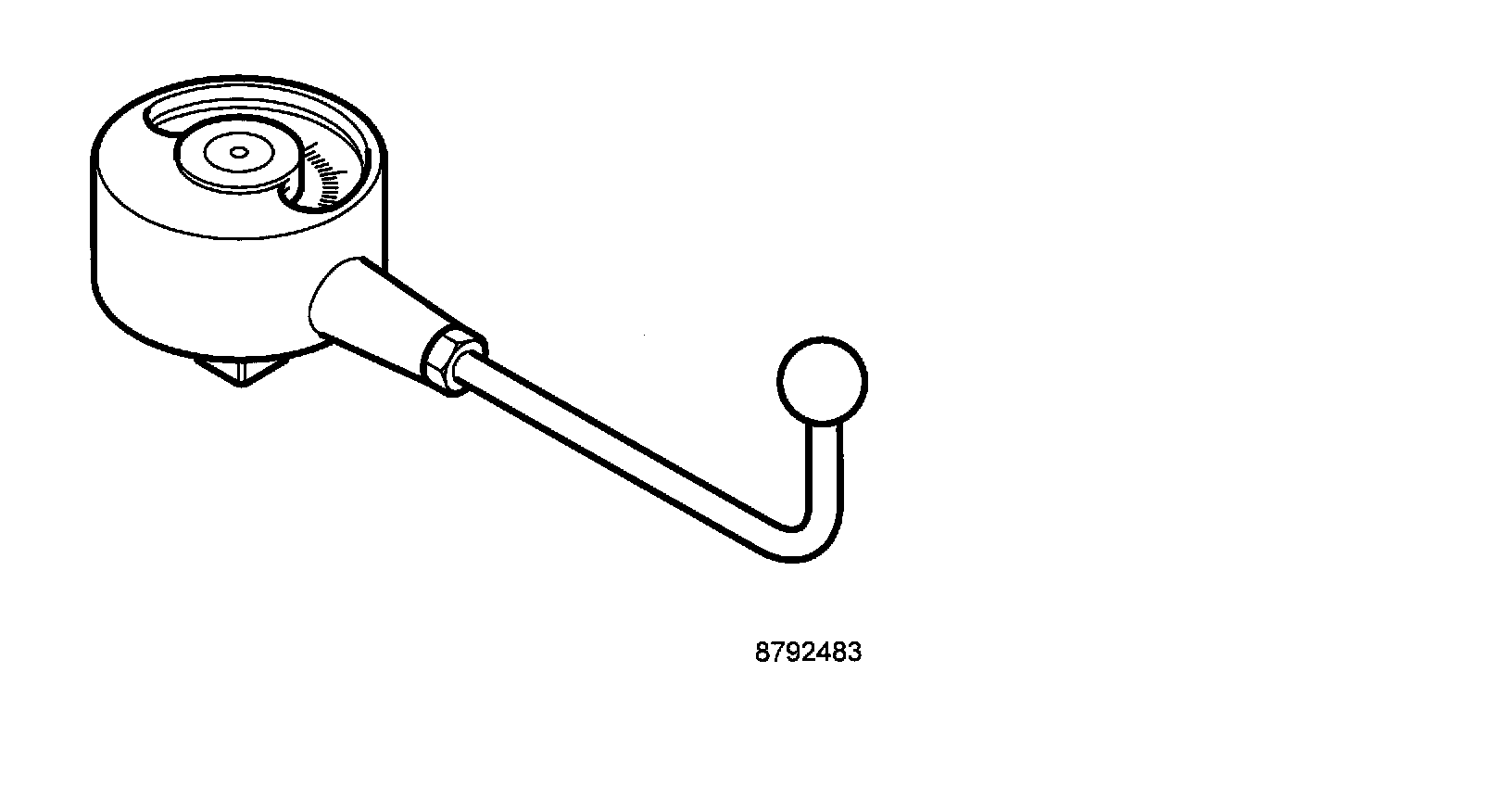

87 92 483 Torque wrench
For adjusting pinion bearing pre-tension
86 11 584 Toolboard T4
Group: Manual gearbox

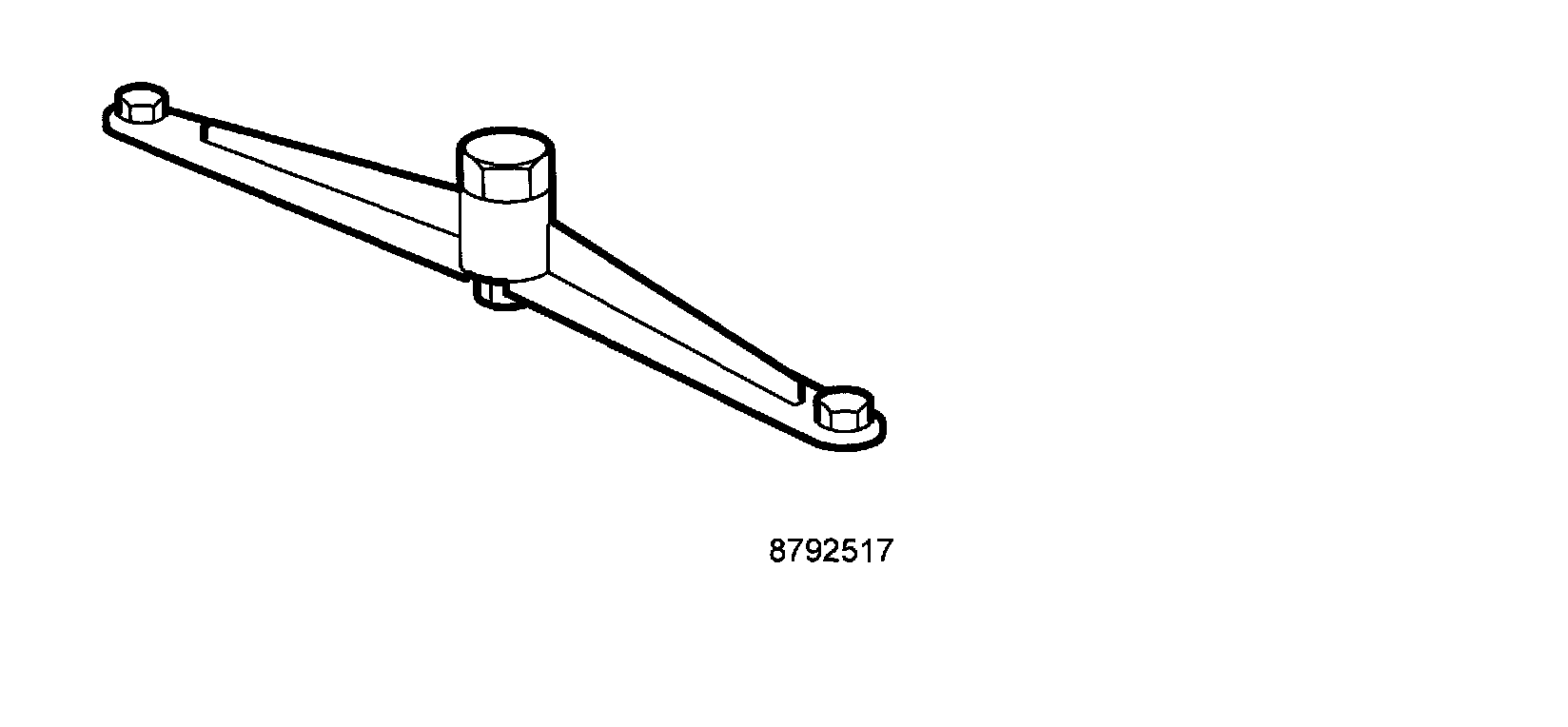

87 92 517 Holding tool, input shaft
86 11 584.Toolboard T4
Group: Manual gearbox






87 92 566 Puller, 5th gear pinion
86 11 584 Tool board T4
Use with 89 96 084 Puller wheel hub
Group: Manual gearbox

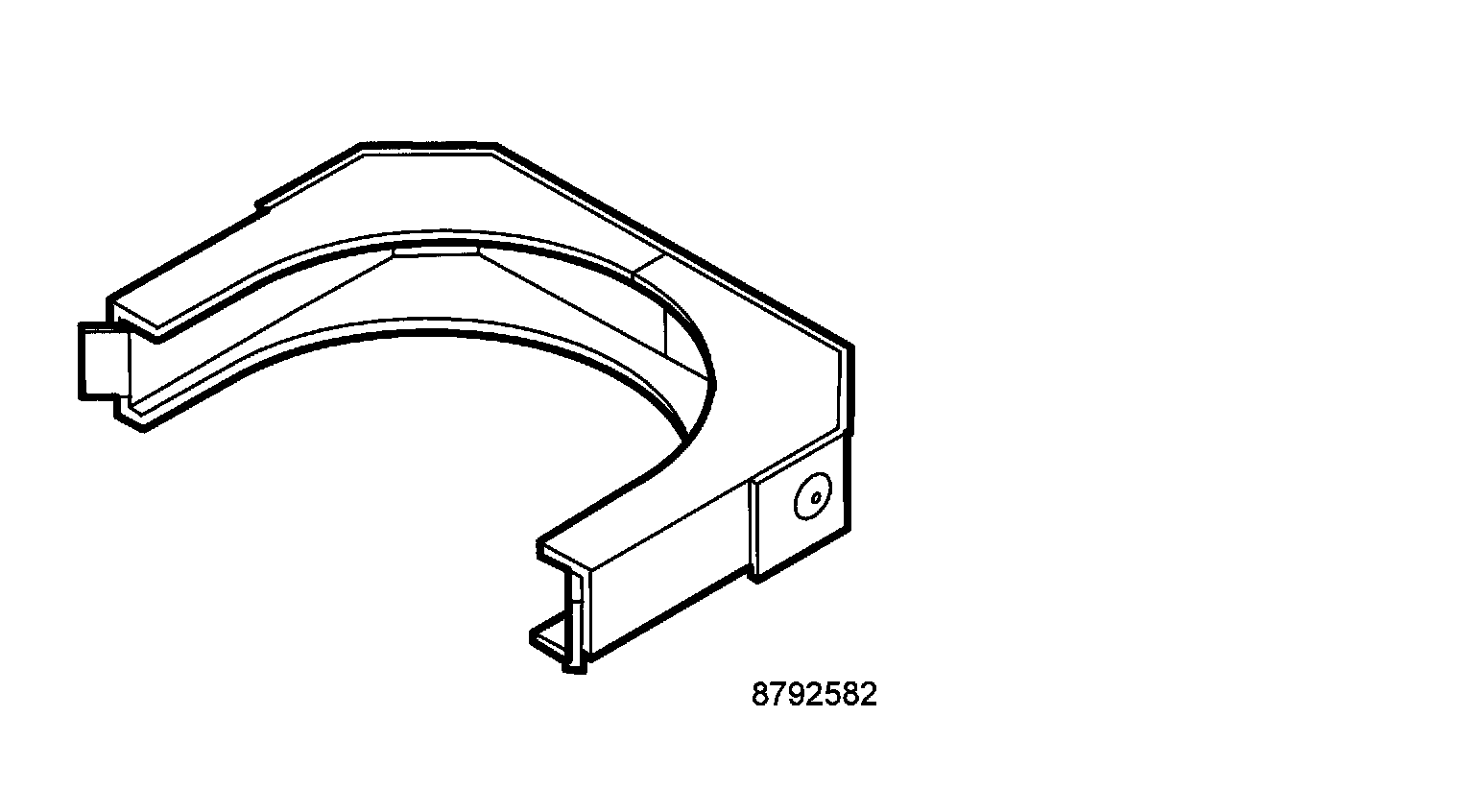

87 92 582 Fixture, 5th gear synchromesh hub
86 11 584 Toolboard T4
Group: Manual gearbox

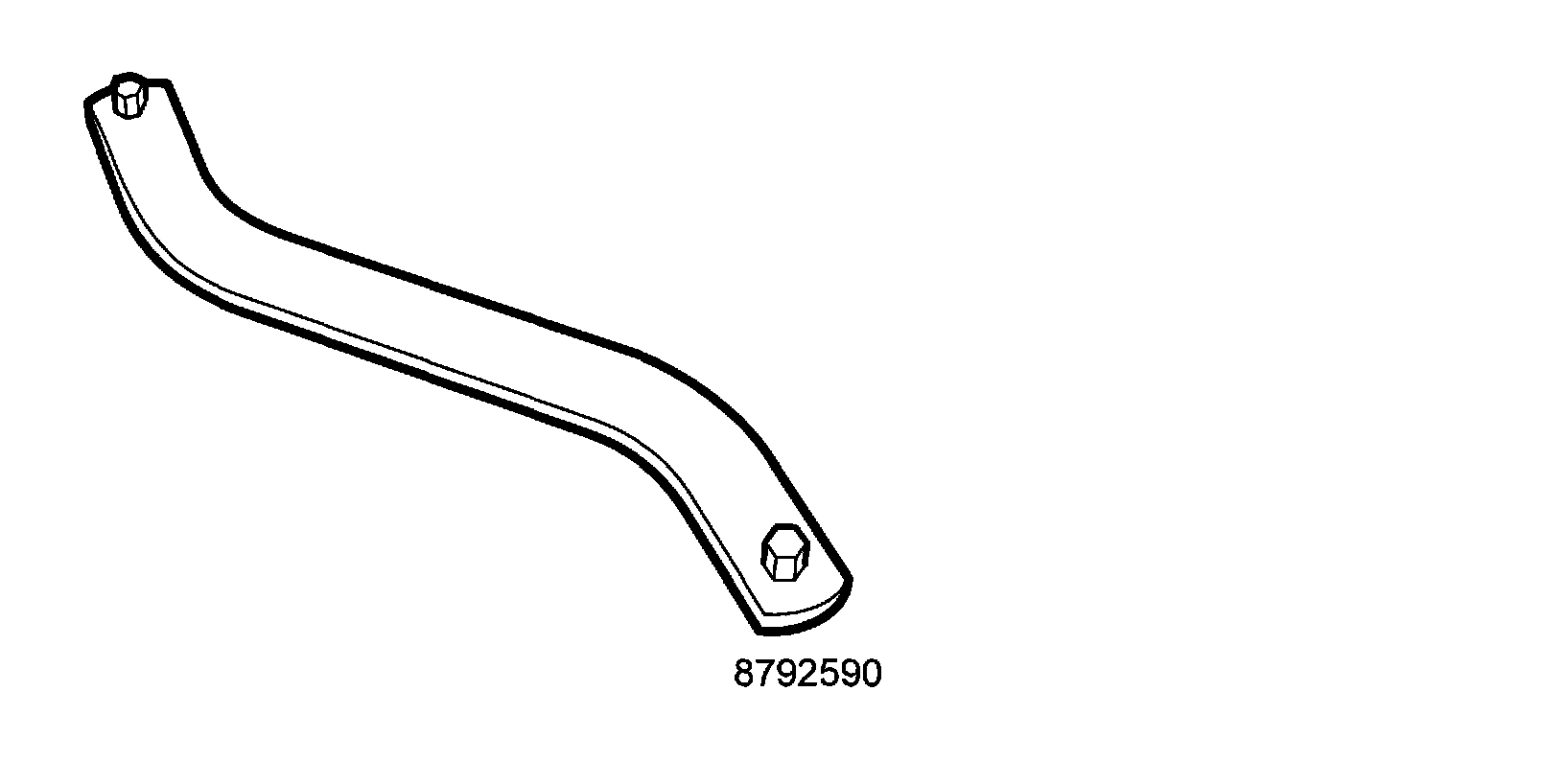

87 92 590 Tool, oil level plug
86 11 618 Toolboard T1
Group: Manual gearbox

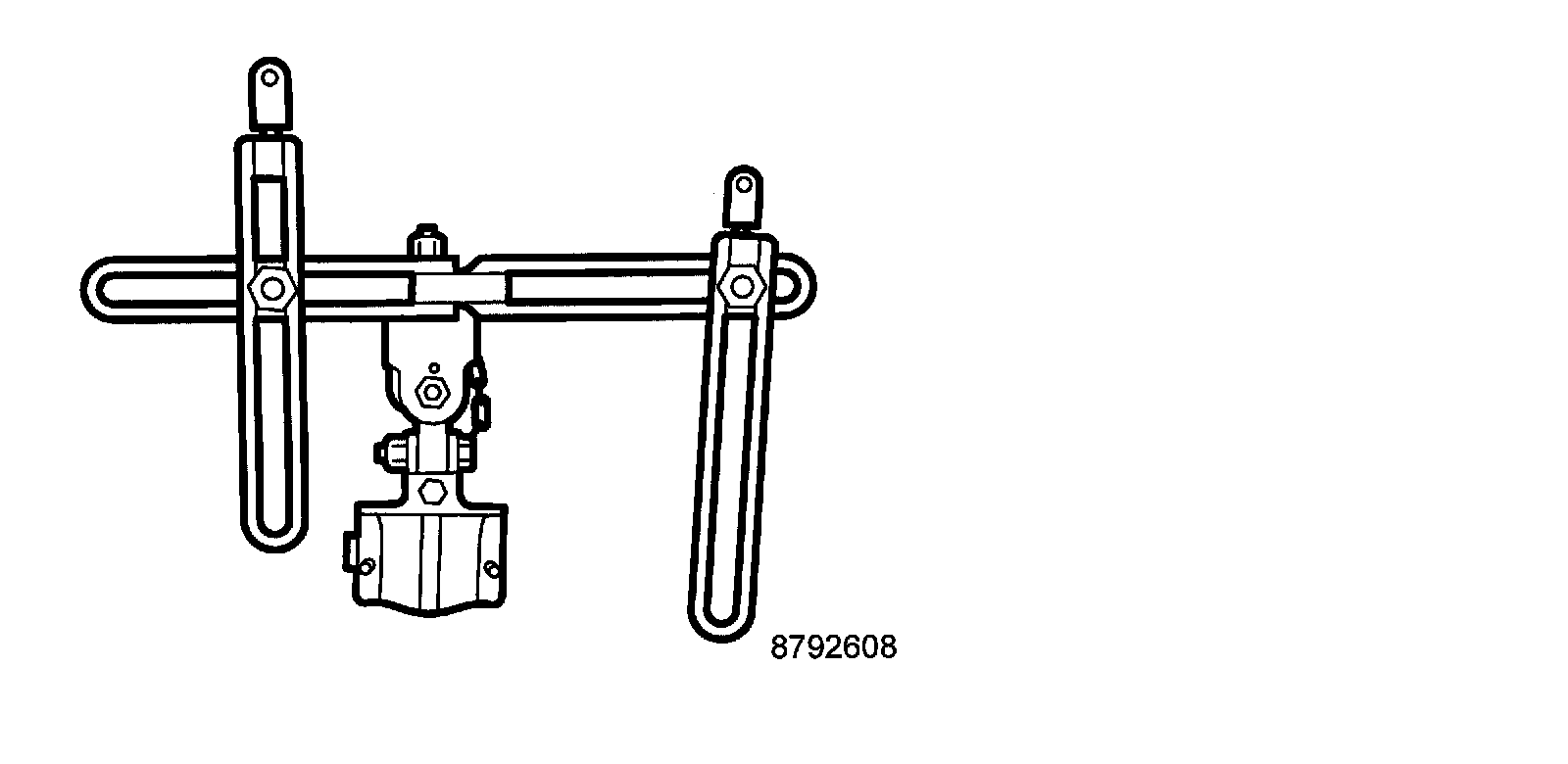

87 92 608 Holder for single-column lift
For removing and fitting gearbox
Group: Manual gearbox






87 92 616 Removing tool, drive shafts
86 11 618 Tool board T1
Group: Manual gearbox






87 92 632 Locking pin
For adjusting gear lever position. Designed for gear lever housing.
86 11 618 Toolboard T1
Group: Manual gearbox

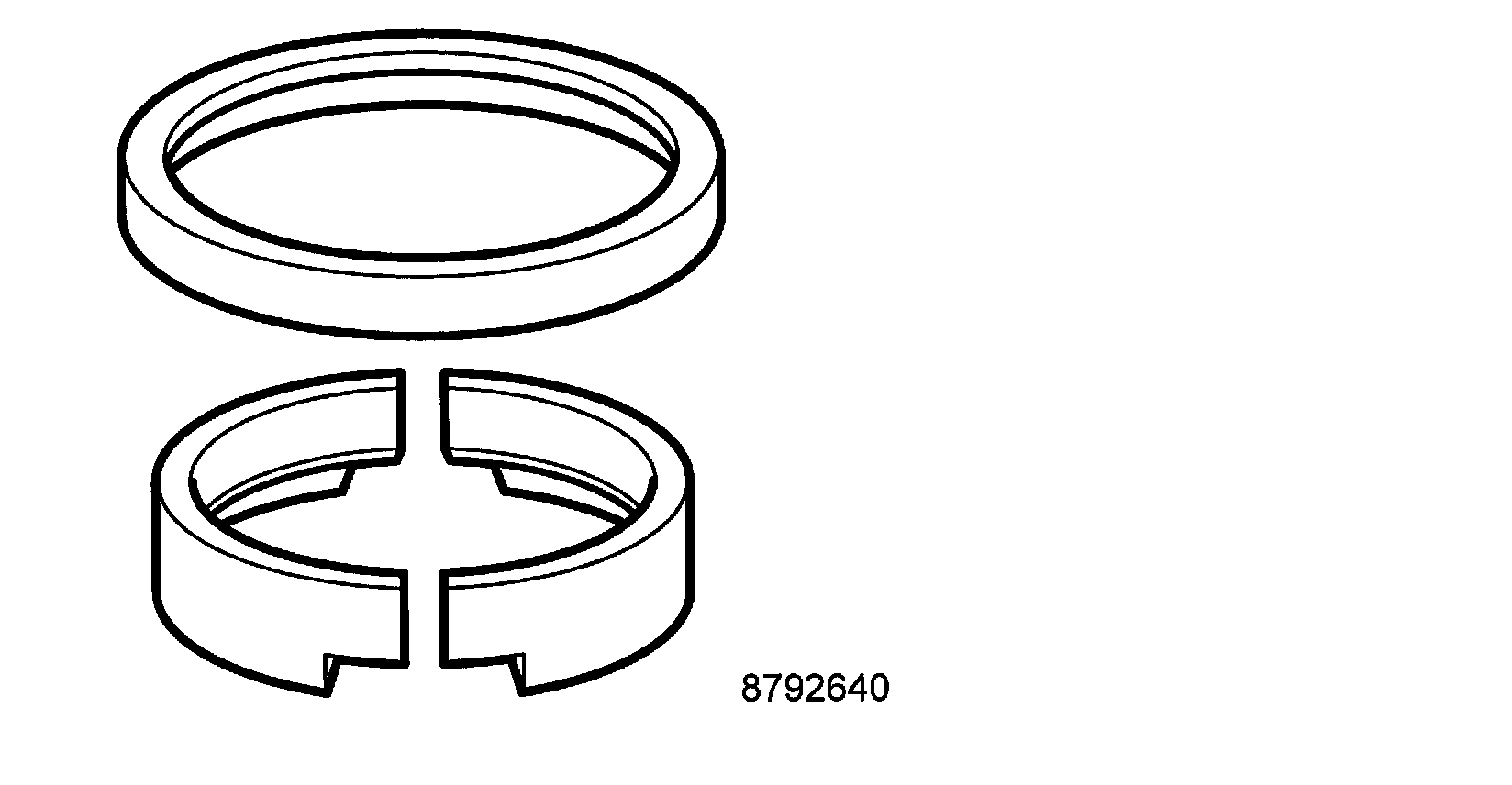

87 92 640 Tool, 5th gear synchromesh hub
86 11 618 Toolboard T1
Group: Manual gearbox

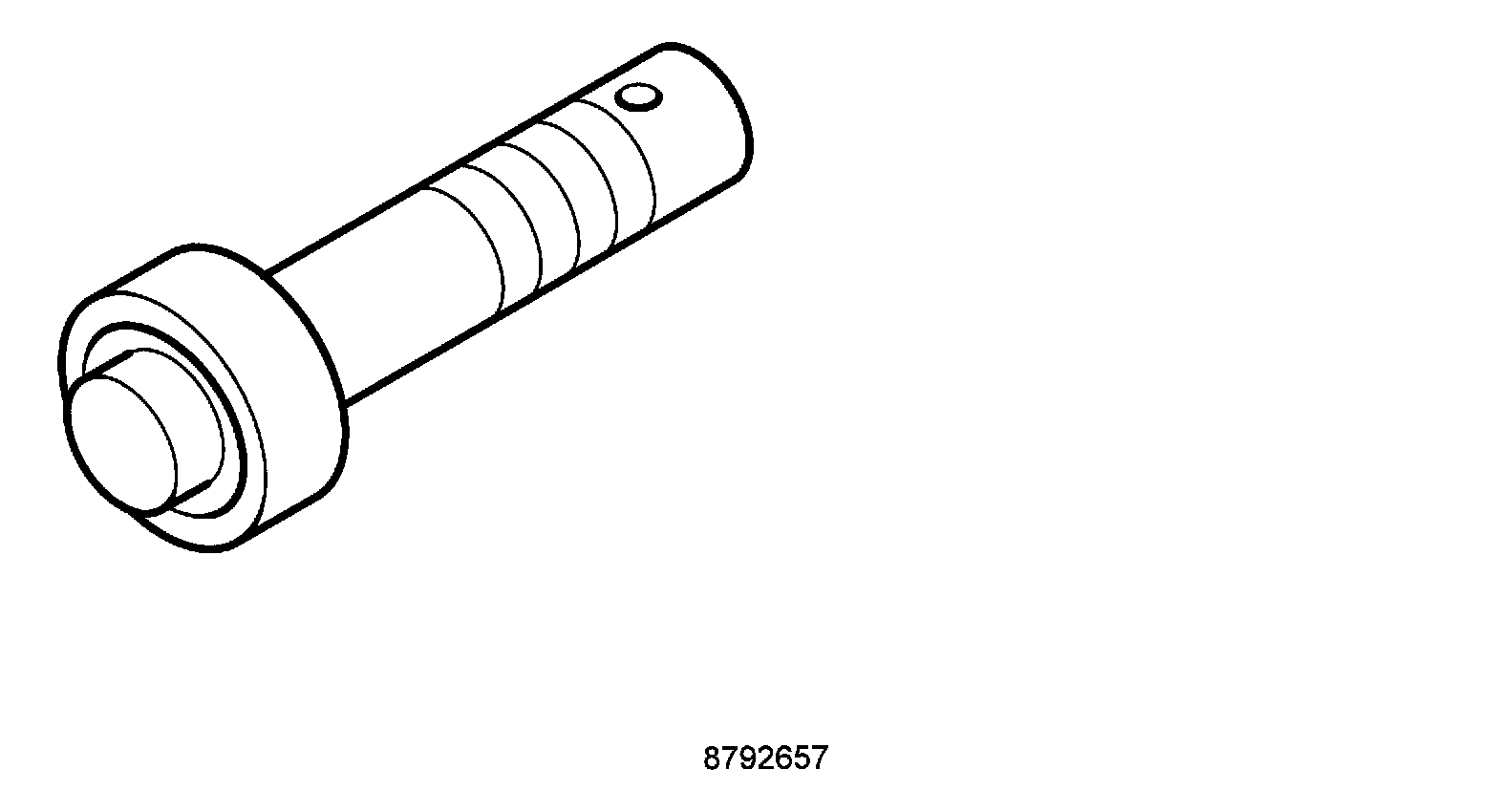

87 92 657 Fitting drift, drive shaft seals
86 11 618 Toolboard T1
Group: Manual gearbox, Automatic transmission






89 96 084 Puller, wheel hub
86 11 600 Toolboard T2
Group: Chassis

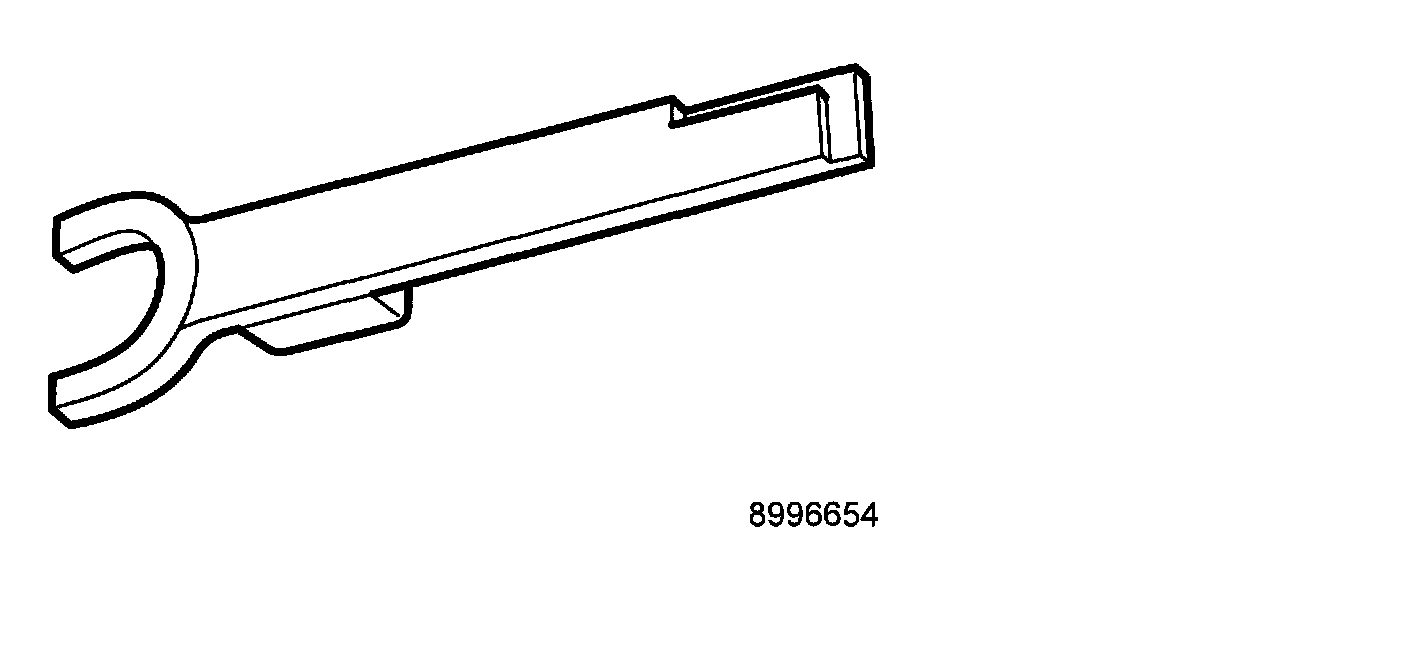

89 96 654 Removing tool, drive shaft
86 11 618 Tool board T1
Group: Manual gearbox






89 96 696 Puller
Removing the ball joint and steering link
86 11 600 Tool board T2
Group: Chassis
