Tool Numbers 78 41 067 Through 87 91 972

78 41 067 Sleeve, bearing, inner driver
86 11 584 Toolboard T4
Group: Manual gearbox

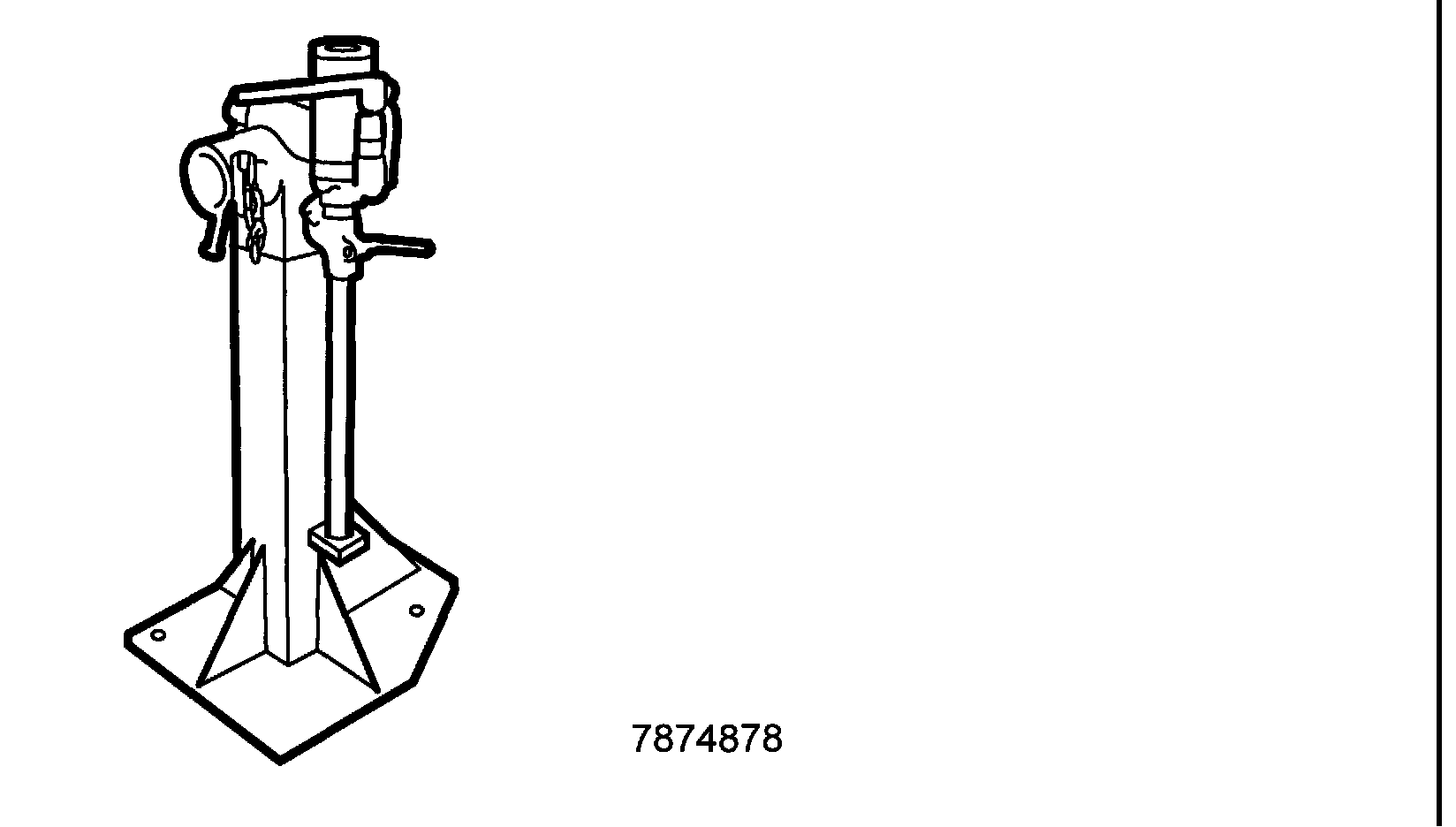

78 74 878 Floor stand
Group: Engine, Manual gearbox

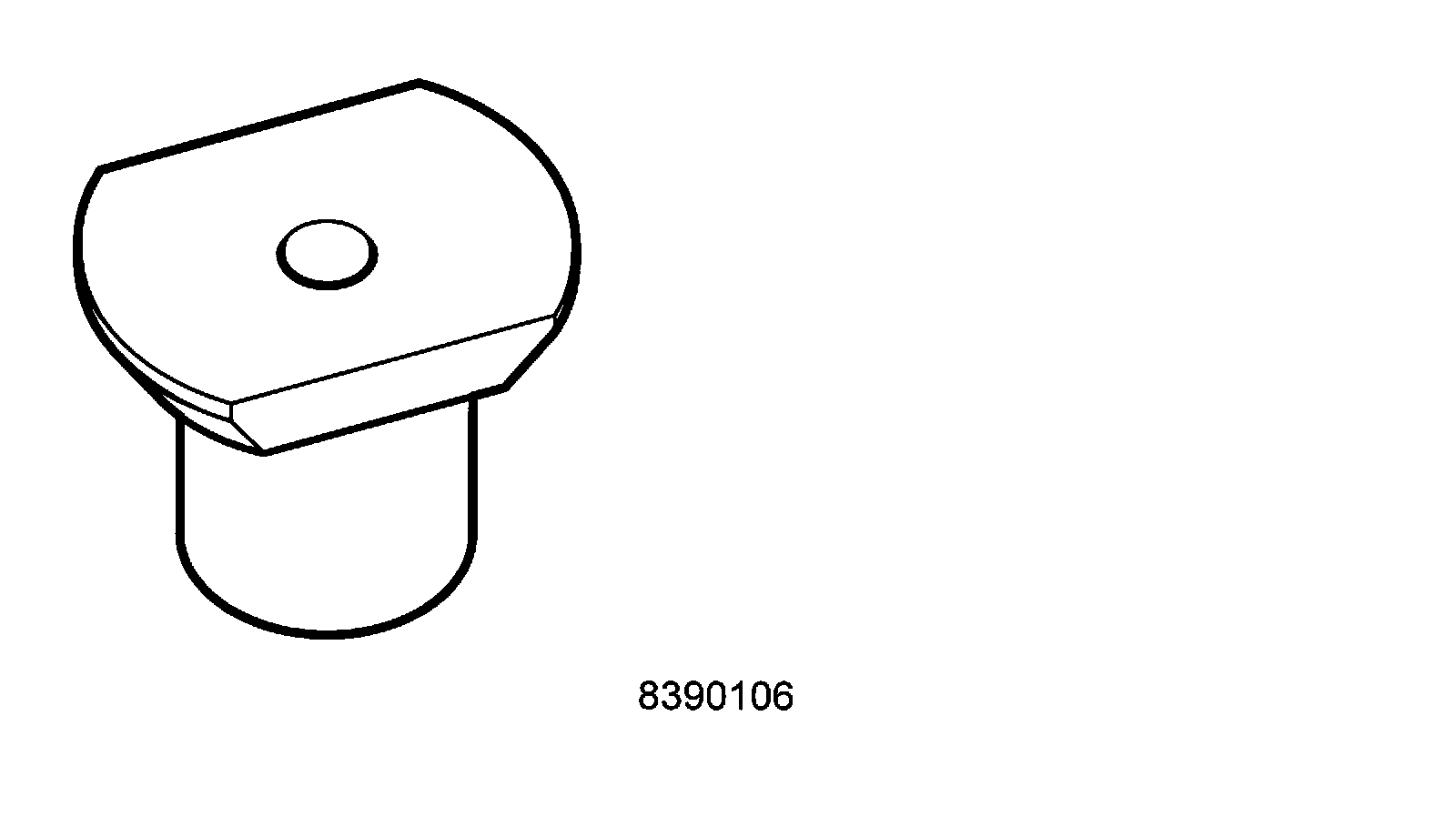

83 90 106 Drift, pinion bearings
86 11 584 Toolboard T4
Group: Manual gearbox






83 90 114 Sleeve, 4th pinion
86 11 584 Toolboard T4
Group: Manual gearbox

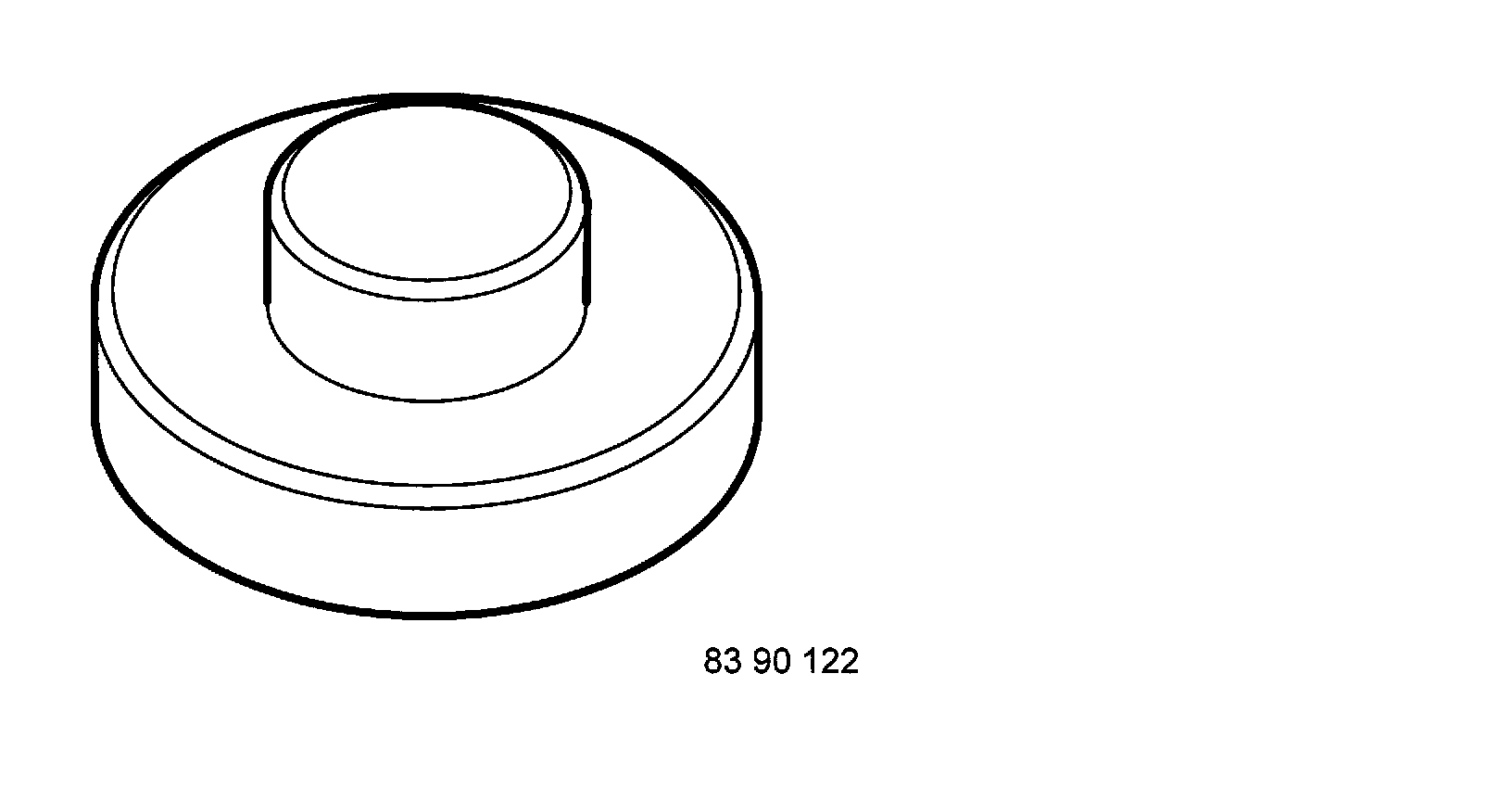

83 90 122 Drift
86 11 584 Toolboard T4
Group: Manual gearbox






83 90 148 Sleeve
86 11 584 Toolboard T4

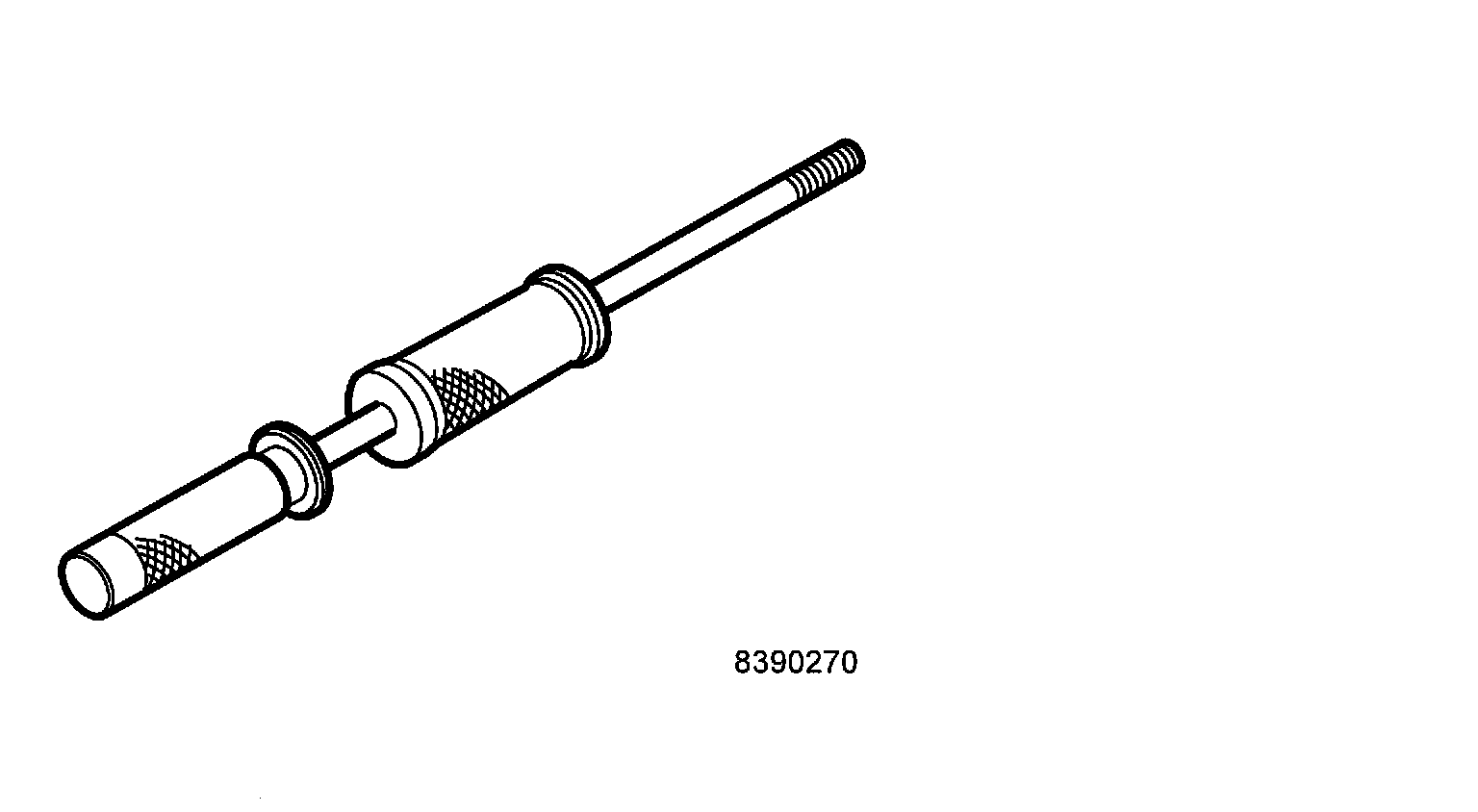

83 90 270 Sliding hammer
86 11 584 Toolboard T4
Use with 83 90 858 pin
Group: Manual gearbox

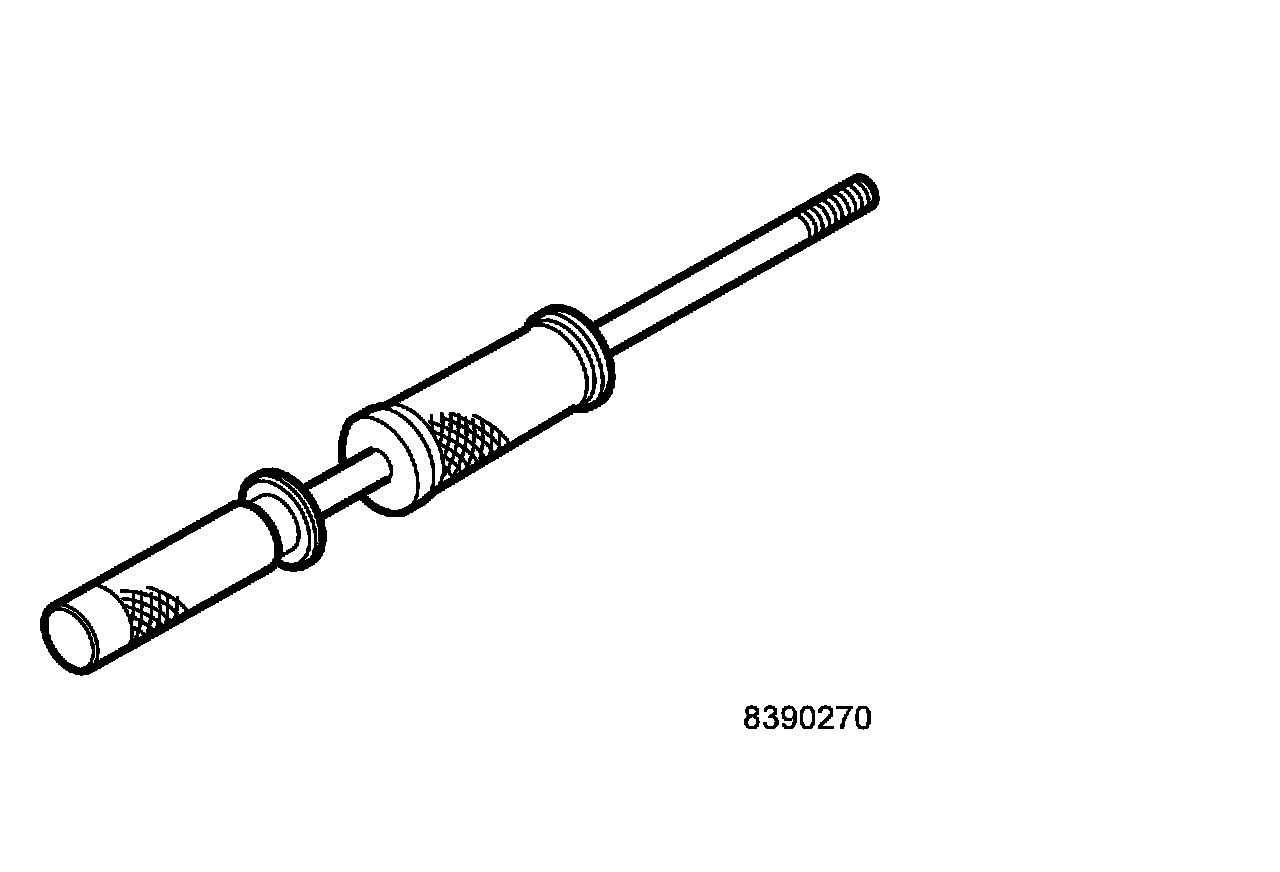

83 90 270 Sliding hammer
86 11 584 Toolboard T4
Use with 83 9P 858 Pin
Group: Manual gearbox

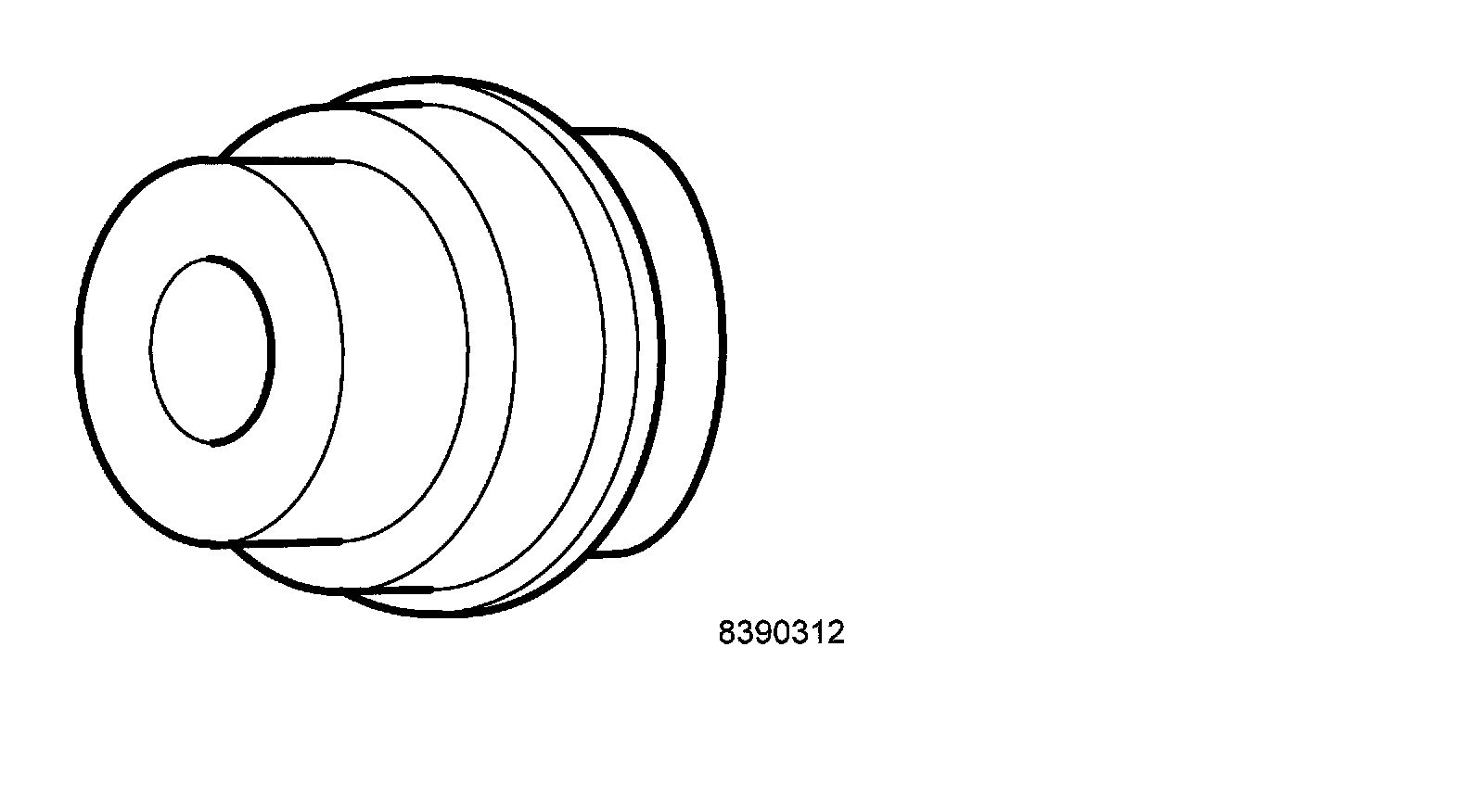

83 90 312 Drift, bearing race, input shaft
86 11 584 Toolboard T4
Group: Manual gearbox

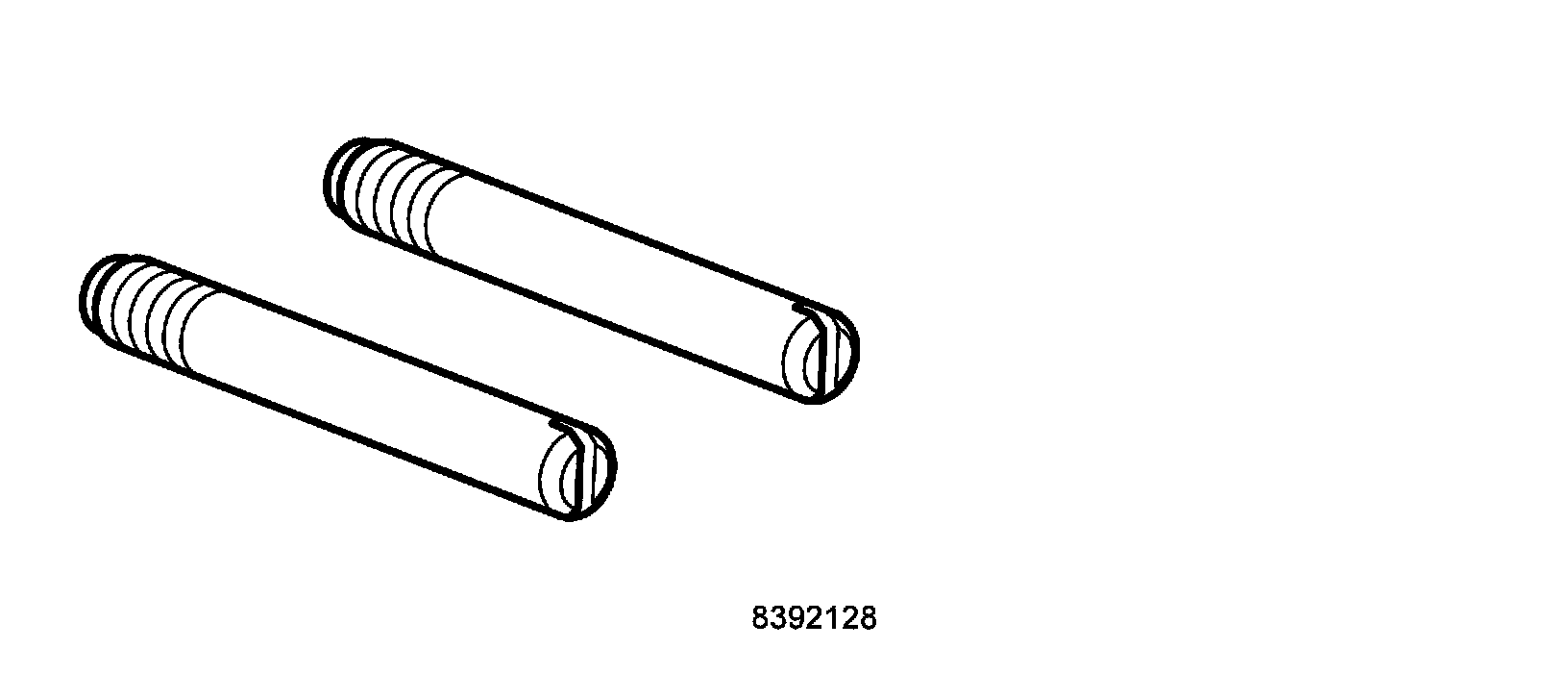

83 92 128 Guide pin (x2)
For fitting cylinder heads
86 11 618 Toolboard T1
Group: Engine

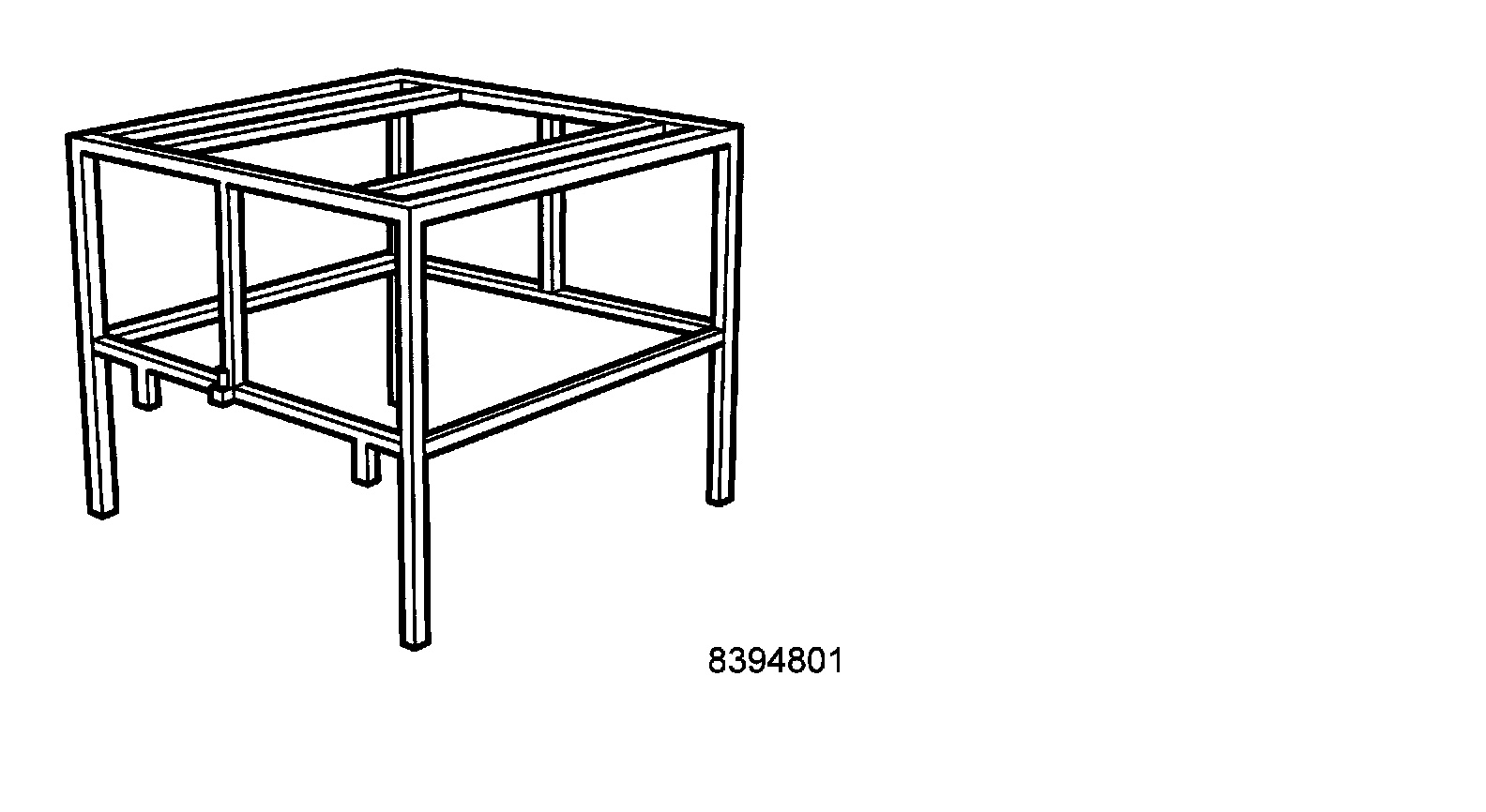

83 94 801 Parent fixture
Used together with 83 95 311 Spring compressor
Group: Miscellaneous






83 94 819 Holder, front
Used together with 83 95 311 Lifting trolley and 83 94 801 Parent fixture
Group: Miscellaneous

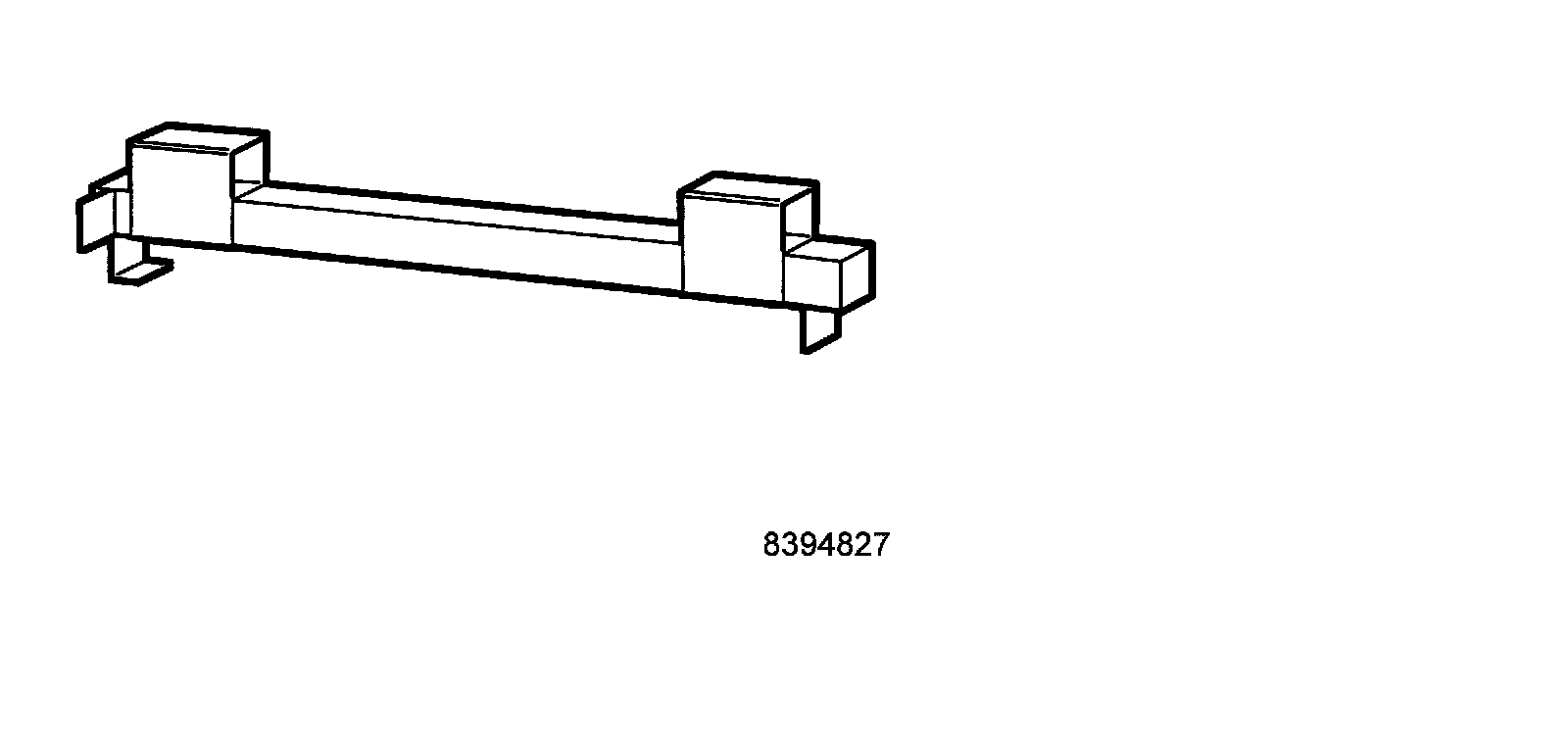

83 94 827 Holder, rear
Used together with 83 95 311 Lifting trolley and 83 94 801 Parent fixture
Group: Miscellaneous

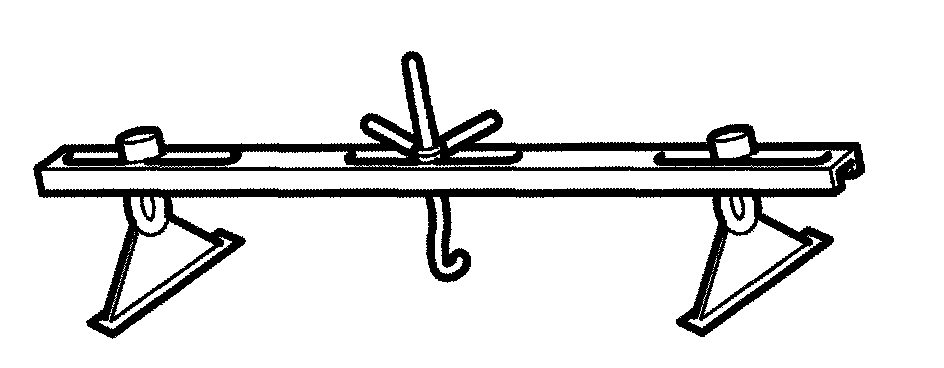

83 94 850 Lifting beam
Group: Engine, Manual gearbox

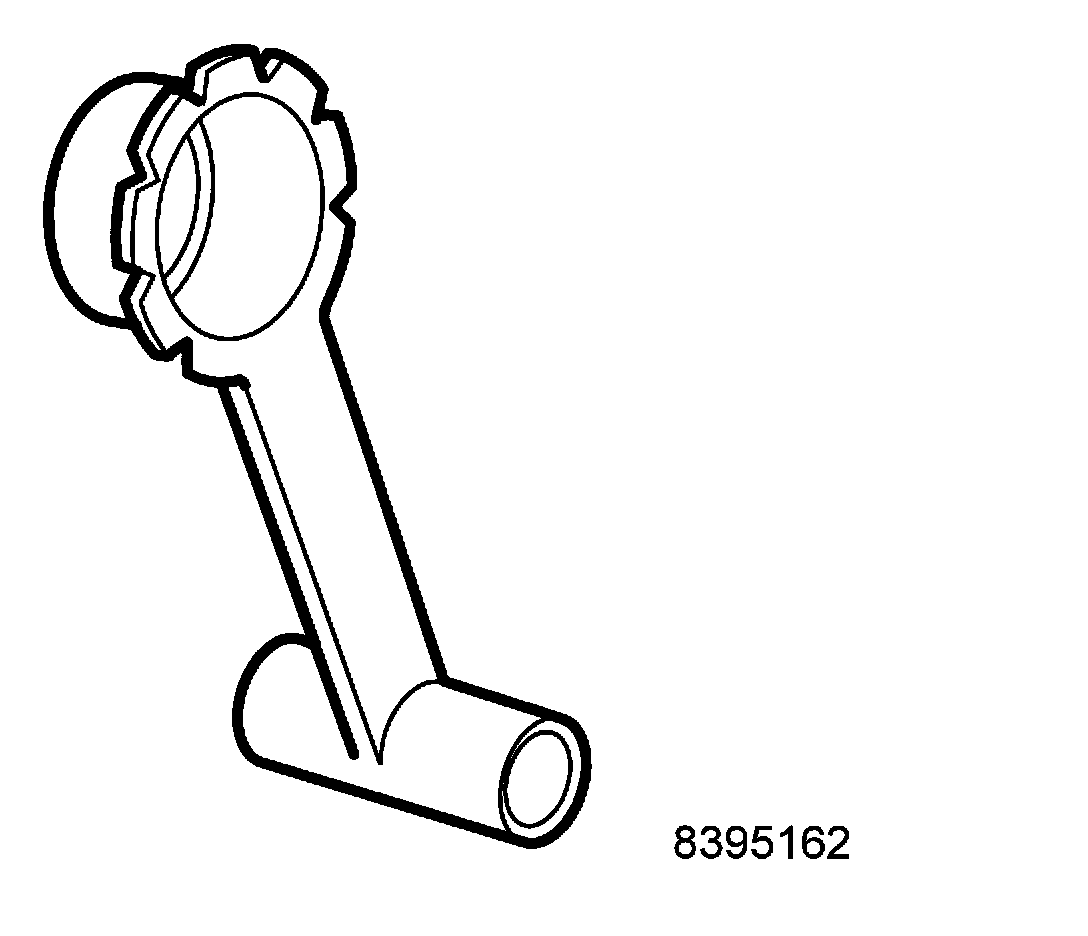

83 95 162 Protective collar, drive shafts
86 11 584 Toolboard T4
Group: Manual gearbox, Automatic transmission

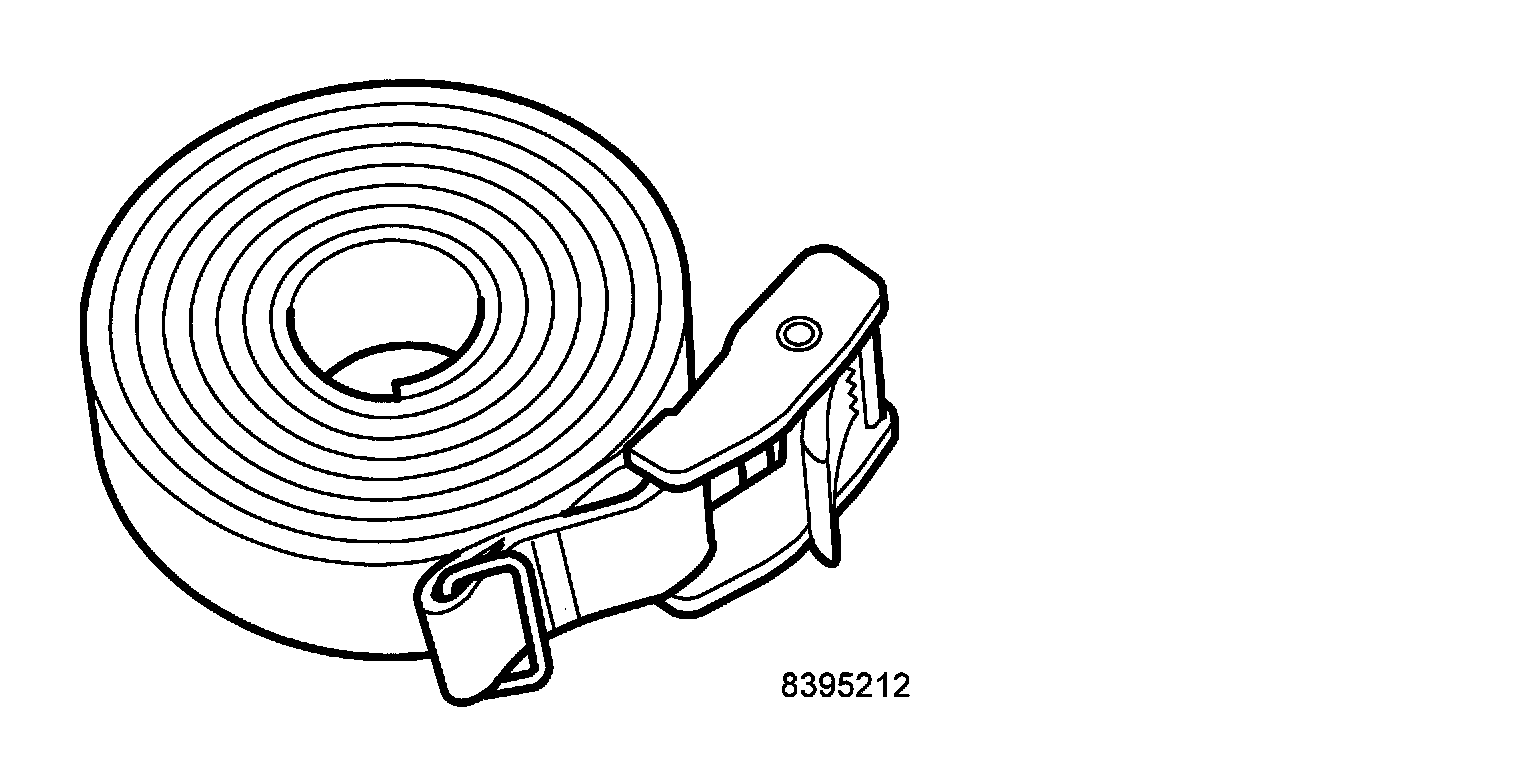

83 95 212 Strap
Supports heavy components such as AC compressor when removing and fitting
Group: Engine

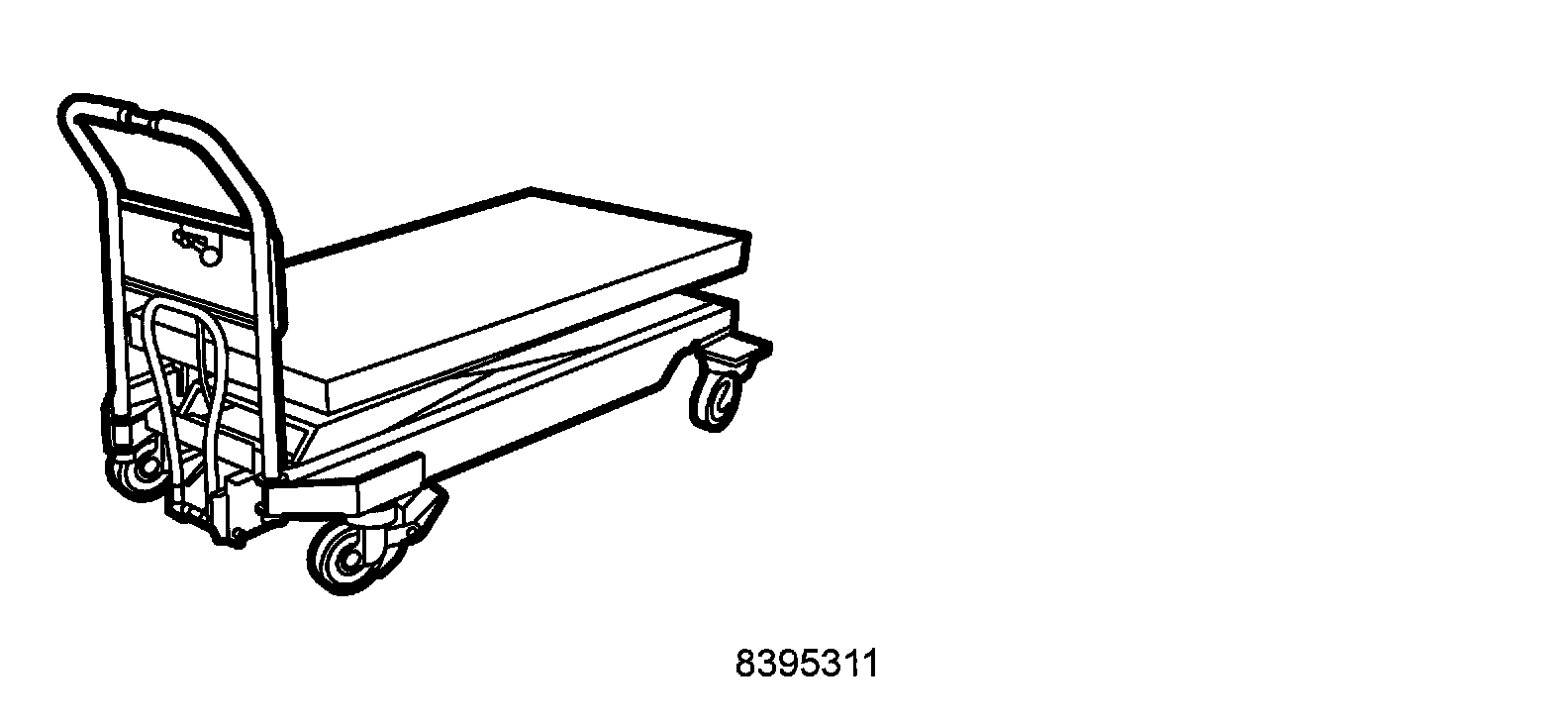

83 95 311 Trolley lift
Group: Miscellaneous

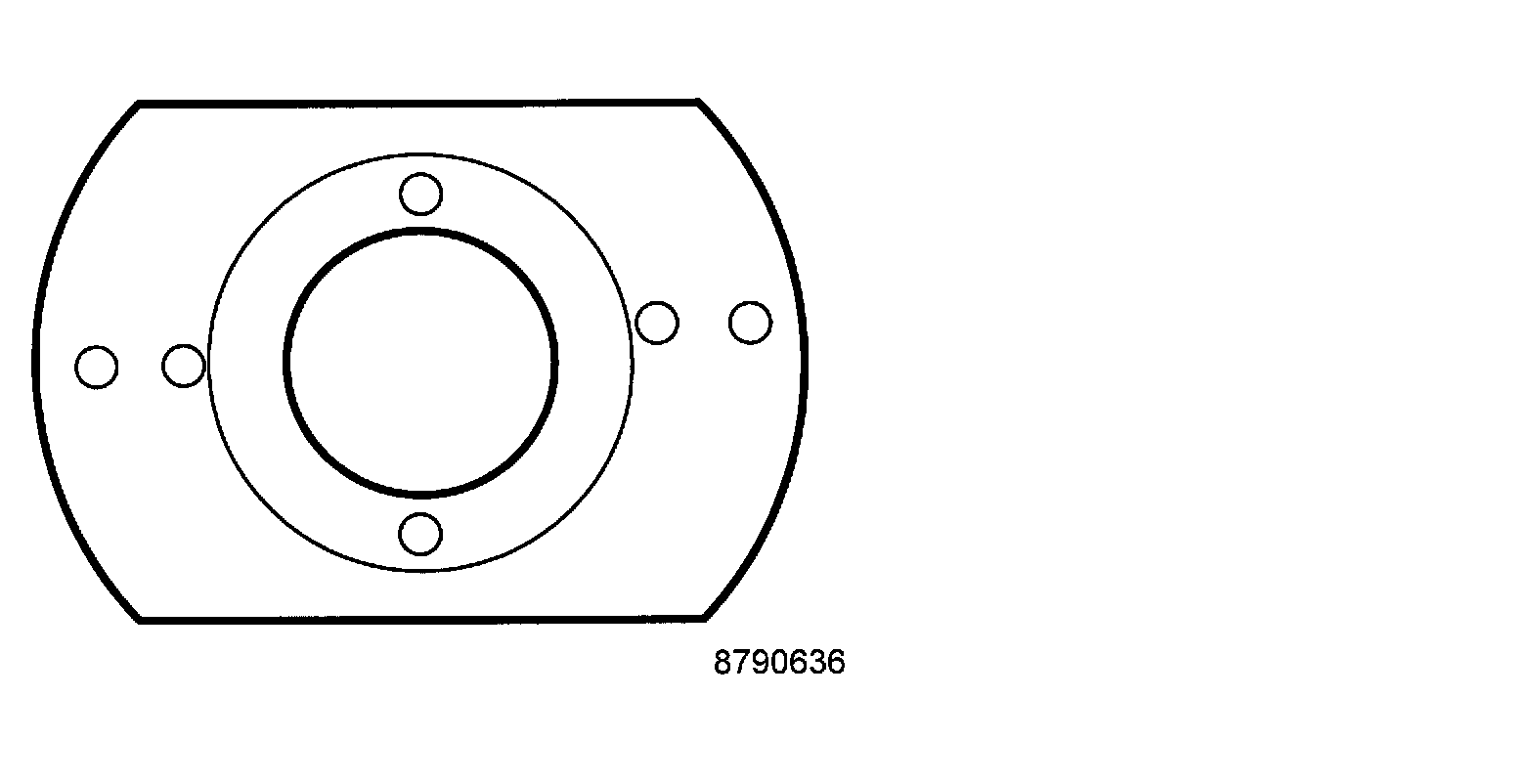

87 90 636 Fixture
86 11 484 Toolboard T4
Group: Manual gearbox. Automatic transmission

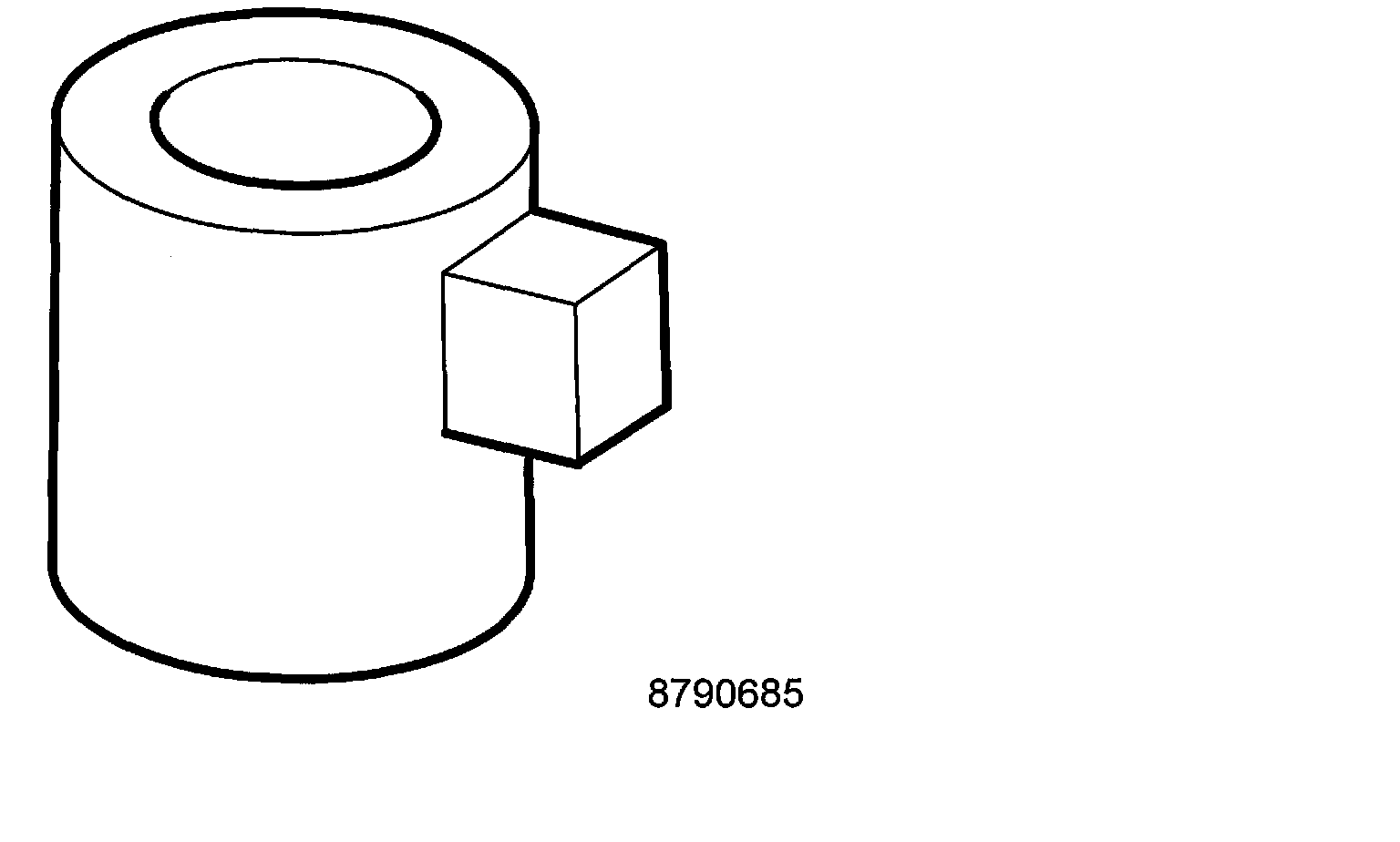

87 90 685 Assembly tool, selector shaft seal
86 11 584 Toolboard T4
Group: Manual gearbox

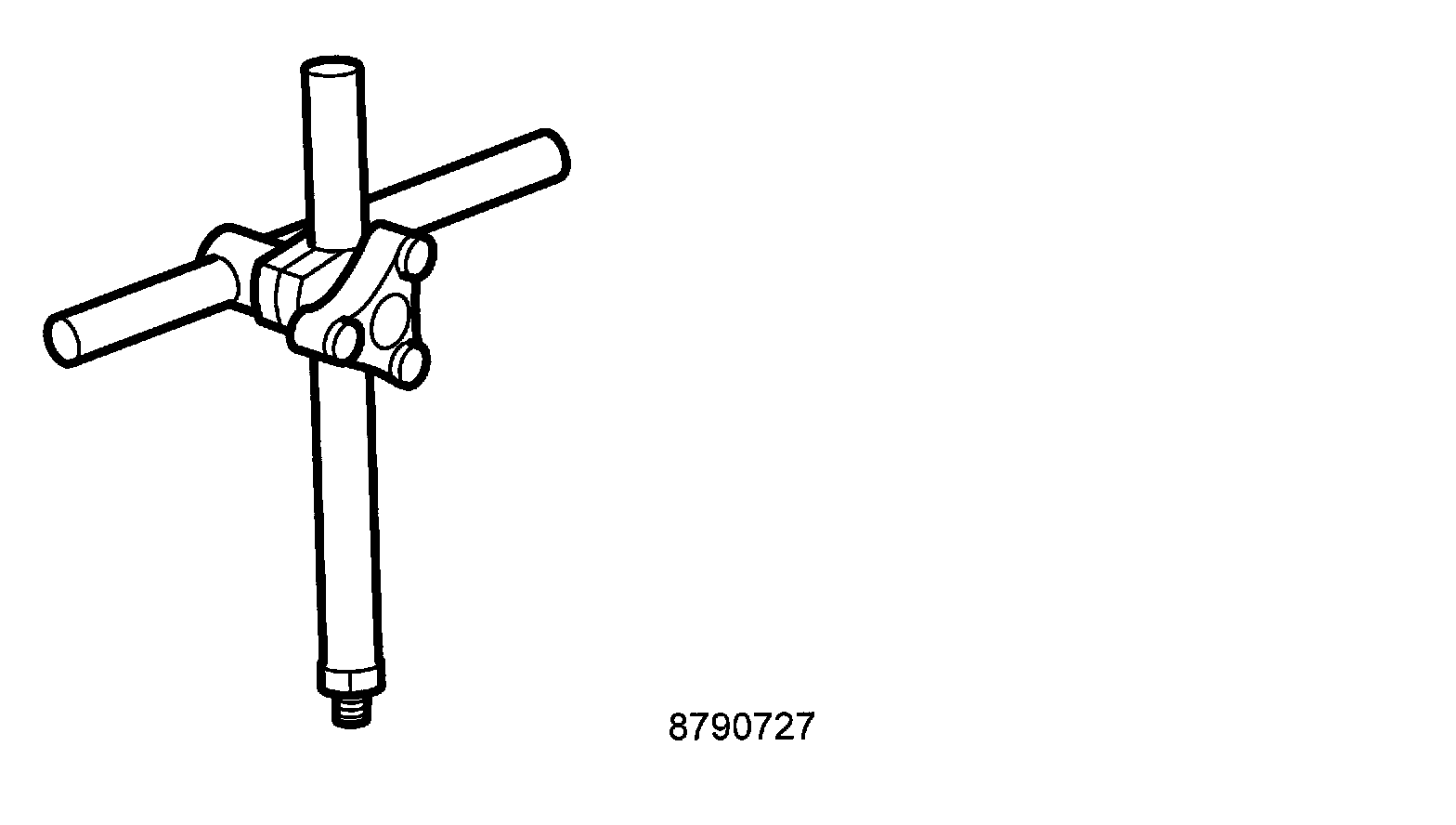

87 90 727 Mounting, dial gauge
86 11 584 Toolboard T4
Group: Automatic transmission

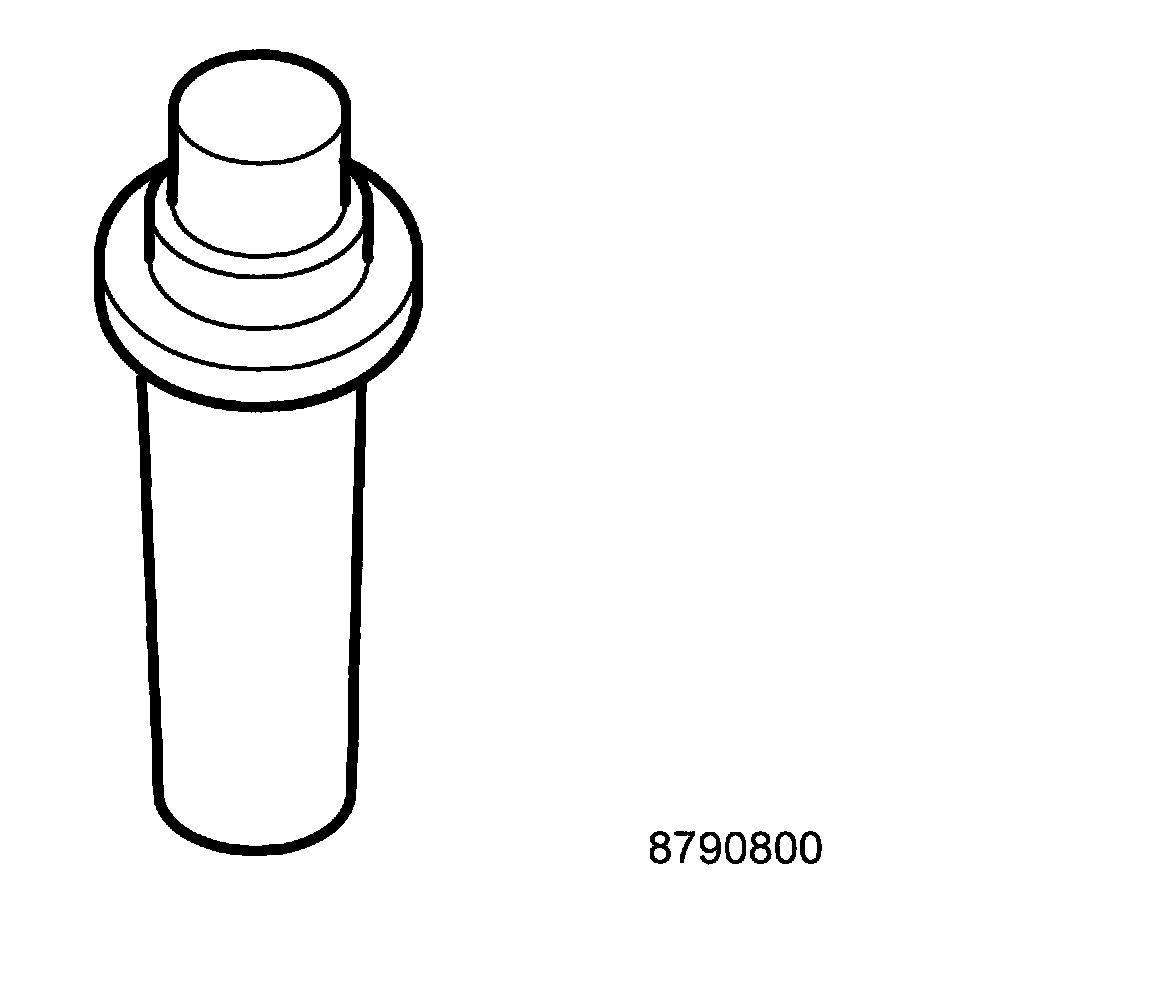

87 90 800 Drift, differential bearing seal
86 11 584,Toolboard T4
Group: Manual gearbox






87 90 859 Press sleeve
86 11 584 Toolboard T4
Group: Manual gearbox

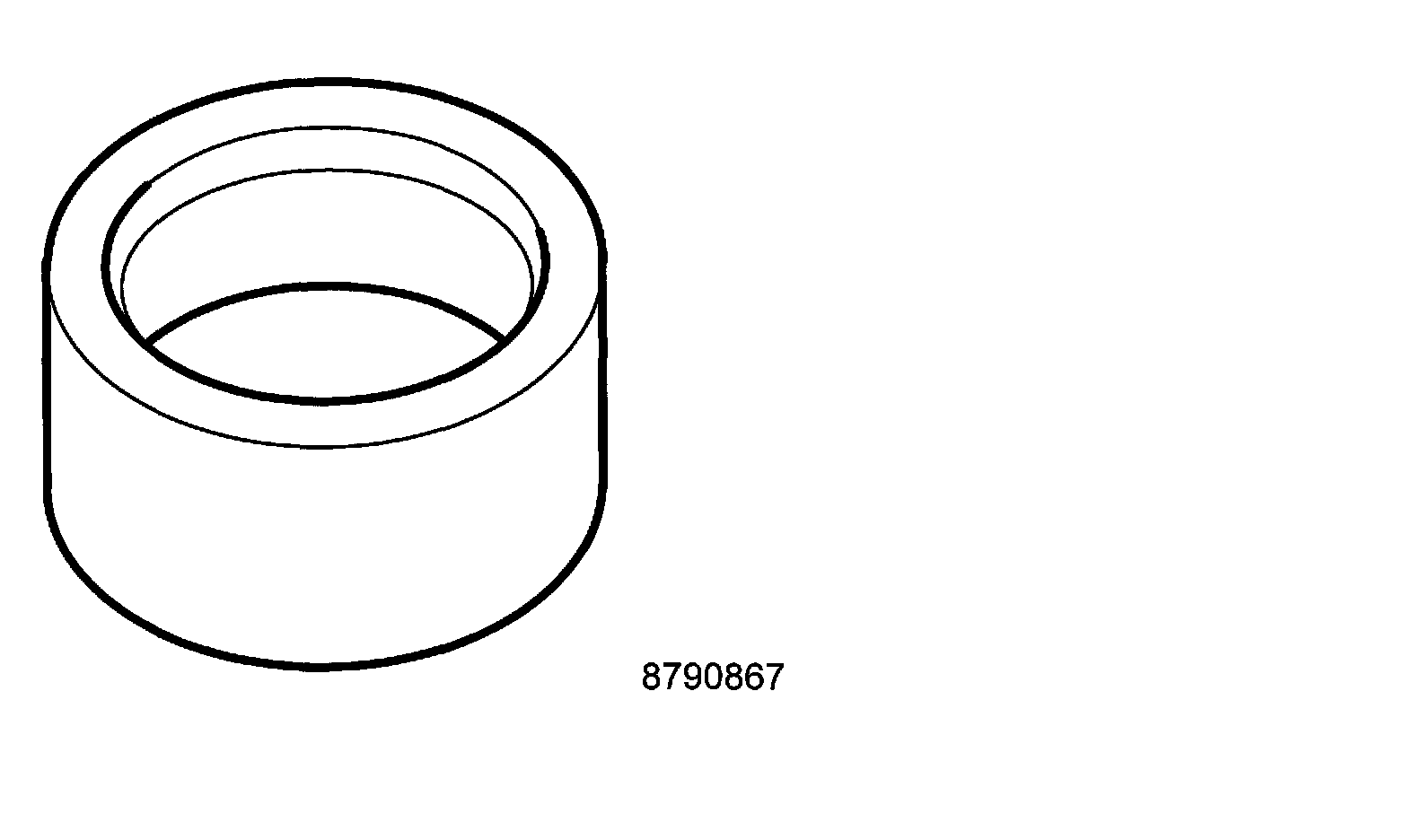

87 90 867 Assembly ring, input shaft bearing
86 11 584 Toolboard T4
Group: Manual gearbox






87 91 121 Puller ring, 13 teeth
Bearing, input shaft
86 11 584 Toolboard T4
Use with 87 90 636 Fixture

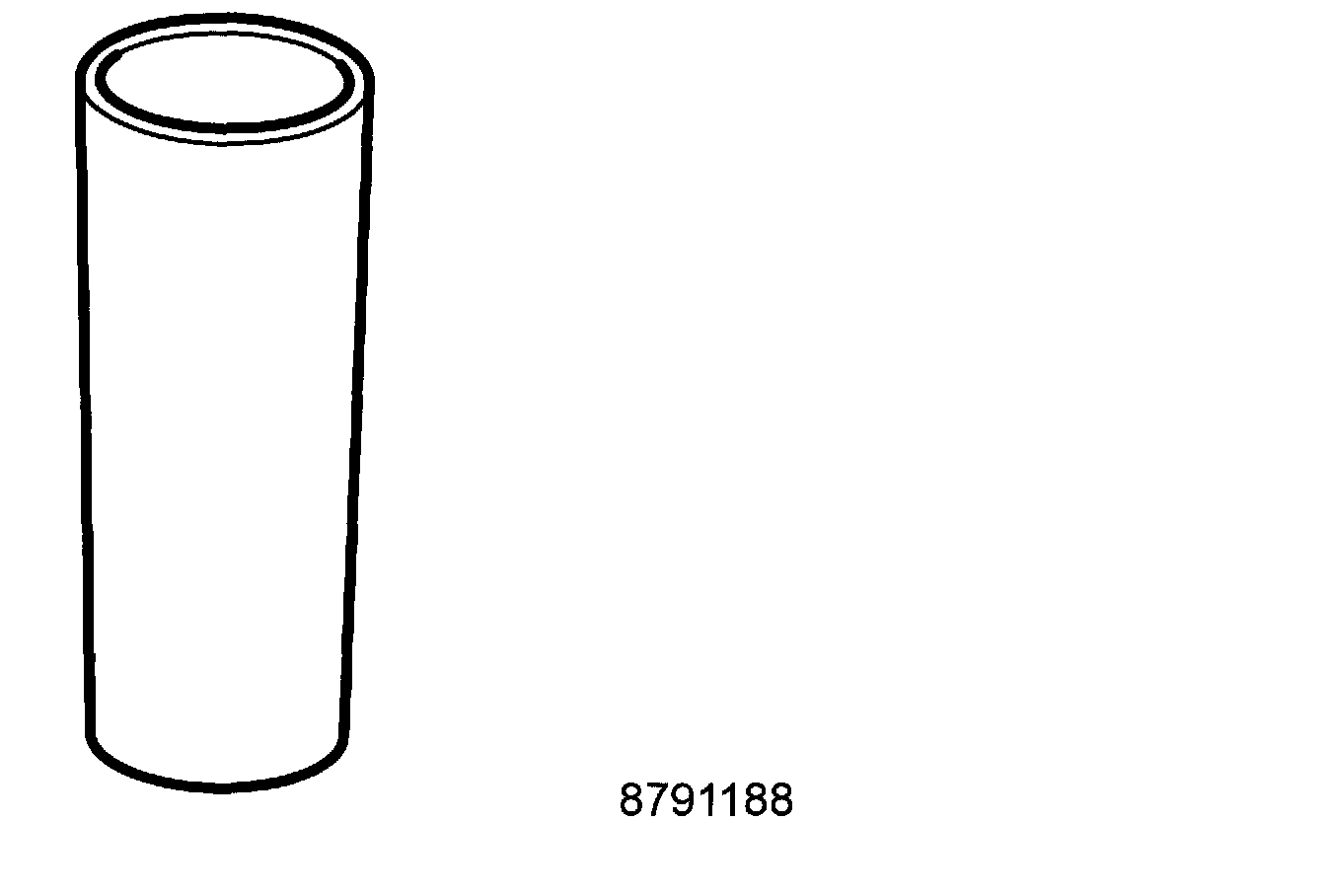

87 91 188 Support, removal of pinion shaft
86 11 584 Toolboard T4
Group: Manual gearbox

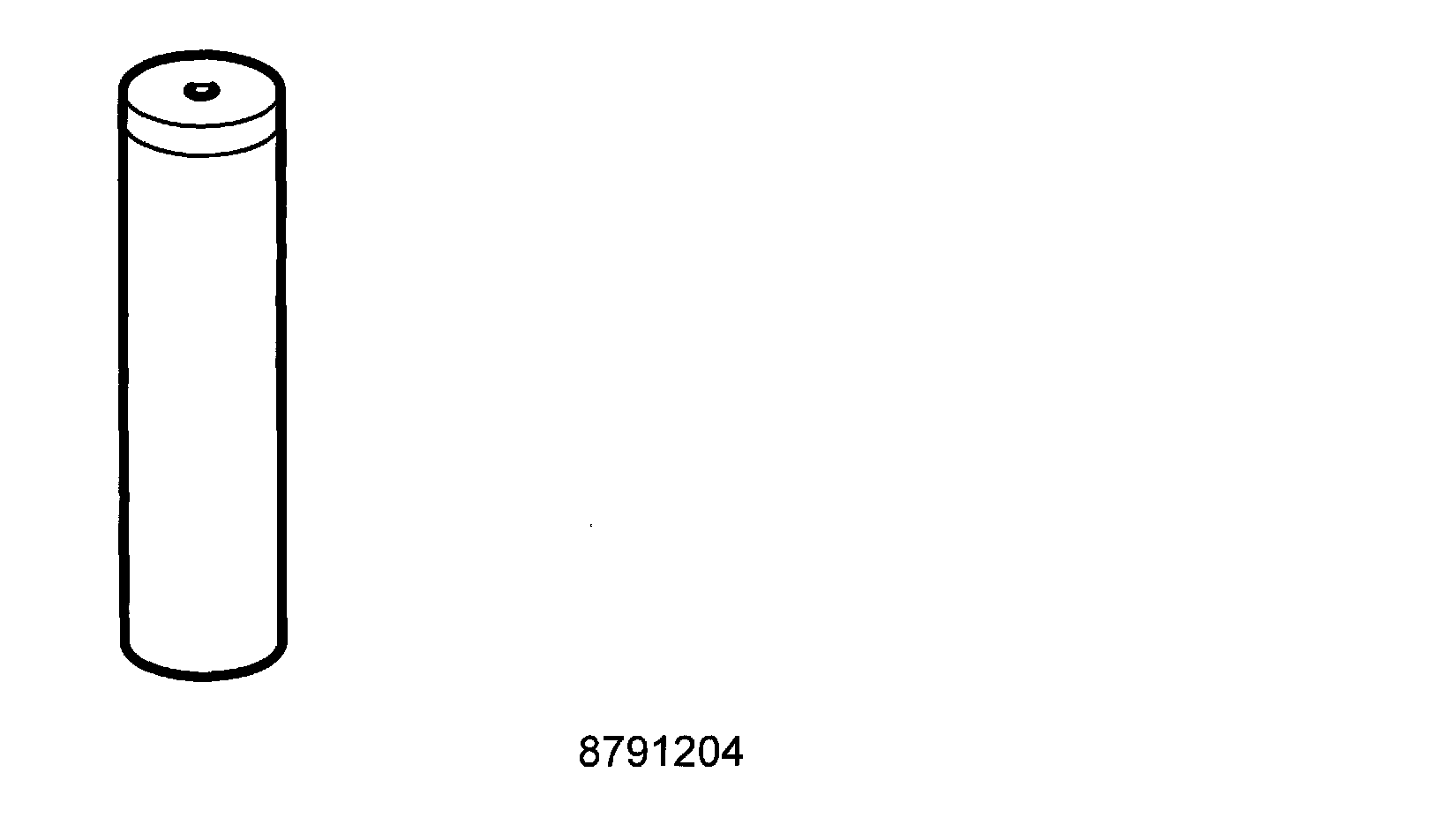

87 91 204 Sleeve, bearing race
86 l1 584 Toolboard T4
Group: Manual gearbox






87 91 261 Puller, pinion
86 11 584 Toolboard T4
Group: Manual gearbox






87 91 220 Drift, selector rod bush
87 11 584 Toolboard T4
Group: Manual gearbox






87 91 238 Drift, selector rod bush
86 11 584 Toolboard T4
Group: Manual gearbox

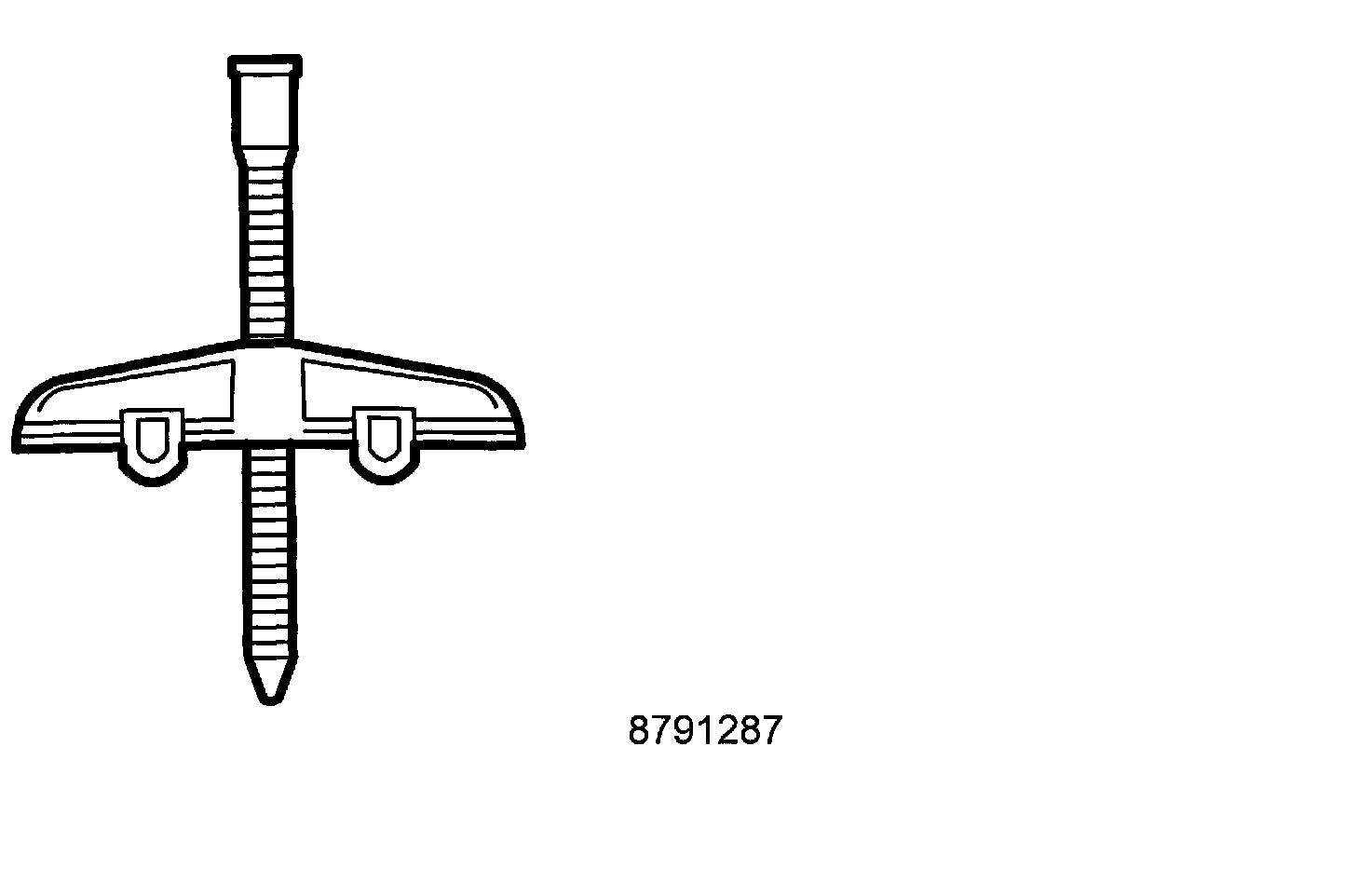

87 91 287 Puller, 150 mm
86 11 584.Toolboard T4
Group: Manual gearbox

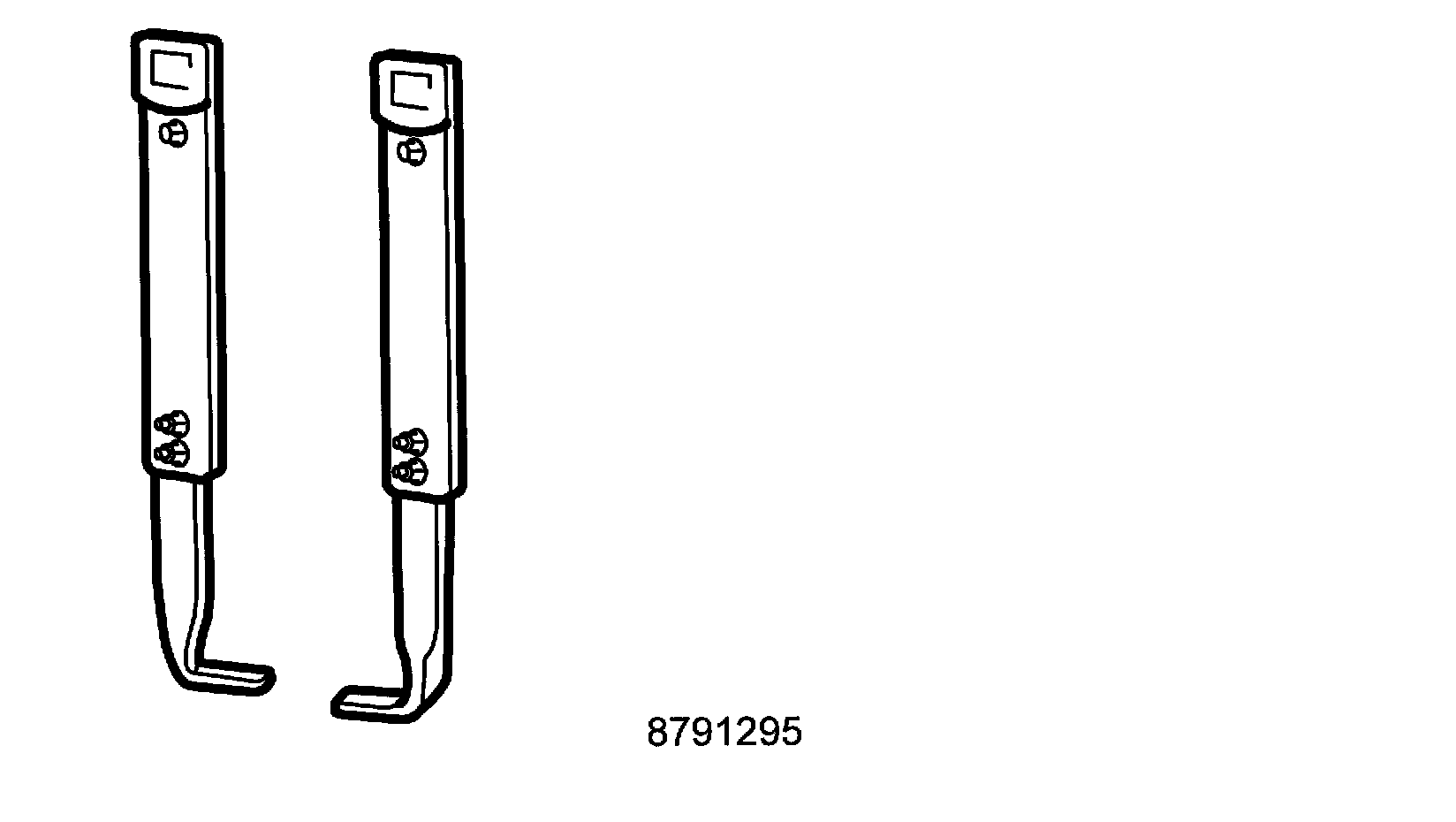

87 91 295 Arm, 300 mm
86 11 584 Toolboard T4
Use with 87 91 287 Puller 150 mm
Group: Manual gearbox






87 91 303 Arm, 150 mm
86 11 584 Toolboard T4
Use with 87 91 282 Puller 150 mm
Group: Manual gearbox






87 91 311 Sleeve, bearing, driver shaft
86 11 584 Toolboard T4
Group: Manual gearbox






87 91 410 Sleeve
For protecting pinion shaft end
86 11 584 Toolboard T4
Group: Manual gearbox






87 91 428 Driver
For measuring bearing play
86 11 584 Toolboard T4
Group: Manual gearbox

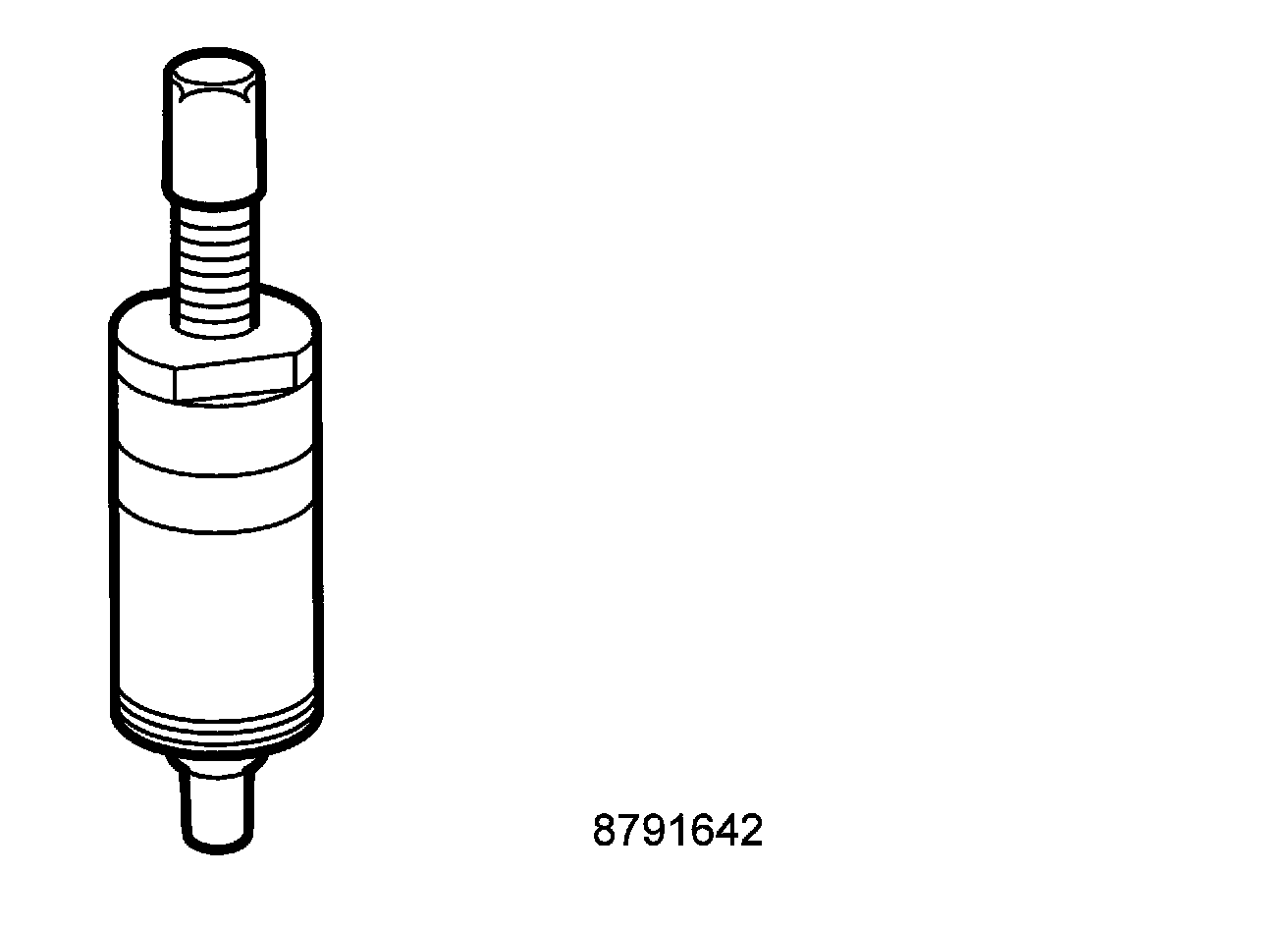

87 91 642 Basic tool
86 11 584 Toolboard T4
Group: Manual gearbox






87 91 642 Basic tool
86 11 584 Toolboard T4
Group: Manual gearbox






87 91 642 Basic tool
86 11 584 Toolboard T4
Group: Manual gearbox






87 91 659 Support
For differential housing
86 11 592 Toolboard T5
Group: Automatic transmission






87 91 683 Puller
86 11 592 Toolboard T5
Group: Automatic transmission






87 91 709 Clamp
For removing and fitting brake C
Group: Automatic transmission

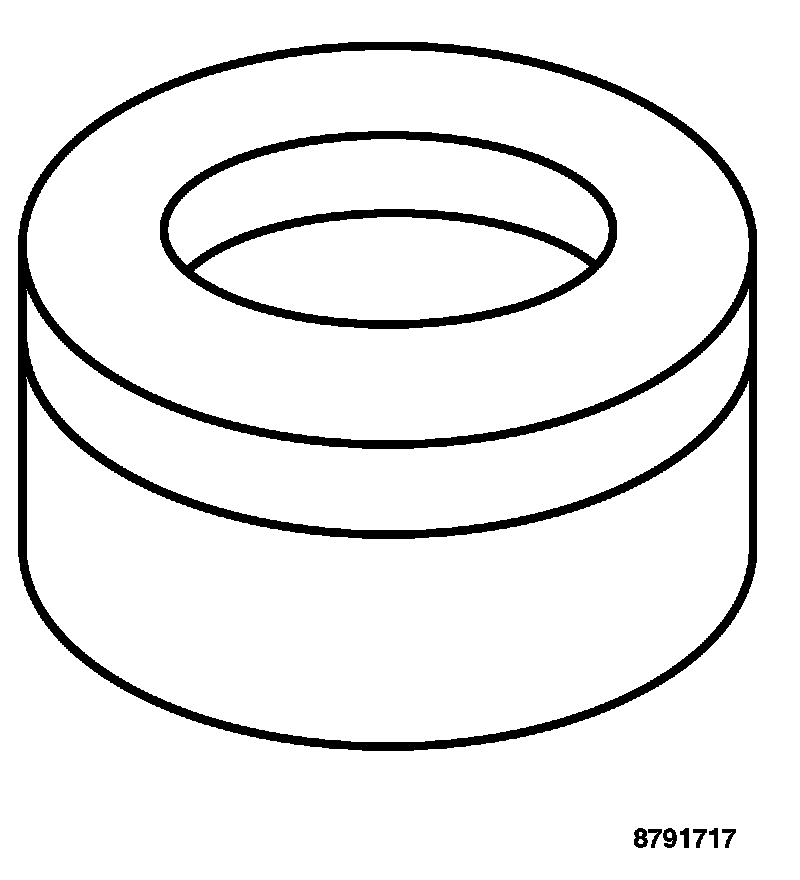

87 91 717 Puller, internal O = 56mm
For removing the small differential bearing
Group: Manual gearbox






87 91 972 Ring
For fitting rear pinion bearing
Group: Manual Gearbox
