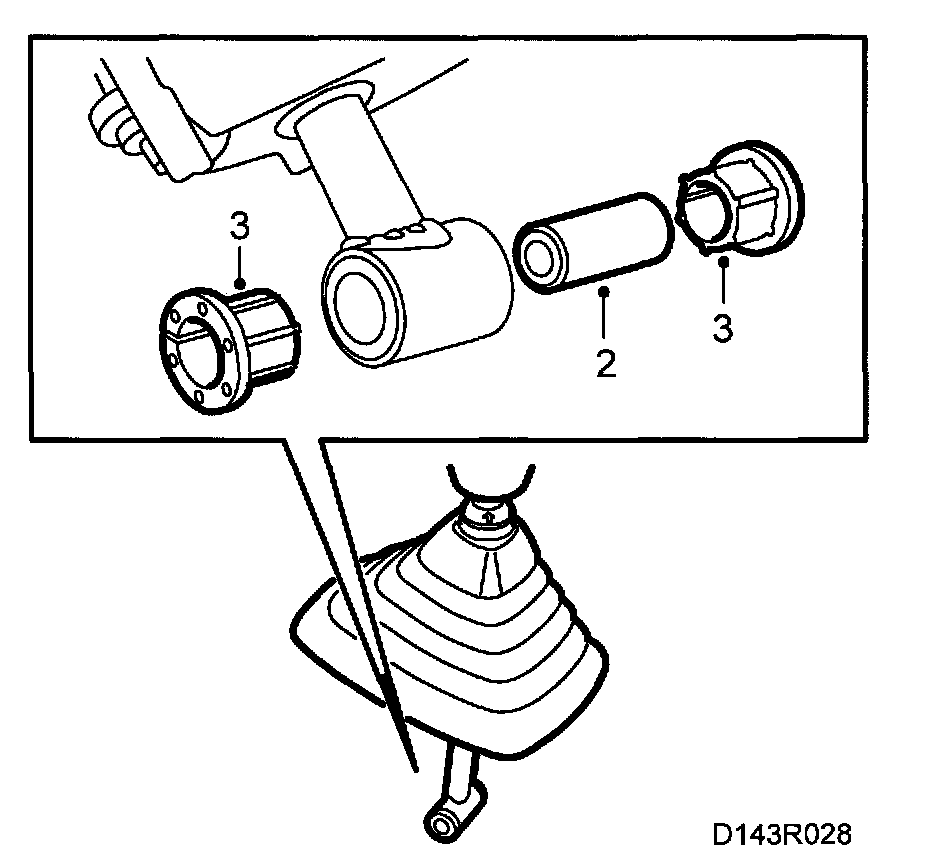

Gear Lever Joint Bushes


Gear Lever Joint Bushes
Change bushes when there is play in the joint.
1. Remove the selector rod as described in.





2. Tap out the spacer sleeve using a drift.
3. Remove and change bushes.
4. Fit the spacer sleeve.
5. Fit the selector rod as described in ->
