Differential Bearing Race, Clutch Housing

Differential Bearing Race, Clutch Housing
To remove
1. Remove the sealing ring.

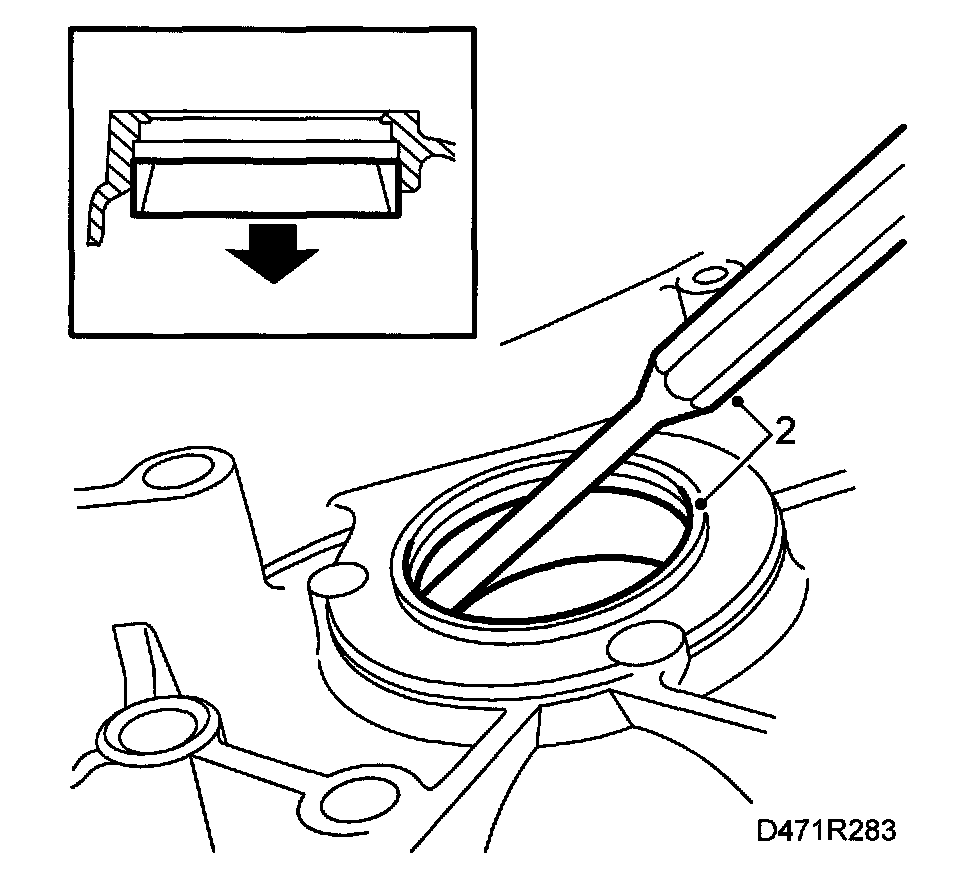

2. Carefully tap out the bearing race with a hammer and drift (damaging removal)

Important: Tap the same amount on both sides!

To fit

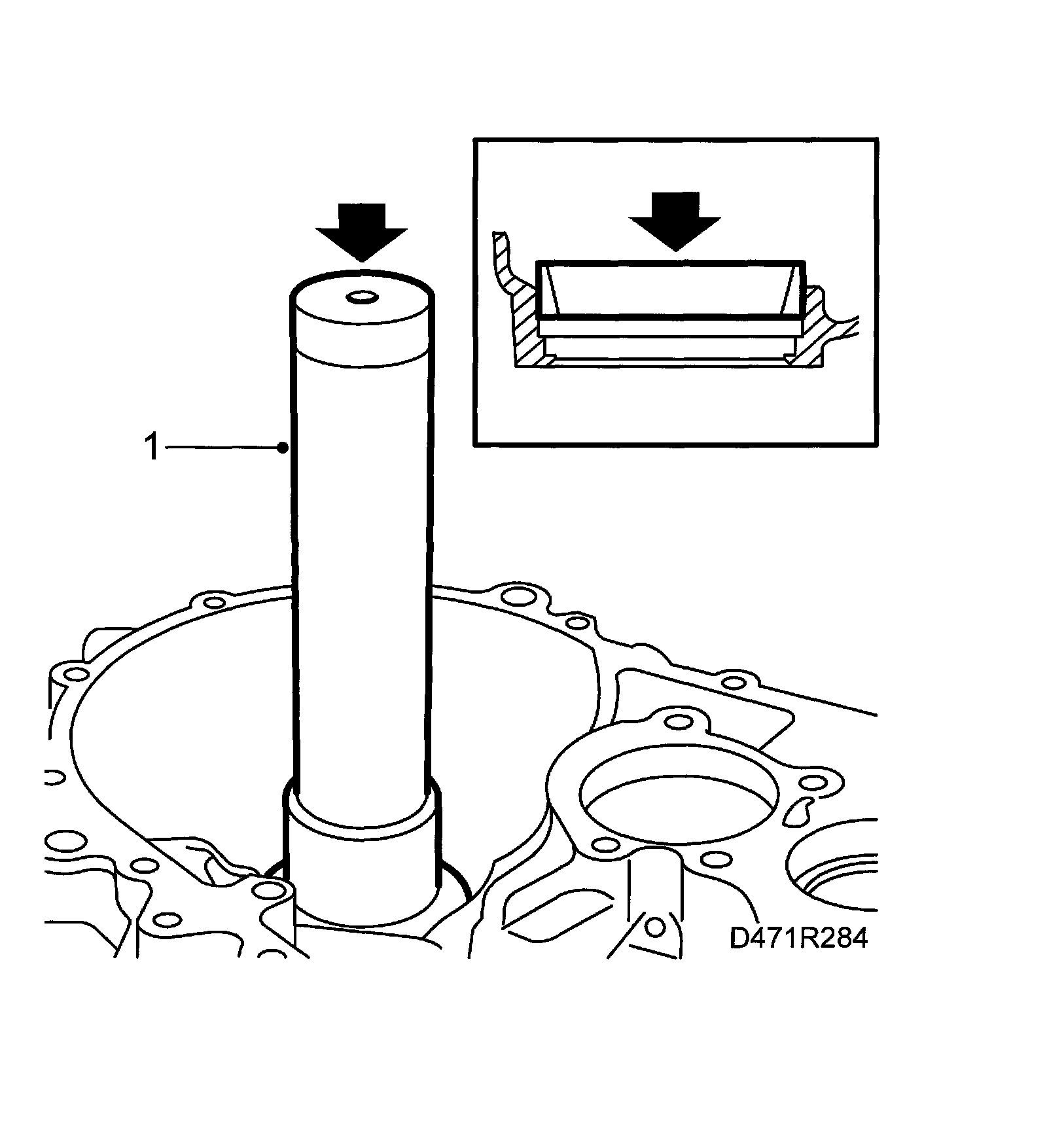

1. Fit (press in) the new bearing race to the stop with 87 90 800 Drift sealing ring differential bearing and 87 91 204 Sleeve bearing race.





2. Fit a new seal with 87 90 800 Drift, sealing ring differential bearing or use drift 87 92 657.
