Bearing Race, Input Shaft


Bearing Race, Input Shaft
To remove

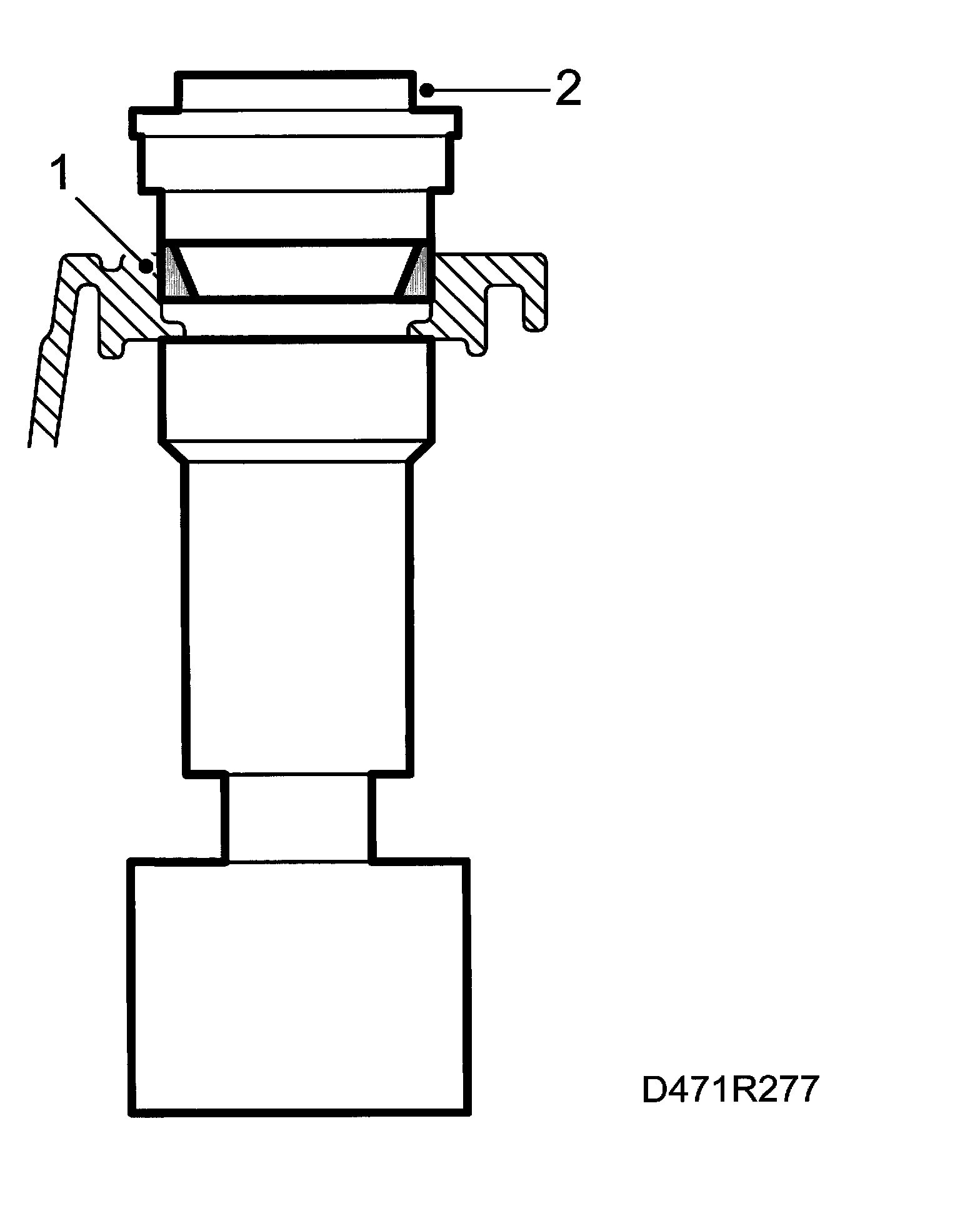

1. Press out the bearing race with 87 91 204 Sleeve bearing race using 87 92 236 Fitting speed gear, F35, support as a support.

To fit

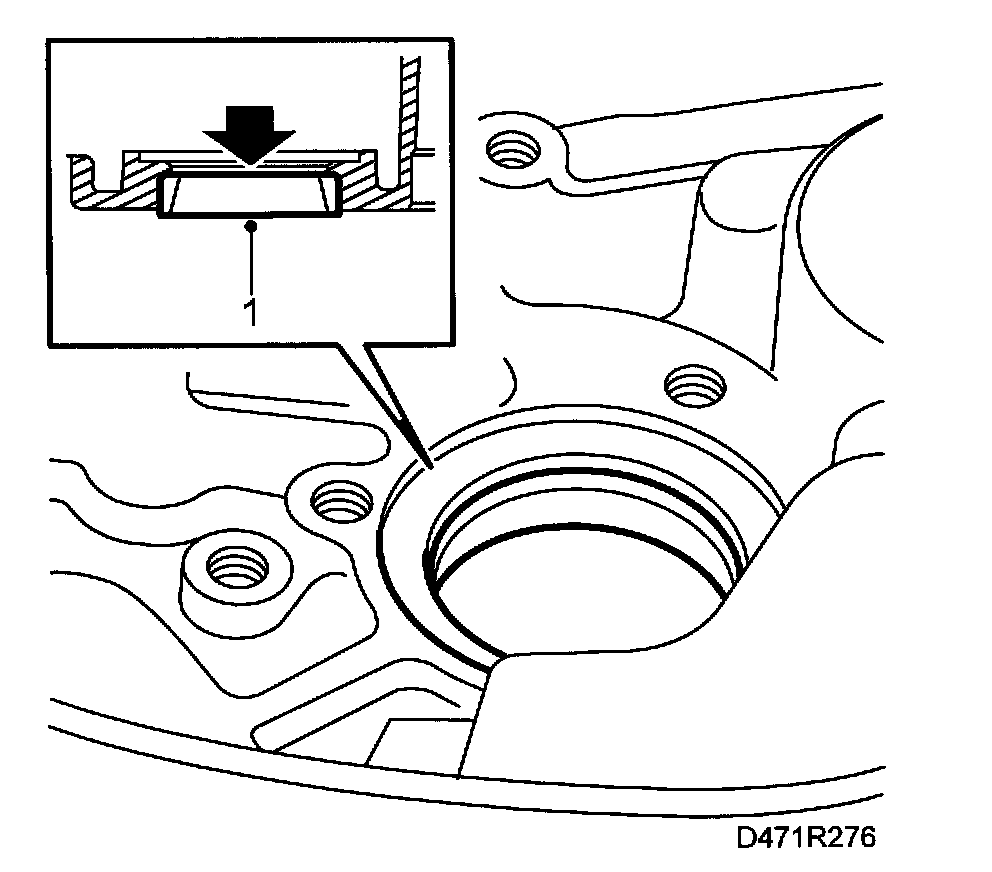

1. Seat the bearing race using a plastic hammer.
2. Press on the bearing to the stop using 383 90 114 Sleeve and 87 91 311 Sleeve bearings driver shaft must be used.
