Bearing Race - Output Shaft In Gearcase

Bearing Race - Output Shaft In Gearcase
To remove

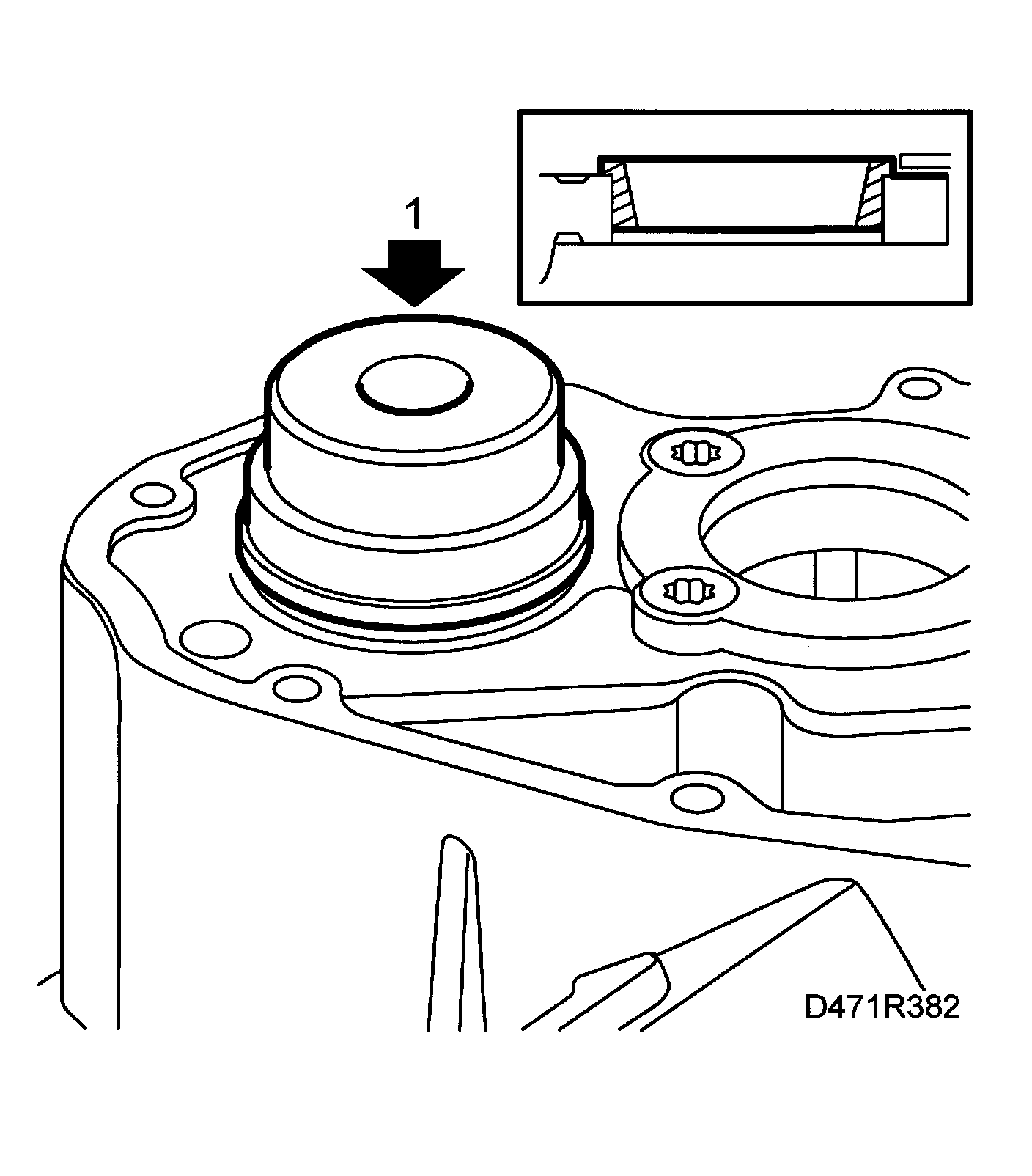

1. Mount the gearcase in a press.





2. Press out the bearing race with 87 91 311 Sleeve, bearings driver shaft.

To fit

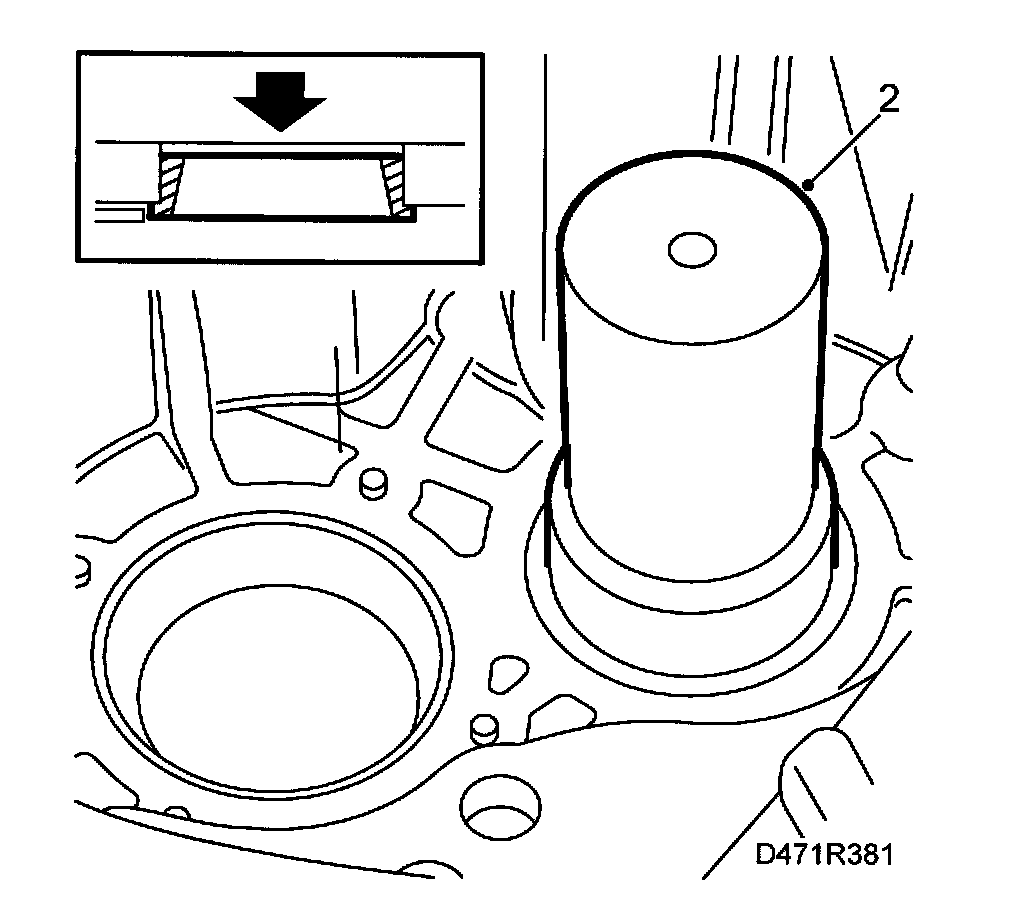

1. Turn the housing and align the bearing race with a plastic hammer. Press in the new bearing race to the stop using 83 90 312 Drift, bearing race, input shaft. Use 87 91 188 Support removing pinion Shaft as support.
