Bearing Bush For Selector Rod


Bearing Bush For Selector Rod

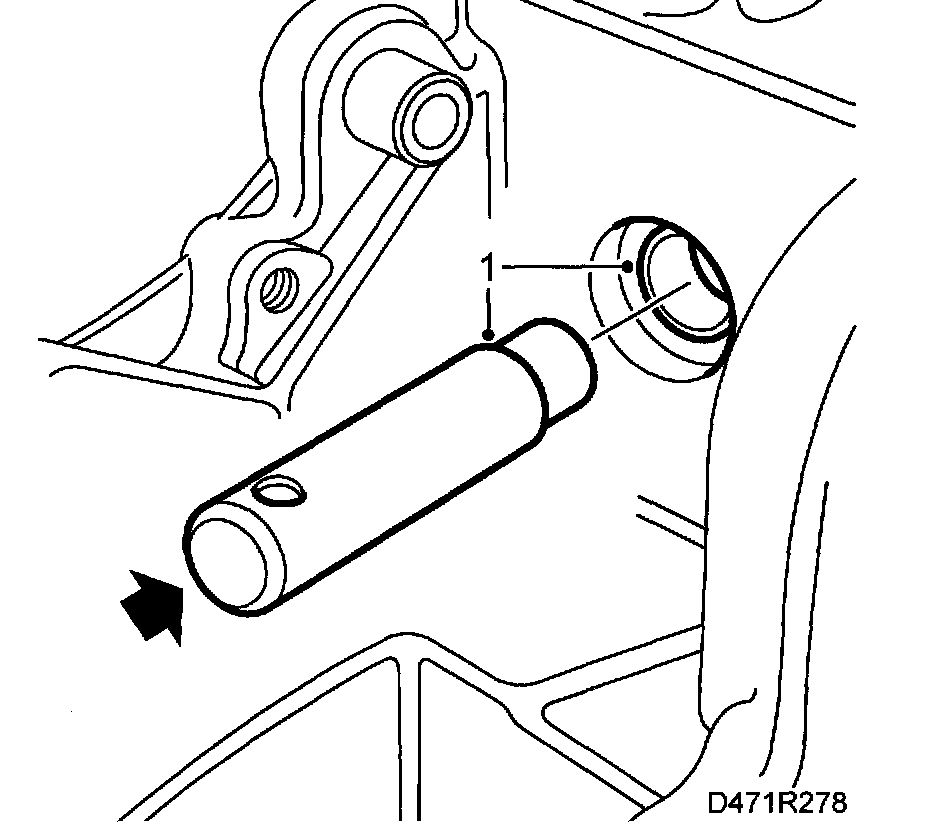

To remove





The seal ring must have been removed first.
1. Tap out the bearing bush with 87 91 220 Driven bush selector rod.

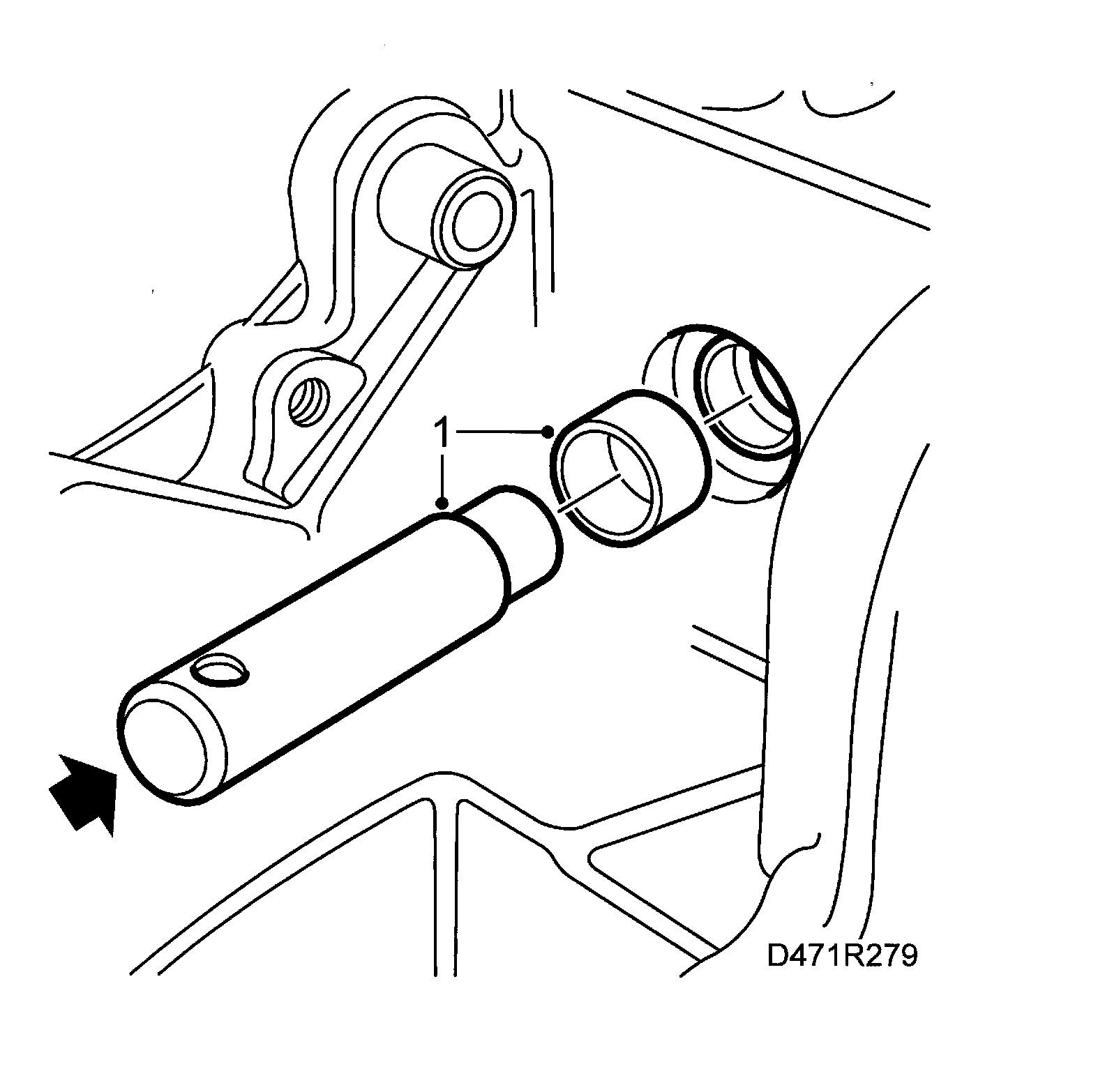

To fit





1. New bearing bush is fitted with 87 91 220 Drift, bush selector rod.
