Drive Shaft Seal, Left-Hand

Drive Shaft Seal, Left-Hand
In-Car Removal
1. Remove the drive shaft on the left side.

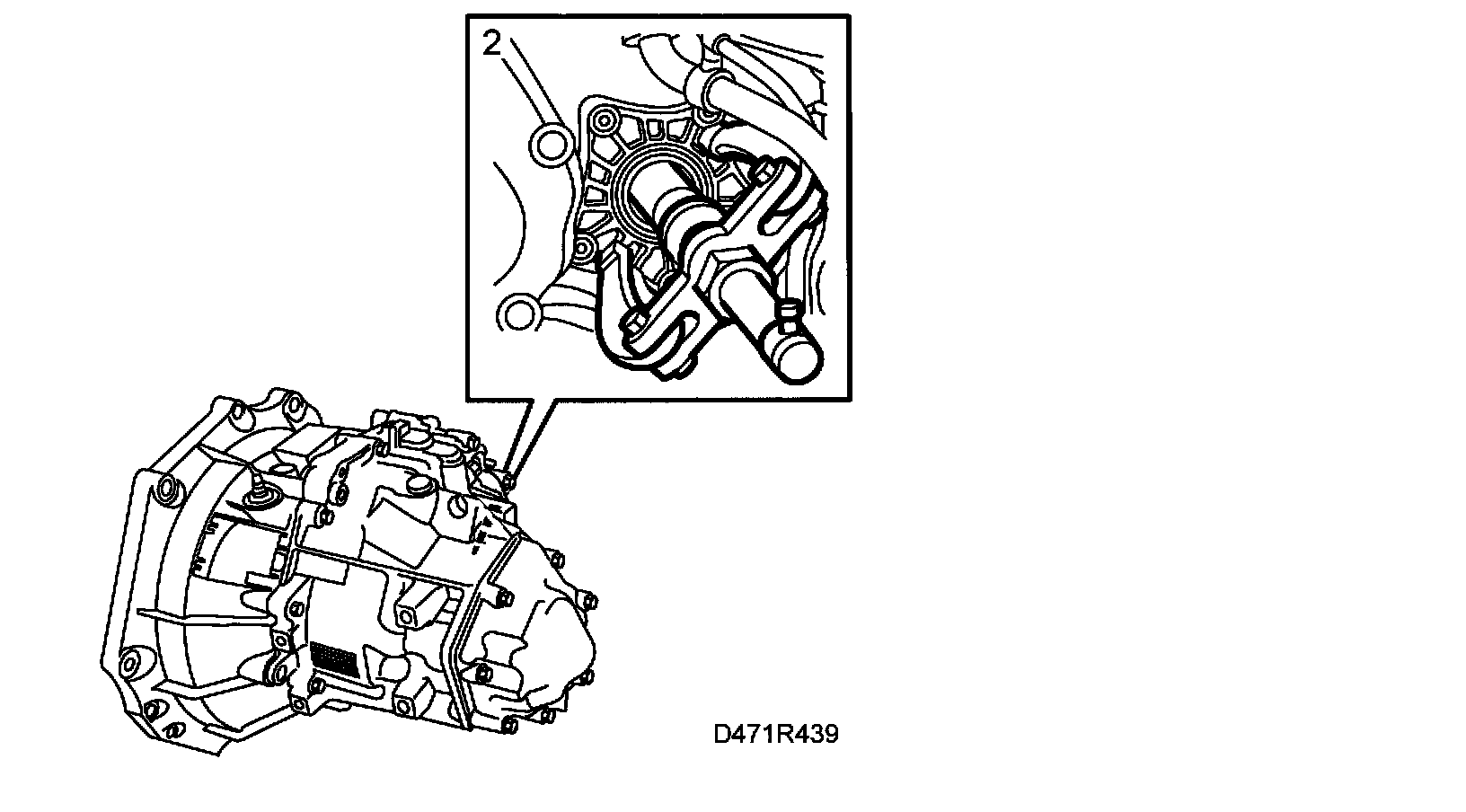

2. Remove the seal using 87 92 350 Puller driveshaft seal and 87 91 683 Puller.

In-Car Fitting





1. Tap in the new seal with drift 87 92 657.
2. Fit the drive shafts.
