System Overview

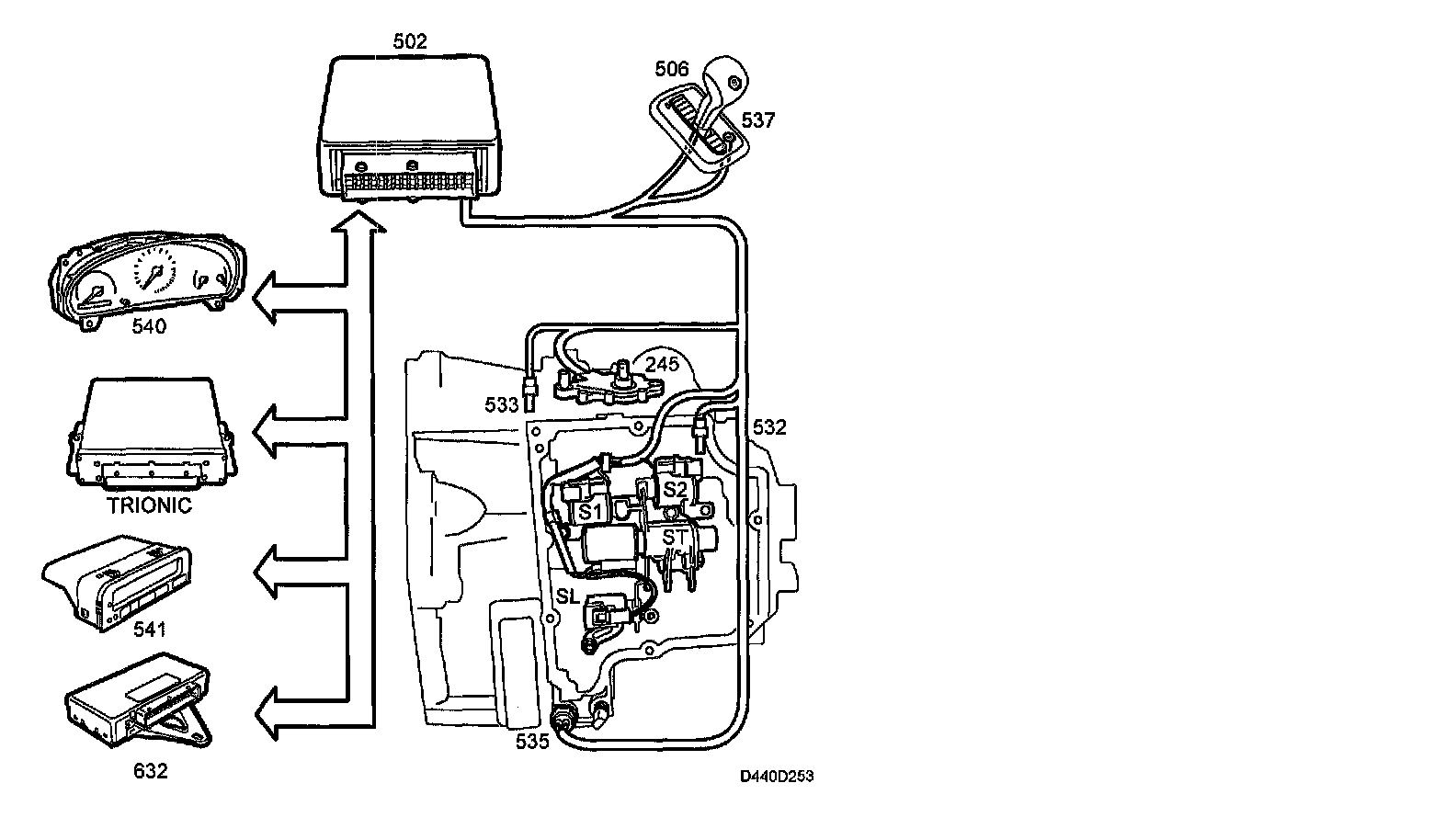

System Overview, Bus





^ Transmission range switch (245)
^ Main instrument unit (540)
^ Trionic control module (430, 589)
^ SID (541)
^ Control module, TCM (502)
^ Switch, WINTER (506)
^ Switch, SPORT (537)
^ TWICE control module (632)
^ Output shaft speed sensor (533)
^ Input shaft speed sensor (532)
^ Transmission fluid temperature sensor (535)
^ Lock-Up solenoid (SL)
^ Shift solenoid (S1 )
^ Shift solenoid (S2)
^ System pressure solenoid (ST)
