Electronic Over-Revving Cut-Out







Electronic Over-Revving Cut-Out

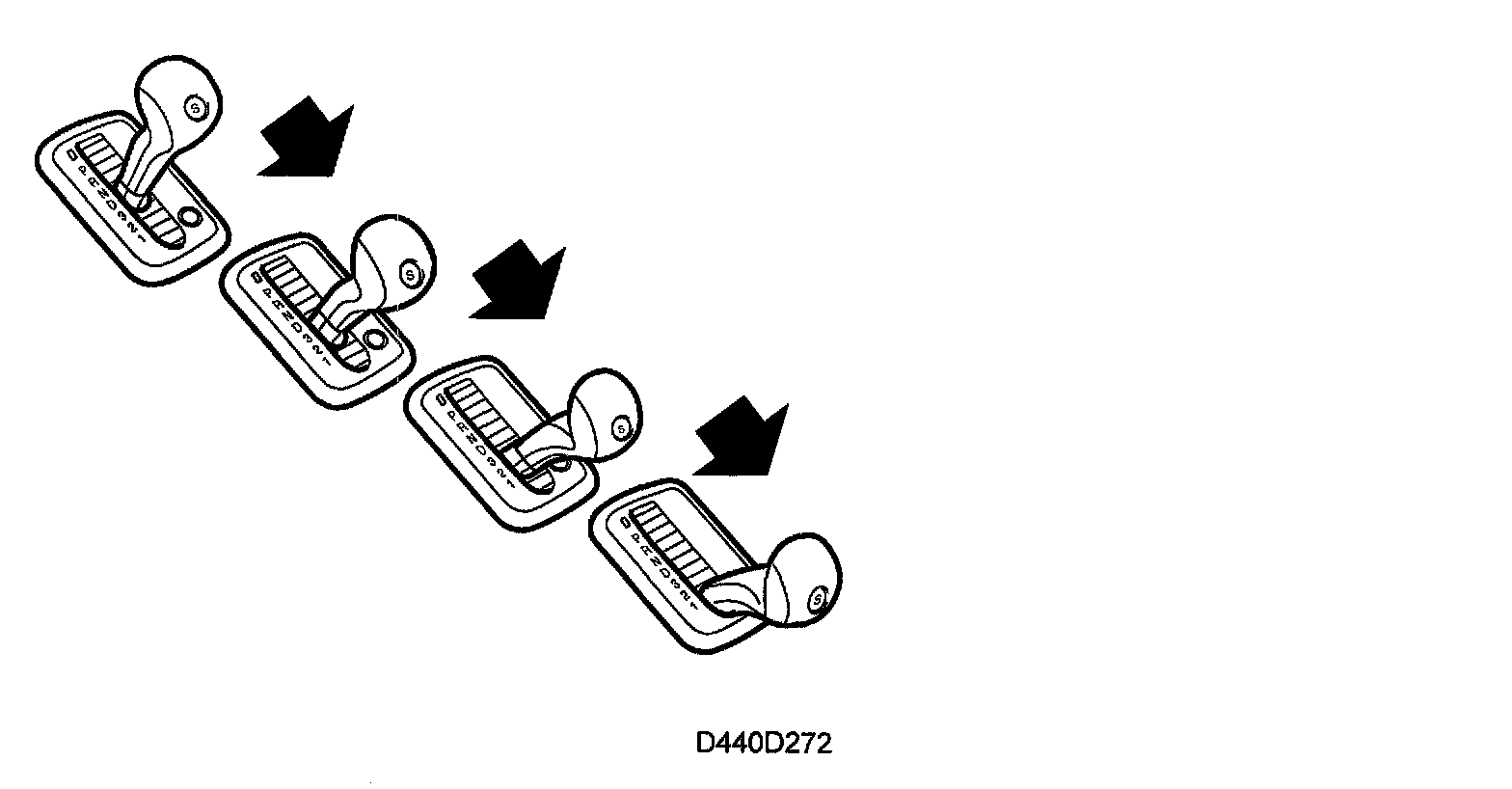

To prevent over-revving of the engine, the transmission is equipped with electronic over revving cut-out. This means that down-shifting is not possible until the vehicle speed drops below the respective limit.

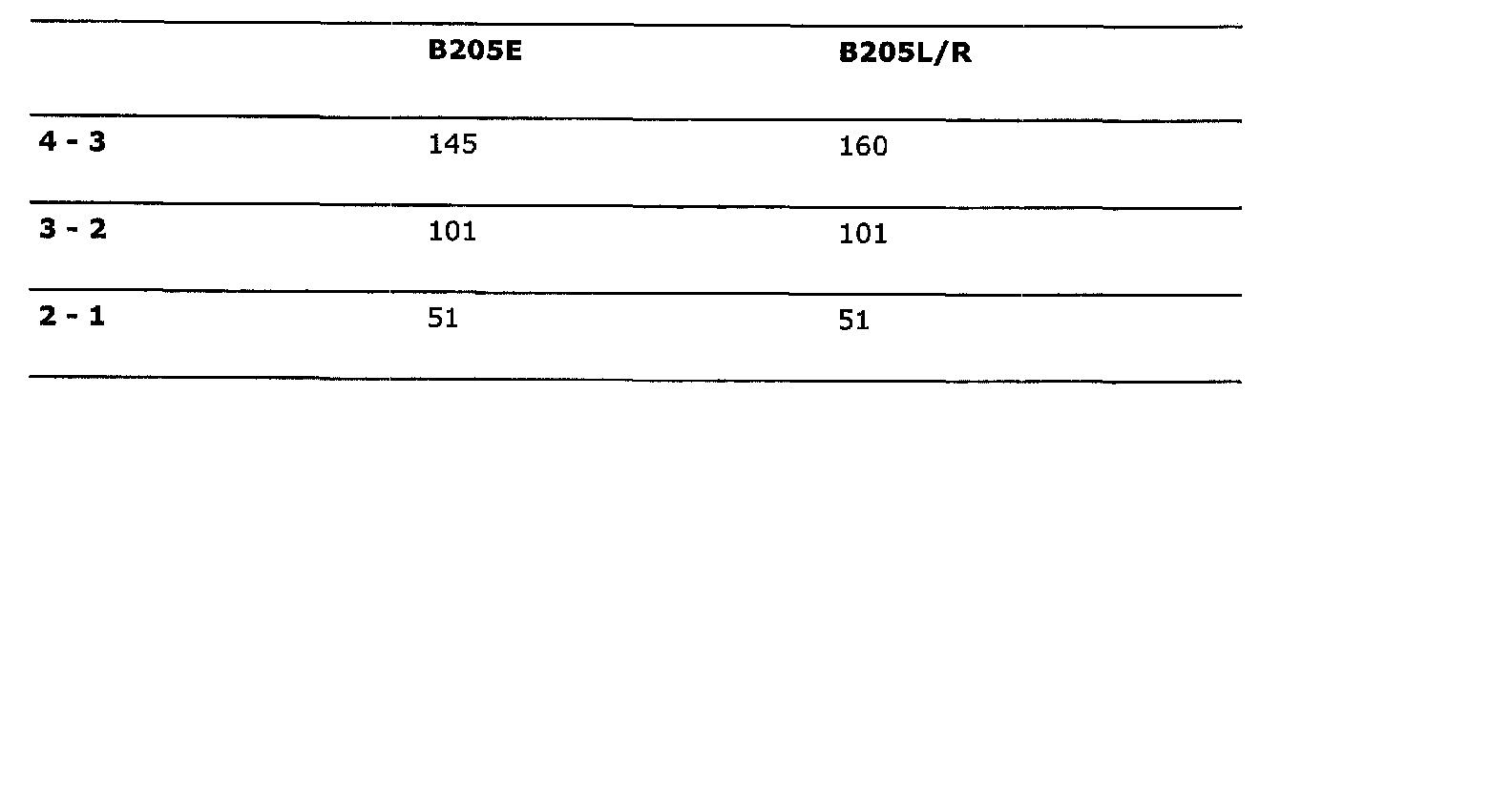

Table Of Speeds Of Permissible Downshift:
