Accelerator Pedal Position

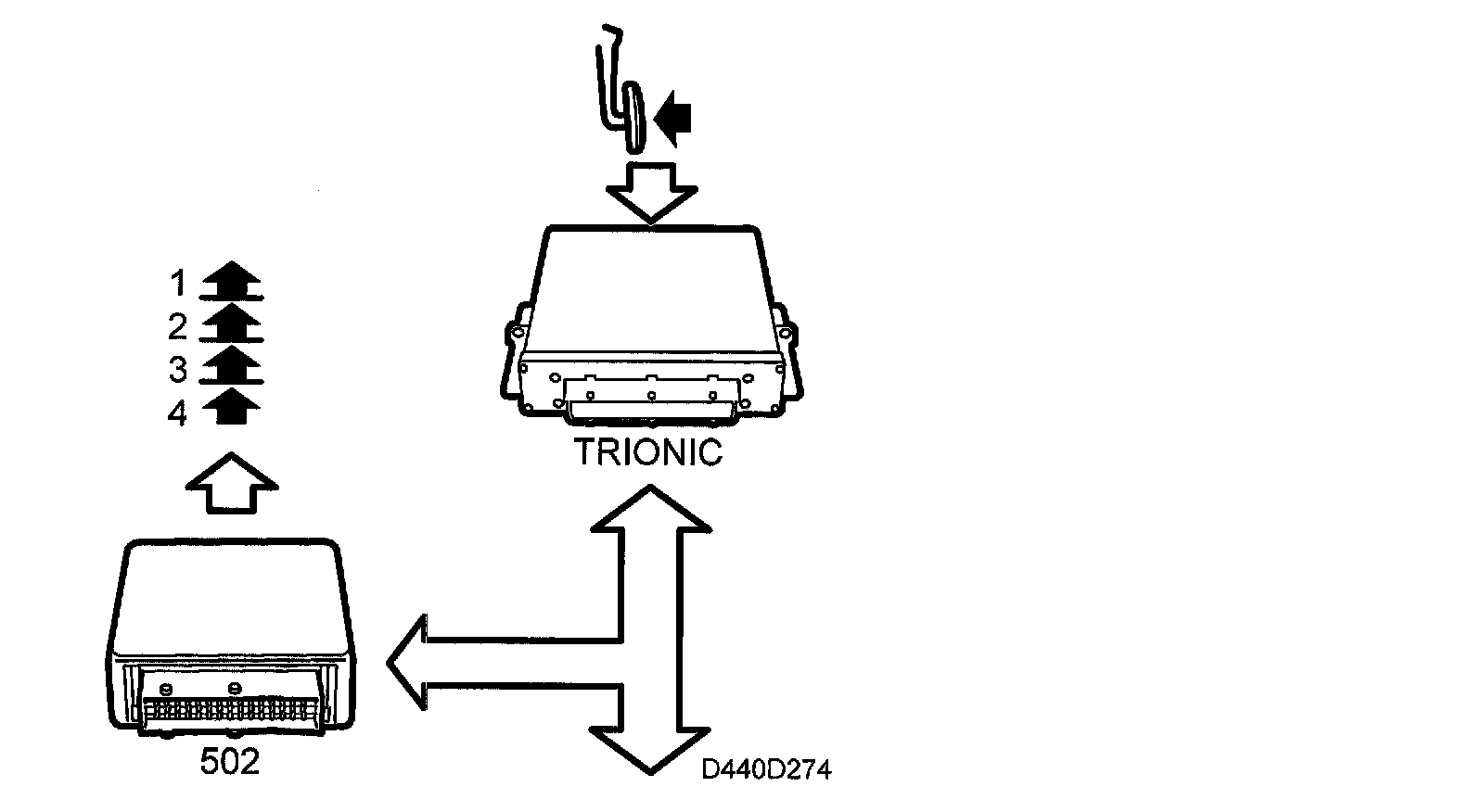

Component Diagram:

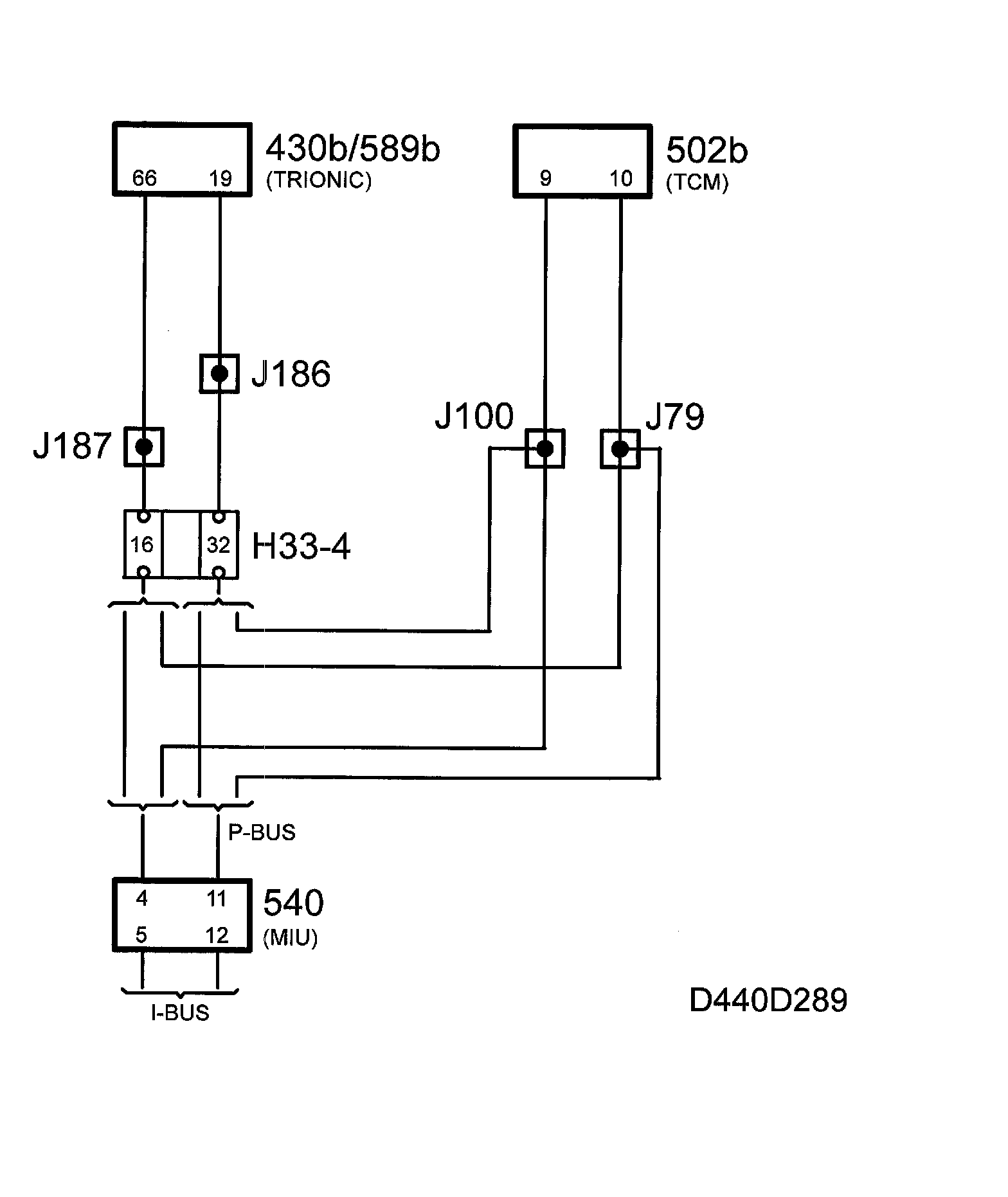

Circuit Diagram:

Accelerator Pedal Position
The Trionic has a sensor that provides information about accelerator pedal position. This information is available on the bus. The pedal position is expressed as a percentage of how far it is depressed.

The control module uses the information on pedal position to control the shifting points and when to activate lock-up.
