Steering Linkage

Steering Linkage

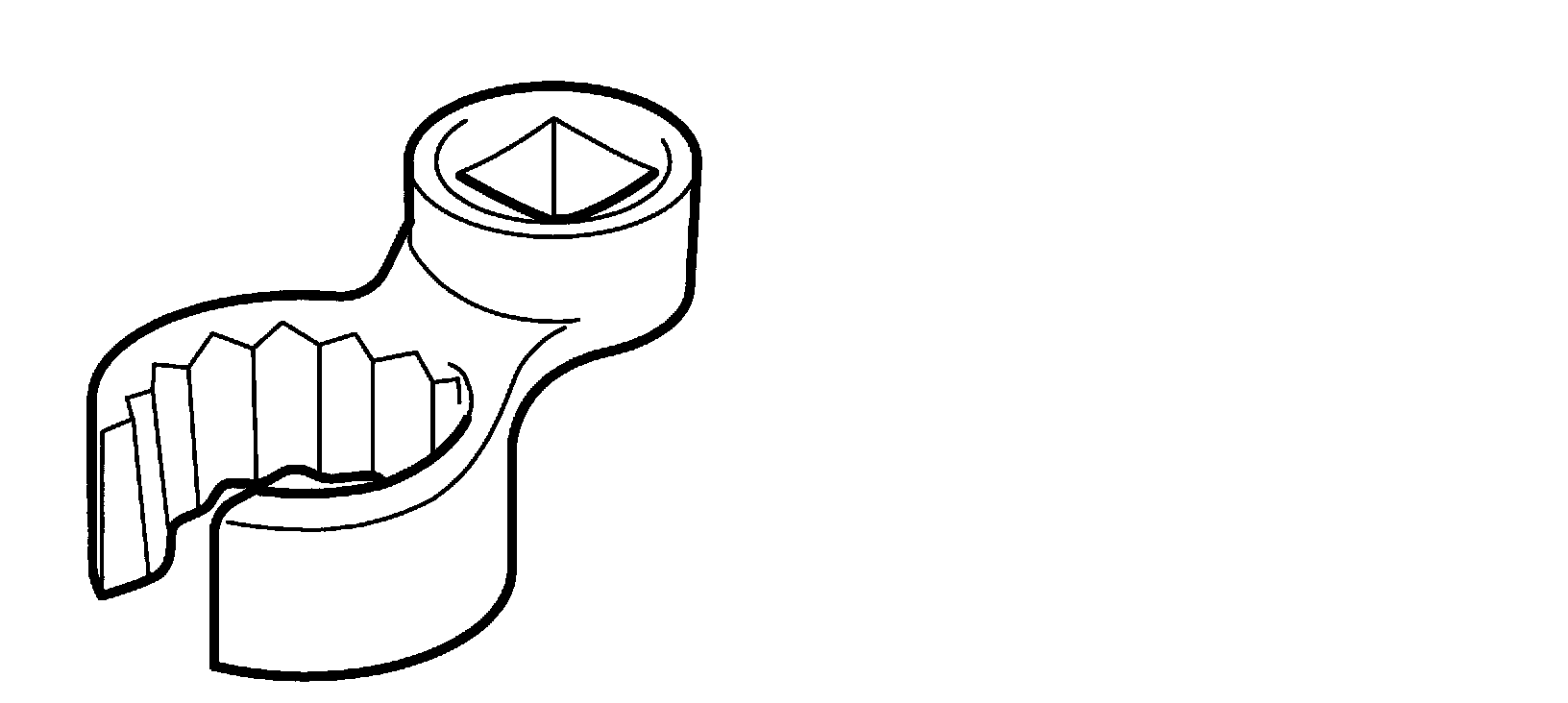

89 96 803 Spanner, 18mm, power steering pump hydraulic pipe
Leak detection in fuel lines
86 12 392 Tool beard T7
Group: Engine

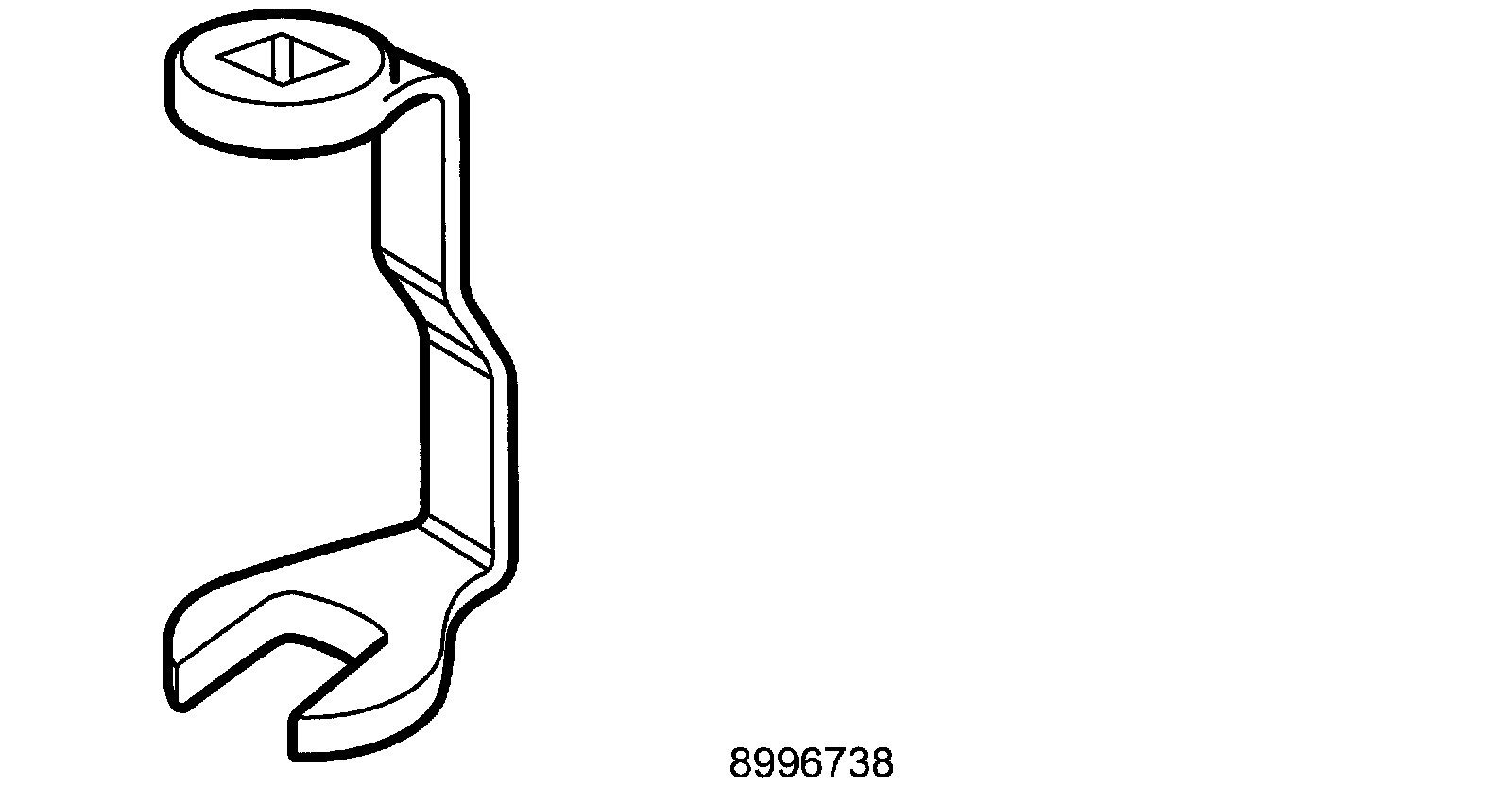

89 96 738 Spanner, steering gear hydraulic pipe
86 11 600 Tool board T2
Group: Chassis

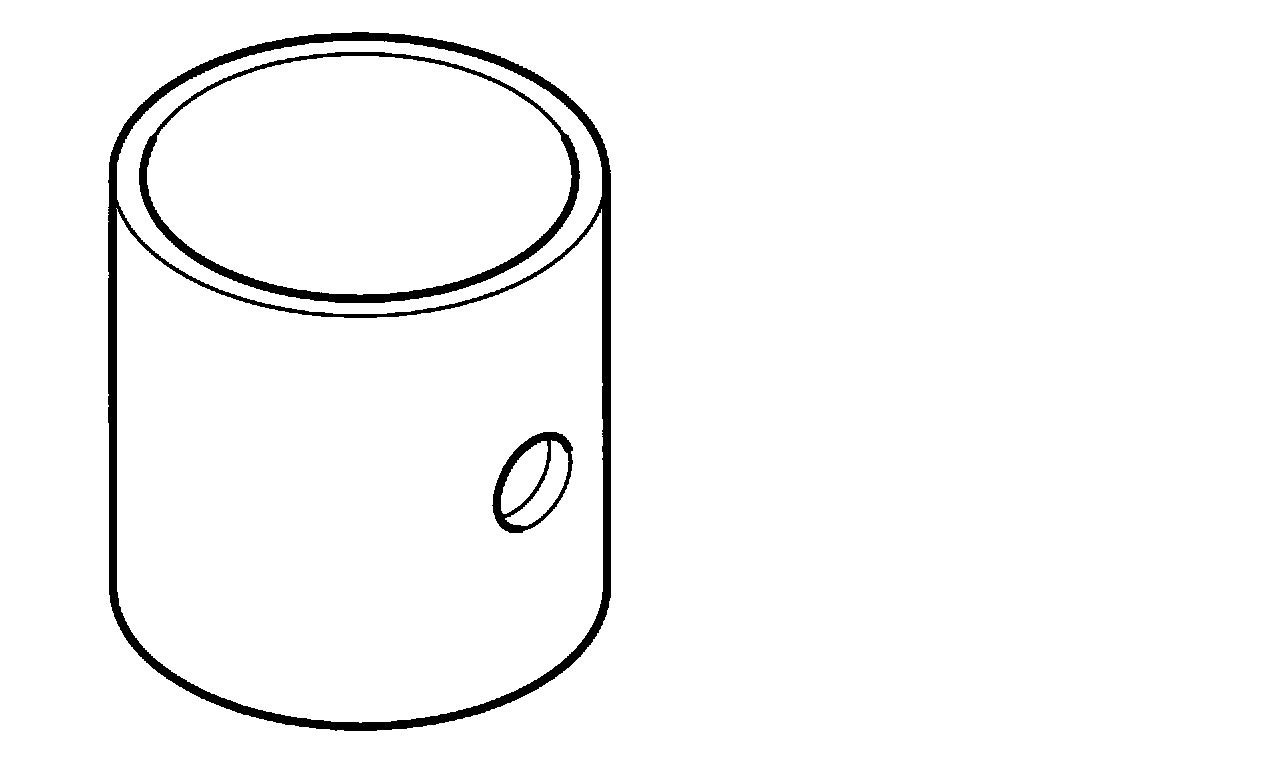

87 90 859 Press sleeve
86 11 584 Toolboard T4
Group: Manual Gearbox





88 18 809 Holder
86 11 600 Tool board T2
Used together with 88 18 791 Spring compressor.
Group: Chassis

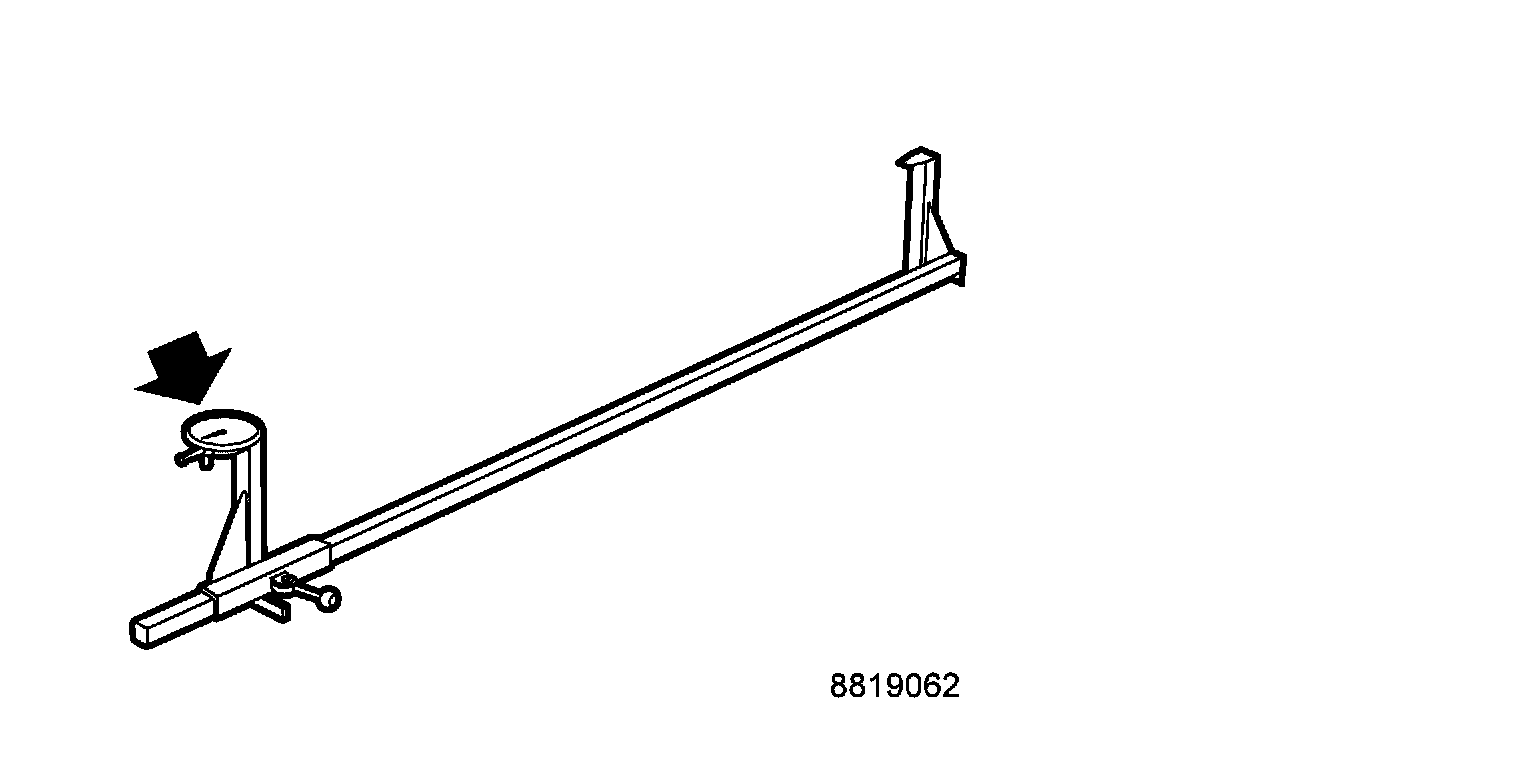

88 19 062 Dial gauge
Used together with 88 19 013 Measuring tool, toe-in
Group: Chassis

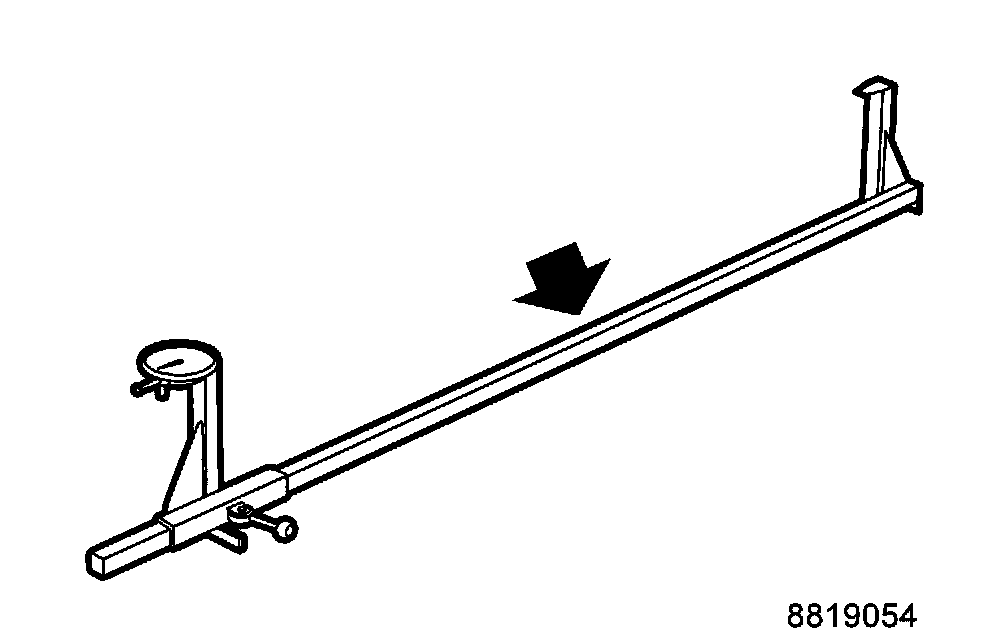

88 19 054 Measuring tool
Used together with 88 19 013 Measuring tool toe-in
Group: Chassis





88 19 013 Toe-in gauge
Group: Chassis

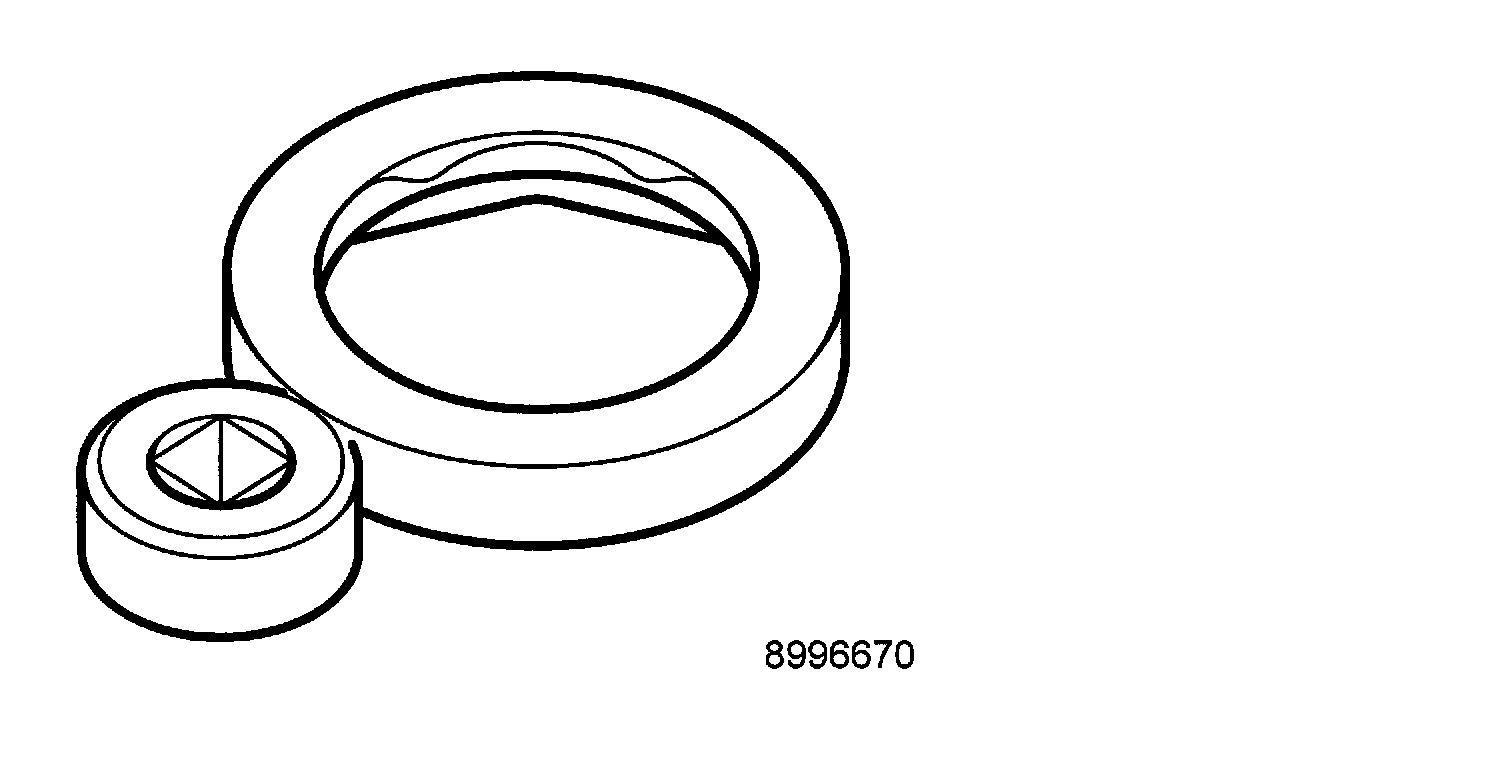

89 96 670 Spanner, damper insert
86 11 600 Tool board T2
Group: Chassis

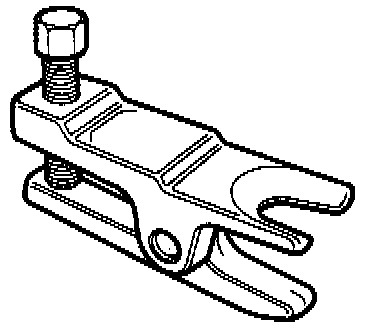

89 96 696 Puller
Removing the ball joint and steering link
86 11 600 Tool board T2
Group: Chassis





88 18 791 Spring compressor
86 11 600 Tool board T2
Group: Chassis

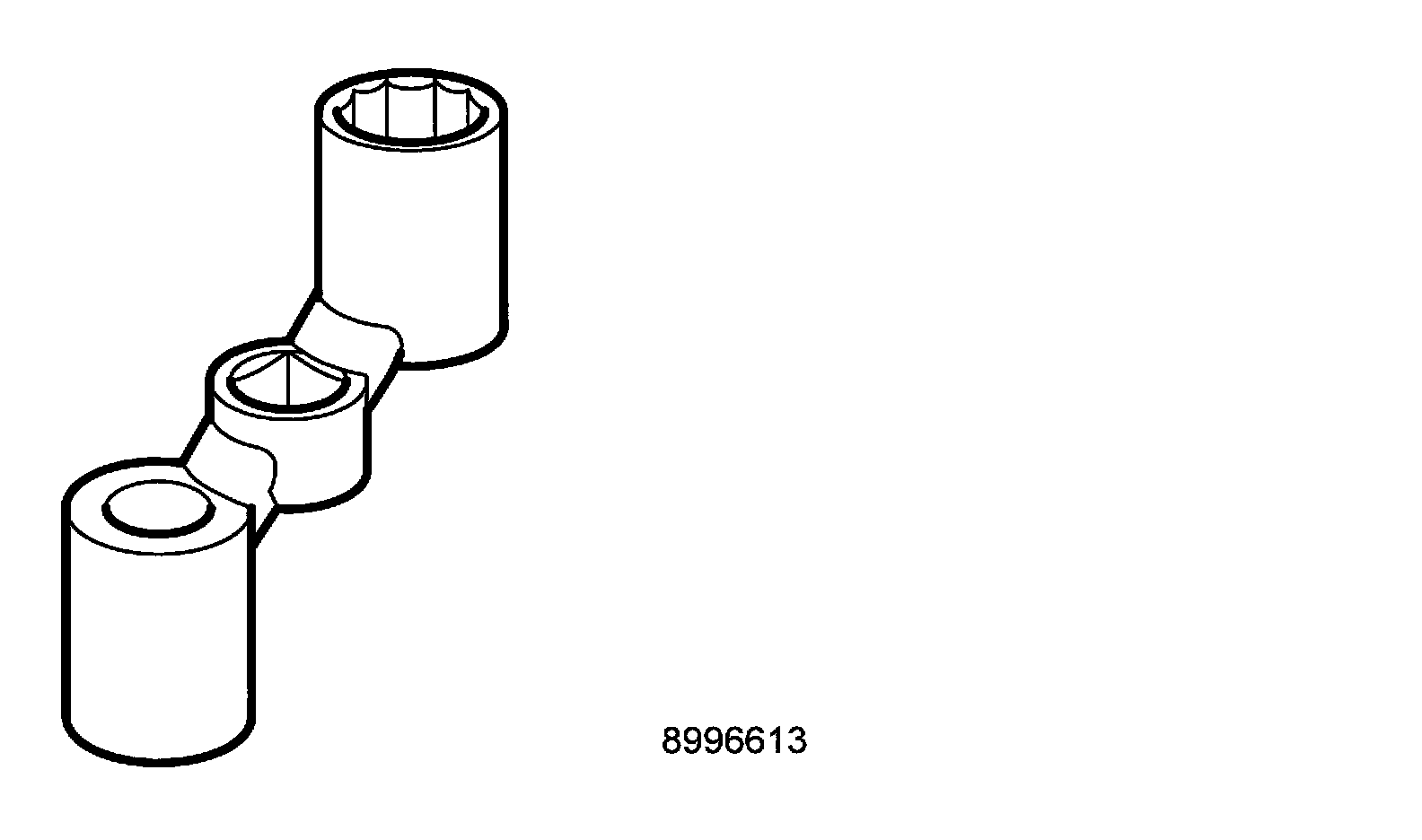

89 96 613 Sleeve, MacPherson strut
86 11 600 Toolboard T2
Group: Chassis





30 07 739 Hose pinch-off pliers
Prevents any run-off from hoses in the cooling system
86 11 618 Tool board T1
Group: Engine





89 96 852 Socket ring
Removing and fitting return valve on steering gear
Group: Chassis





87 92 475 Press sleeve, differential bearing
86 11 584 Toolboard T4
Group: Manual gearbox





87 90 487 Sleeve, differential bearing
86 11 584 Tool board T4
Group: Manual gearbox

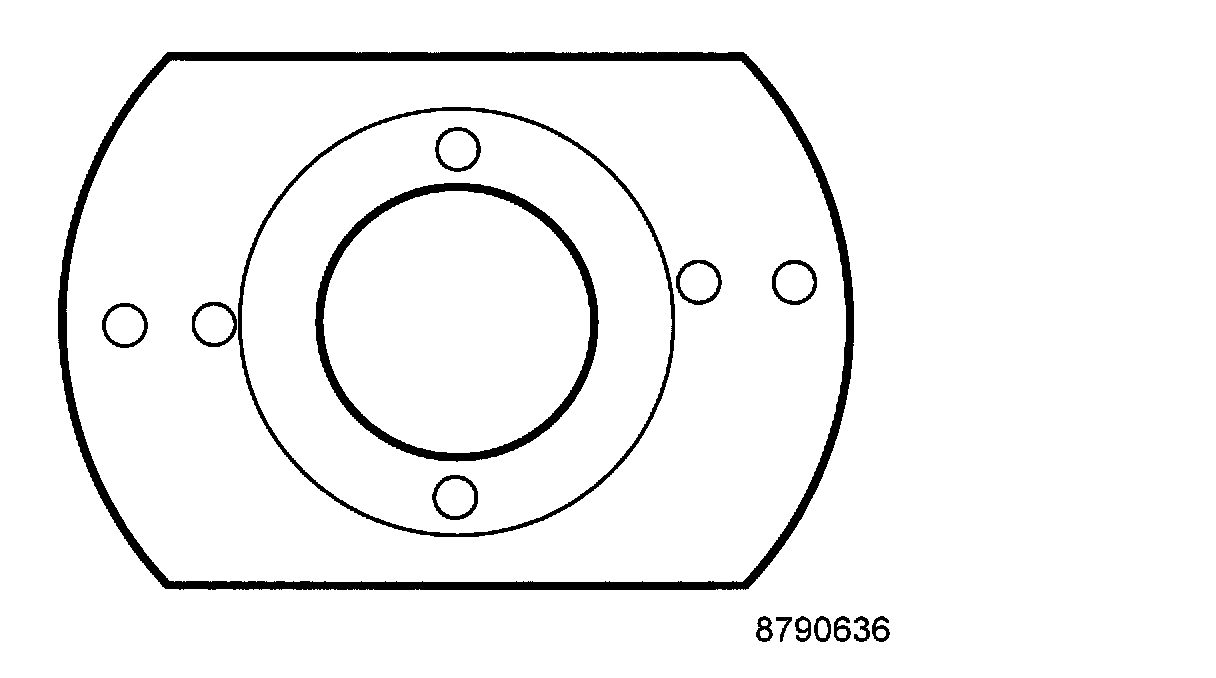

87 90 636 Fixture
86 11 584 Tool board T4
Group: Manual gearbox, Automatic transmission

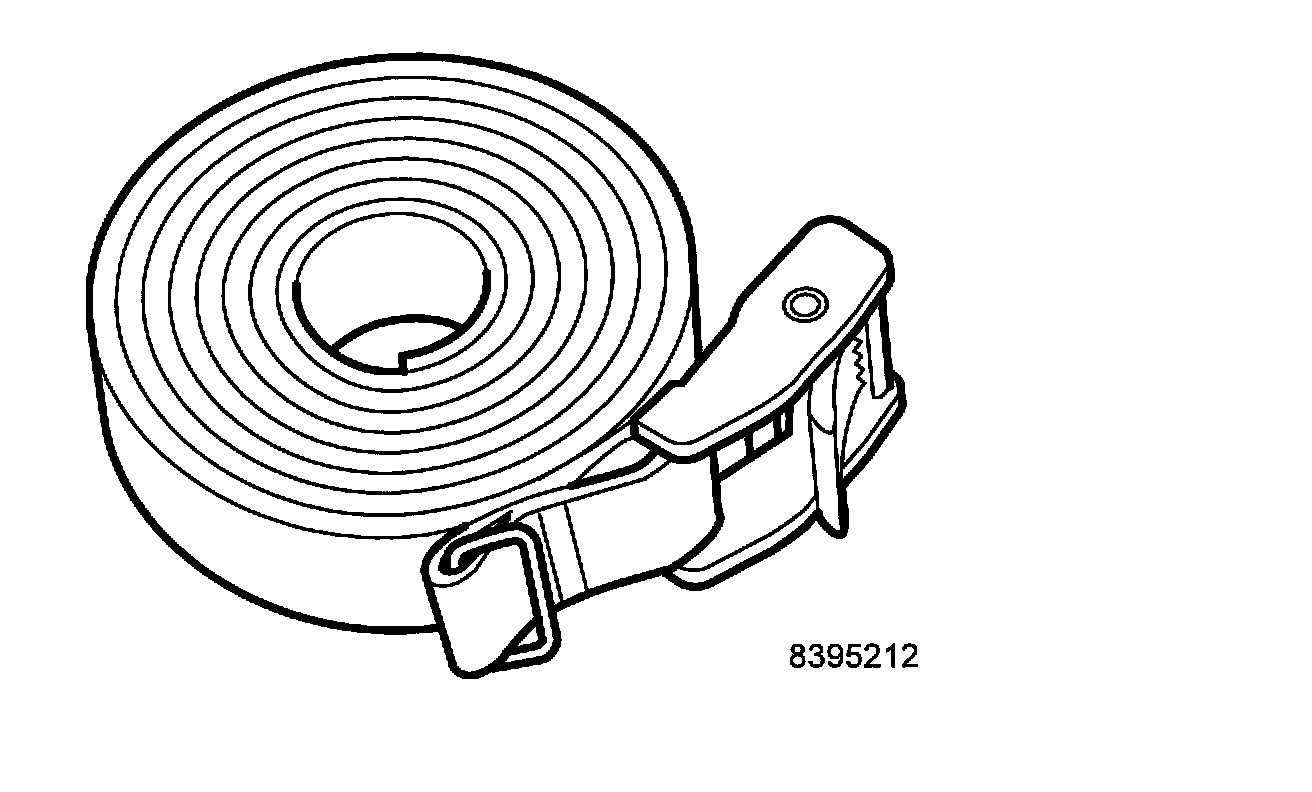

83 95 212 Strap
Supports heavy components such as AC compressor when removing and fitting
Group: Engine





89 96 696 Puller
Removing the ball joint and steering link
86 11 600 Tool board T2
Group: Chassis

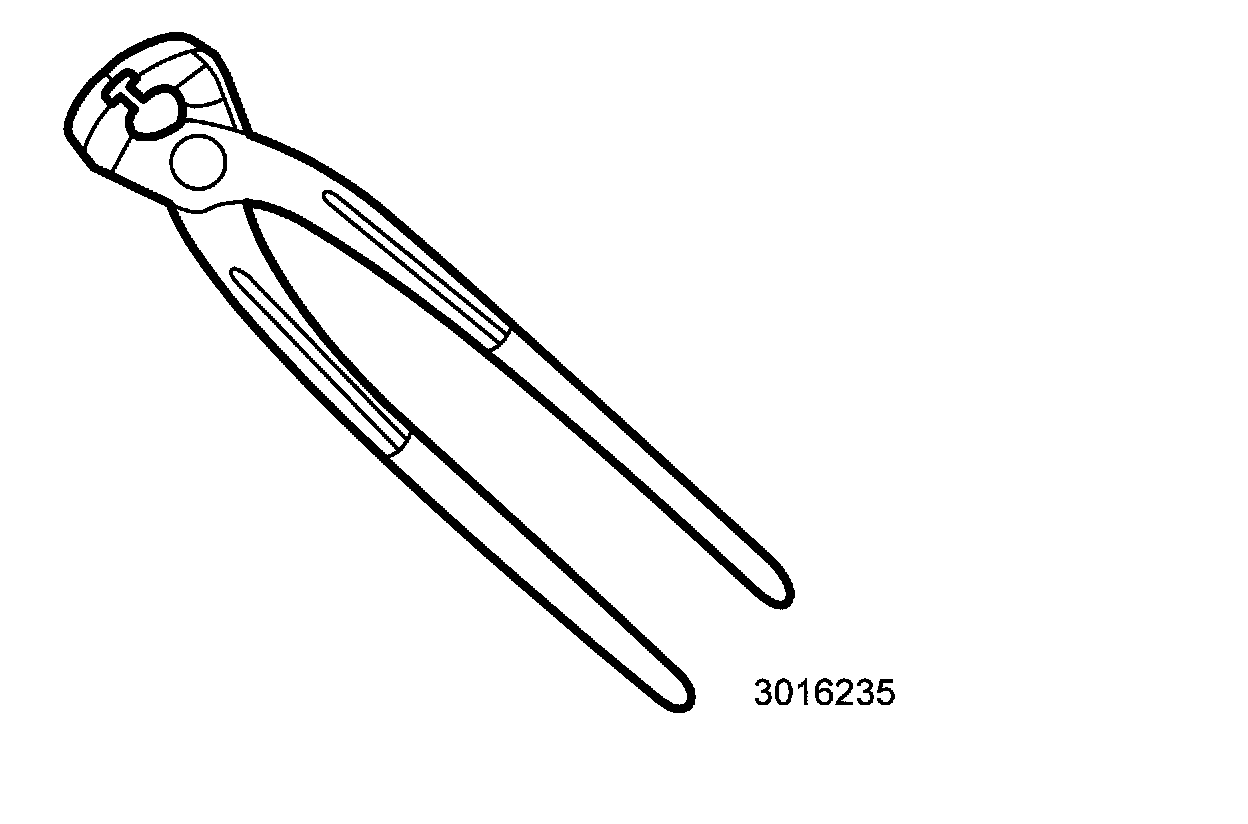

30 16 235 Pliers
For removing and locking disposable clips on gaiters
86 11 600 Toolboard T2
Group: Manual gearbox

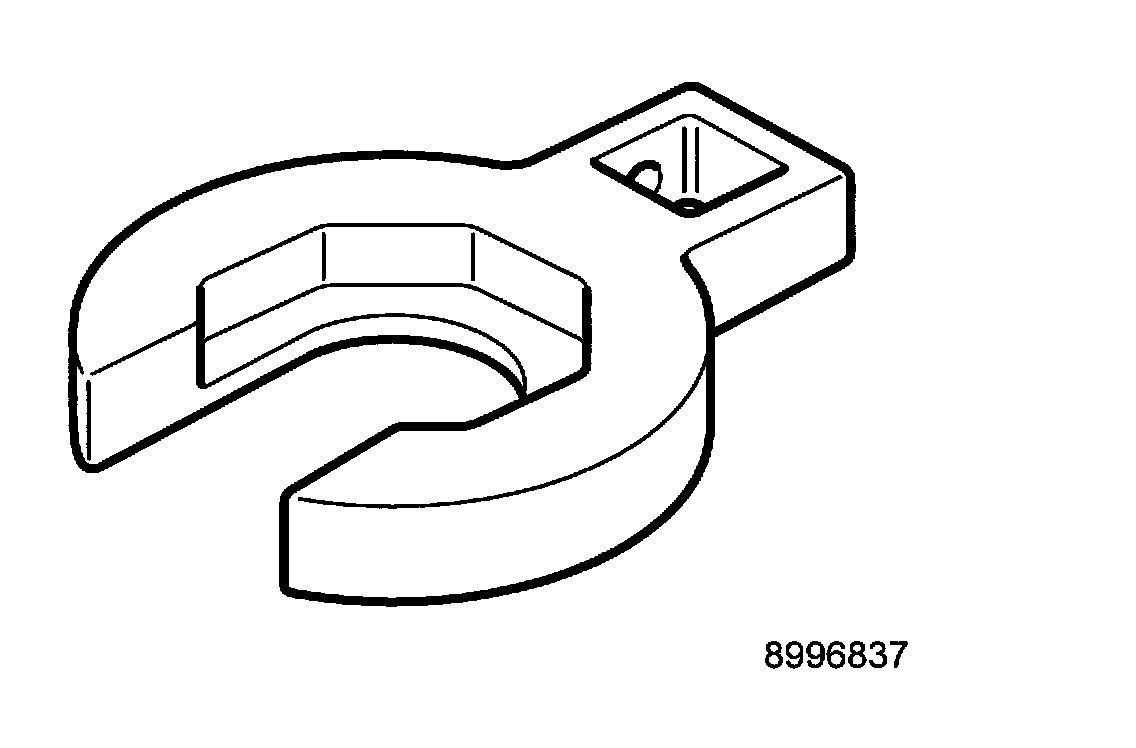

89 96 837 Special wrench
For removing and fitting track rods
86 11 600 Toolboard T2
Group: Chassis

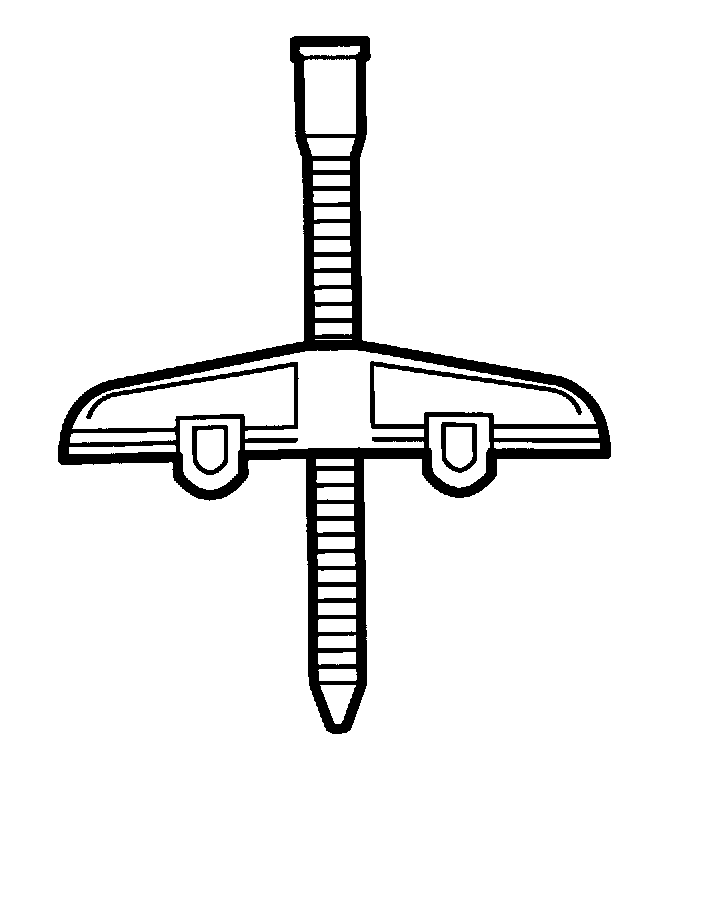

87 91 287 Puller, 150 mm
86 11 584 Tool board T4
Group: Manual gearbox





89 96 696 Puller
