Steering: Specifications

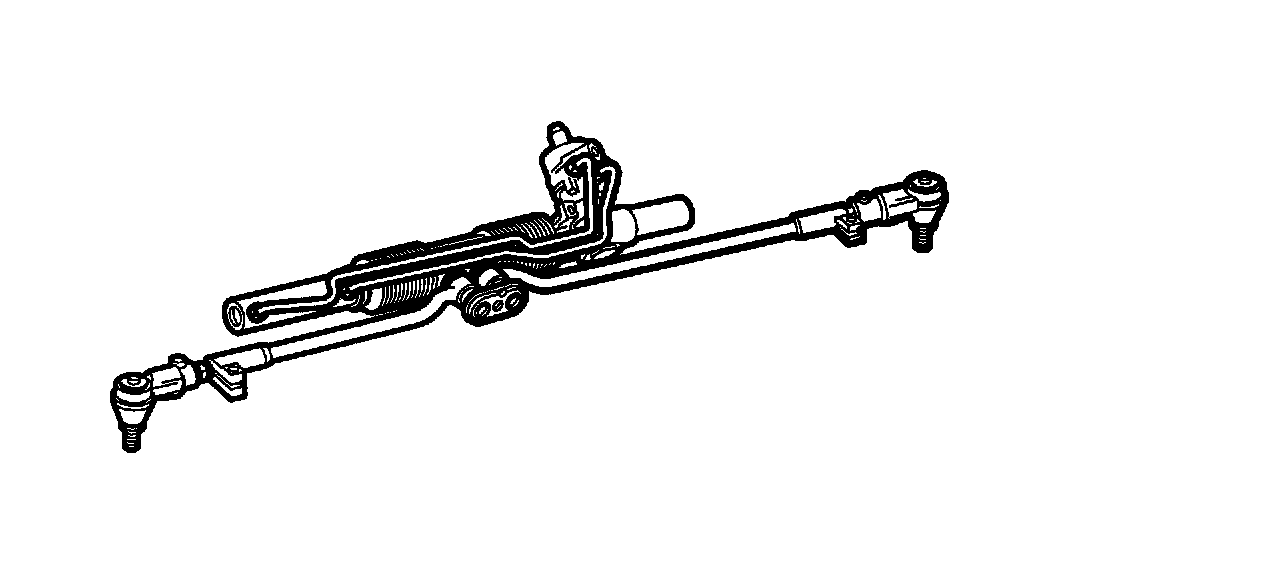

Steering System
Steering wheel revolutions, lock to lock:
Standard 3.0
US/CA: Car with 16" wheels factory fitted: 2.9
Turning diameter between curbs:
Standard 10.7 m
US/CA: Car with 16" wheels factory fitted: 11.1 m
Turning diameter between walls:
Standard 11.3 m
US/CA: Car with 16" wheels factory fitted: 11.8 m
Plunger, adjustment:
Screw the plunger to the bottom and then back 35° - 50°. Make sure the rack does not jam in any position.

Note: There must not be any visible play in the steering link with unladen steering assembly.
