Saab
>>
2003
>>
9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Locations
>>
Ground Locations
>>
Grounding Point G24
Grounding Point G24

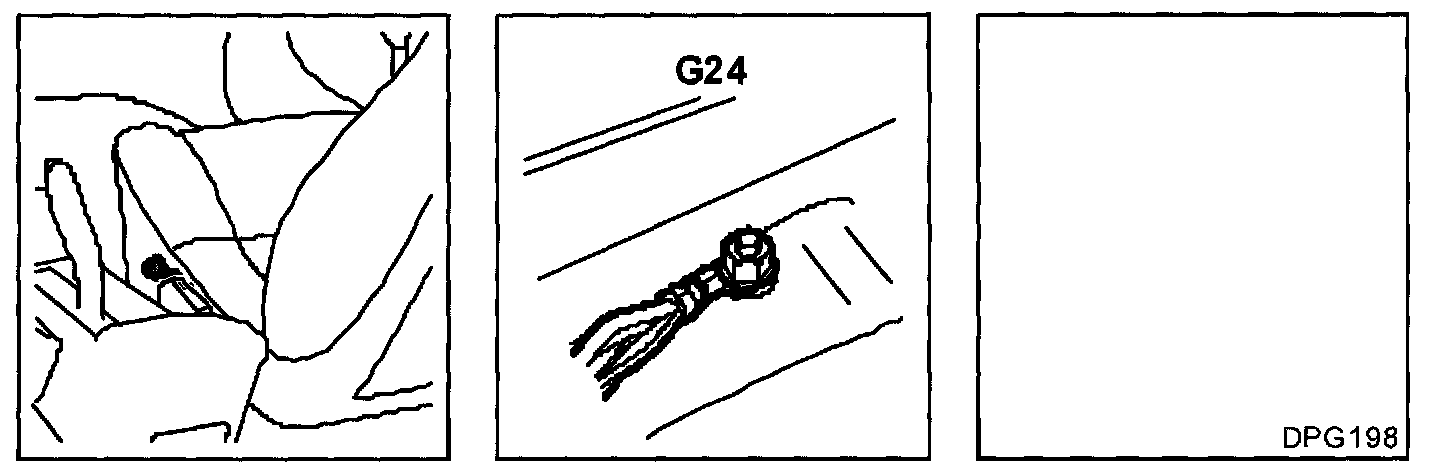

Location:
Under RH seat on floor behind seat member.
Grounding Point G24:

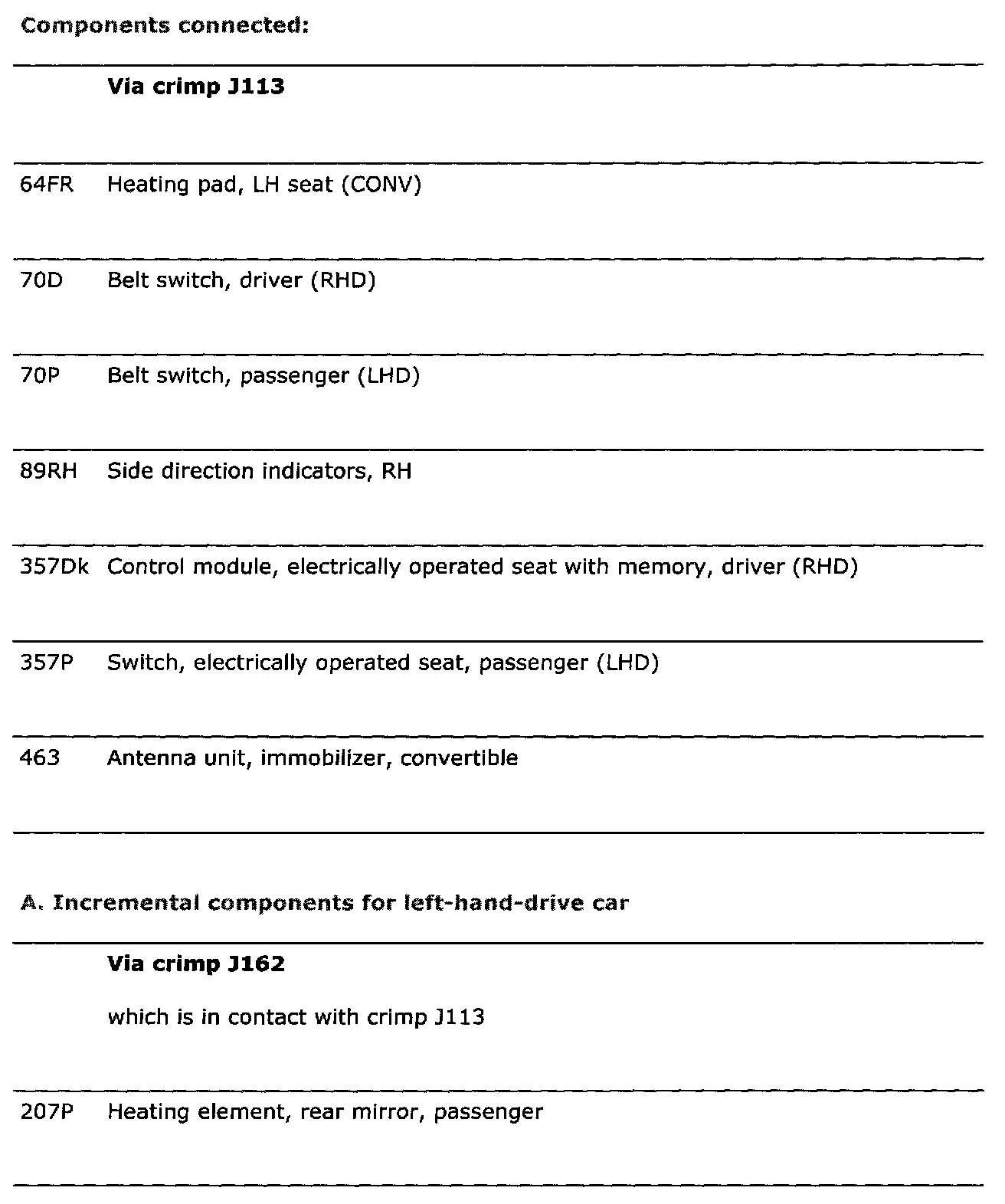

Connected Components Part 1:

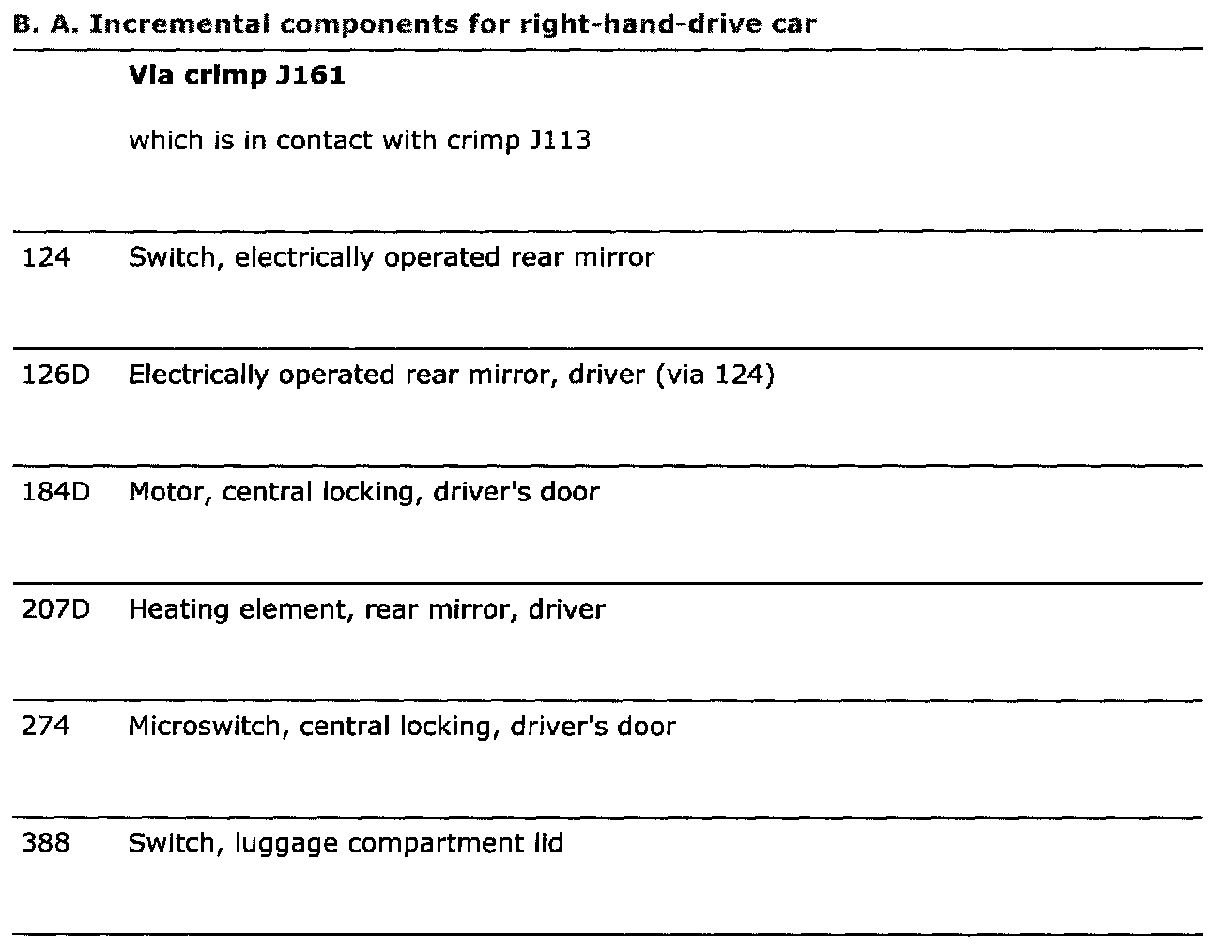

Connected Components Part 2:
