Main Components

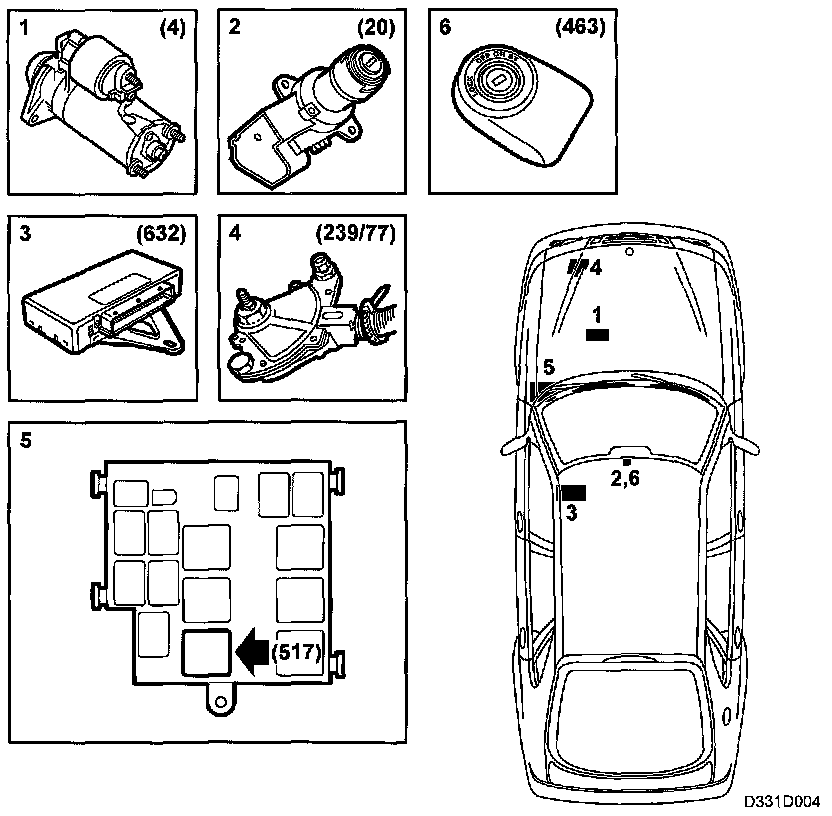

Main Components, LHD







1. Starter motor (4)
2. Ignition switch (20)
3. TWICE control module (632)
4. Gear selector, automatic (239/77)
5. Starting relay (517)
6. Immobilizer (463)
