Dashboard

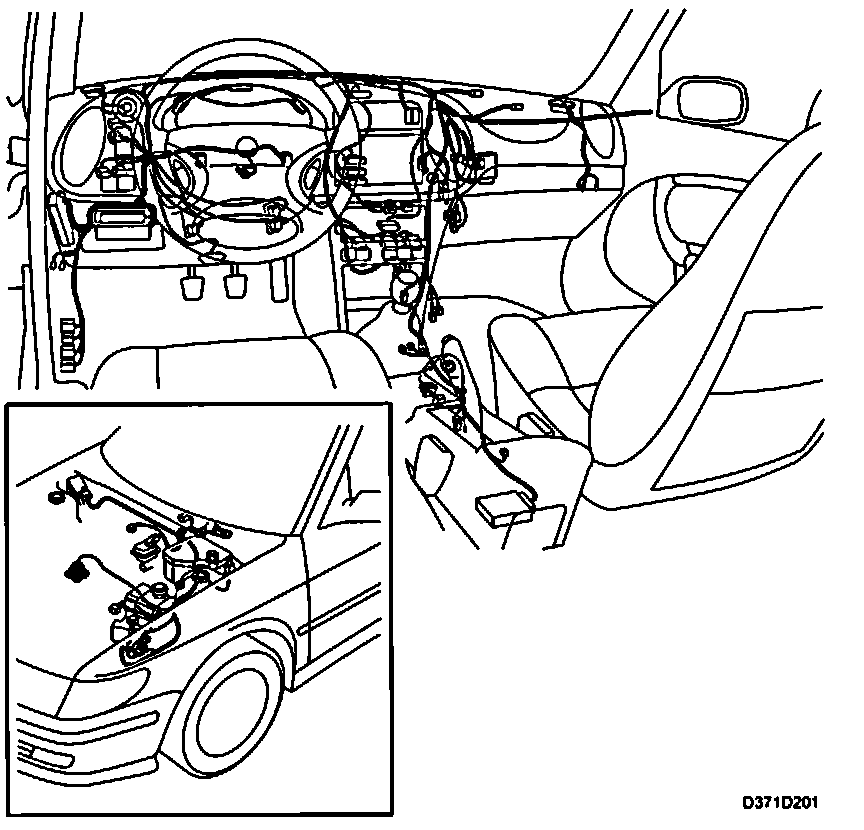

Wiring Harness, Dashboard

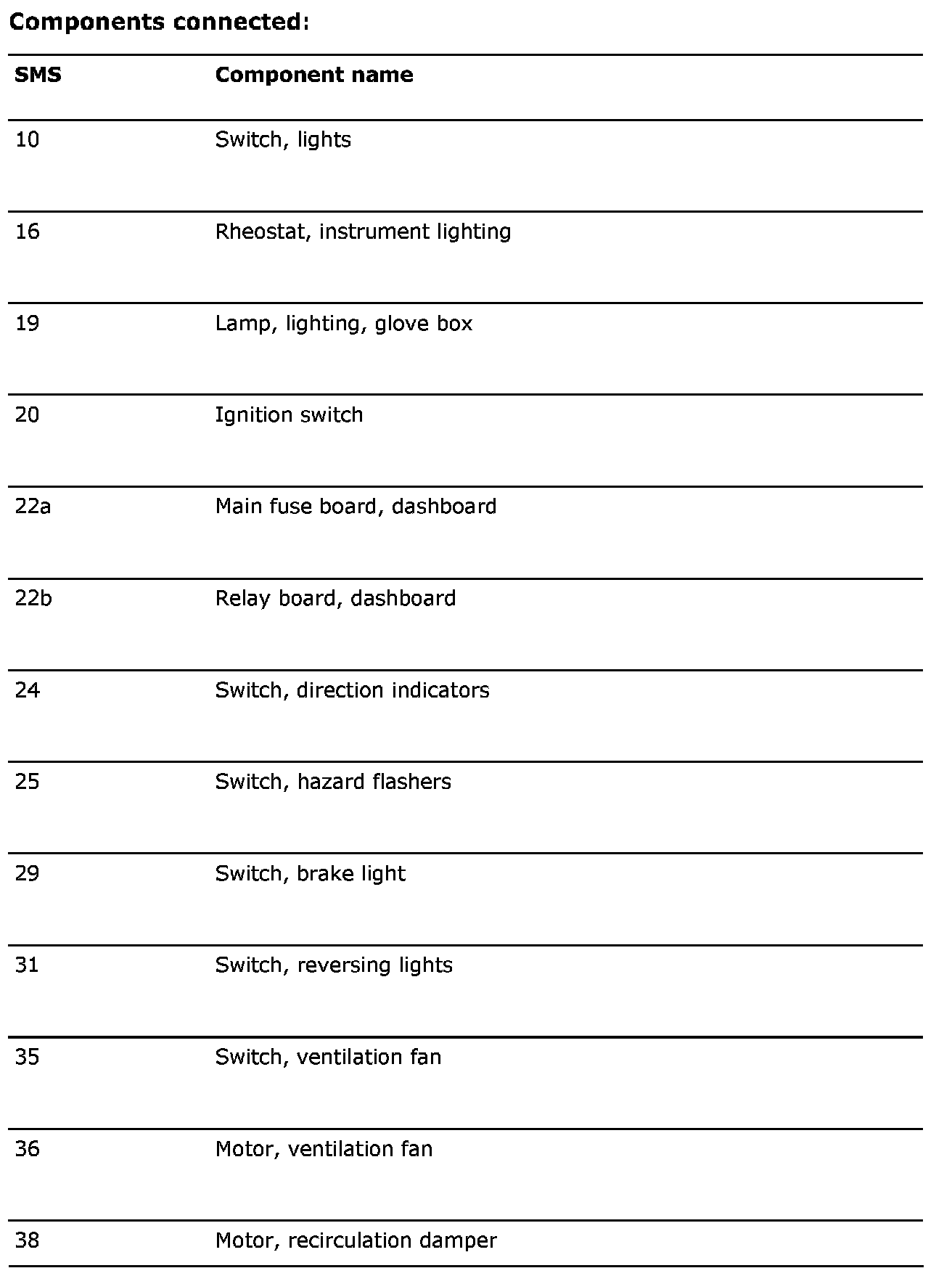

Connected Components Part 1:

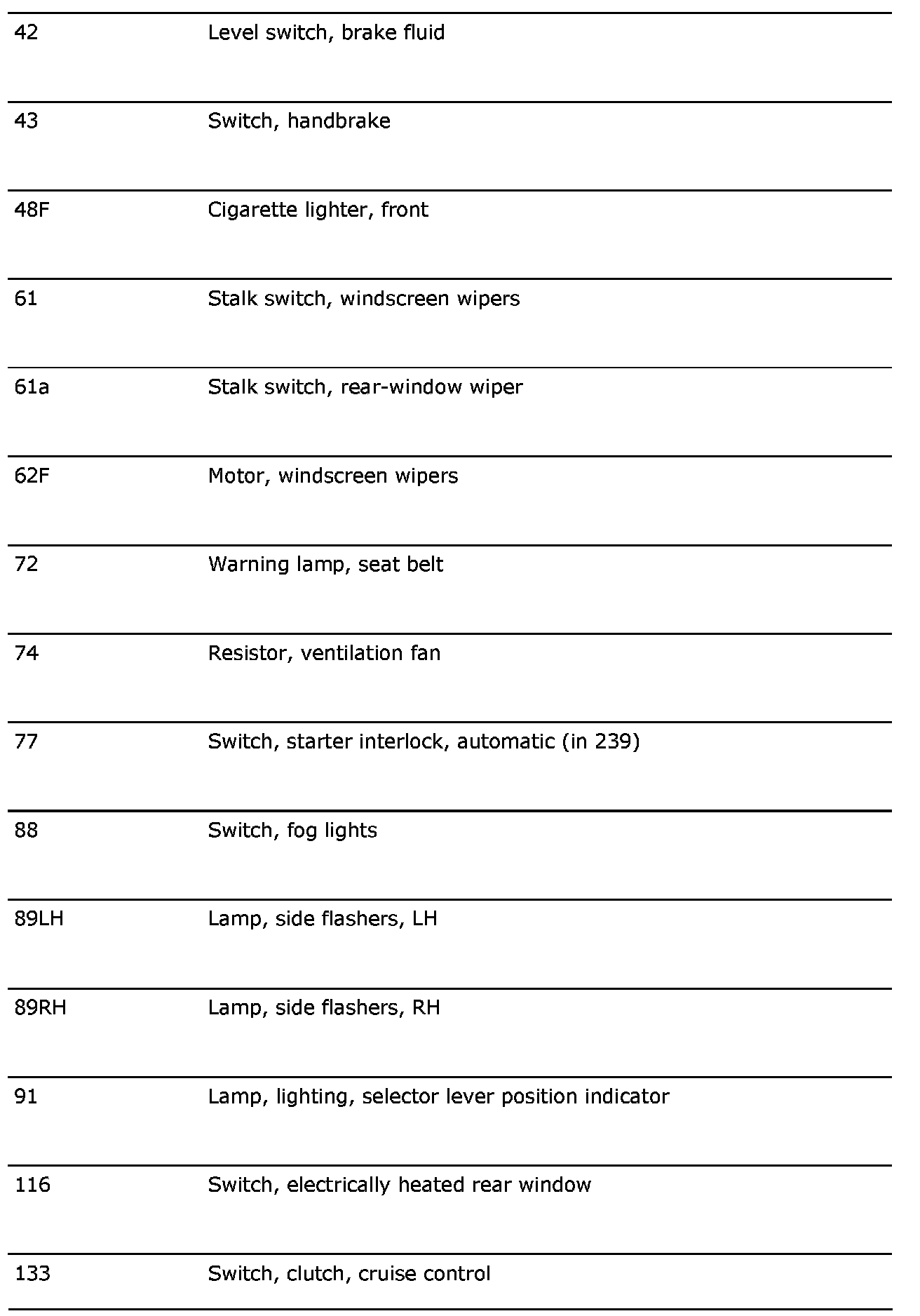

Connected Components Part 2:

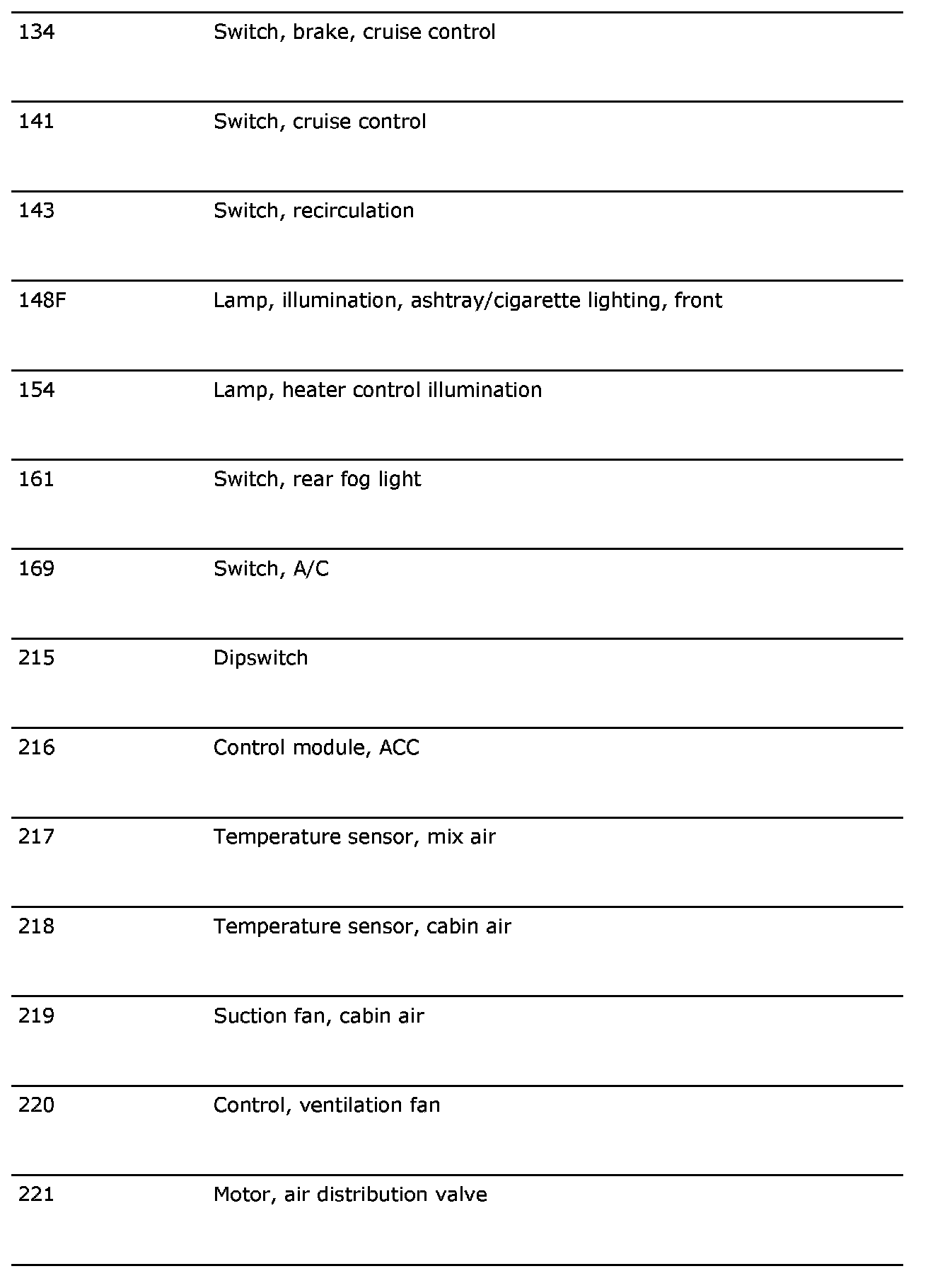

Connected Components Part 3:

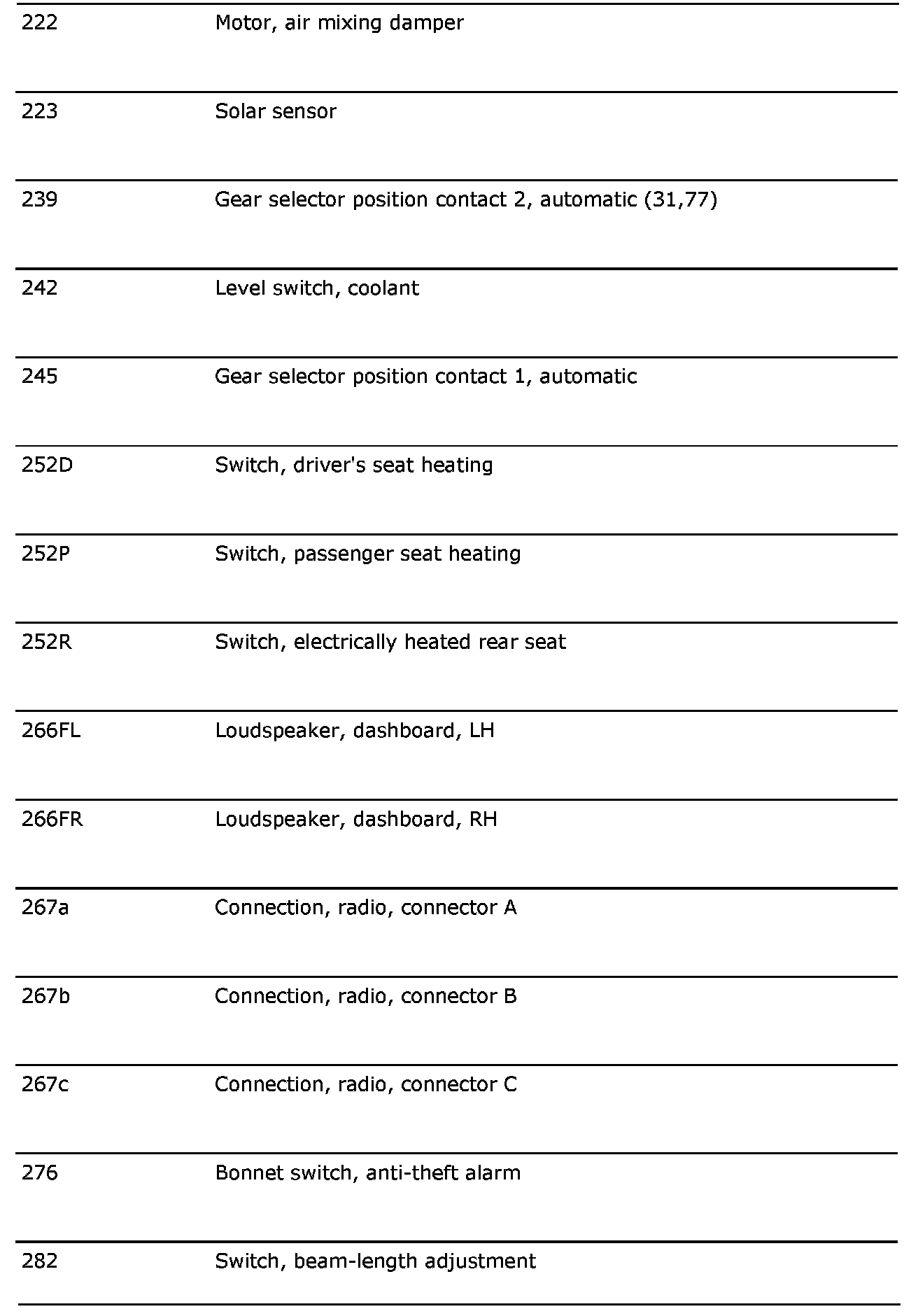

Connected Components Part 4:

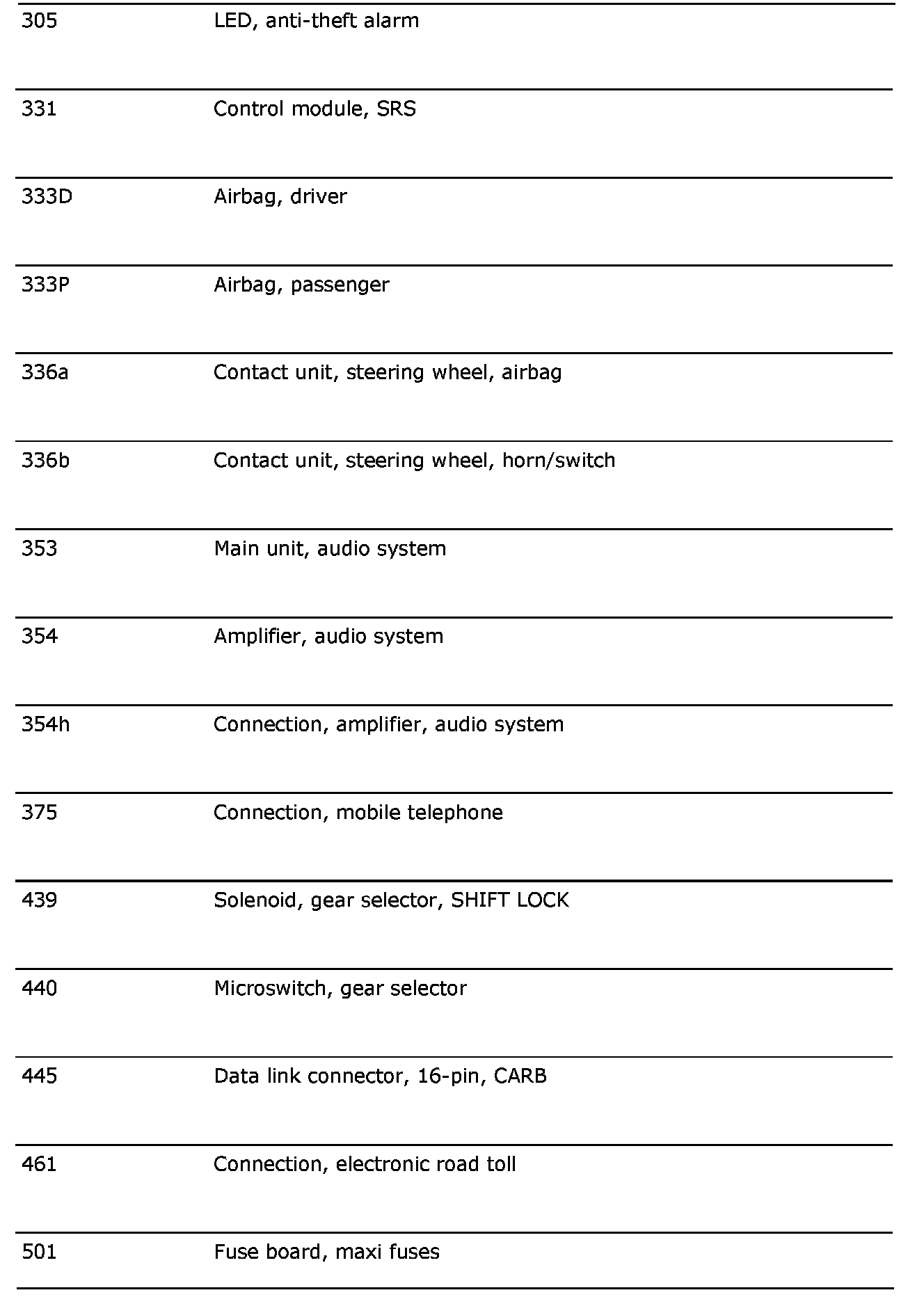

Connected Components Part 5:

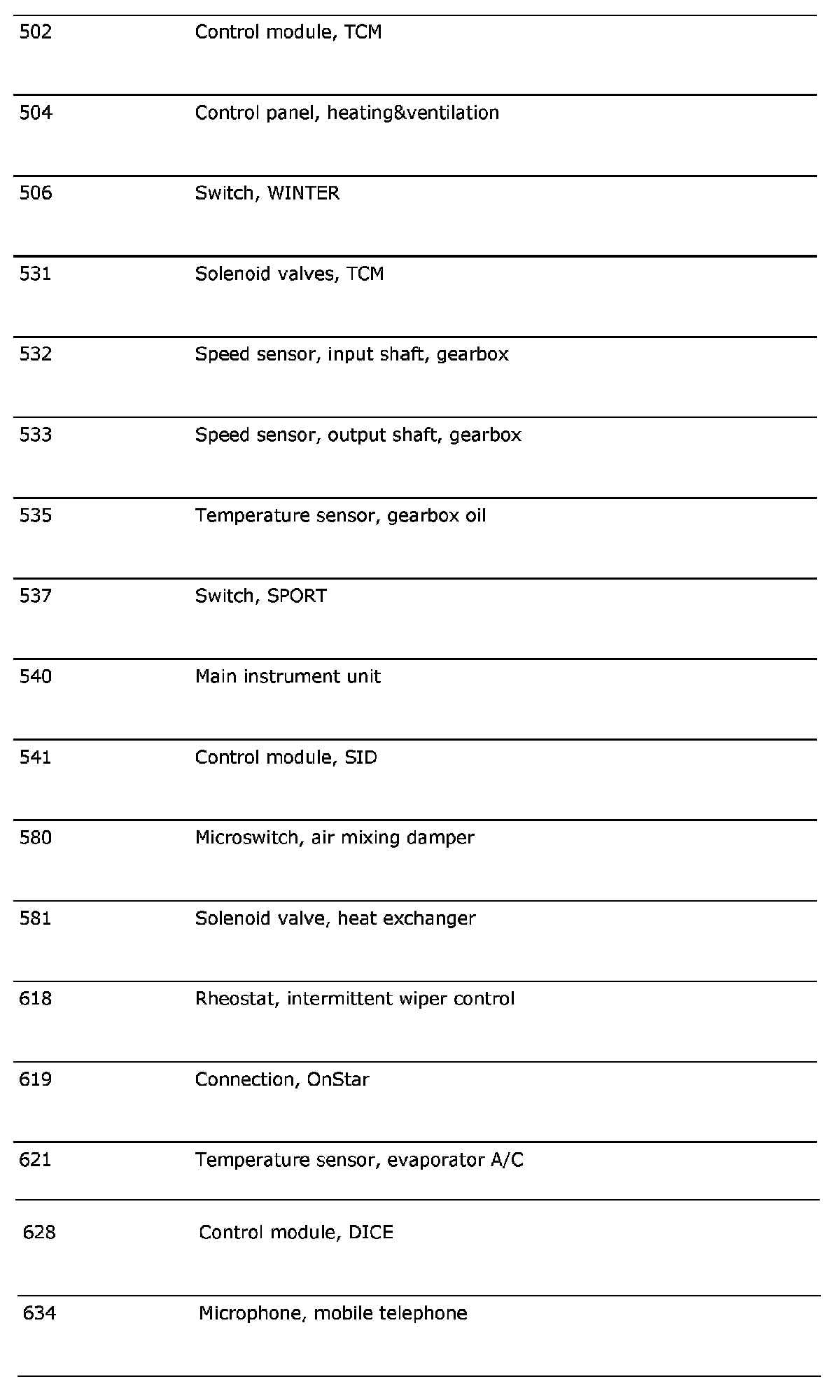

Connected Components Part 6:
