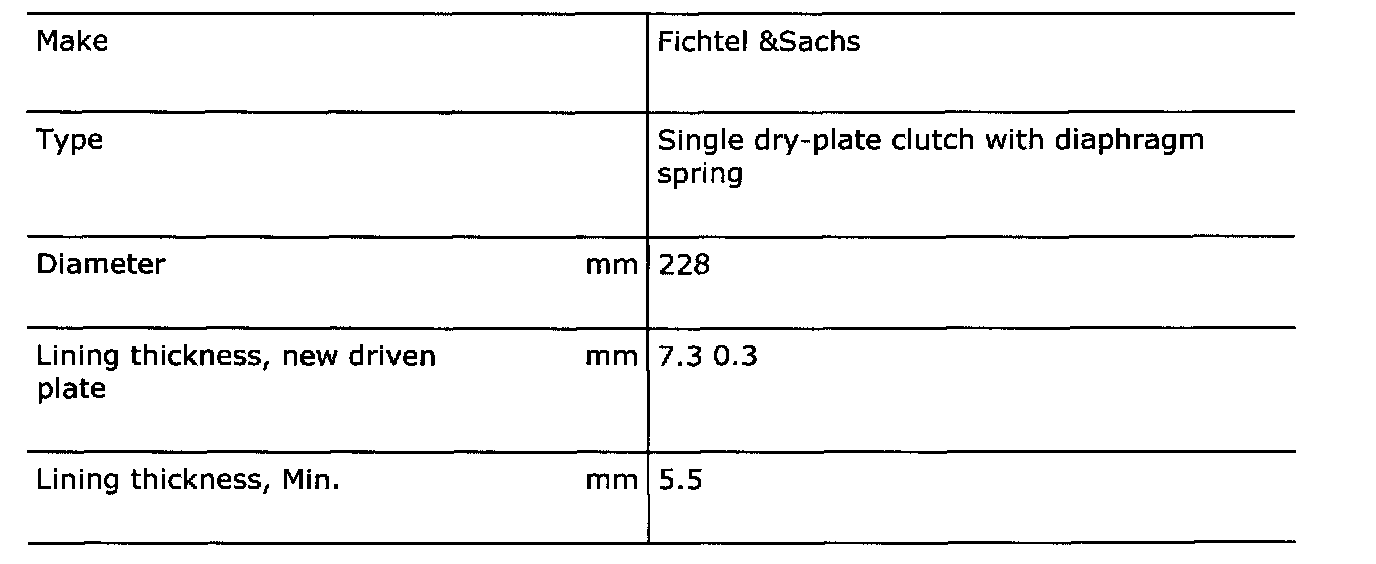

Clutch Manual Transmission



Part 1 Of 2:




Part 2 Of 2:

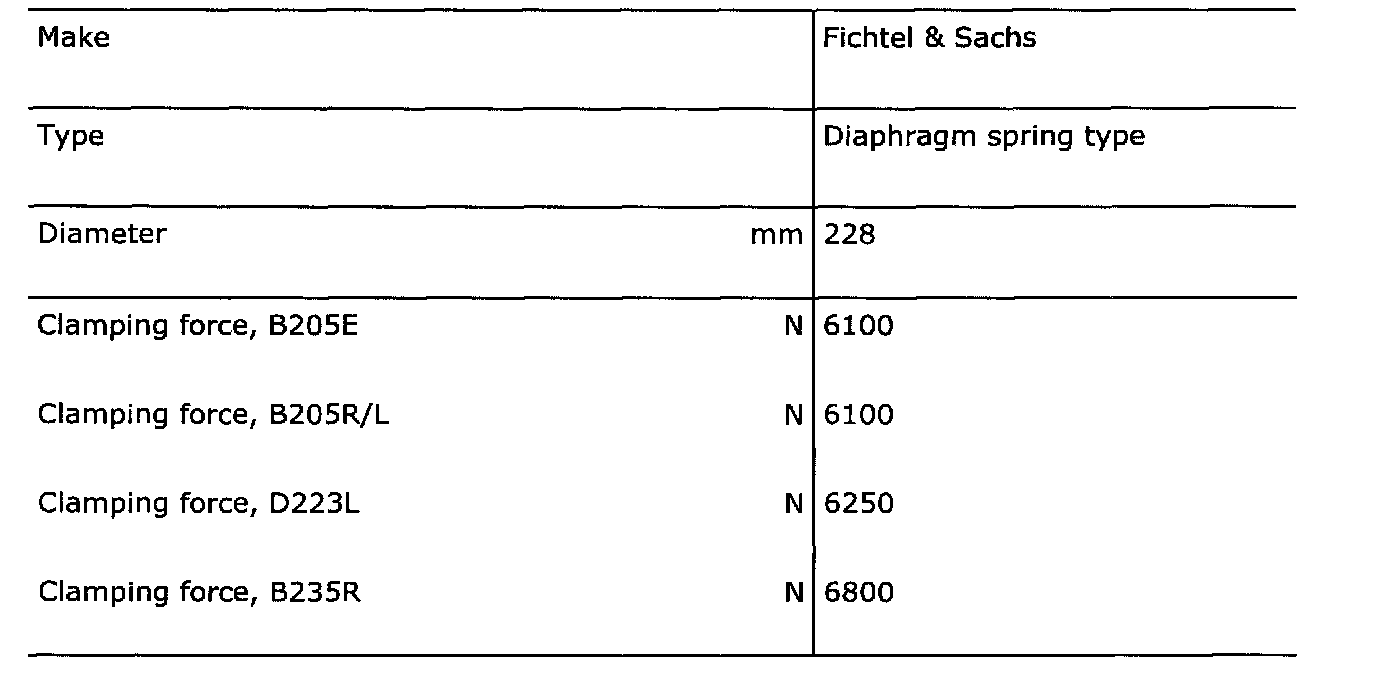

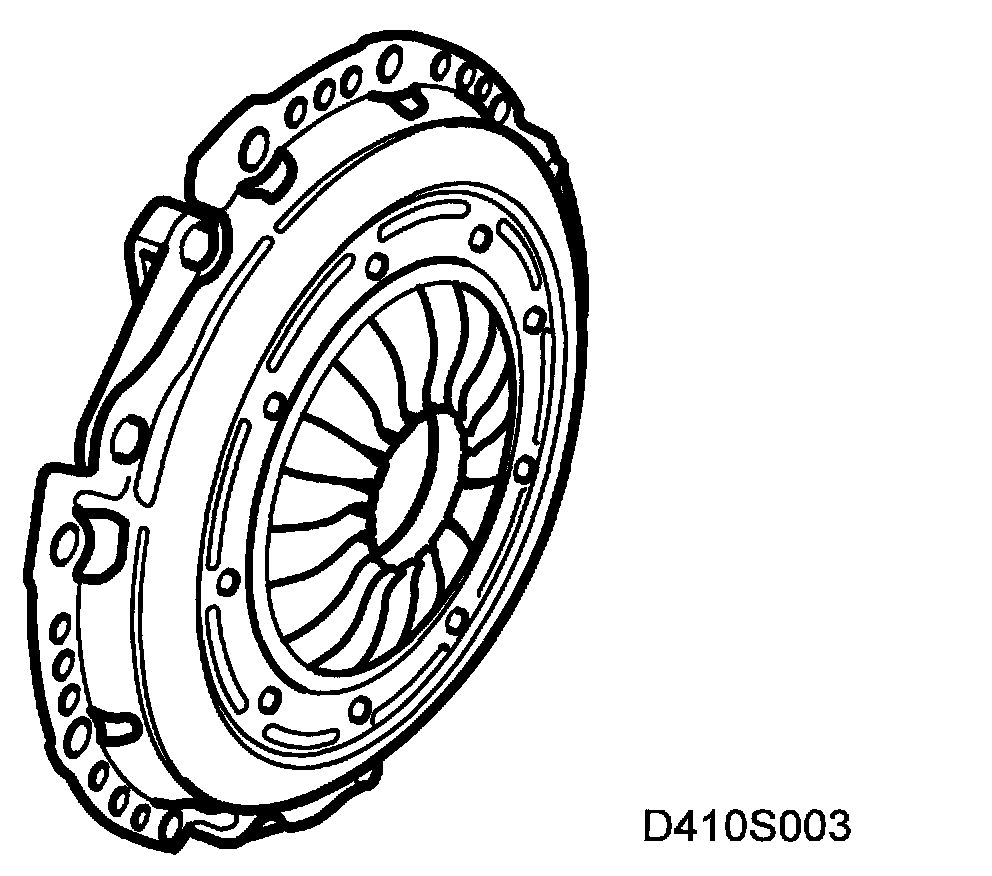

Pressure plate


Part 1 Of 2:




Part 2 Of 2:

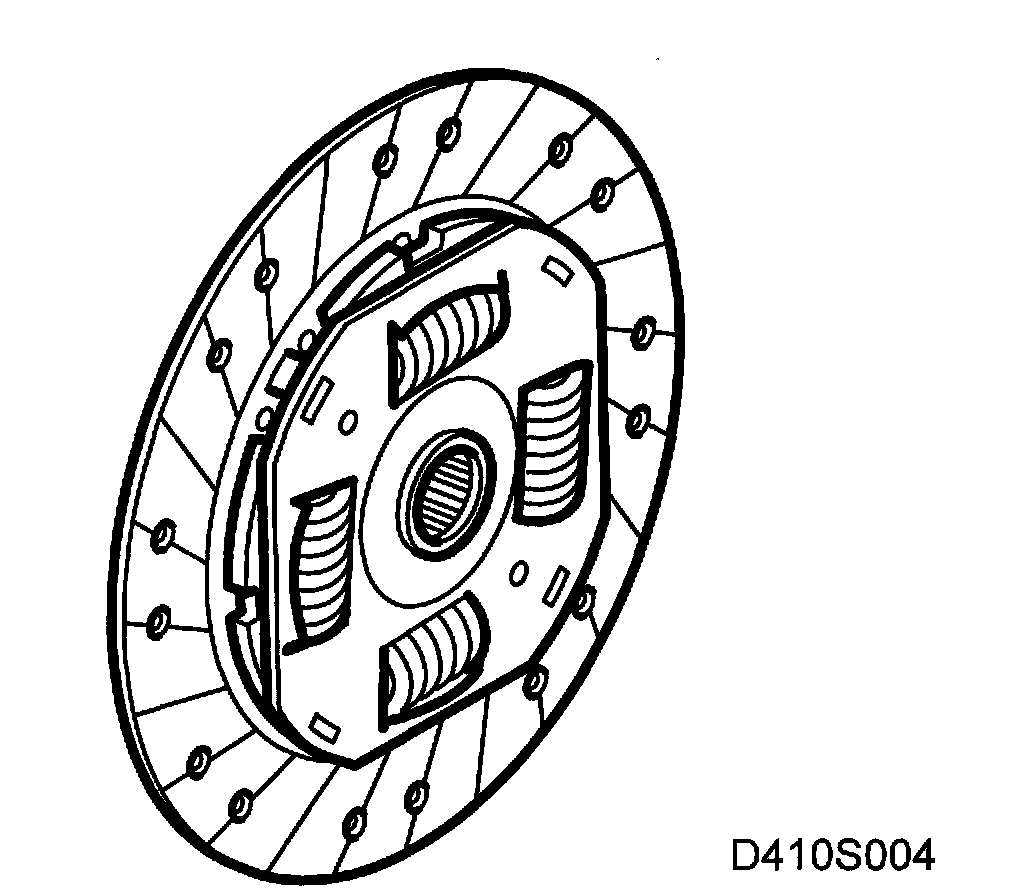

Driven plate


Part 1 Of 2:




Part 2 Of 2:

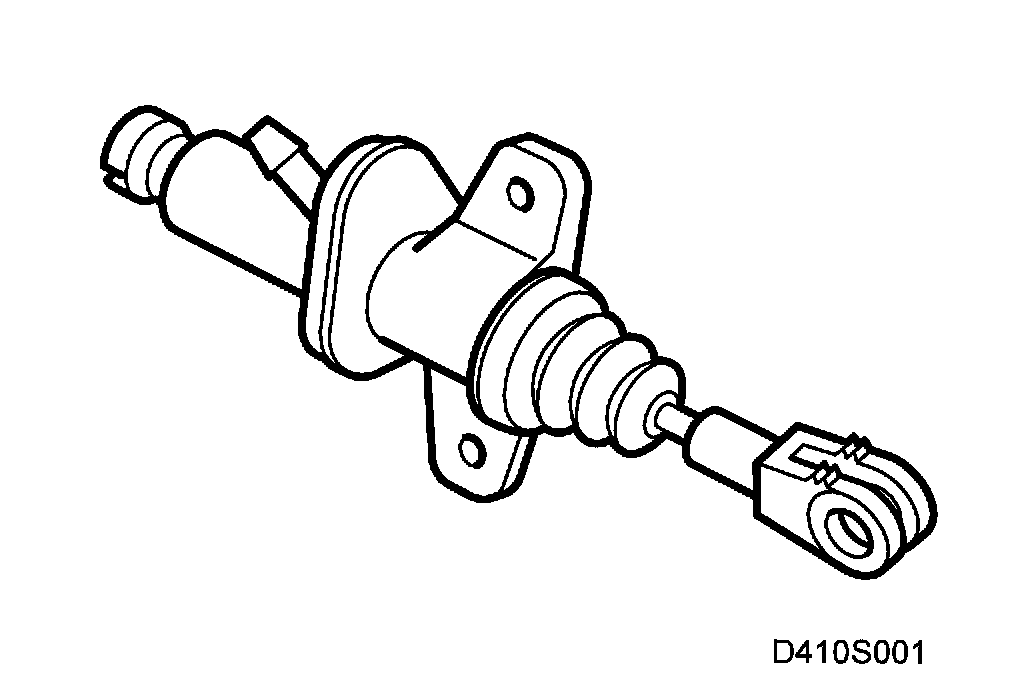

Master cylinder


Part 1 Of 2:




Part 2 Of 2:

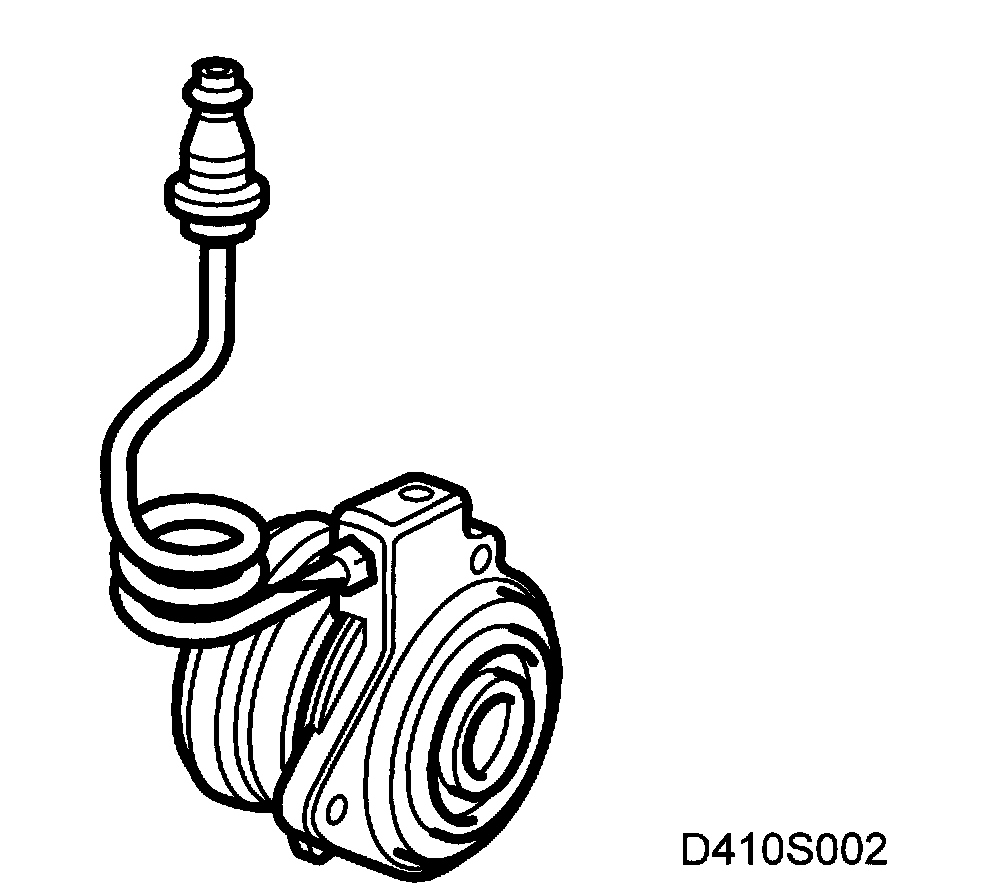

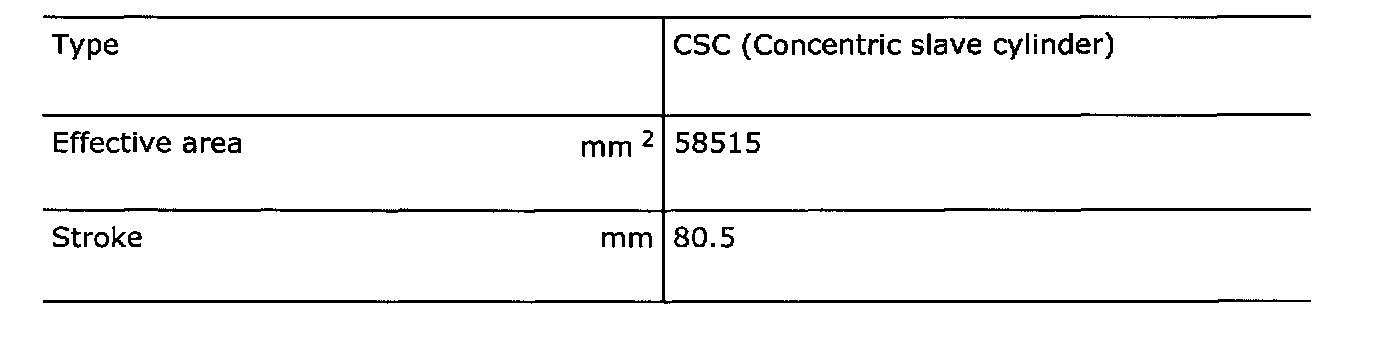

Slave cylinder
