Dimensional/Description

TC/ABS 5.3 Dimensional/Description

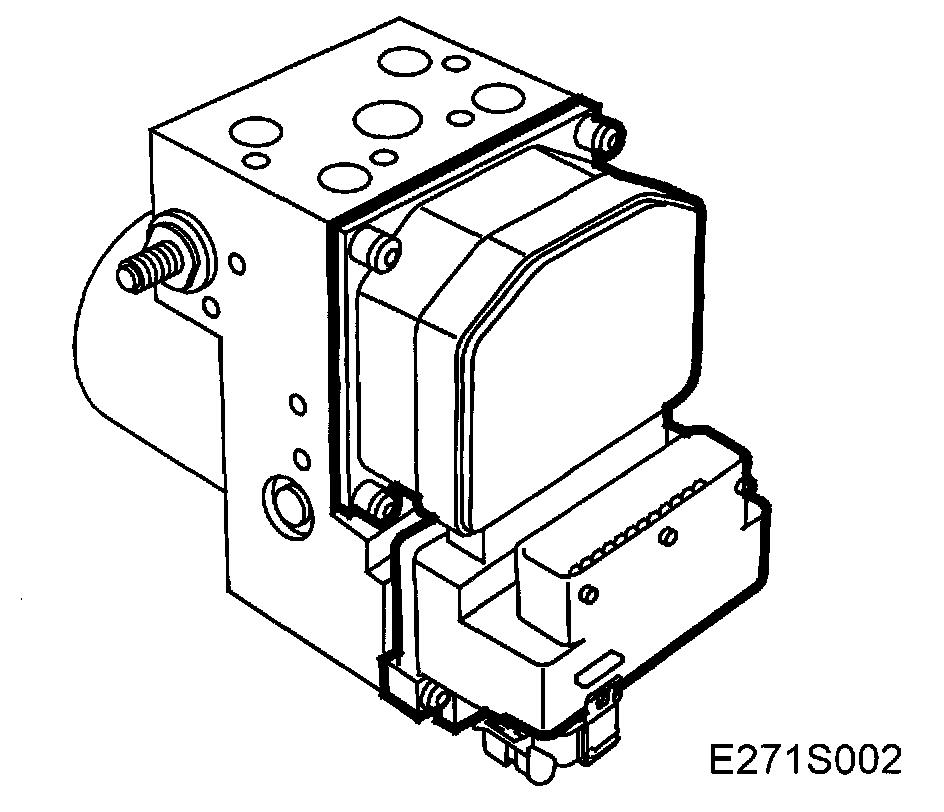

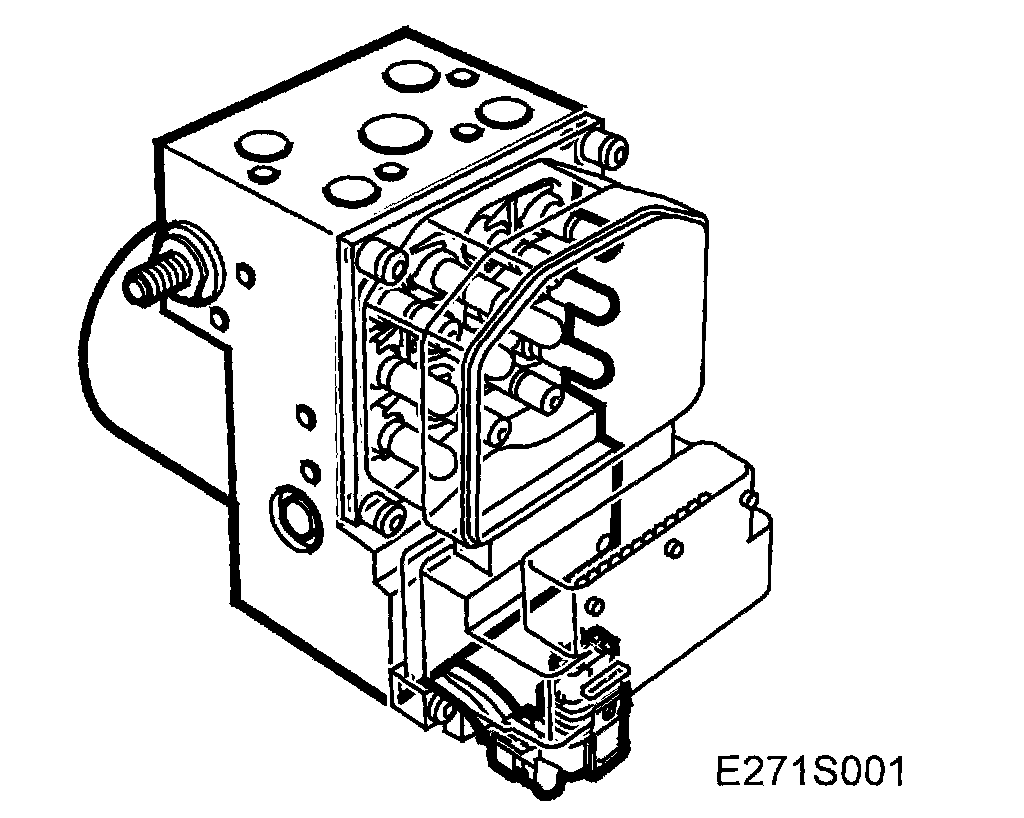

TC/ABS 5.3 Hydraulic Unit:

Manufacturer Bosch TC/ABS 5.3
Solenoid Valves, ABS 8 pcs (4 Inlet Valves & 4 Outlet Valves)
Solenoid Valves, TCS 4 pcs (2 Pressure Increase and 2 Pressure Relief Valves)
Return Pump Eccentric-Plunger Type
Maximum Pressure From Return Pump 250 Bar

- The Hydraulic Unit is integrated with the Control Module.

TC/ABS 5.3 Control Unit:

Number of Terminal Pins 31 pcs
Power Supply (+30) Pins 17, 18
Power Supply (+15) Pins 15
Main Ground (G2) Pin 19
Ground, Pump Motor Pin 16
Working Voltage 9 - 16 Volts
Power Consumption, Rest Position < 3 mA

- The Control Module is integrated with the Hydraulic Unit.

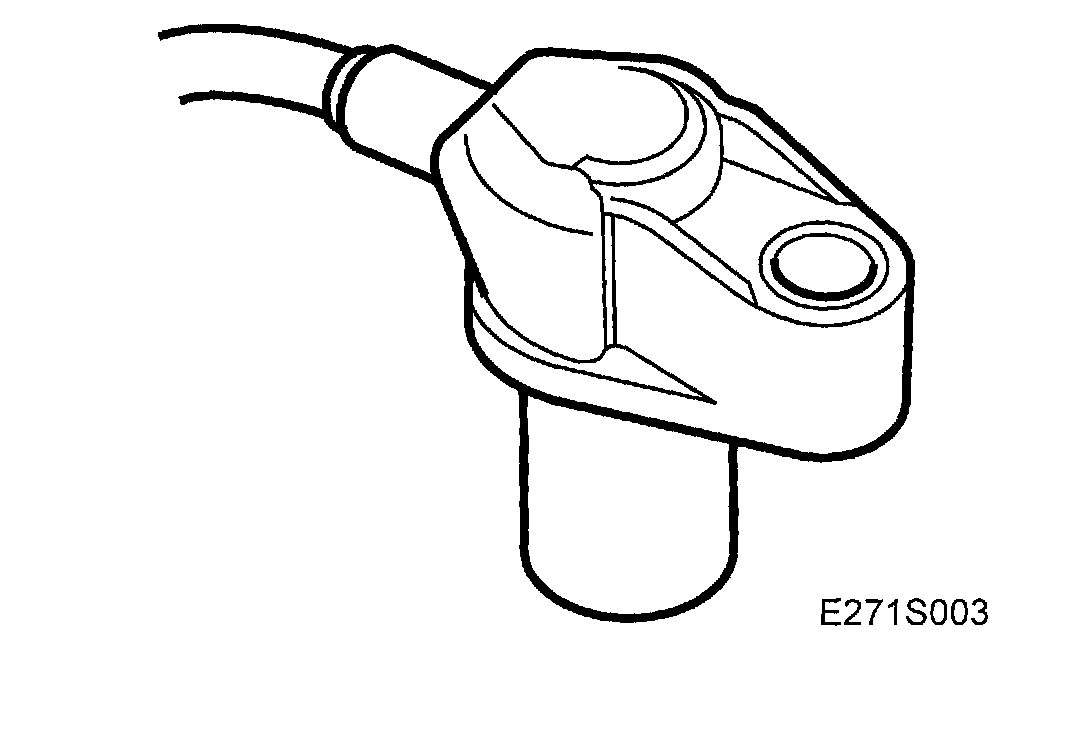

Front Wheel Sensor:

Operating Voltage, Minimum 120 mVAC @ 2.75 km/h (1.7 mph)
Operating Voltage, Maximum 100 mVAC @ 280 km/h (174 mph)
Resistance 1600 ohm ± 160

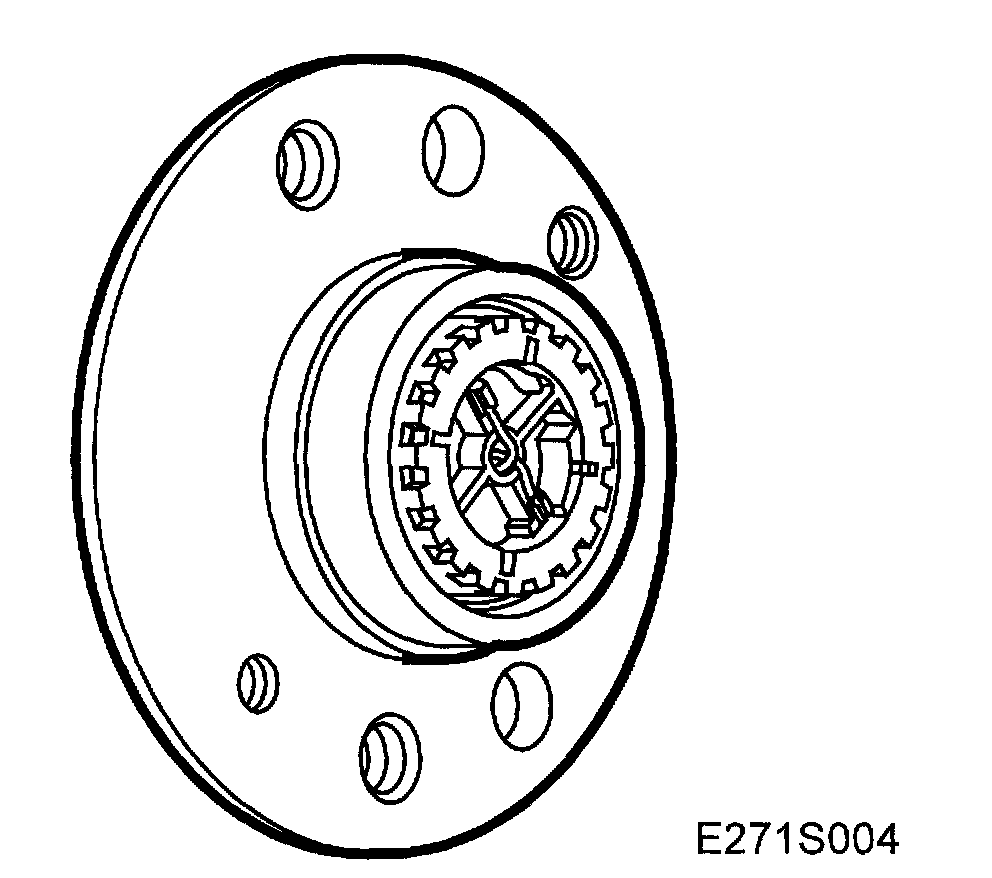

Number of Teeth 29
Gap, Wheel Sensor-Toothed Wheel 0.3 - 1.3 mm (Fixed)

Rear Wheel Sensor:

Operating Voltage, Minimum 120 mVAC @ 2.75 km/h (1.7 mph)
Operating Voltage, Maximum 100 mVAC @ 280 km/h (174 mph)
Resistance 1130 ohm ± 115
Number of Teeth 29
