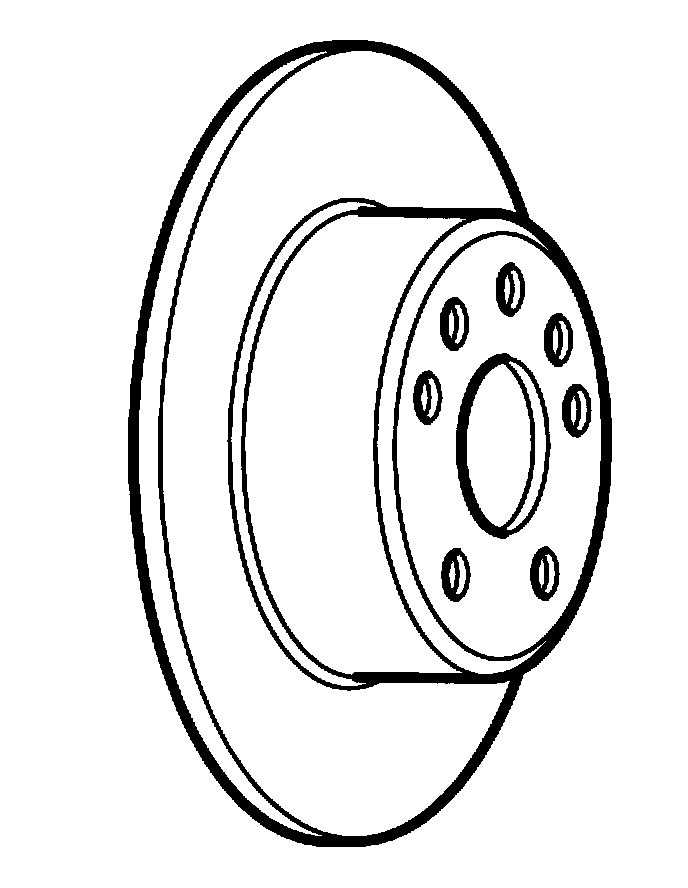

Rear Brake Rotor/Disc

Brake Disc, Rear Wheel, Solid Type:

Brake Disc, Rear Wheel
Type Solid
Outside Diameter 286.0 mm
Thickness:
New 10.0 mm
Minimum Permissible 8.0 mm
Minimum Permissible After Grinding 8.5 mm
Maximum Runout (Fitted) 0.08 mm
Maximum Variation In Thickness 1.0 mm
