Test Readings, Amplifier Connections



Test Readings, Amplifier Connections

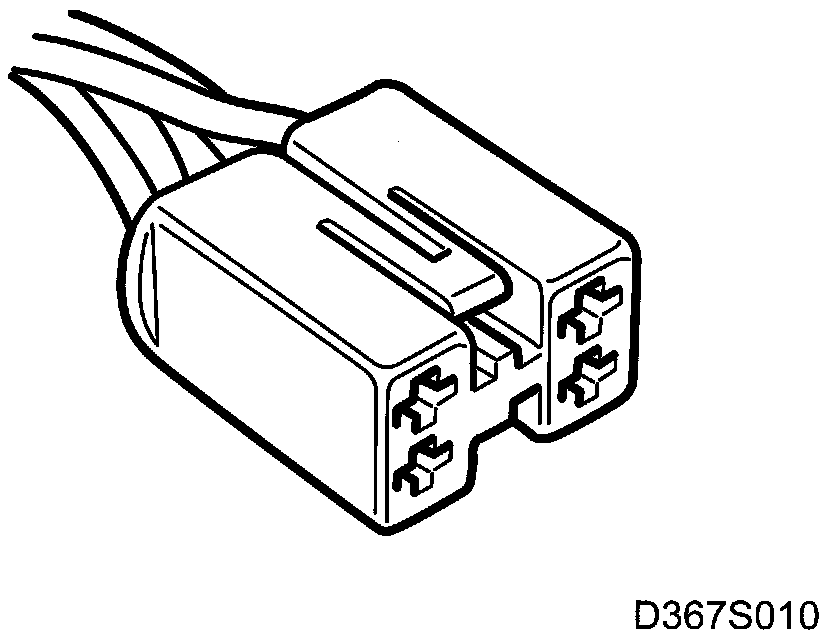

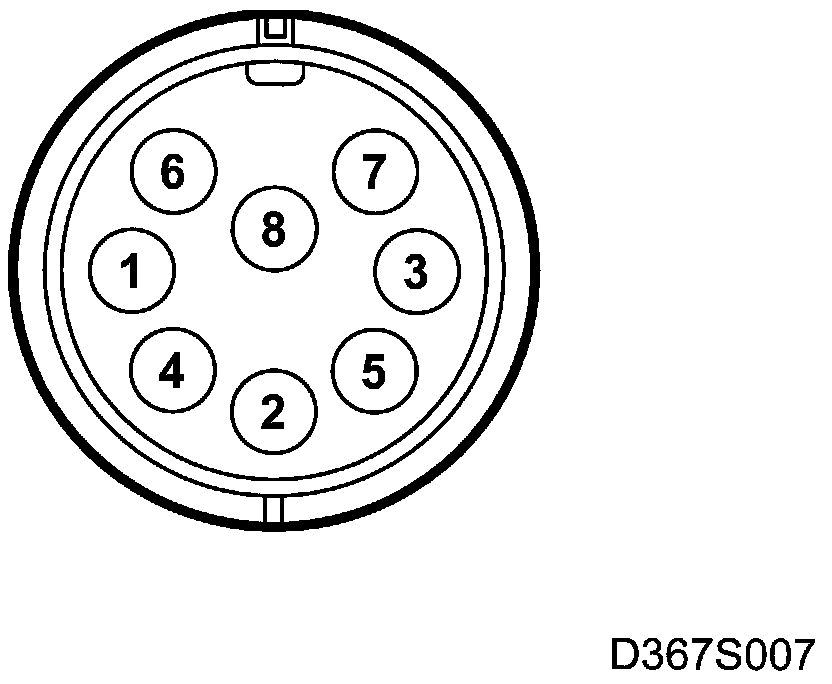

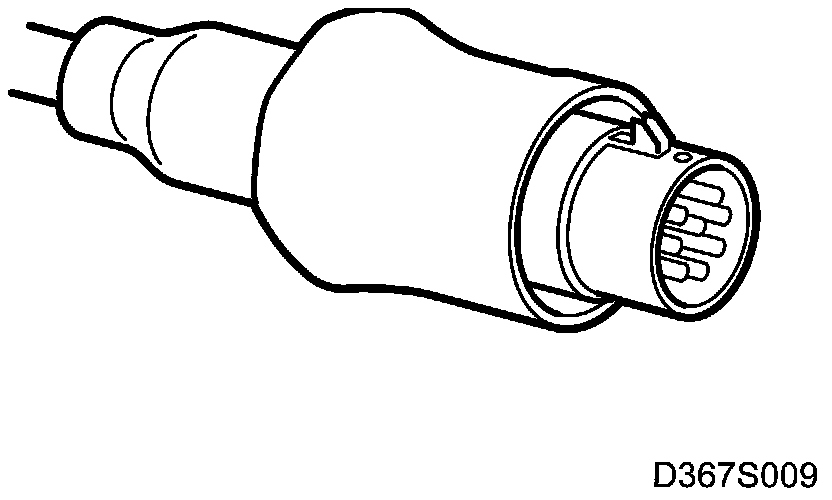

DIN connector

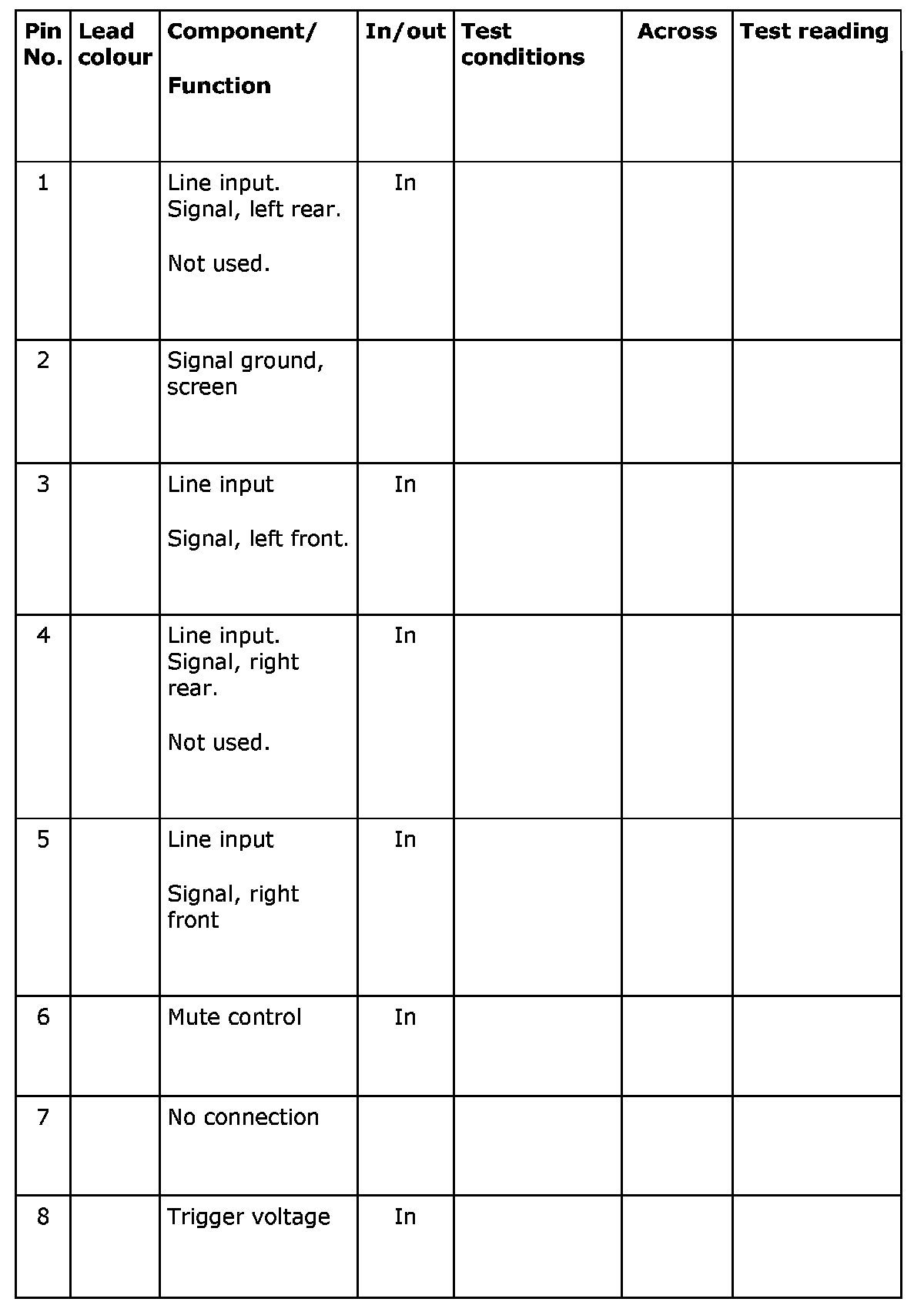

Pin No. 1-8:

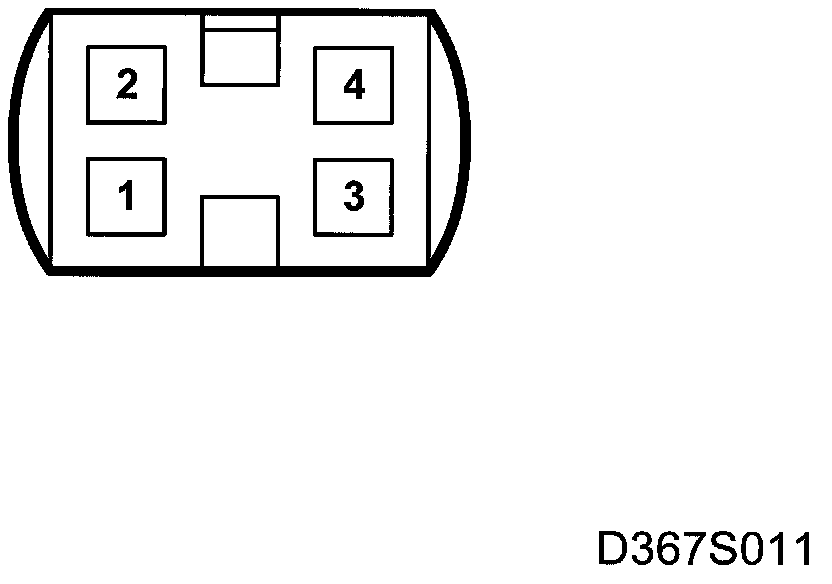

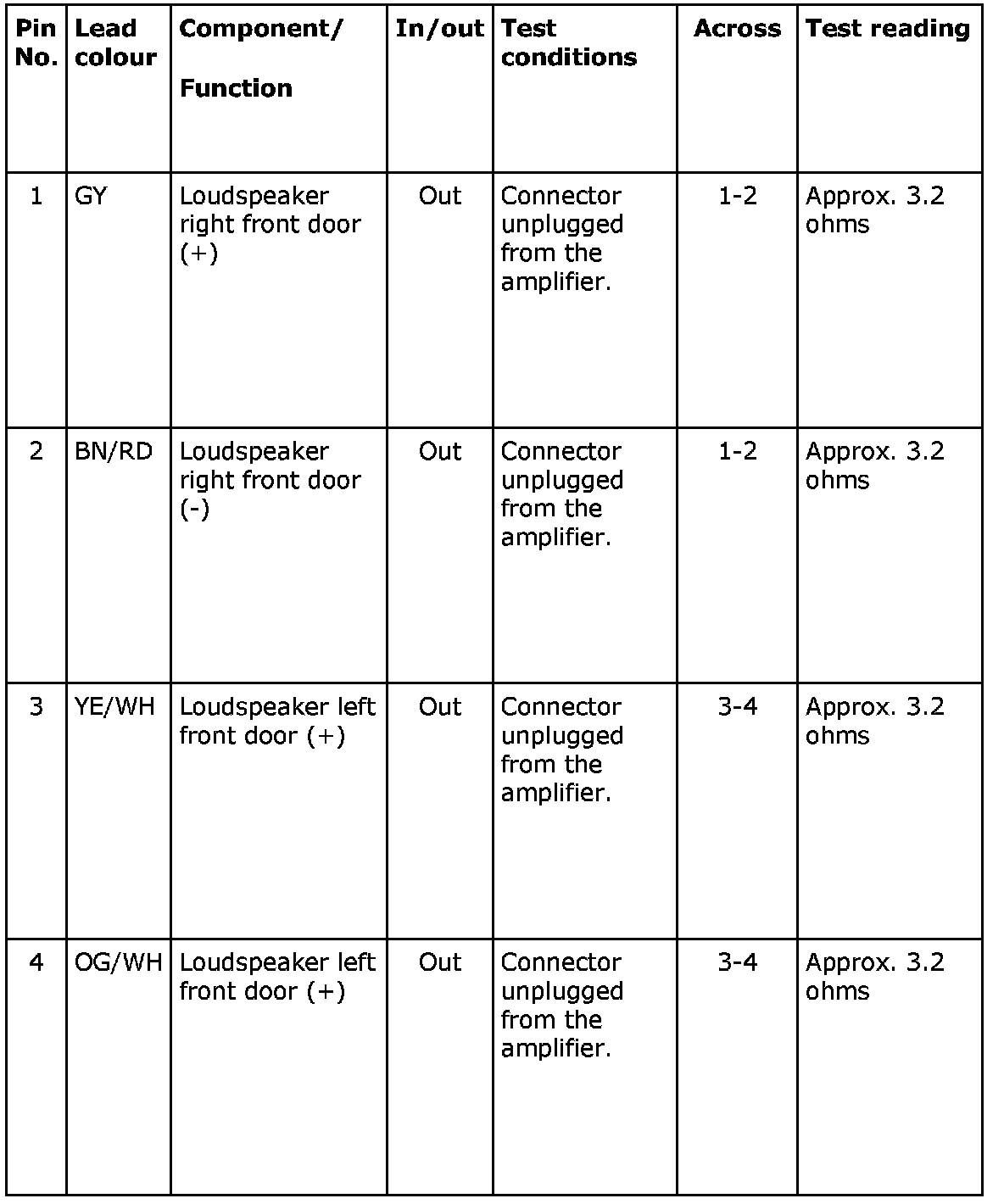

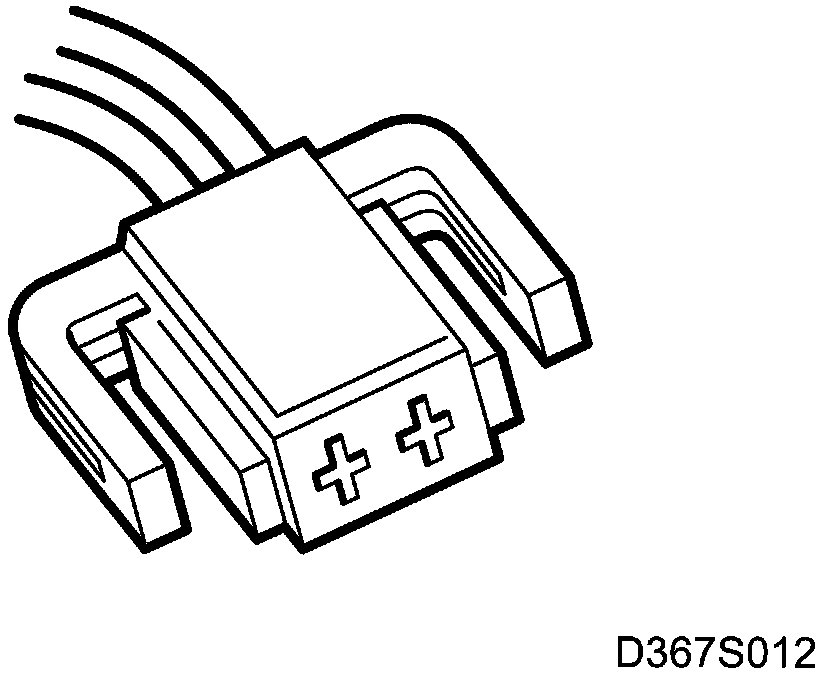

4-pin connector (loudspeaker)








Pin No. 1-4:

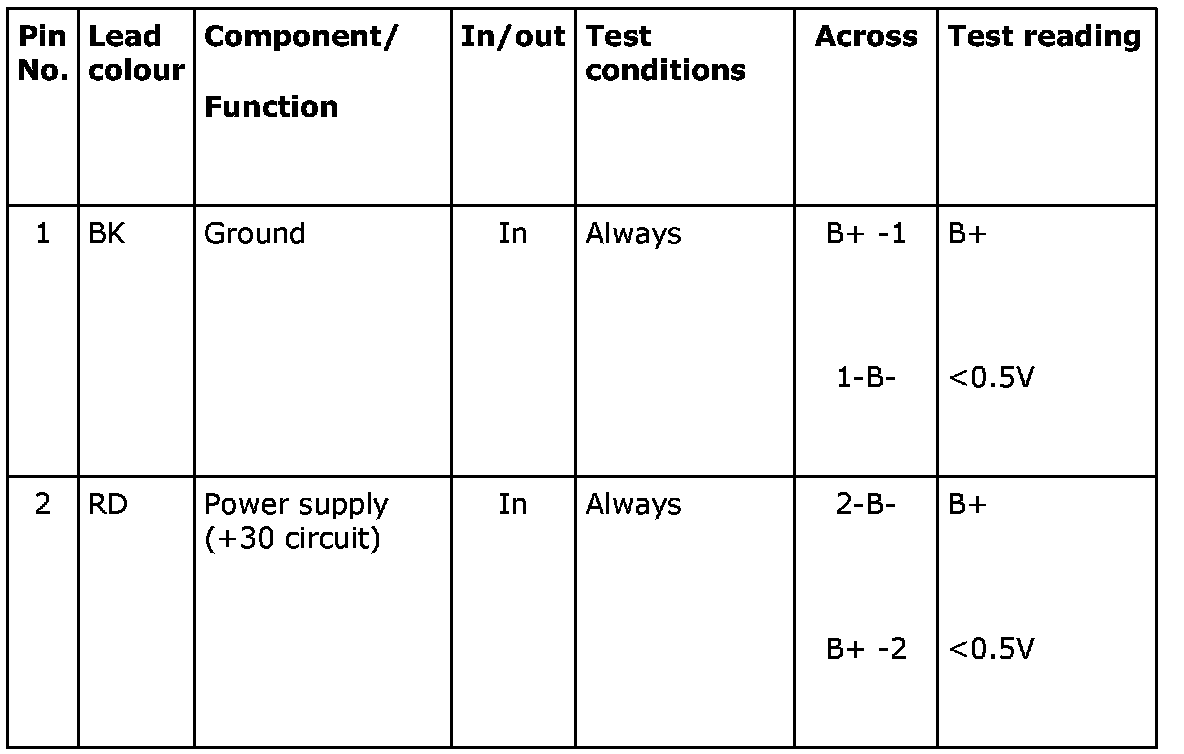

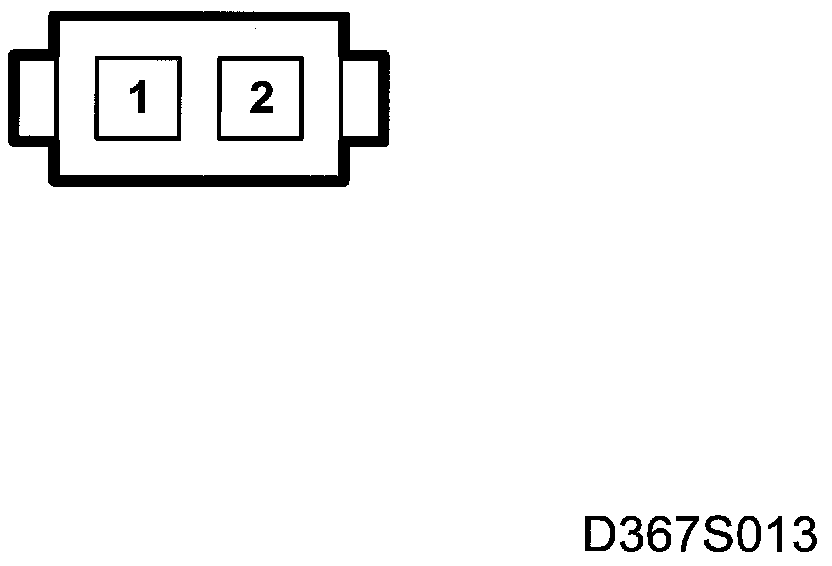

2-pin connector (power supply)








Pin No. 1-2:
