Audio System 2 and 3

Main Unit, Audio System 2 And 3

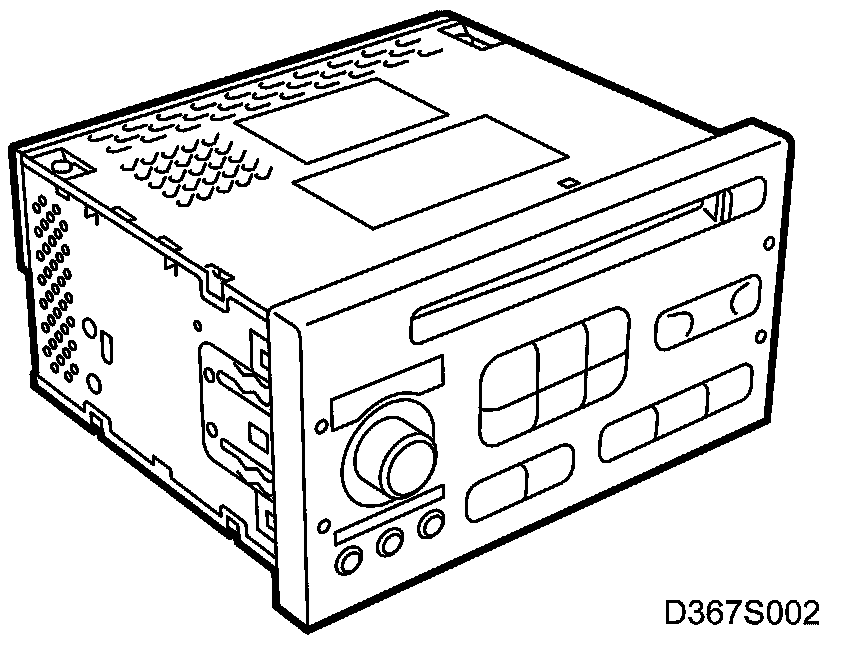

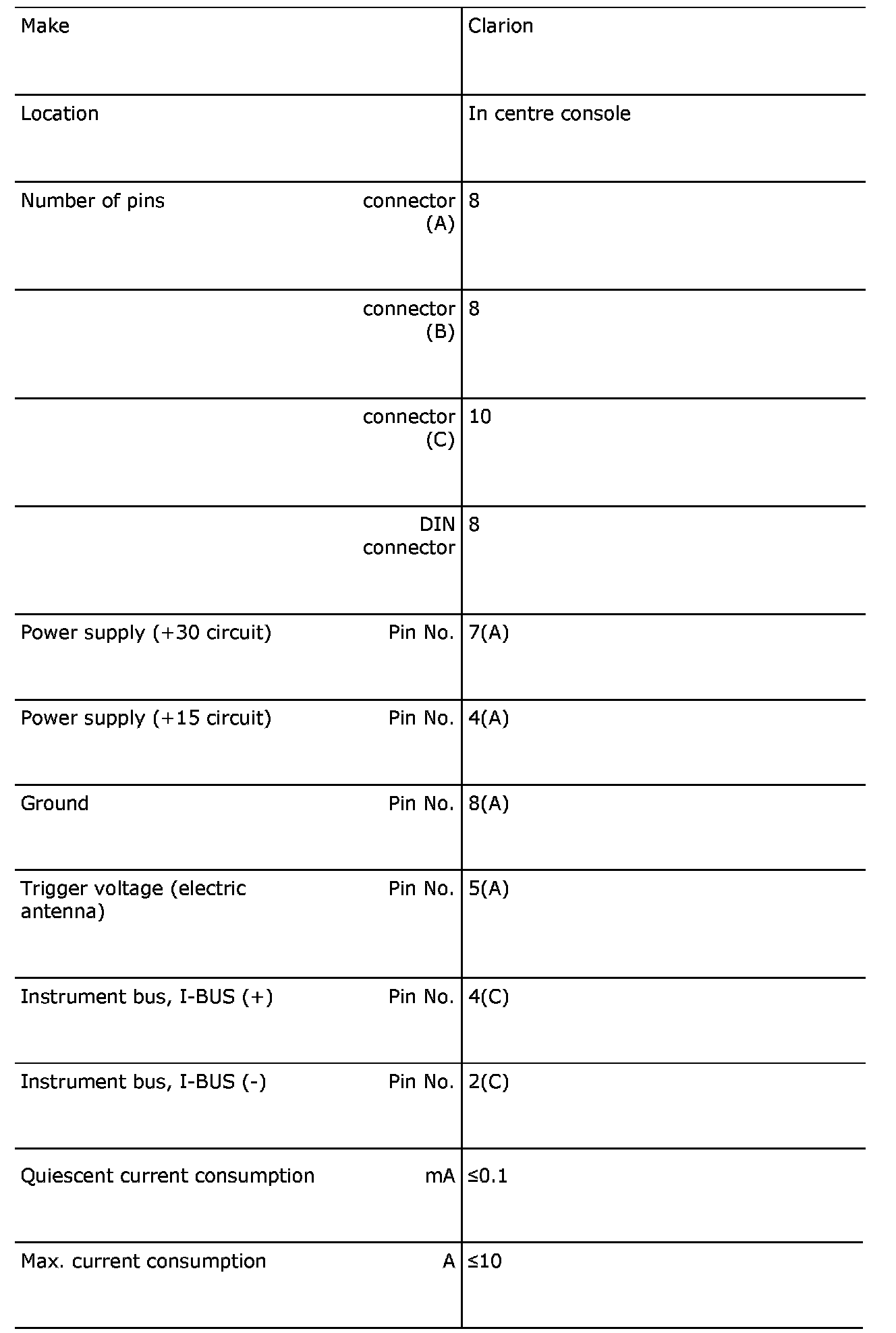

Main Unit

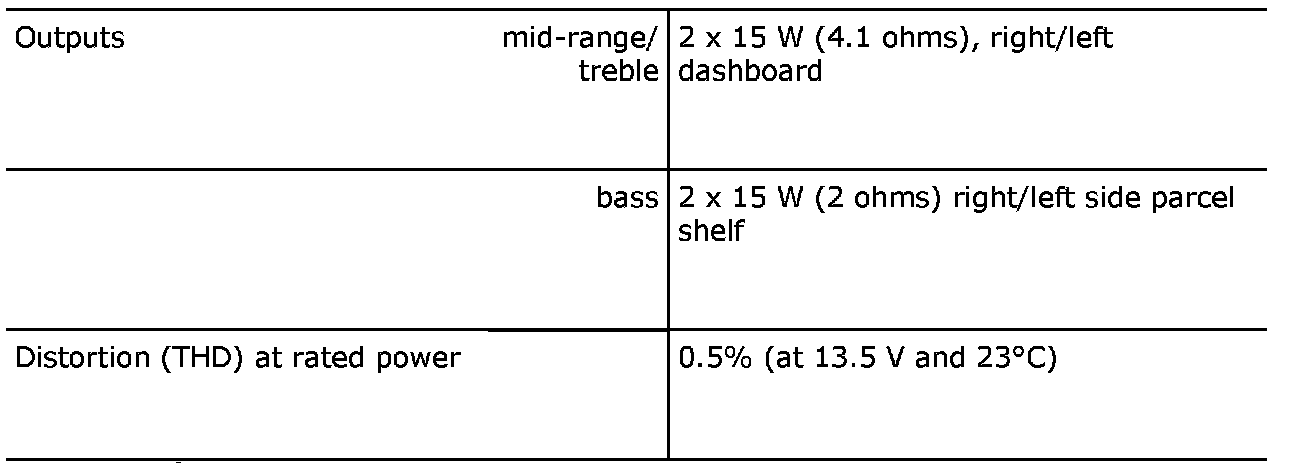

Amplifier, Internal

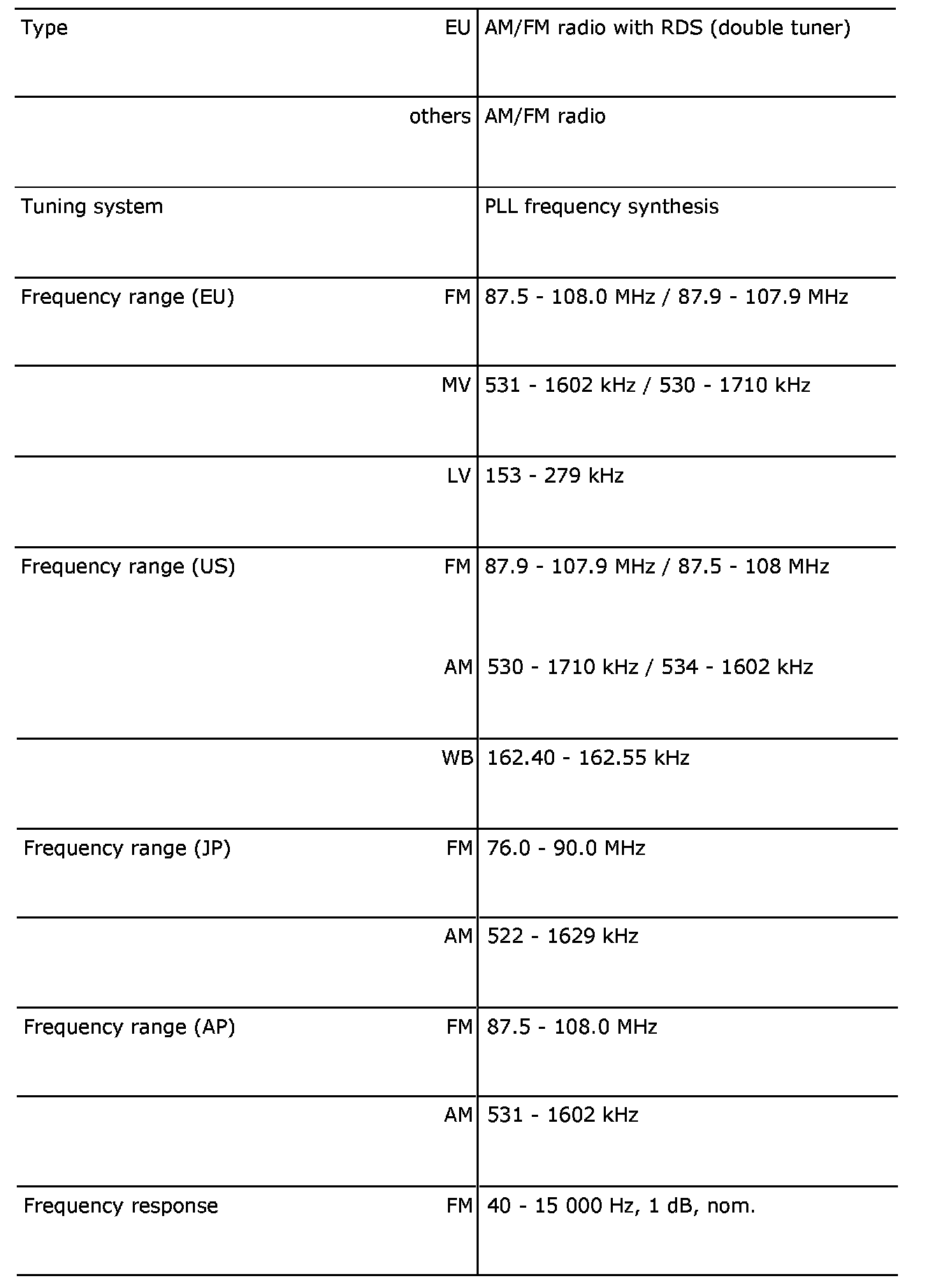

Radio

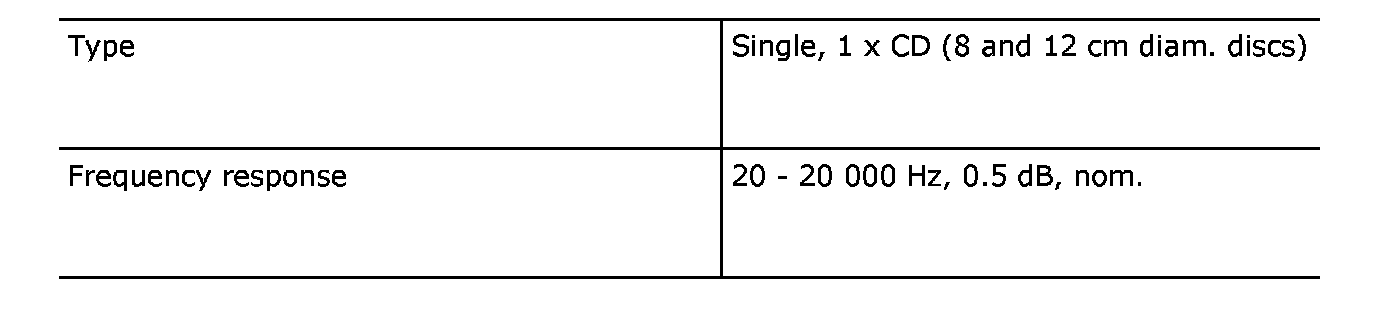

CD Player







WARNING:
The CD player in the main unit is a Class 1 laser product
- The CD player in the main unit may be serviced and repaired only by a qualified engineer.
- If the casing on the main unit is damaged, laser radiation can occur with risk of injury.
