Electronic Throttle Actuator

Actuator, Throttle Body (604)

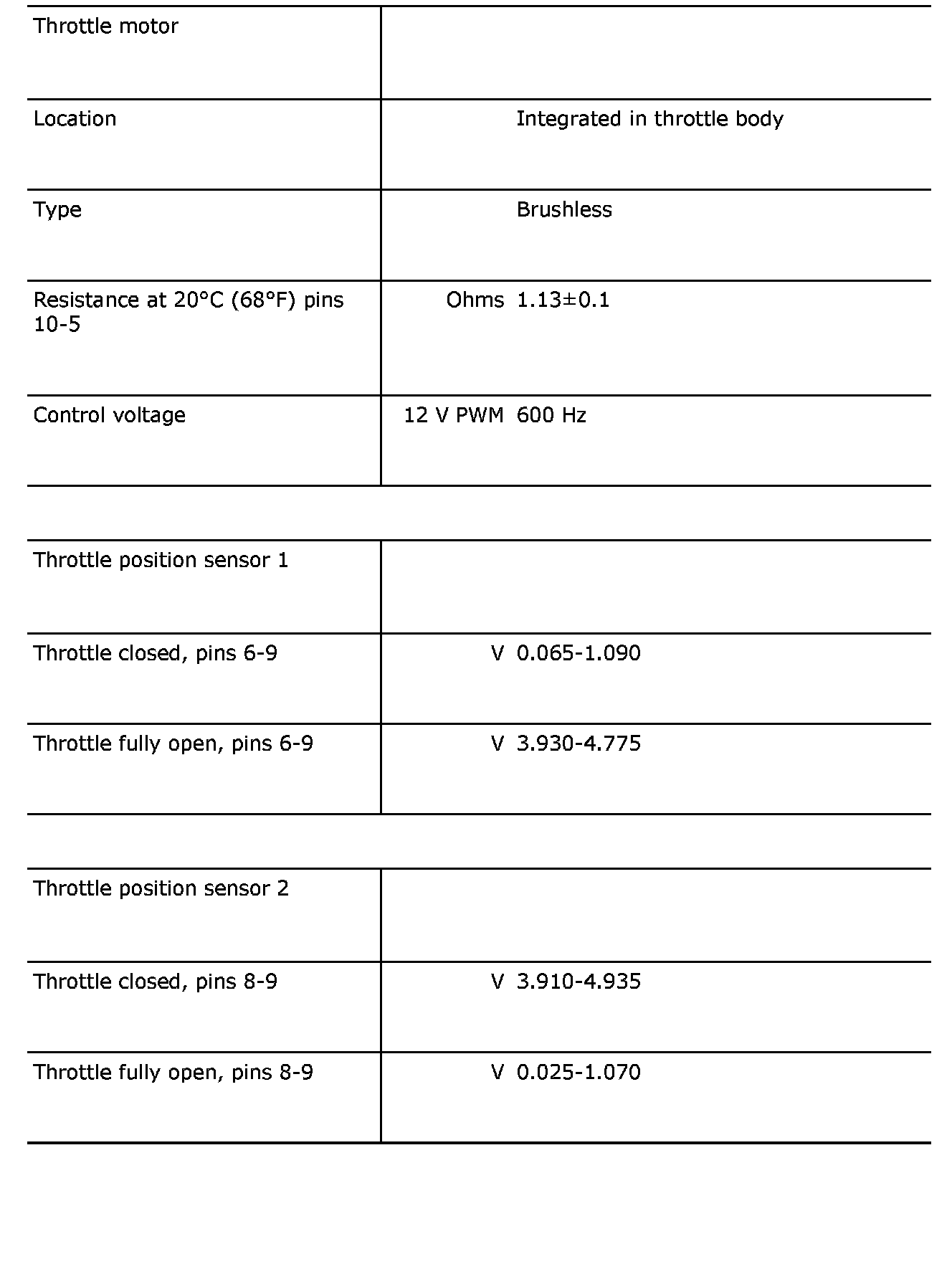

Part 1:

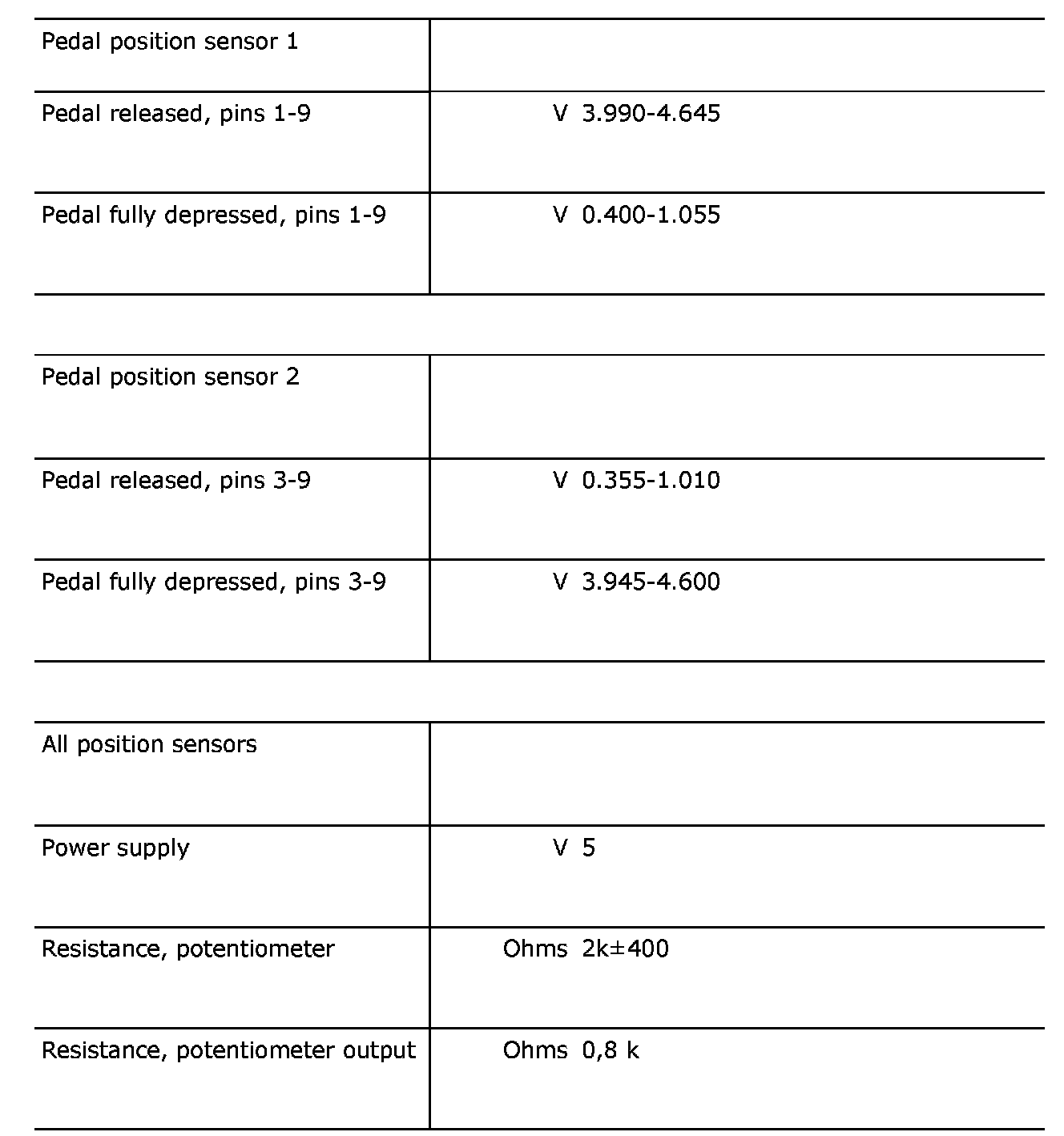

Part 2:

All the potentiometers are connected in parallel between 5 V and ground. The total resistance is therefore approx. 500 ohms ± 100 ohms.

Avoid taking resistance readings during fault diagnosis. Use voltage readings for the respective position sensors instead.
