FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Saab
>>
2003
>>
9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Cellular Phone
>>
System Specifications
>>

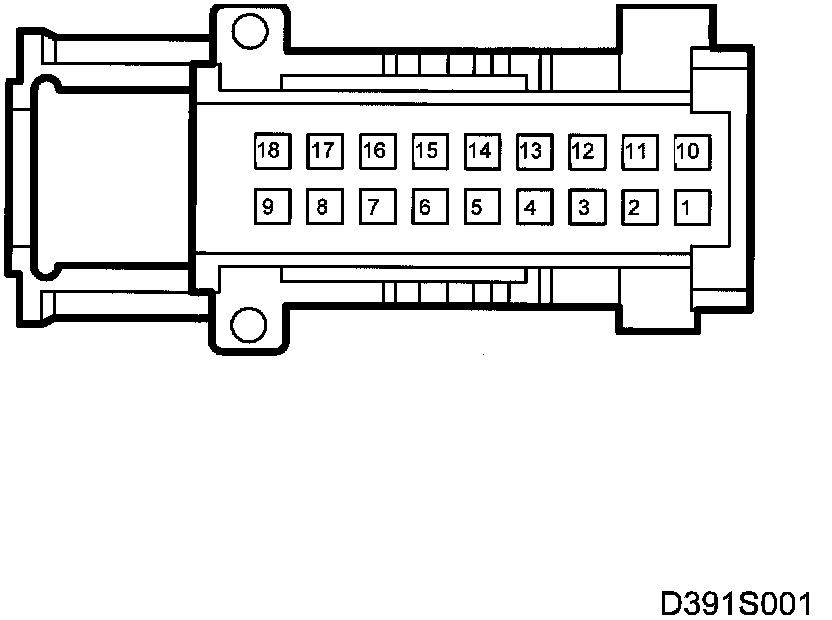

Test Readings, 18-Pin Telephone Connector
Test Readings, 18-Pin Telephone Connector
Test Readings, 18-pin Telephone Connector

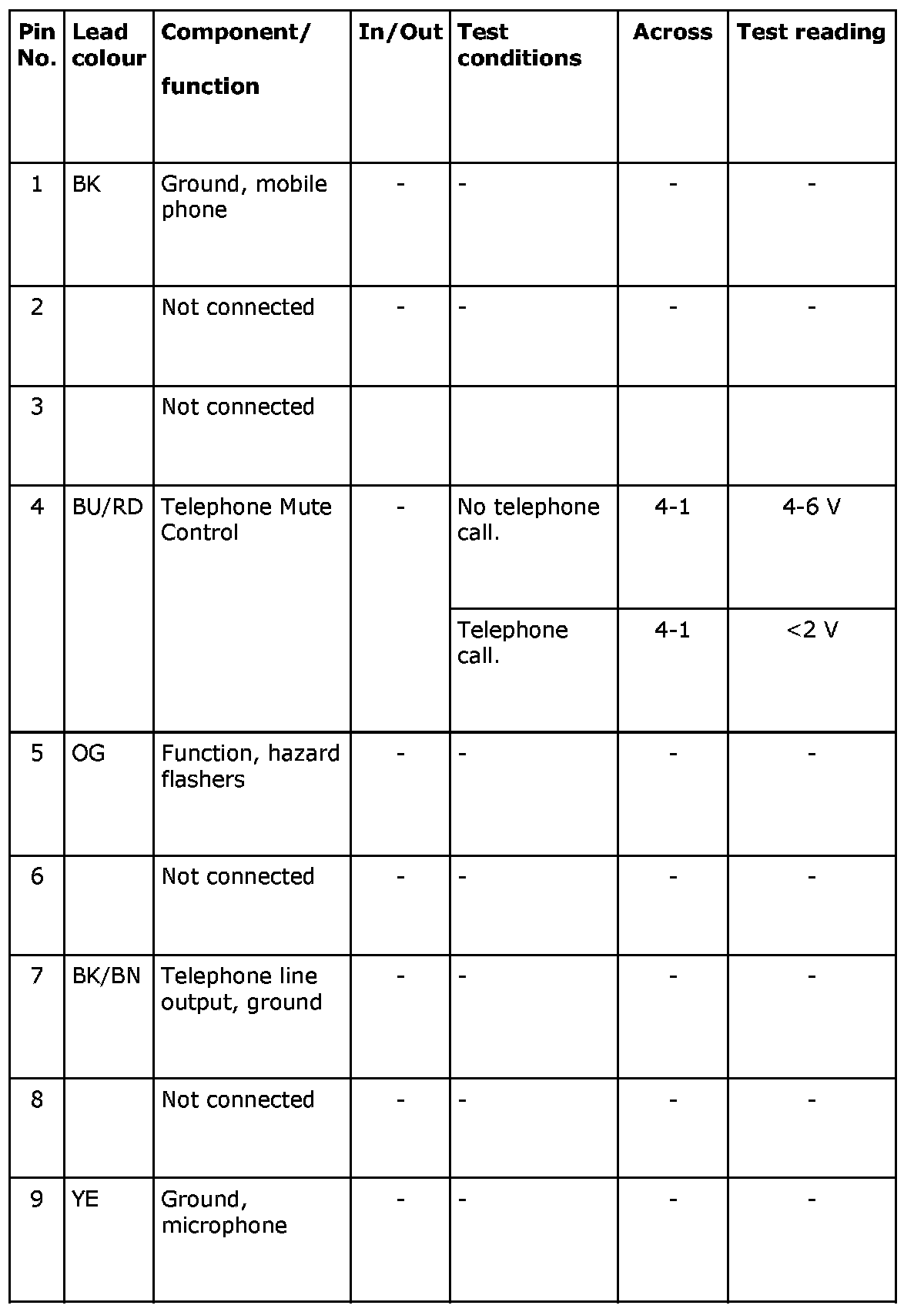

Pin No. 1-9:

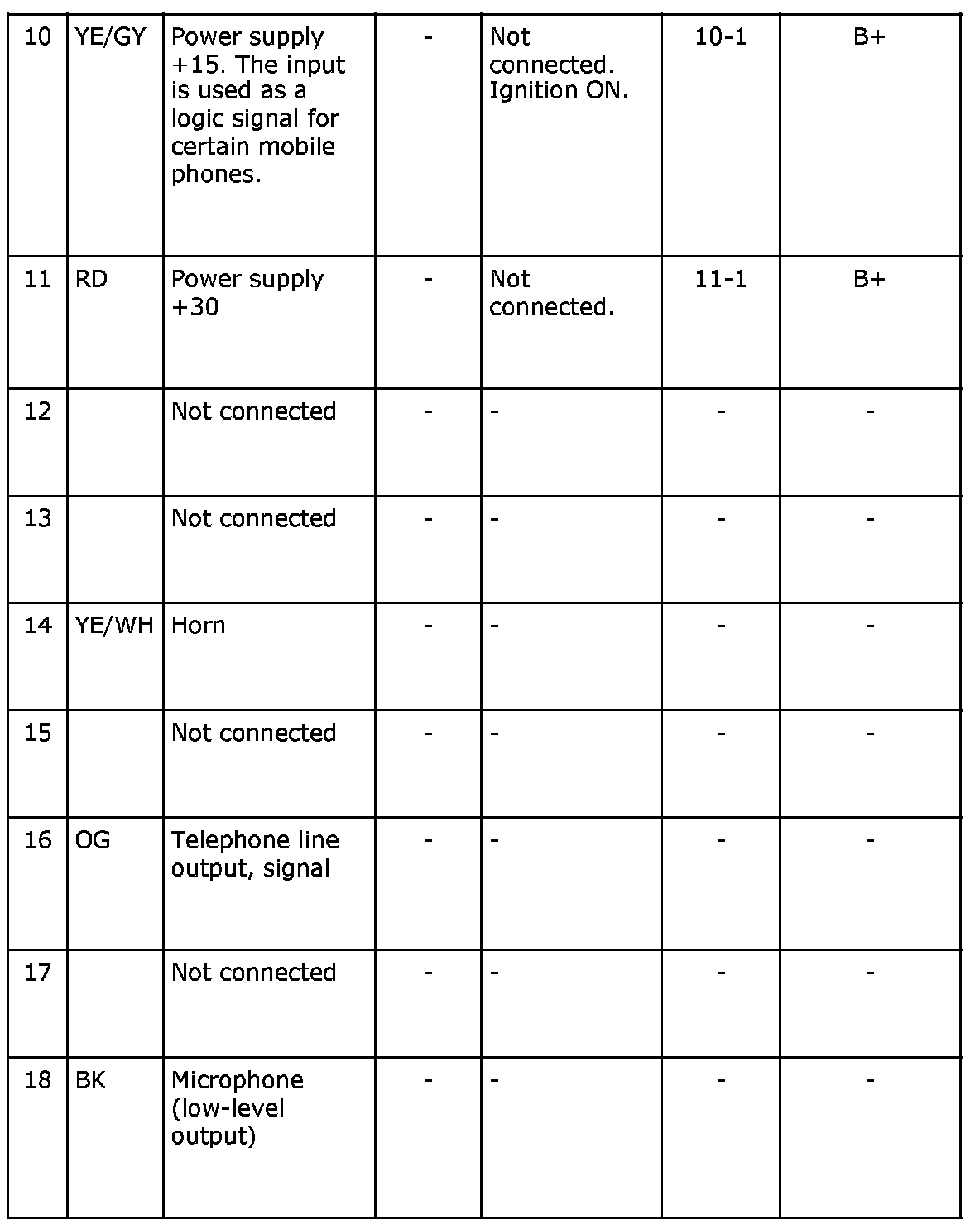

Pin No. 10-18:
