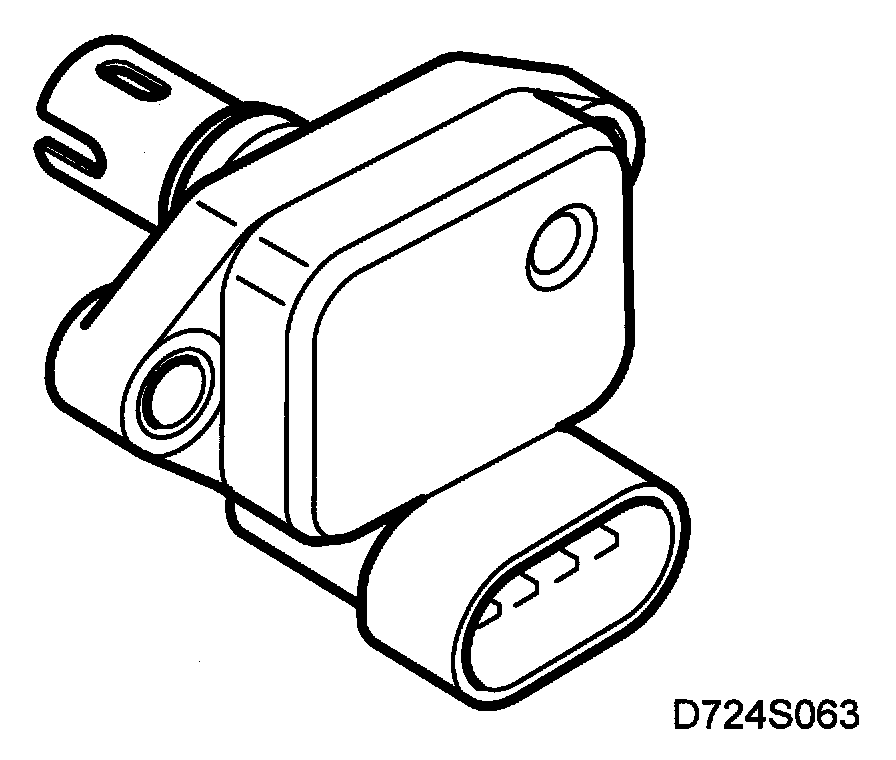

Charge Air Absolute Pressure Sensor (603)

Charge Air Absolute Pressure Sensor (603)

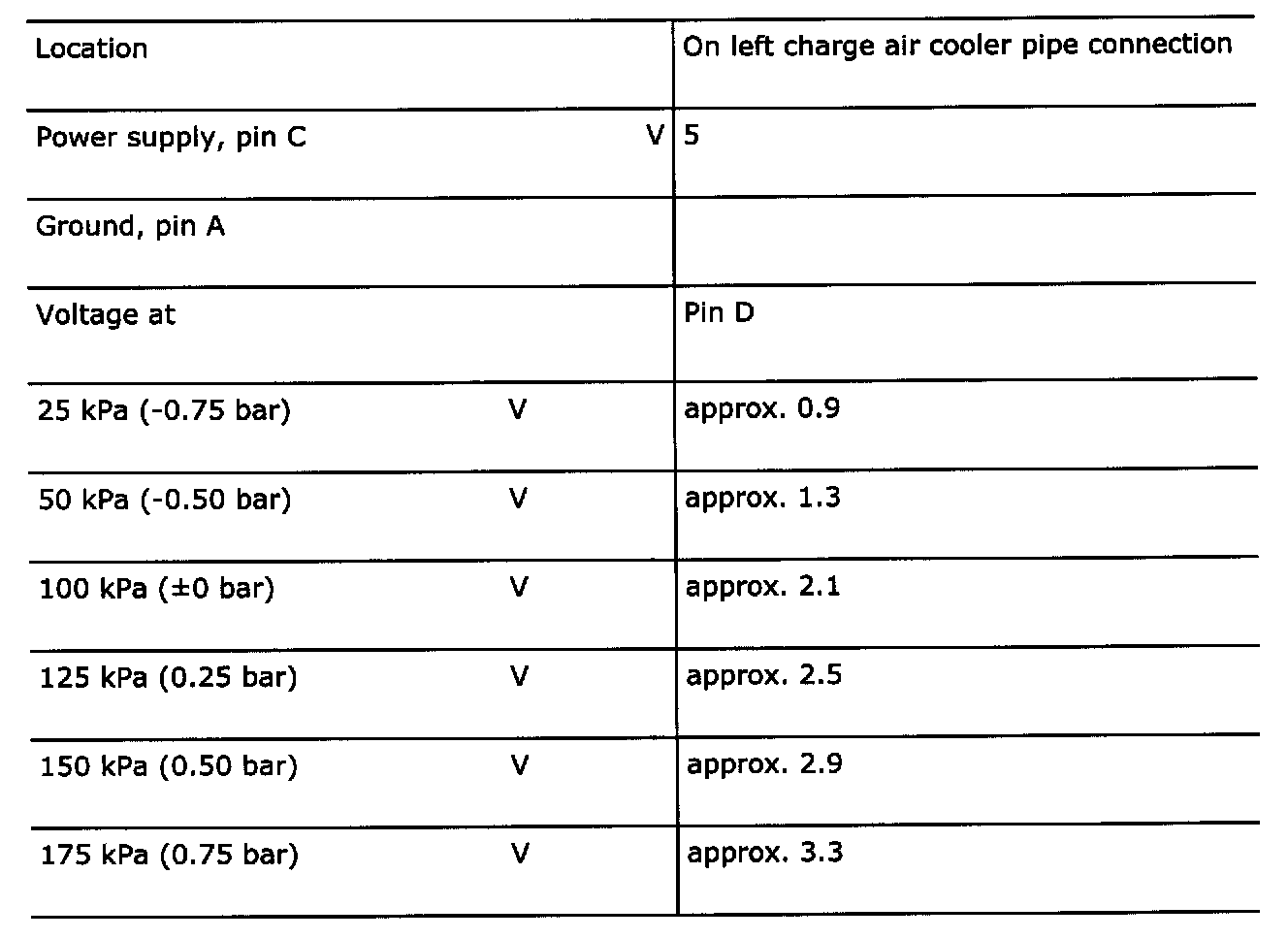

Pressure specified in kPa refers to absolute pressure, i.e. 100 kPa corresponds to atmospheric pressure at sea level.


When checking the pressure sensor with a pressure/vacuum pump, slightly lower voltages may be obtained at high altitudes.
