Check the Seat-Belt Buckle Contact

Checking The Seat-belt Buckle Contact

Turn the ignition switch to the ON position.







Contact TWICE.

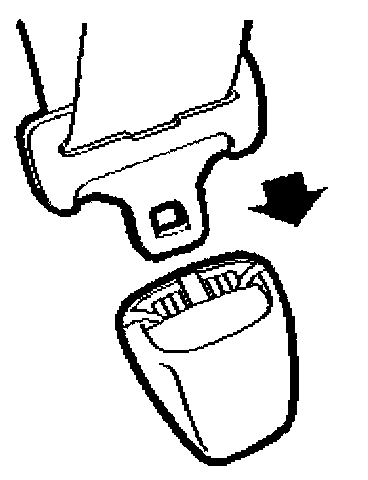

- Connect the seat-belt buckle tongue to the lock mechanism.







Read value: Seat Belt Switch Driver
- The diagnostics instrument should show 'BELTED'.

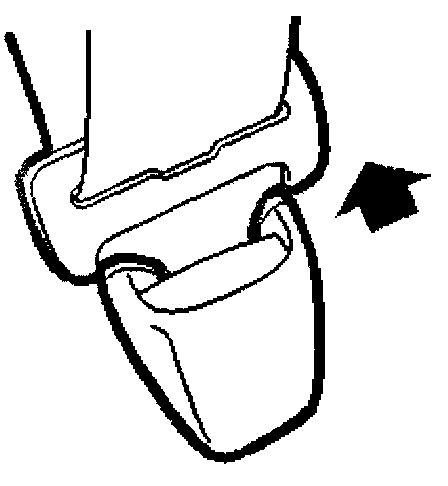

- Release the seat-belt buckle tongue from the lock mechanism.







Read value: Seat Belt Switch Driver
- The diagnostics instrument should show 'NOT BELTED'.

Is the correct status shown when the belt tongue is in and out of the lock mechanism?

NO - Rectifying the Lead - I

YES - Checking the Sensor For Loaded Seat Cushion, Front Passenger
