Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures




Tech 2 Menu Structure

Diagnostic Trouble Codes (DTC)
Read Values/Activate
Adjustment
Programming
Snapshot
System Information

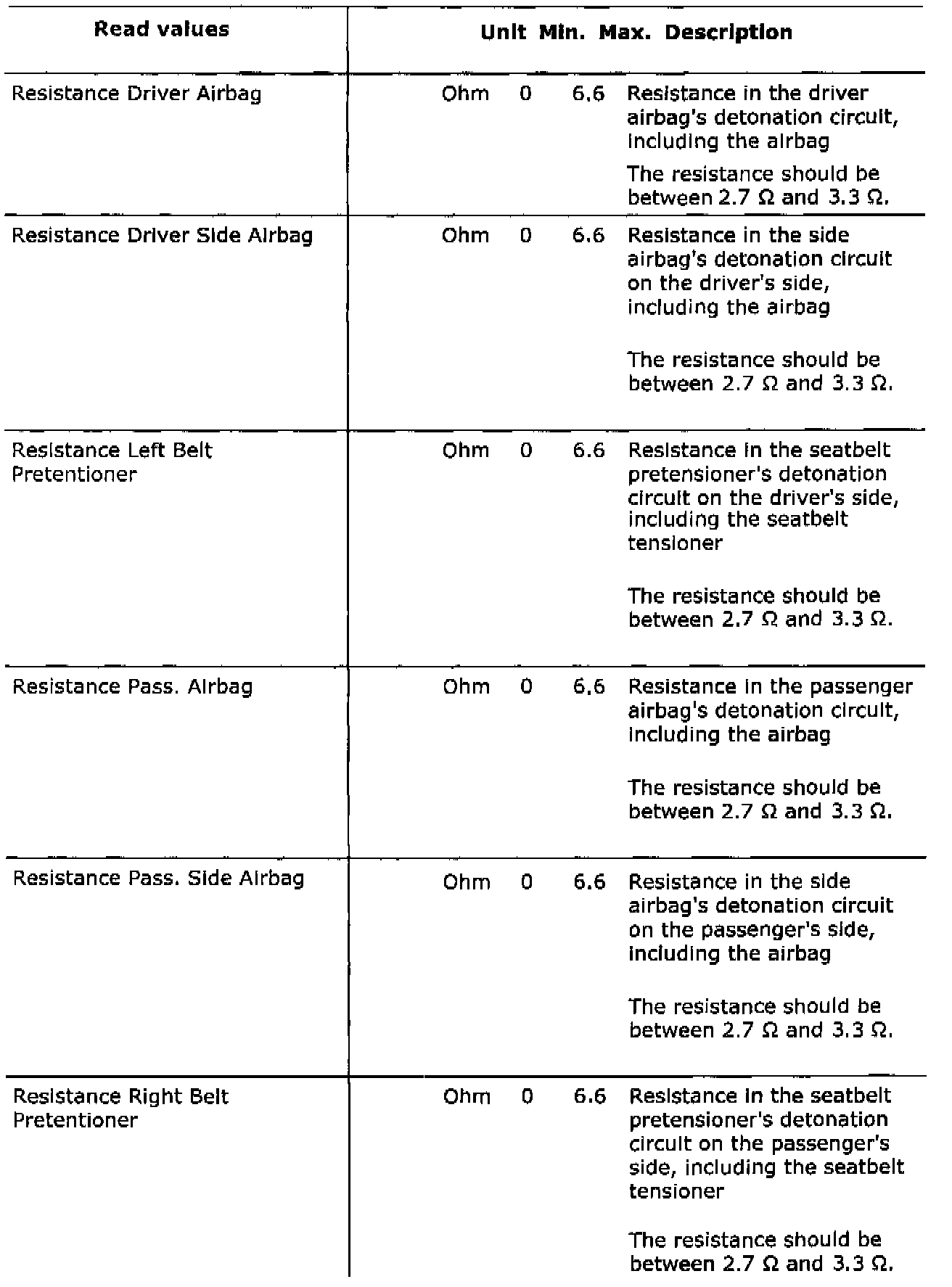

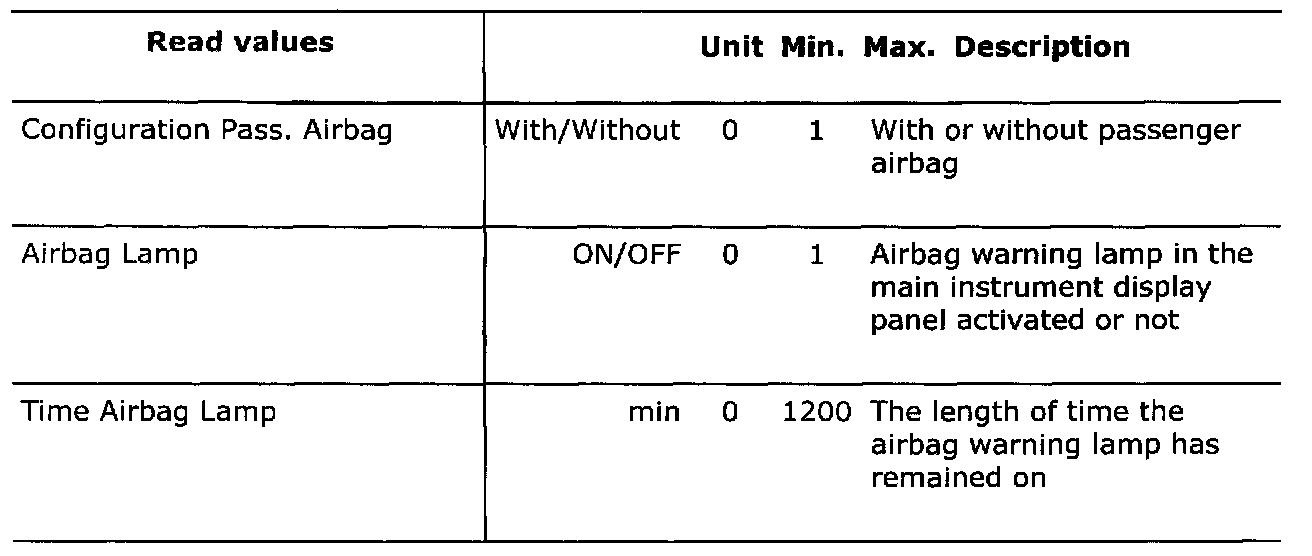

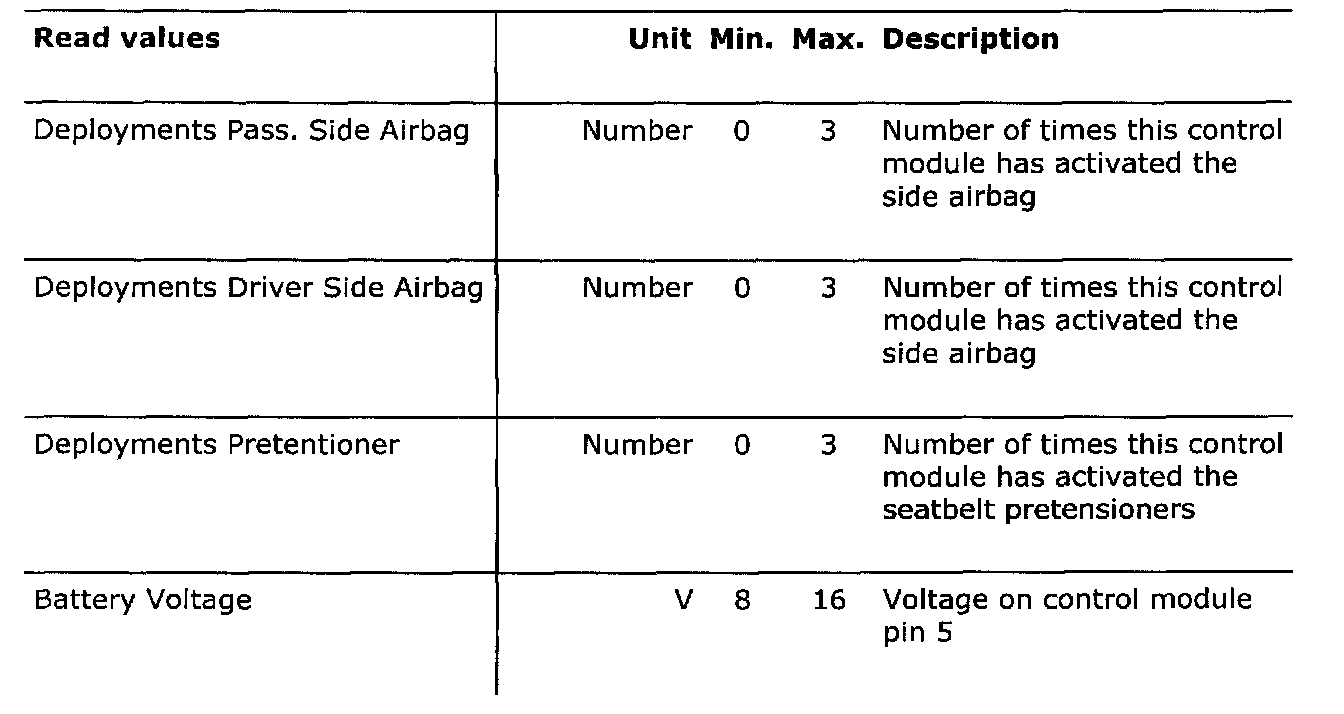

Read values

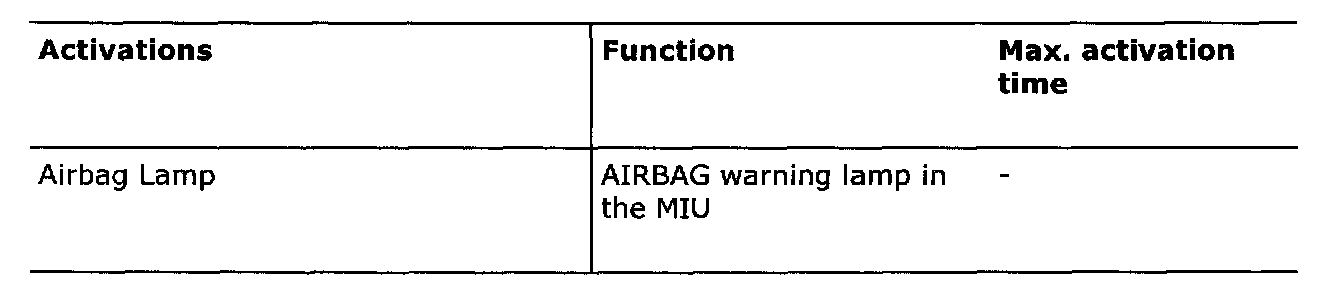

Activations

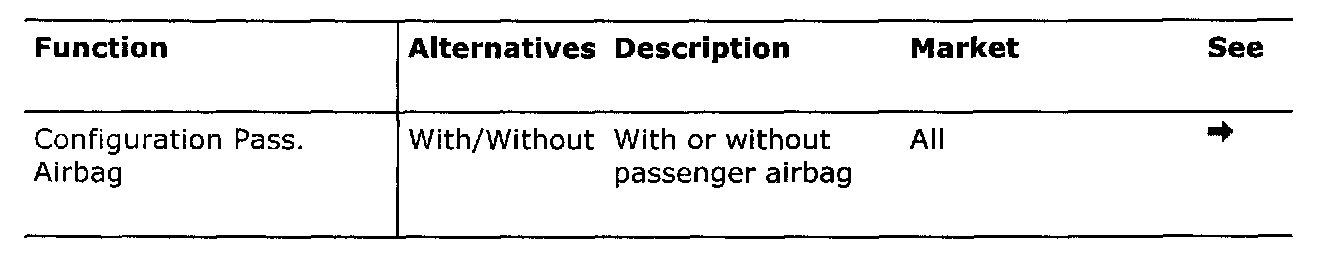

Programming

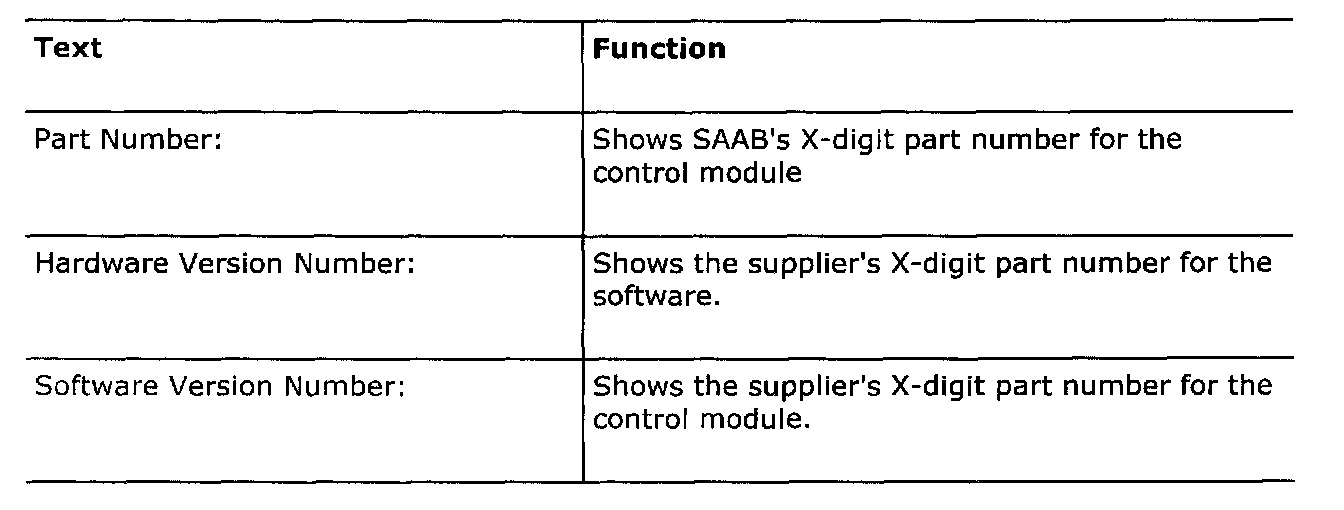

Command menu"System Information"
