Control Module Ground



Control Module Ground

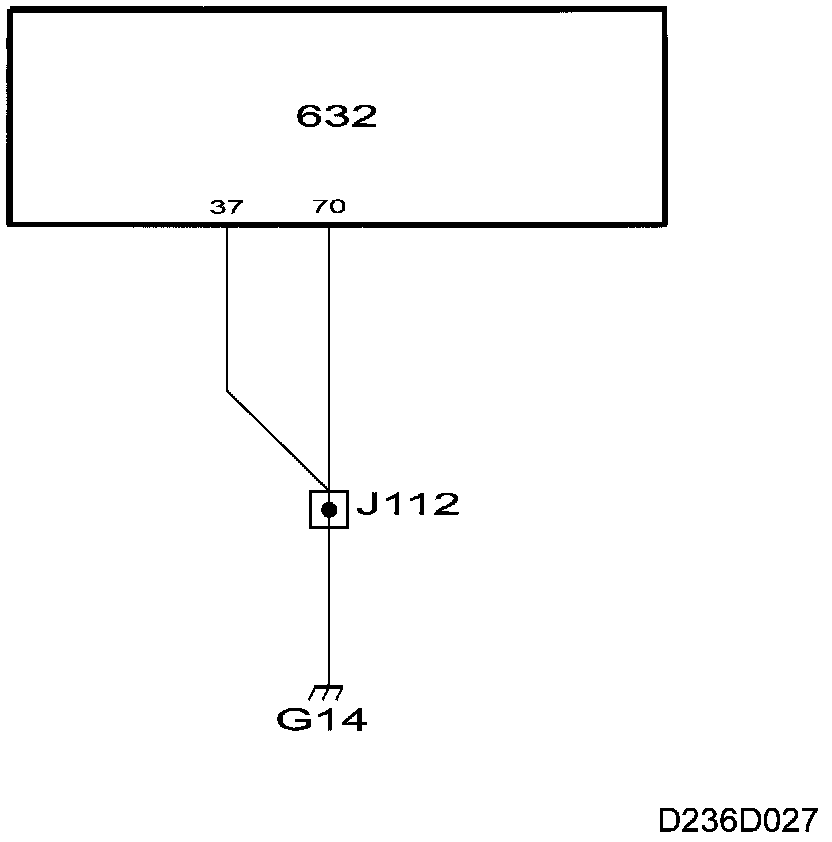

Ground connection, power ground

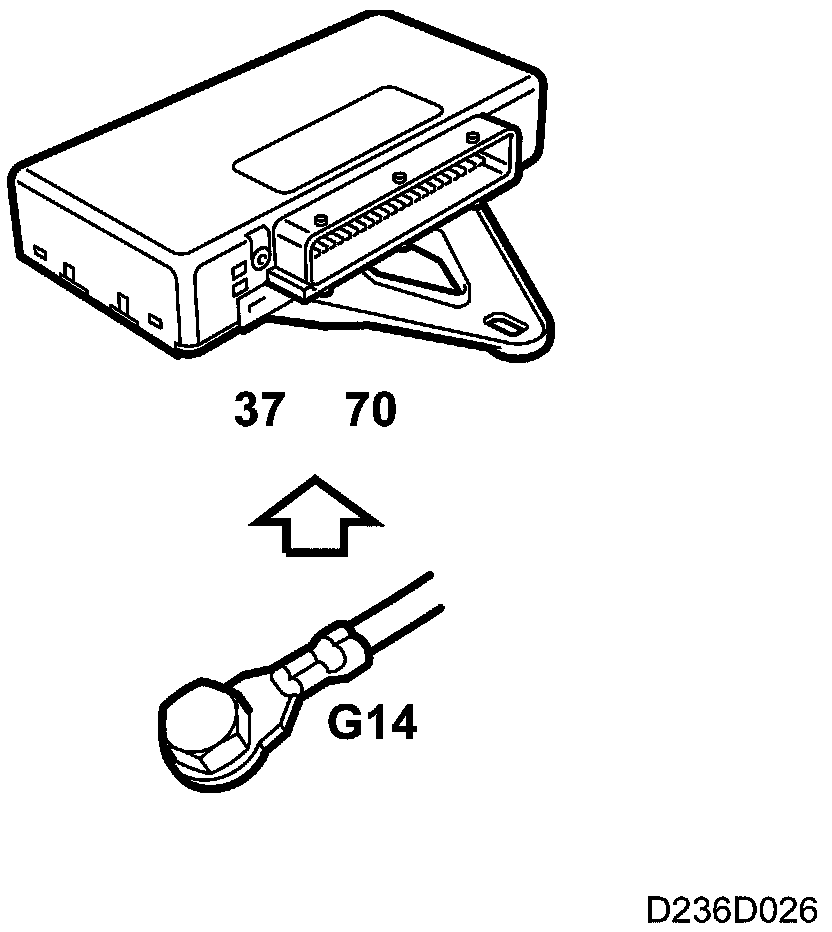

The control module is grounded at grounding point G14 via pin 70.

Ground connection, signal ground
The control module is grounded at grounding point G14 via pin 37.
