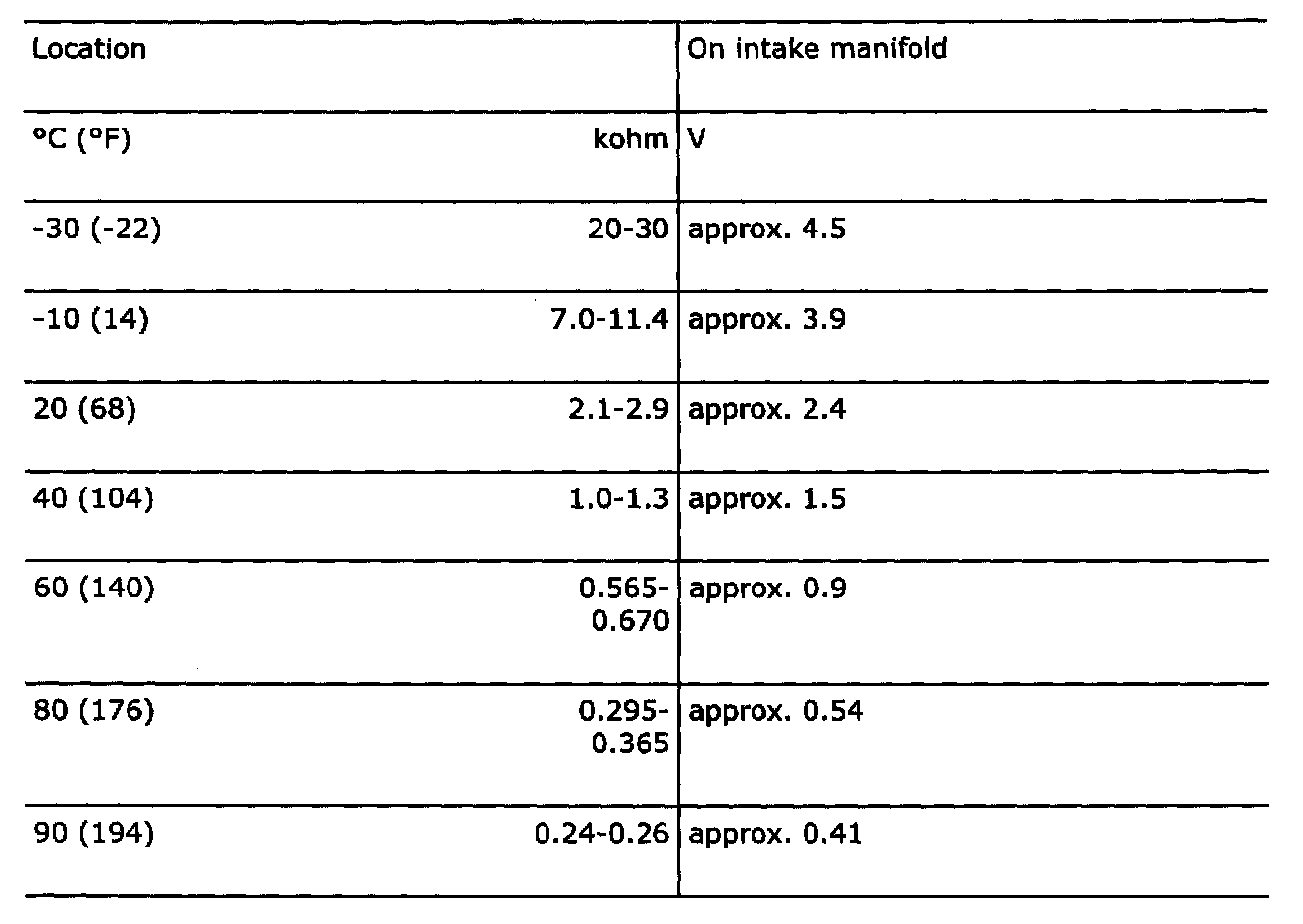

Specifications
>>
Intake Air Temperature Sensor (407)
Intake Air Temperature Sensor (407)
Intake Air Temperature Sensor (407)
Power supply
5 V
through a
2.74 kohm
resistor in the control module.
