Intermittent Wiper Operation, Rear Window

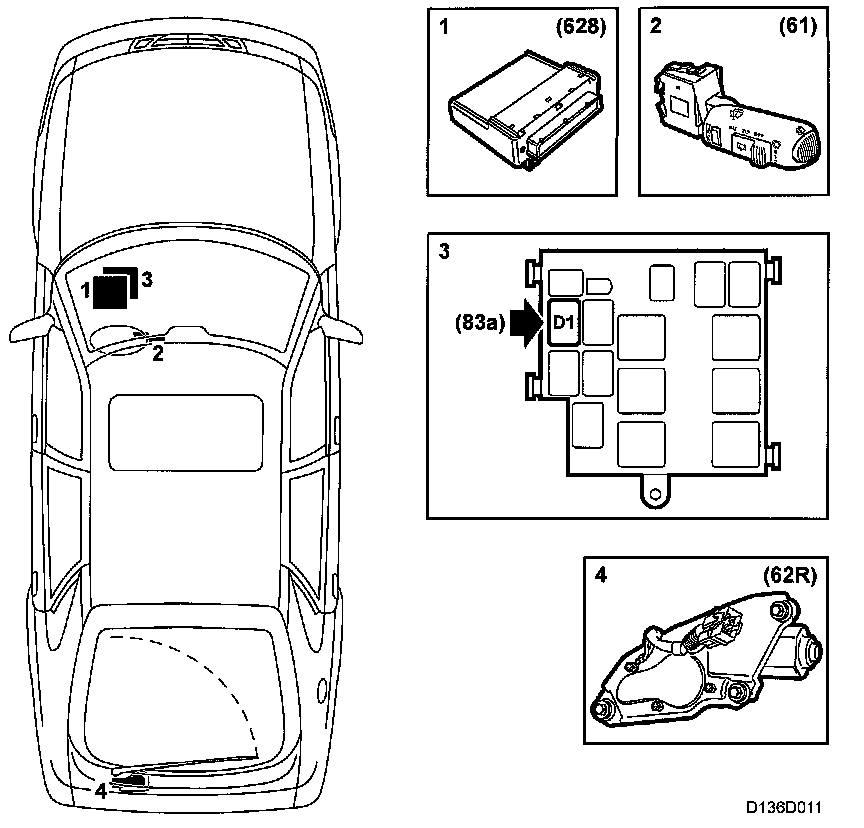

Main Components, Intermittent Wiper Operation, Rear Window







1. Control module, DICE (628)
2. Stalk switch, rear window wiper (61)
3. Relay, intermittent wiper, rear (83a)
4. Motor, rear window wiper (62R)
