Ignition Control Module: Specifications

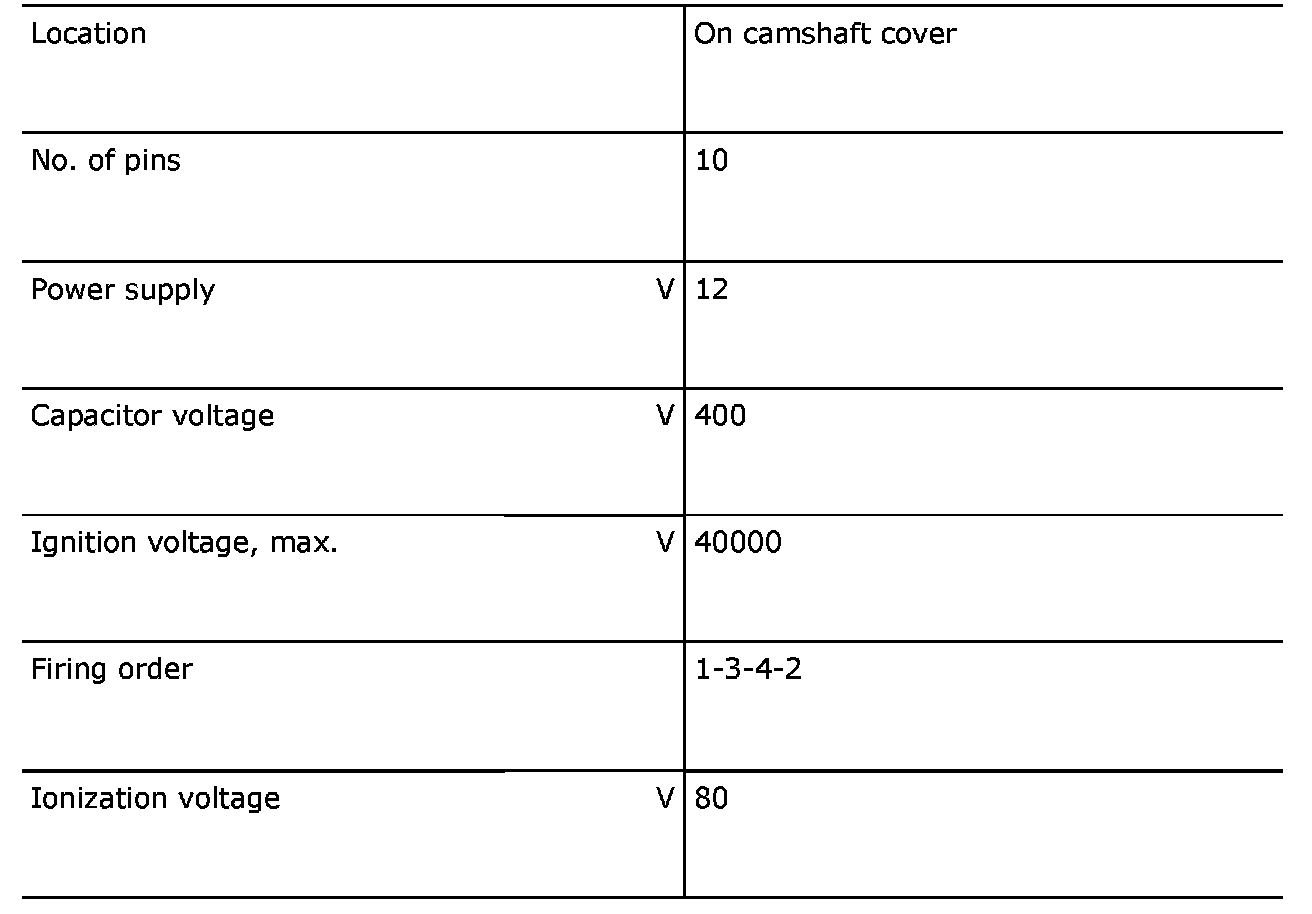

Ignition Discharge Module (346)
NOTE:
Cars equipped with T7 LEV must only be fitted with the new ignition discharge module (from MY00). The new module can, however, be used on older model years.
