Air Bypass Valve: Specifications

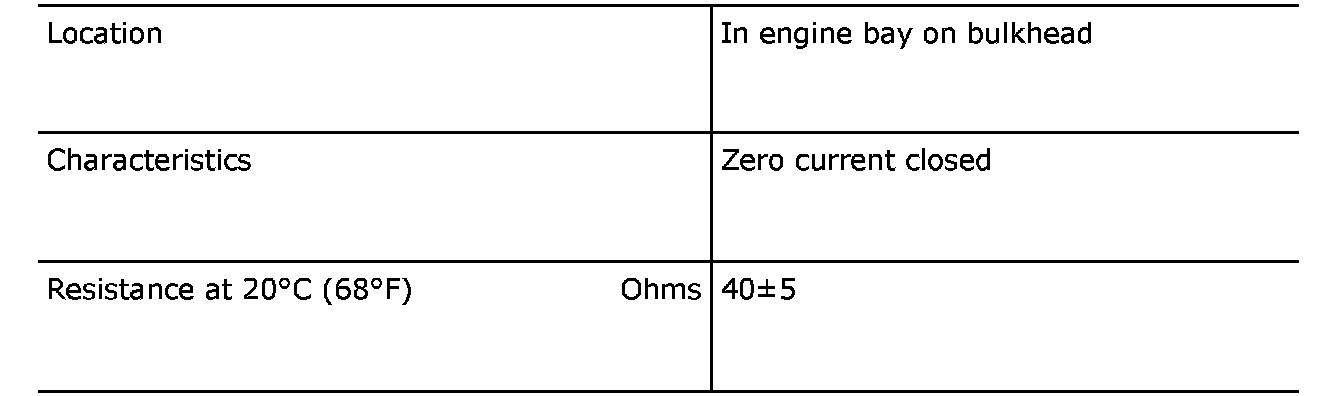

Control Valve, Bypass (605)







When the solenoid valve is unenergized, the bypass valve control line is connected after the throttle.
