Canister Purge Control Valve: Service and Repair

EVAP Canister Purge Valve

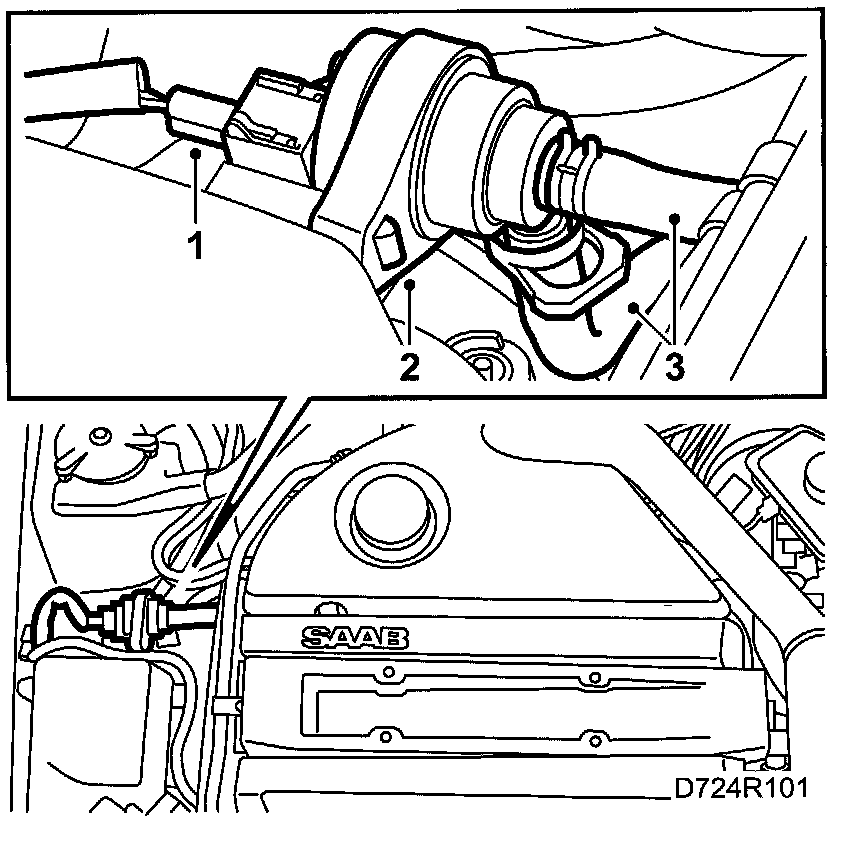

To remove
1. Unplug the connector from the EVAP canister purge valve. Make a note of the location of the vale.







2. Remove the valve from the holder.
3. Remove the hoses.

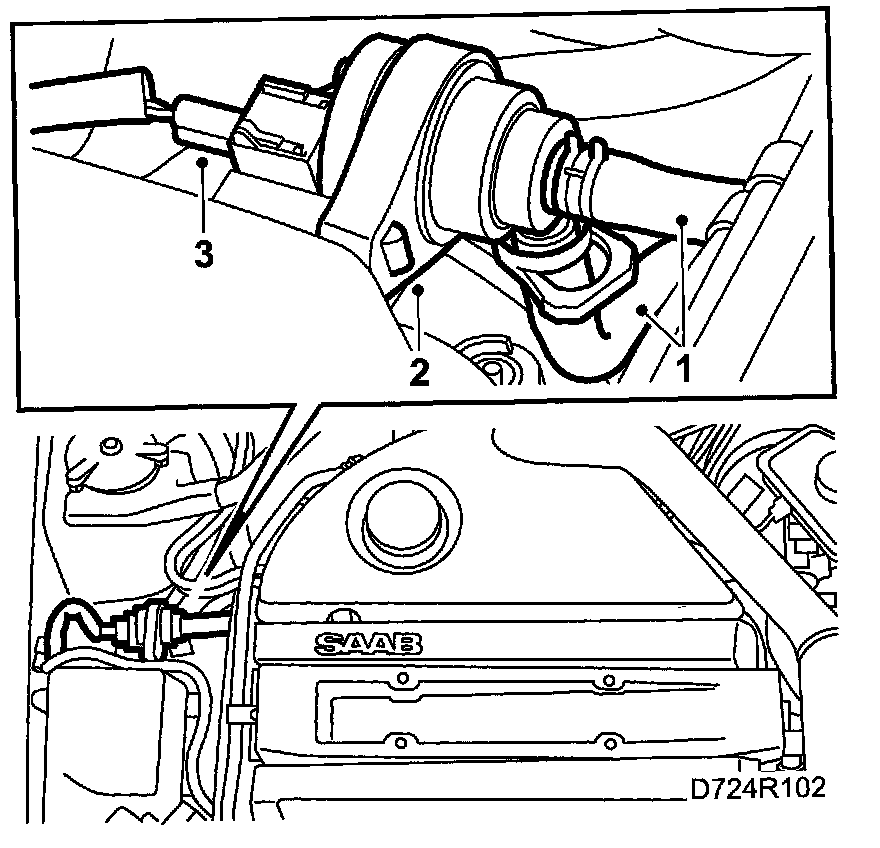

To fit







NOTE: Spray the connector with Kontakt 61 (part no. 30 04 520).

1. Fit the hoses.
2. Fit the valve to the holder.
3. Plug in the connector on the EVAP canister purge valve.
