Trionic T7 (Part 1/3)

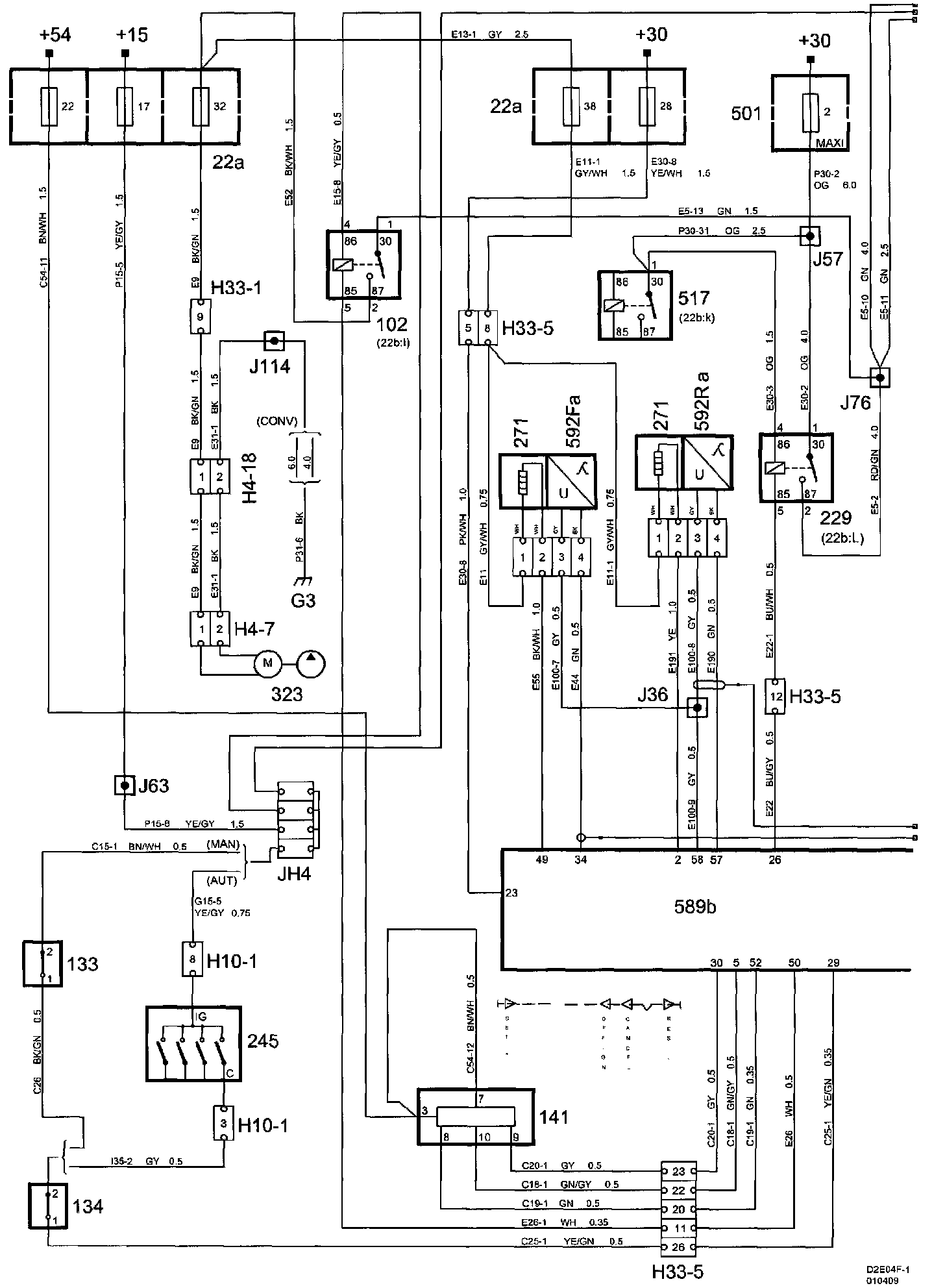

Trionic Engine Management System T7 (Part 1/3):

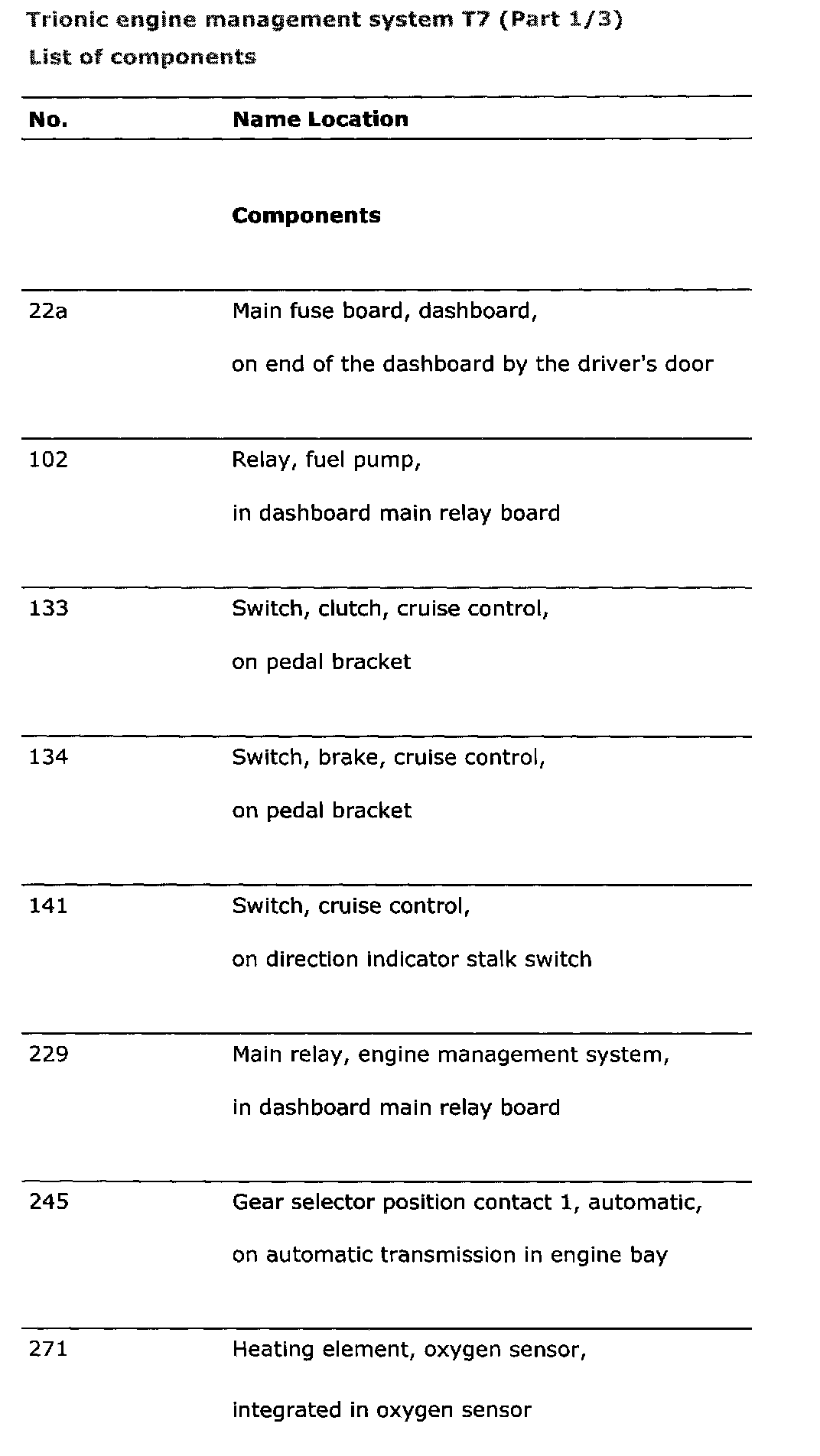

List Of Components ( Part 1):

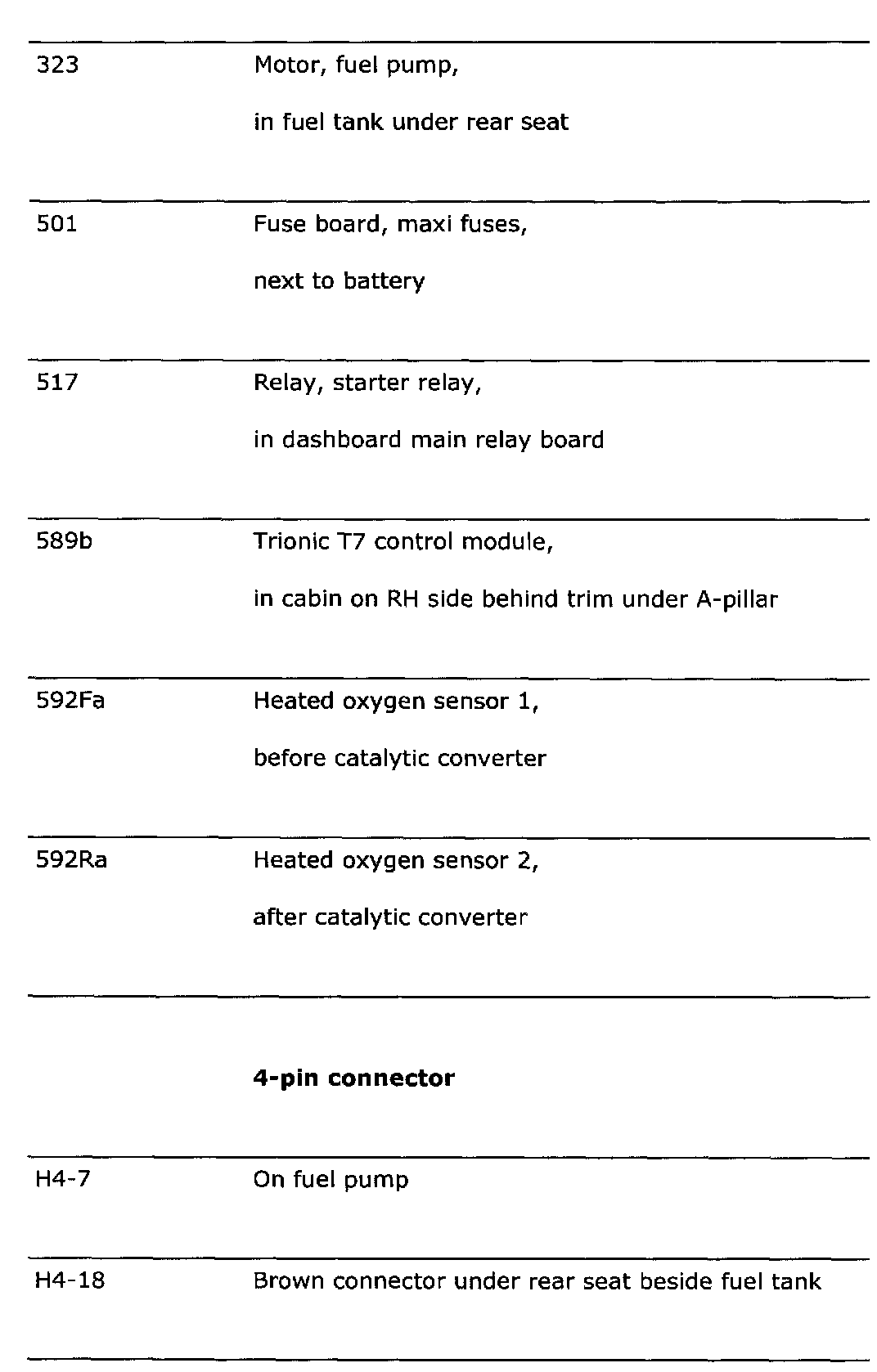

List Of Components (Part 2):

List Of Components (Part 3):

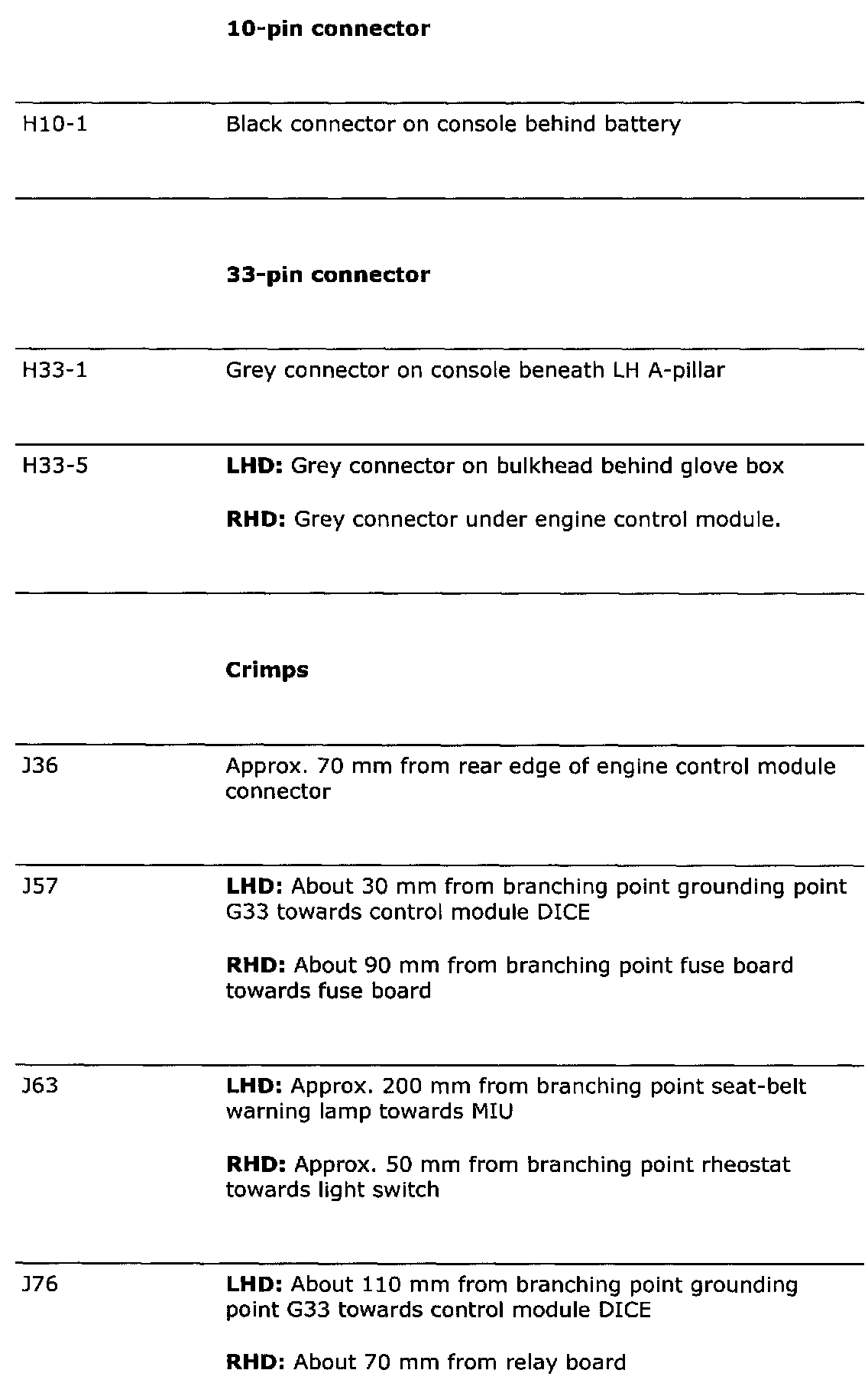

List Of Components (Part 4):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
