Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Power and Ground

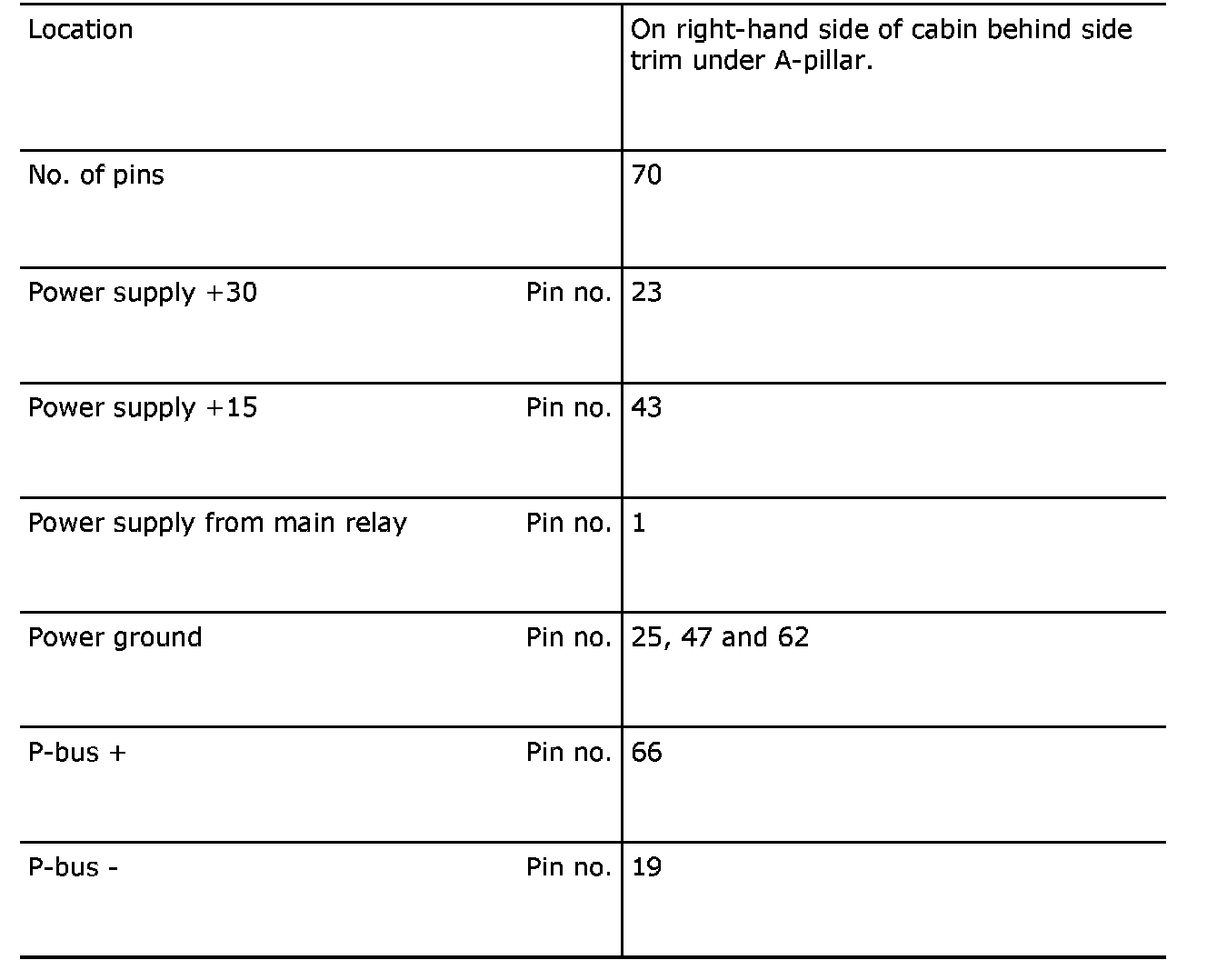

Power and Ground



Trionic T7 Control Module (430b/589b)
