Headlamp Wiping

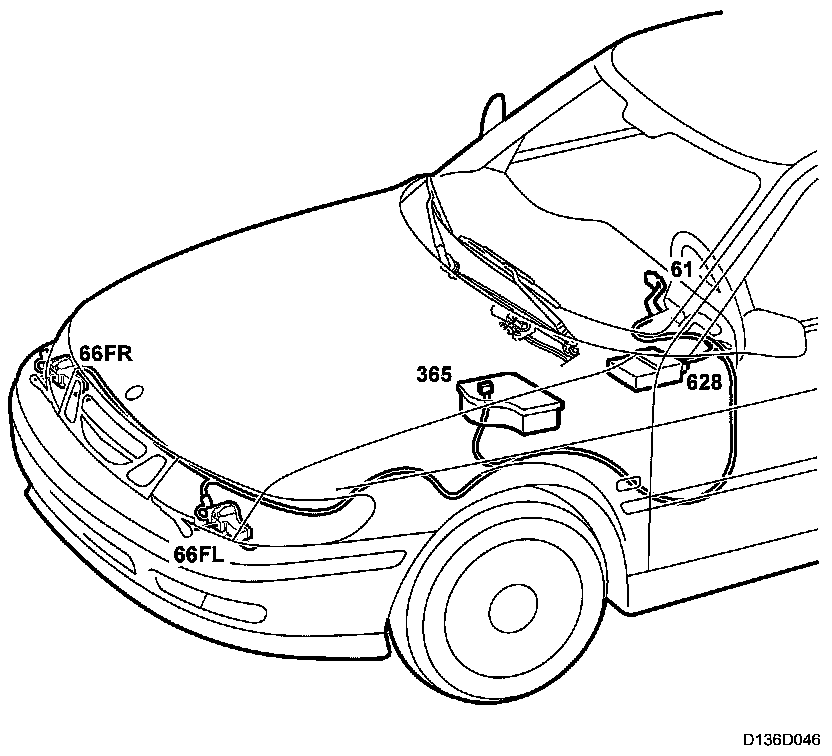

System Overview, Headlamp Wiping







- Control module, DICE (628)
- Stalk switch, windscreen wipers (61)
- Relay, headlamp wipers (365)
- Motor, headlamp wipers (66FL, 66FR)
