Bus Messages

Messages

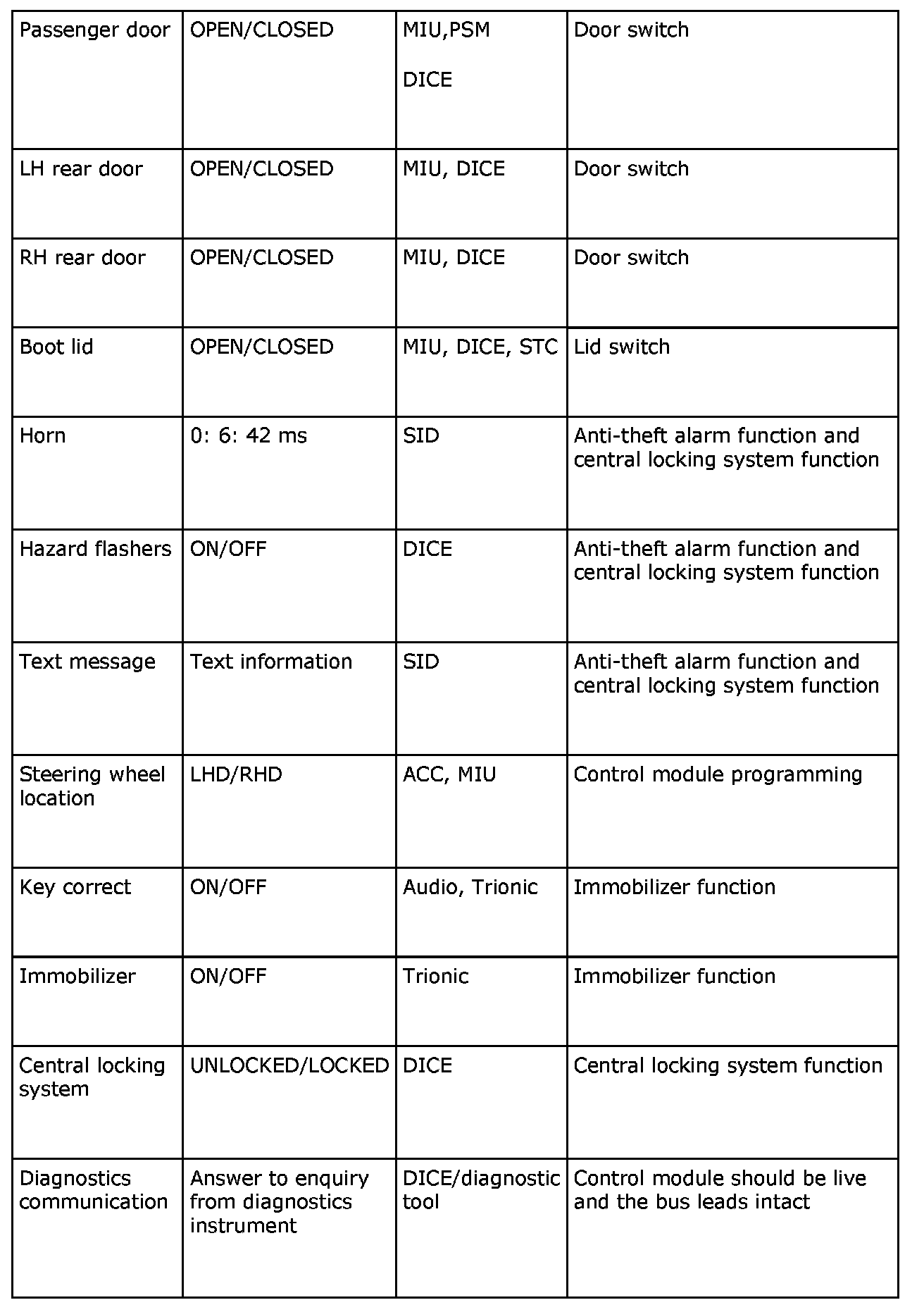

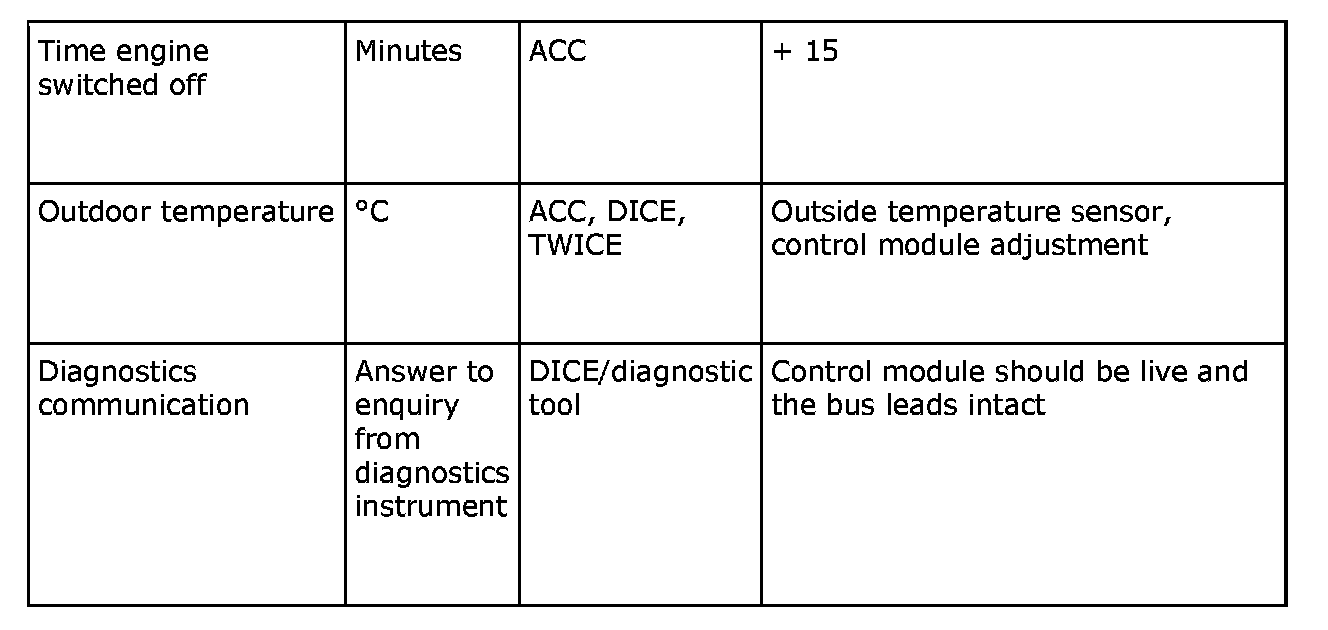

Below is a summary of the messages which are sent out by all the car's systems that are connected to a bus. It also shows which systems use the transmitted information. The purpose of the summary is to help you gain an understanding of the car's functional relationships, which is a fundamental prerequisite for rapid fault diagnosis.

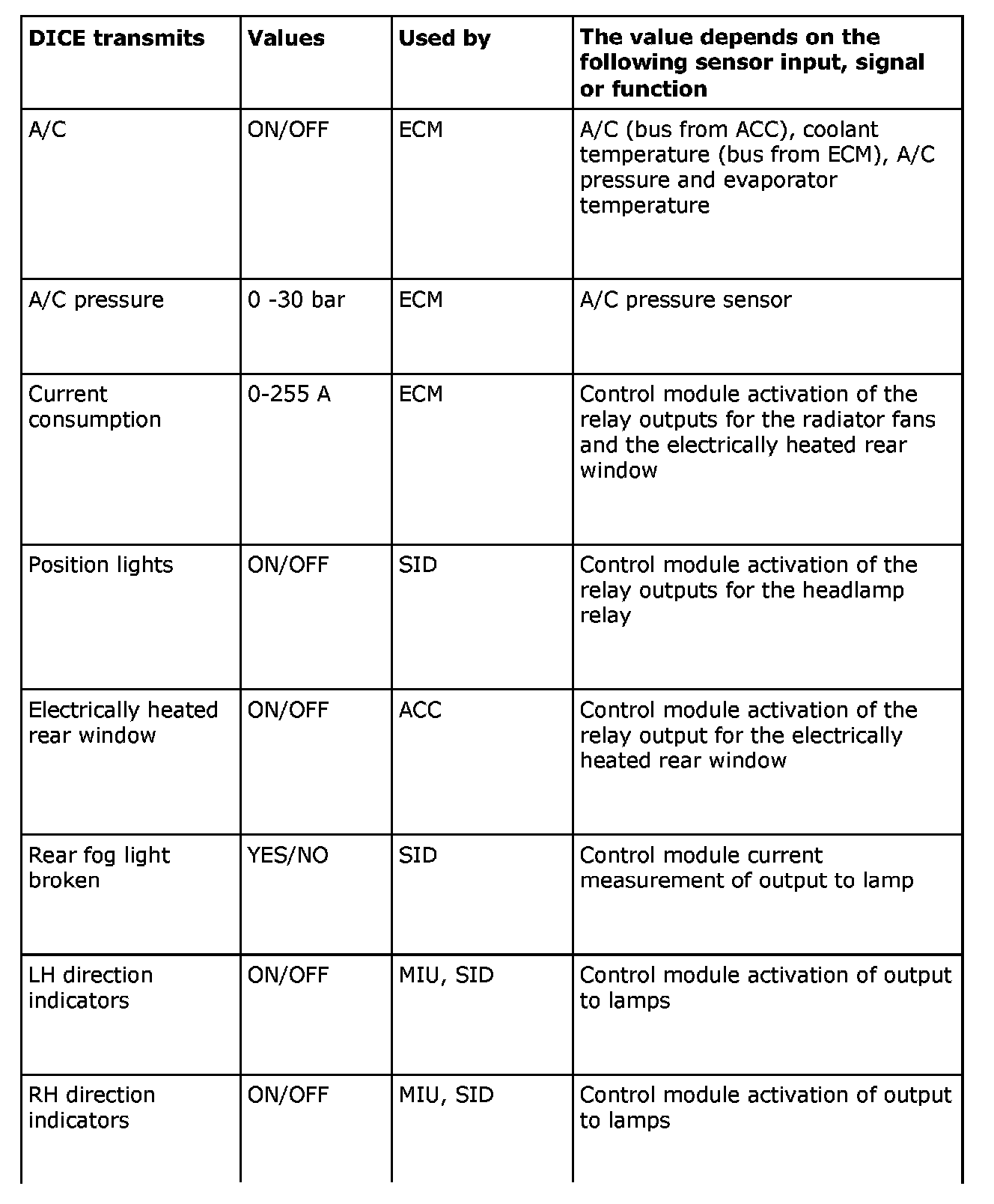

DICE

Part 1:

Part 2:

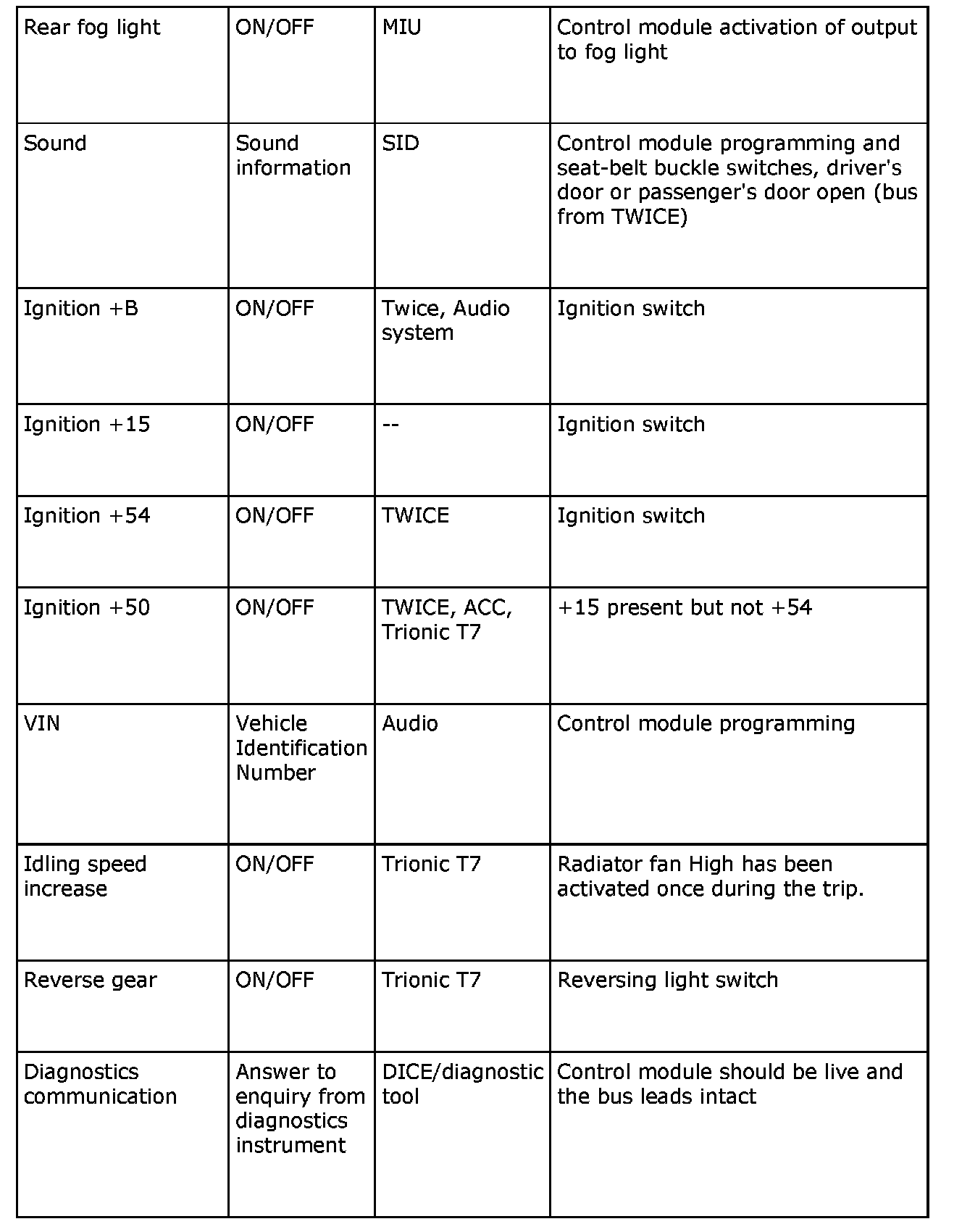

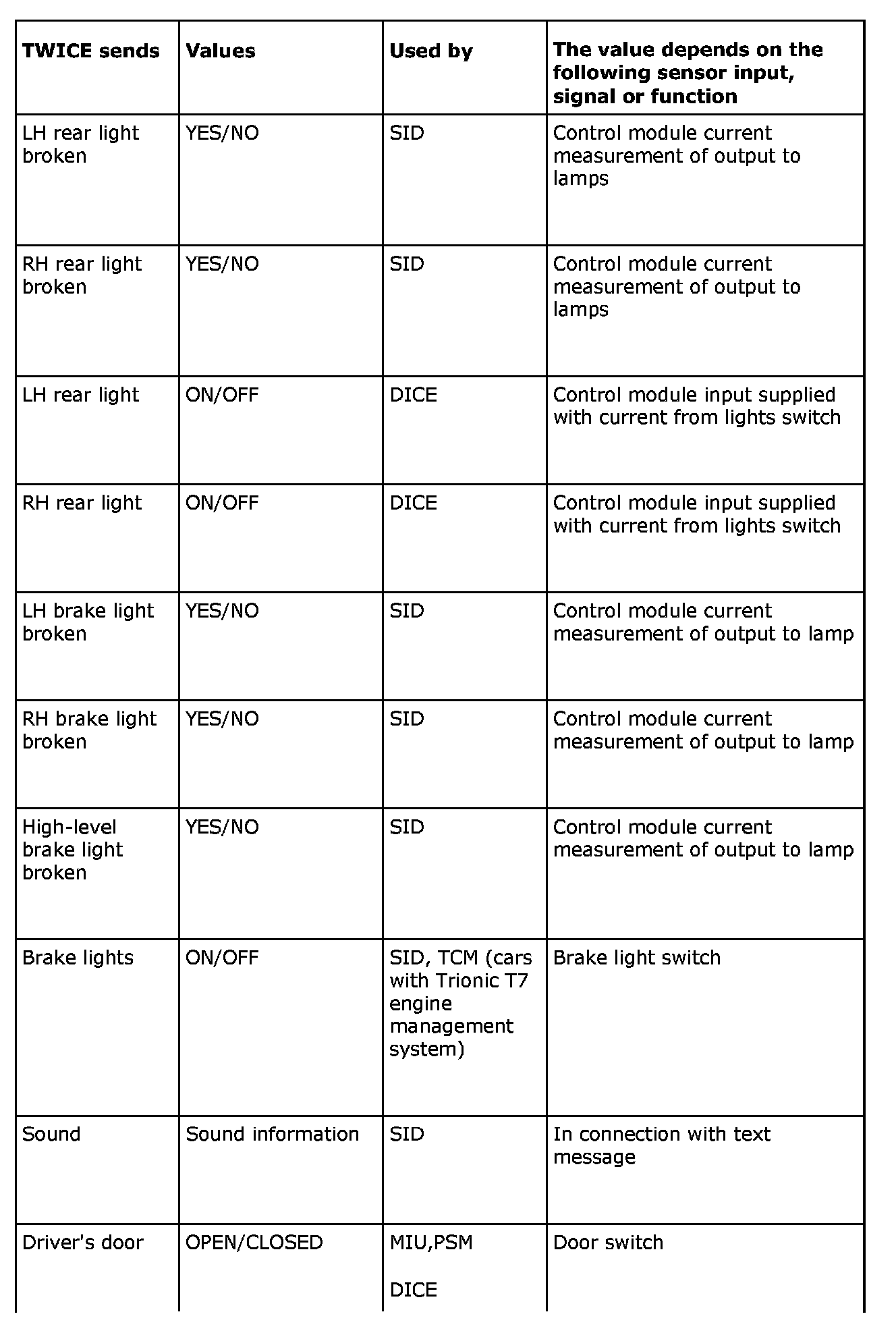

TWICE

Part 1:

Part 2:

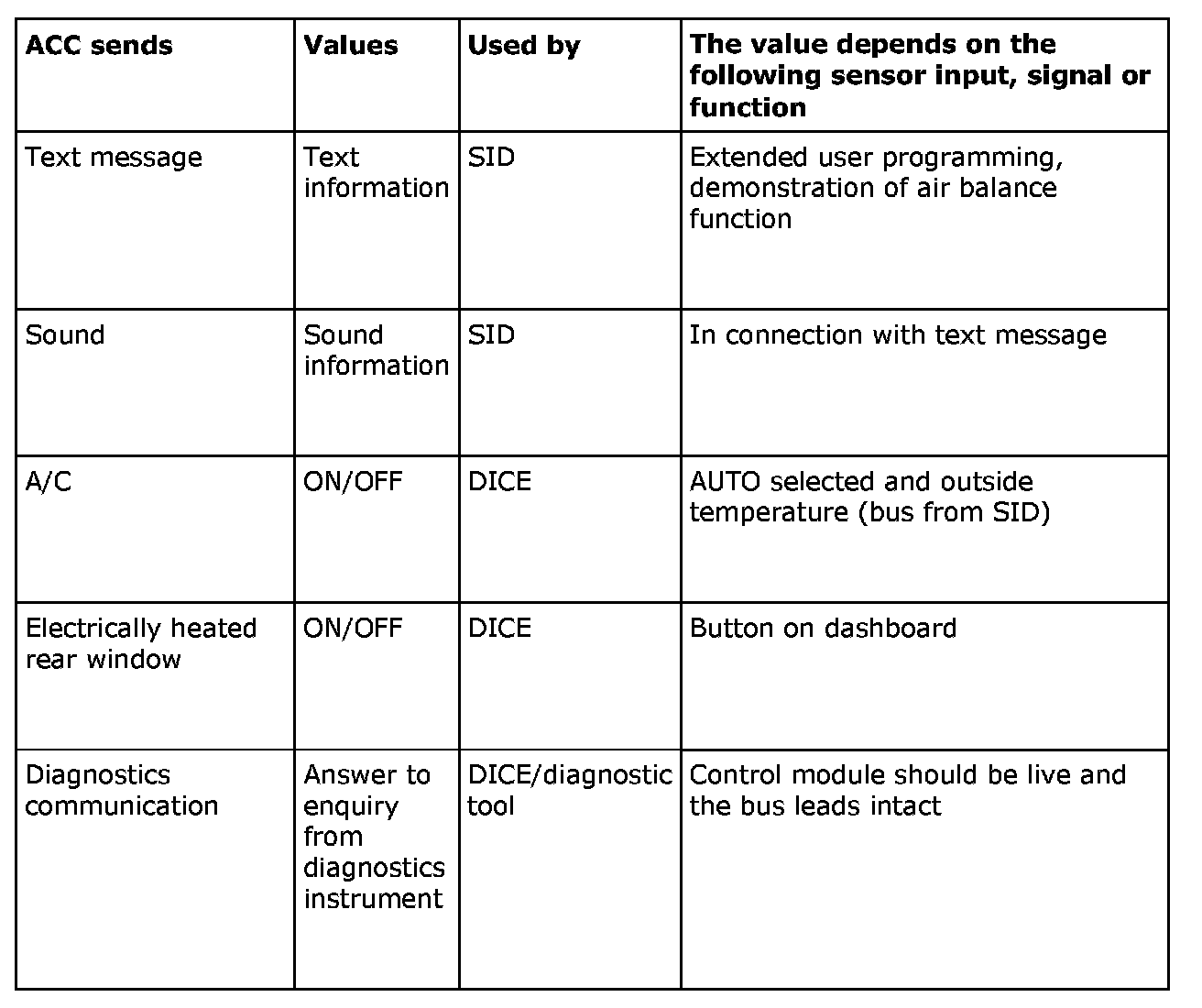

ACC

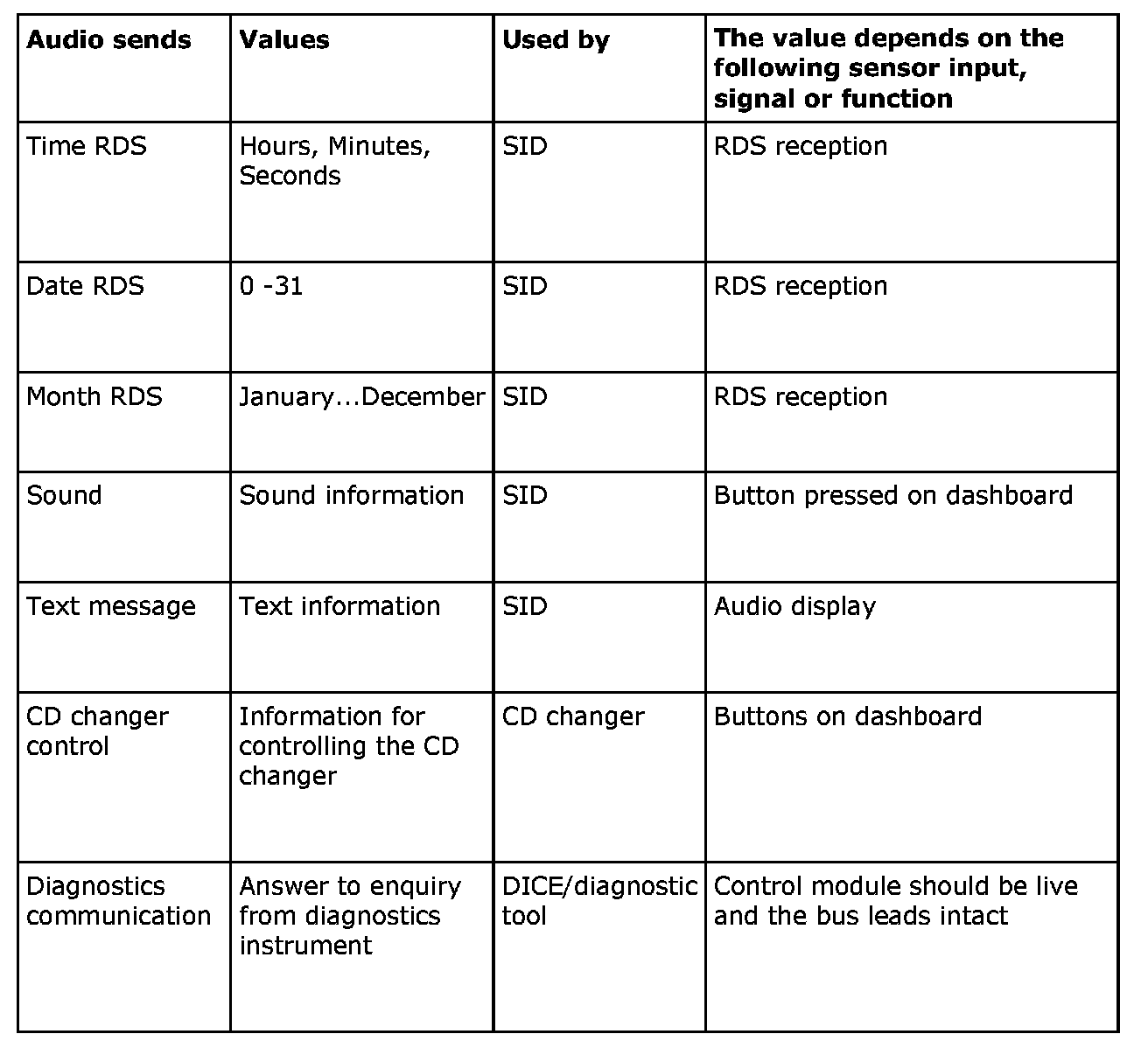

Audio system, main unit

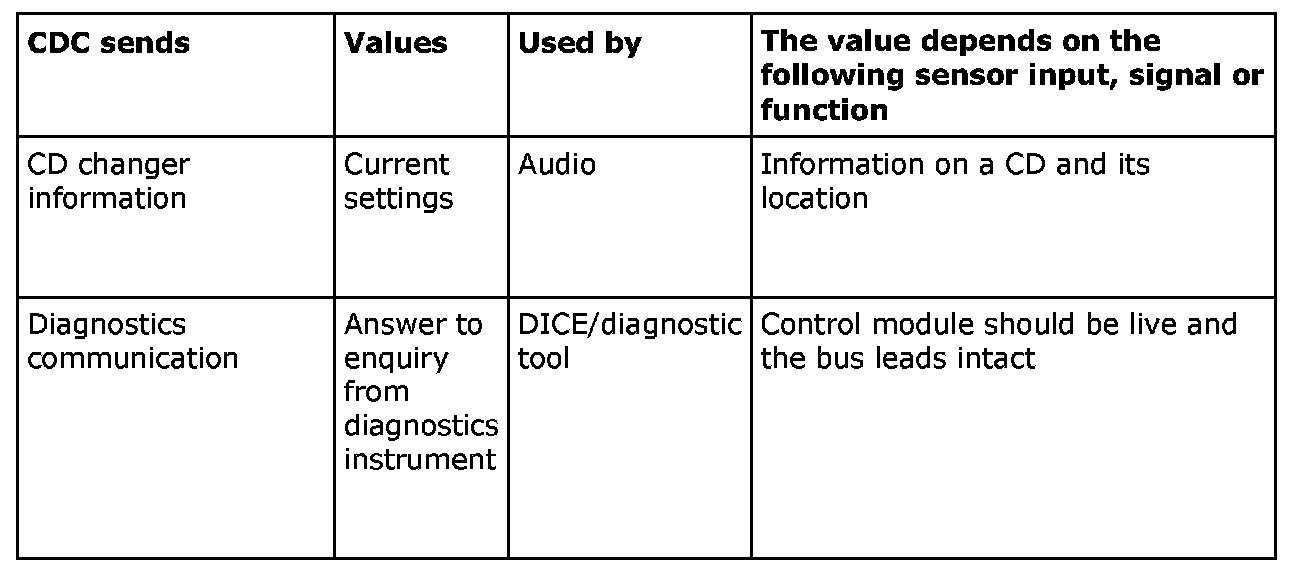

CDC







MIU

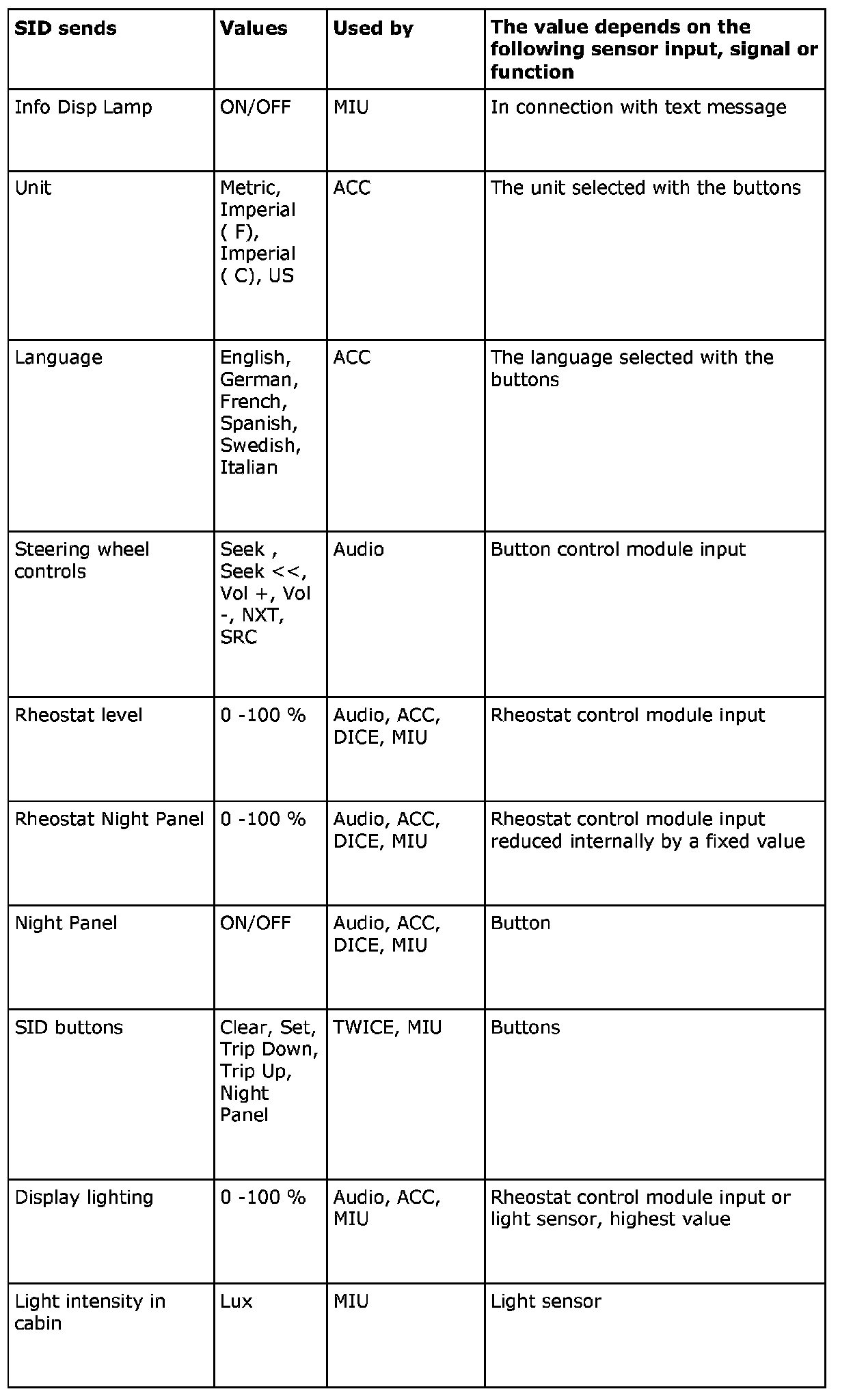

SID

Part 1:

Part 2:

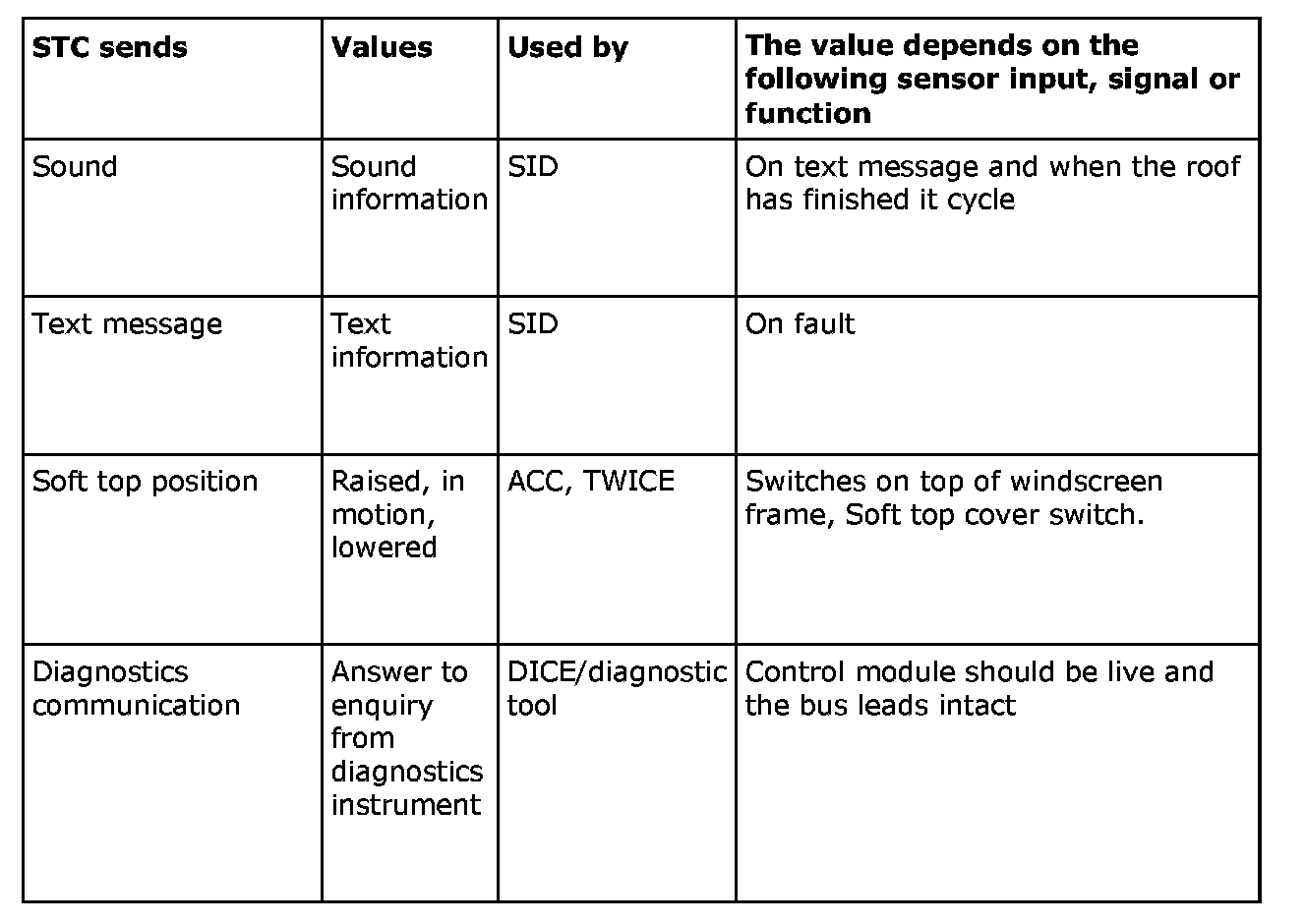

STC

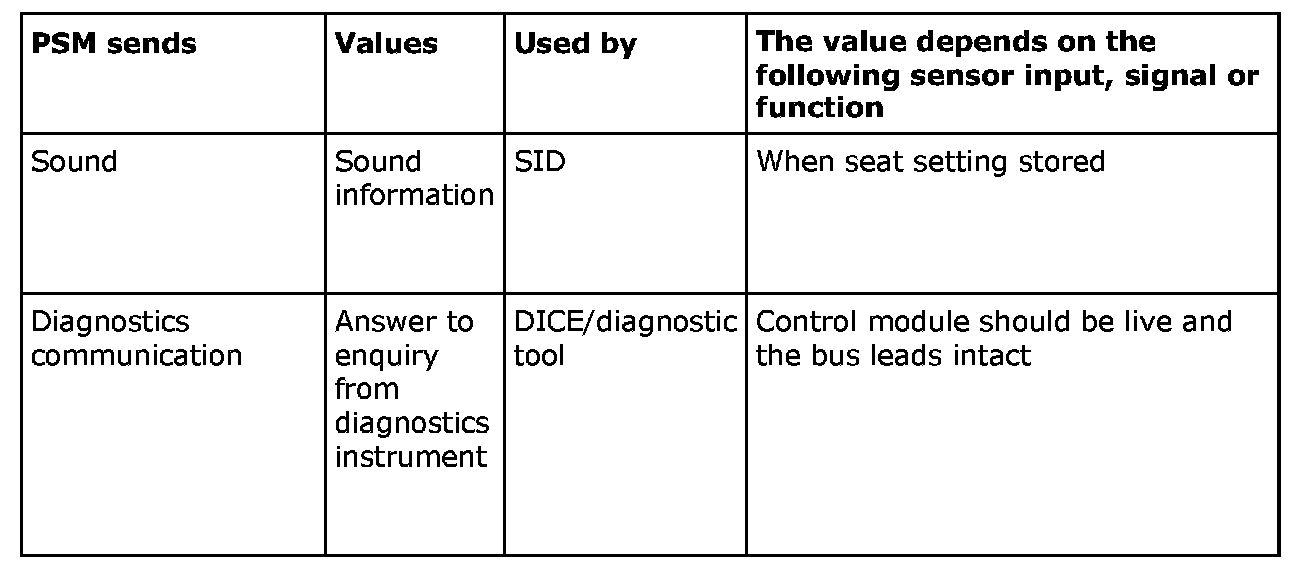

PSM

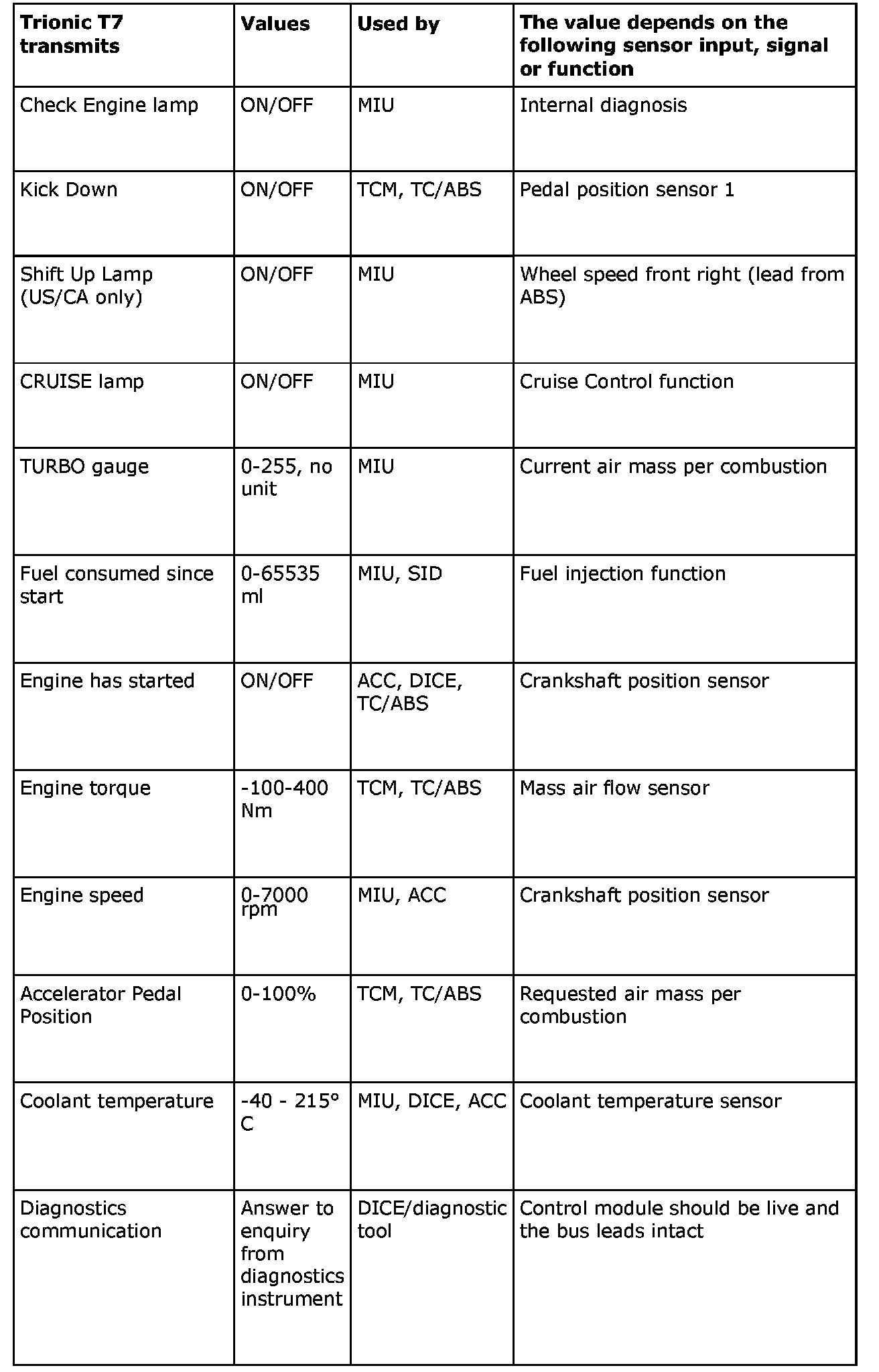

Trionic T7

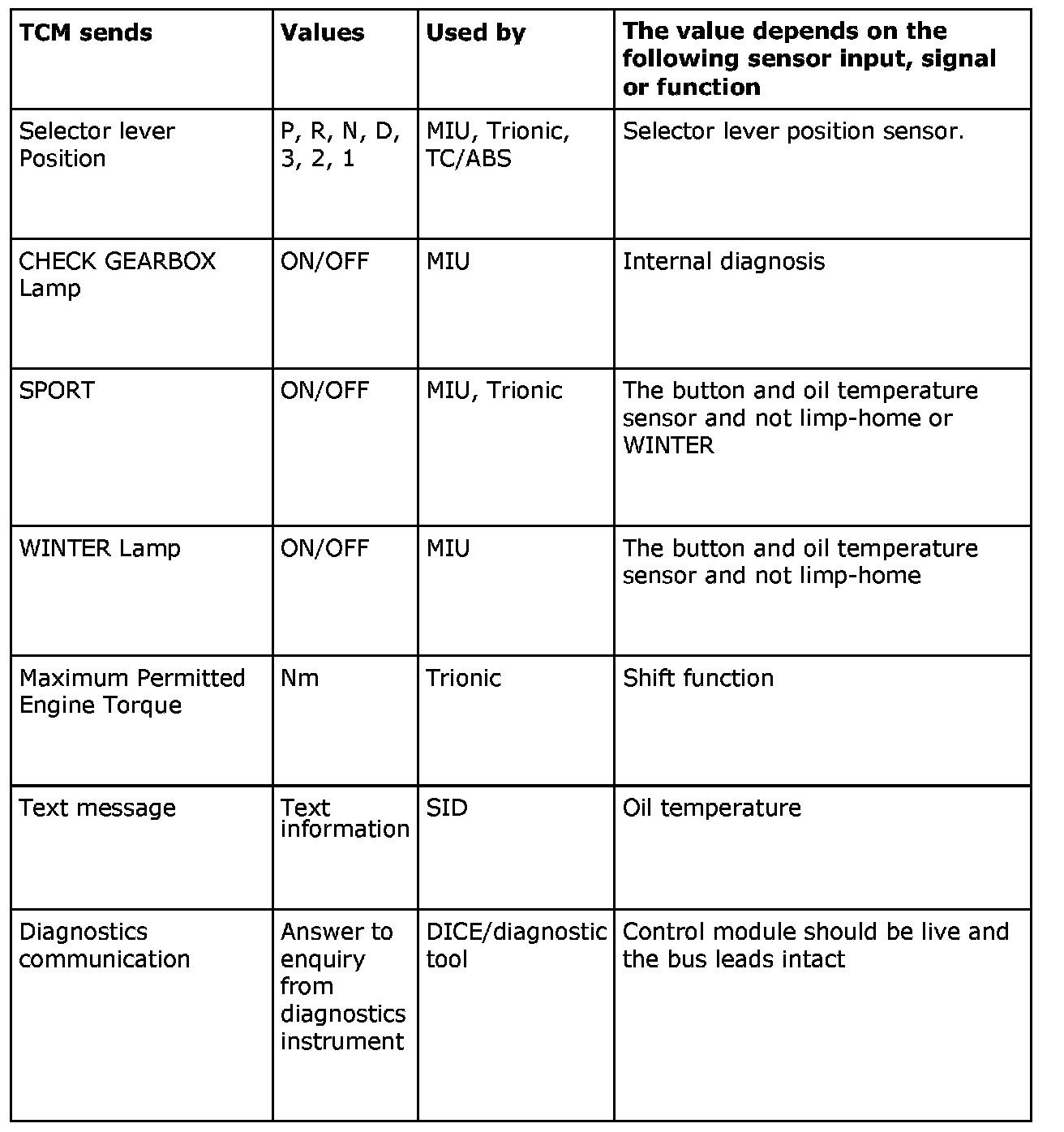

TCM (cars with Trionic T7 engine management system)

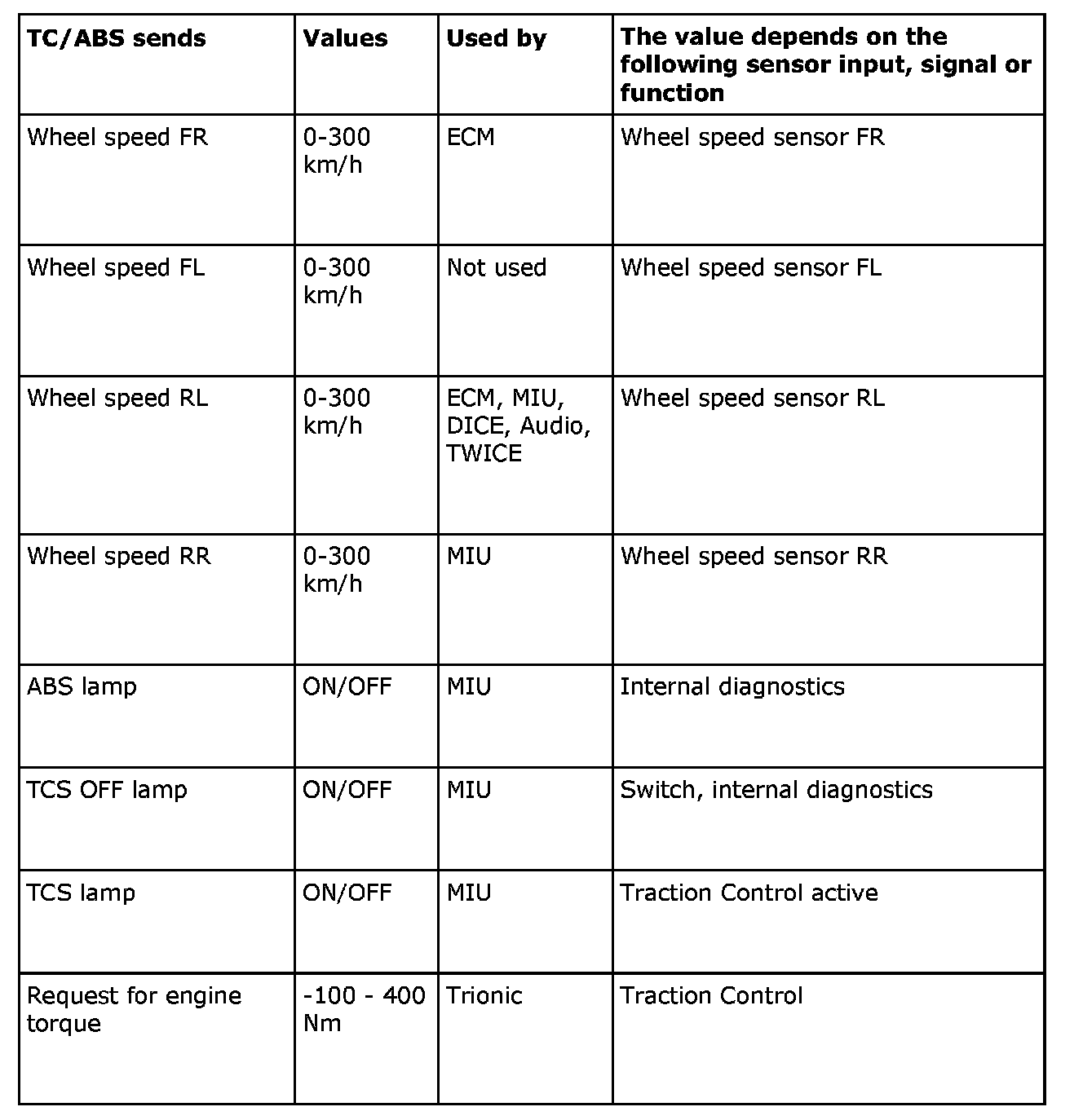

TC/ABS
