An Overview

Main Components

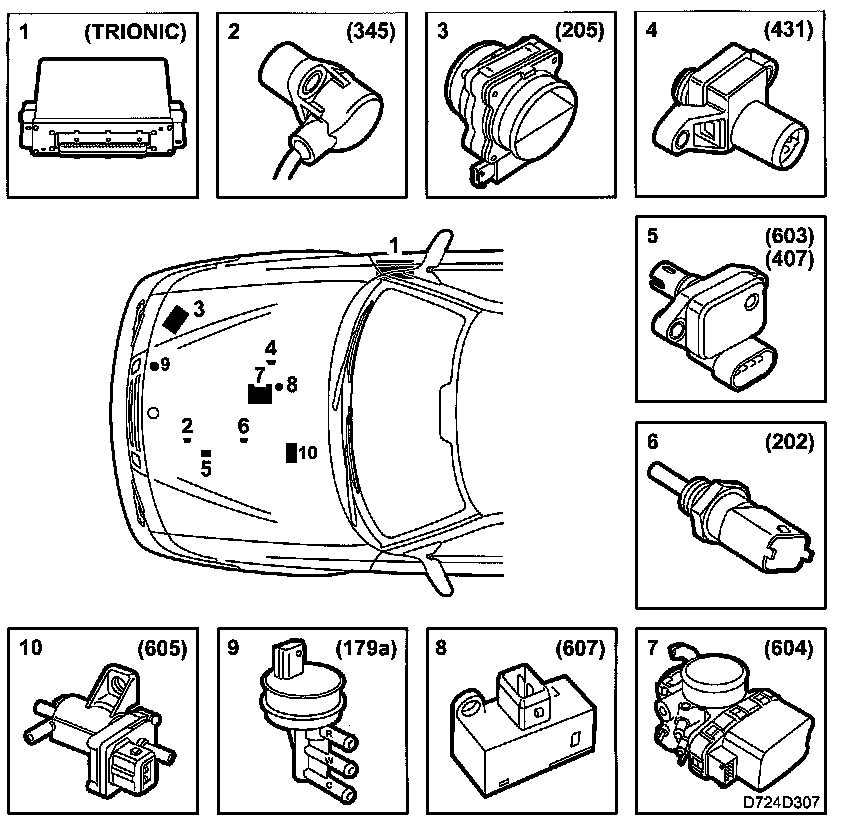

1. Control module (589)
2. Crankshaft position sensor (345)
3. Mass air flow sensor (205)
4. Manifold absolute pressure sensor (431)
5. Charge air absolute pressure sensor (603)
Intake air temperature sensor (407)
6. Coolant temperature sensor (202)
7. Throttle body (604)

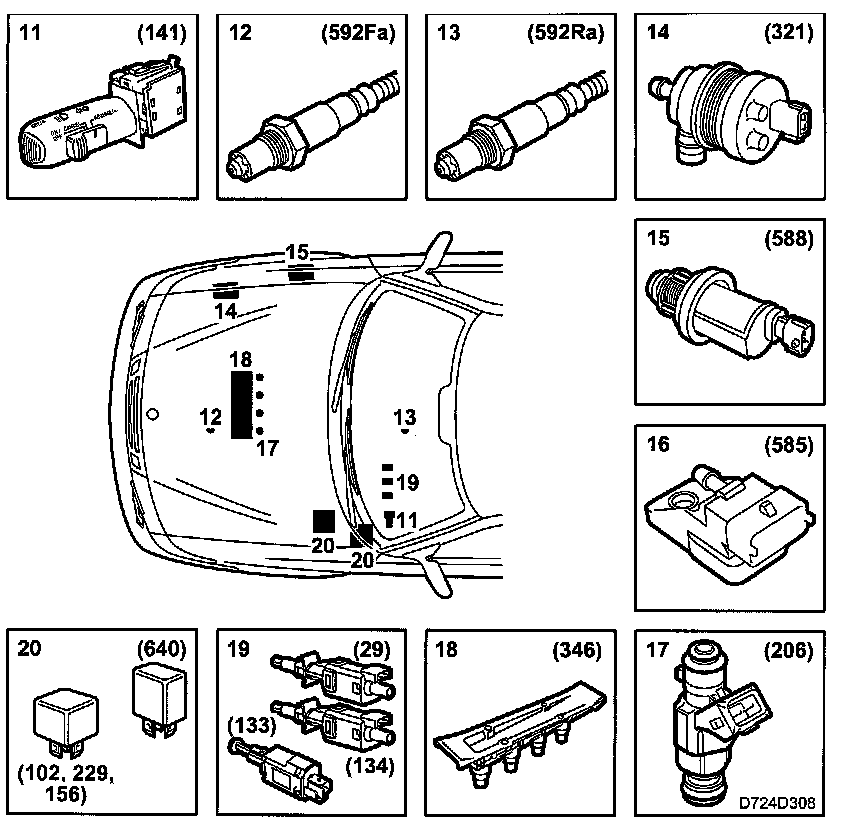

8. Limp-home solenoid (607)
9. Charge air control valve (179a)
10. Control valve, bypass (605)
11. Switch, cruise control (141)







12. Oxygen sensor 1 (592Fa)
13. Oxygen sensor 2 (592Ra)
14. EVAP canister purge valve (321)
15. Shut-off valve, EVAP canister (588)
16. Tank differential pressure sensor (585)
17. Injectors (206)
18. Ignition discharge module (346)
19. Clutch pedal switch (133)
Brake pedal switch (134)
Brake light switch (29)
20. Main relay (229)
Fuel pump relay (102)
Relay, limp-home solenoid (640)
A/C relay (156)
(A/C relay is mounted in engine bay relay board.)
