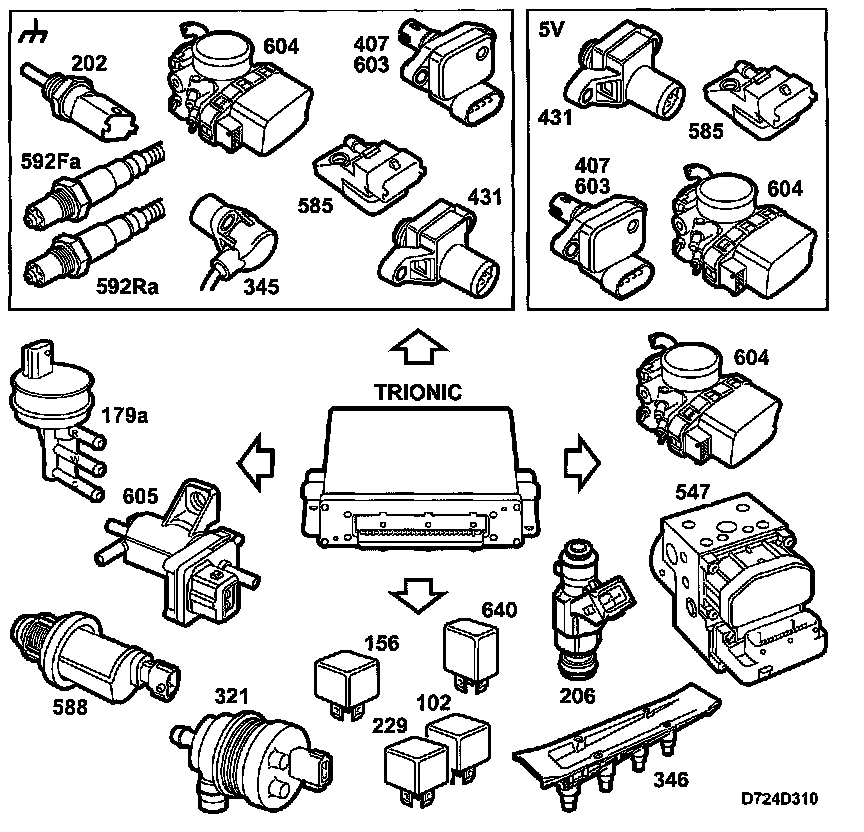

Control Module Outputs

Control Module Outputs







- Sensor ground, reference ground
- 5 V supply to sensor
- Main relay and fuel pump relay
- A/C relay (156)
- Throttle motor
- Relay, limp-home solenoid (640)
- Charge air control valve (179a)
- Control valve, bypass (605)
- EVAP canister purge valve (321)
- Shut-off valve, EVAP canister (588)
- Injectors (206)
- Ignition discharge module (346)
- Pedal position, wire to ABS (547)
- Engine torque, wire to ABS (547)
- Engine speed, wire to ABS (547)
