Home >> Saab >> 2003 >> 9-3 Convertible (9400) L4-2.0L Turbo (2.0 HOT) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Testing and Inspection >> Scan Tool Testing and Procedures >> Tech 2 Scan Tool - DICE >> Menu Read Values

Menu Read Values



Menu "Read Values"

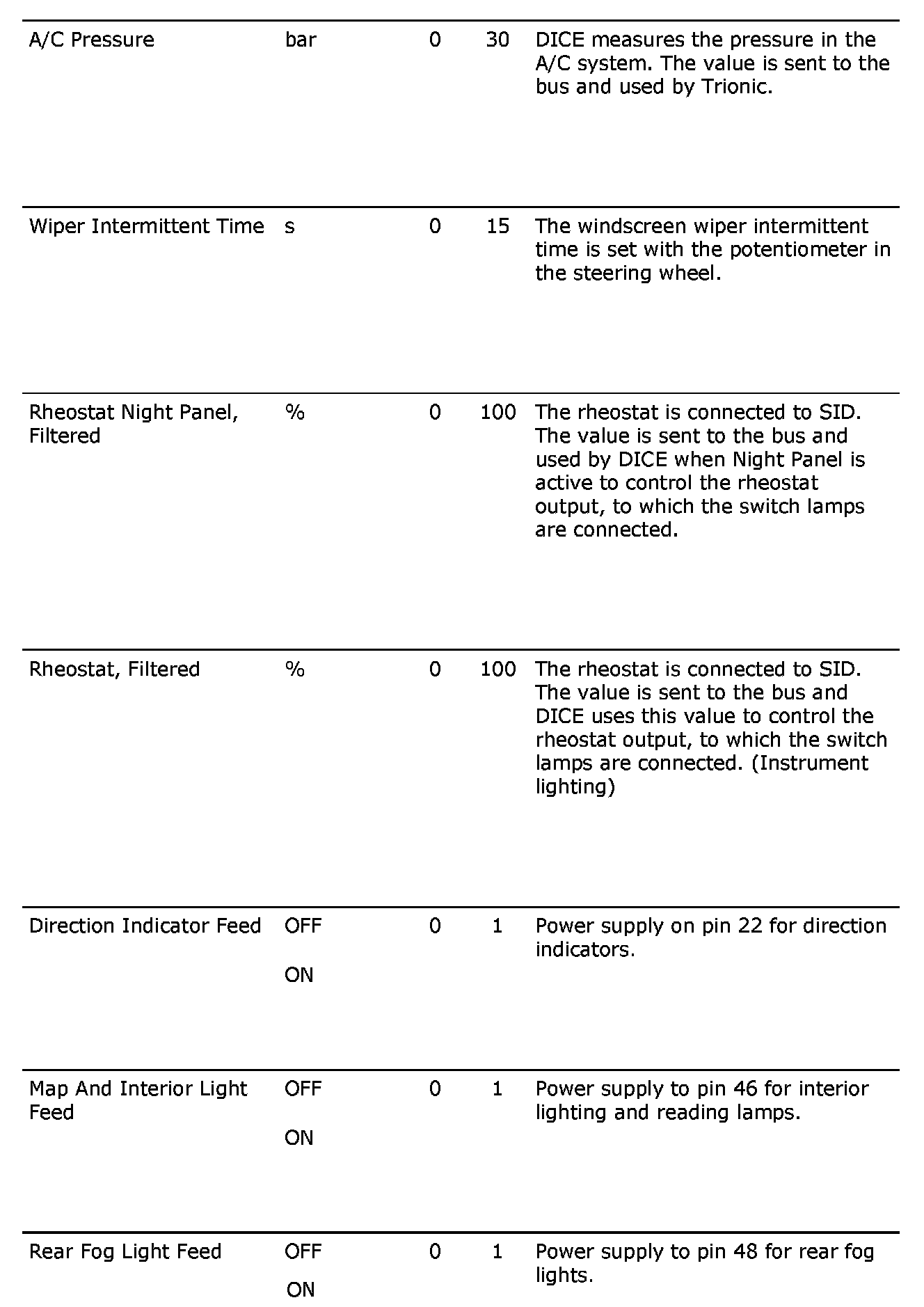

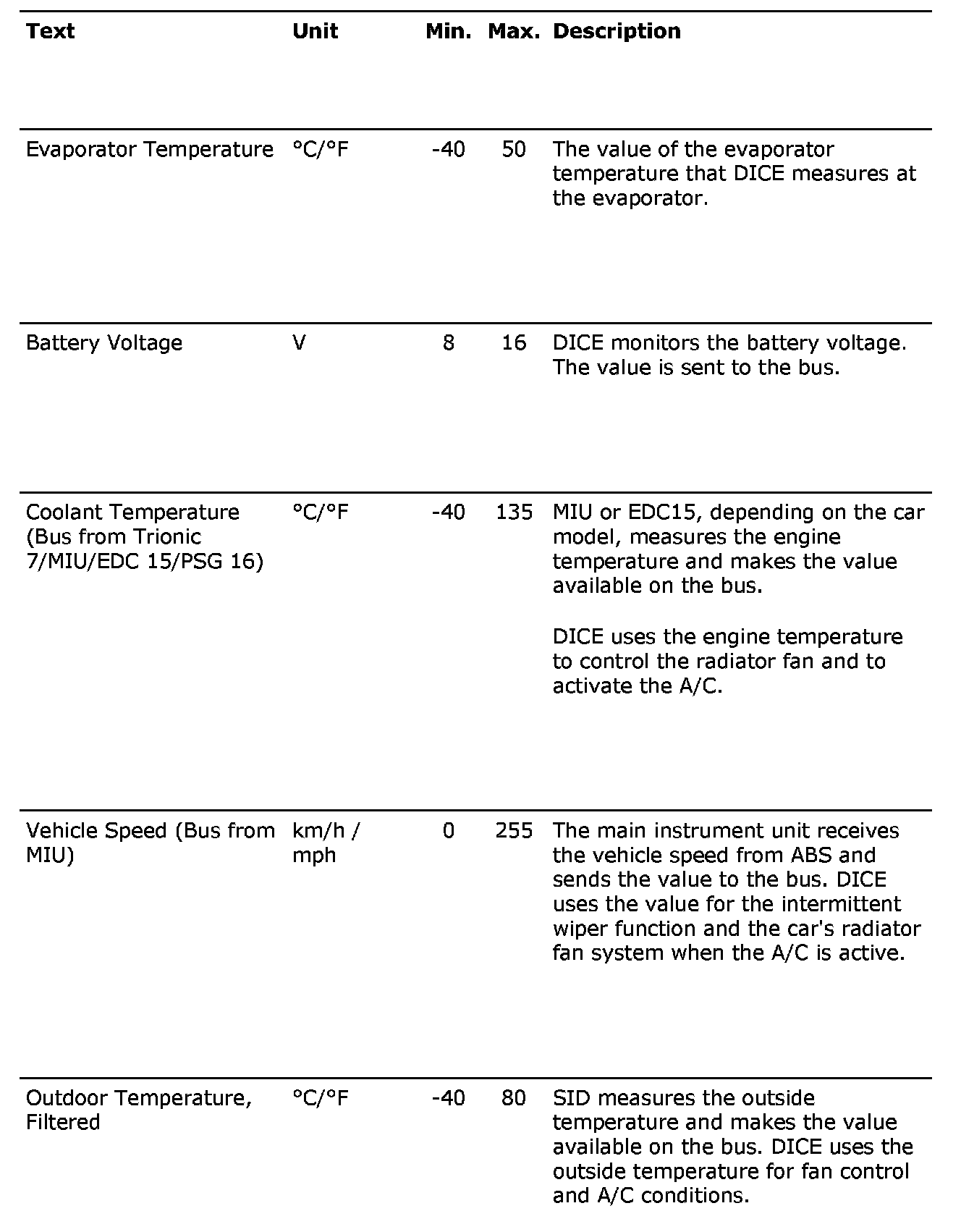

Part 1:

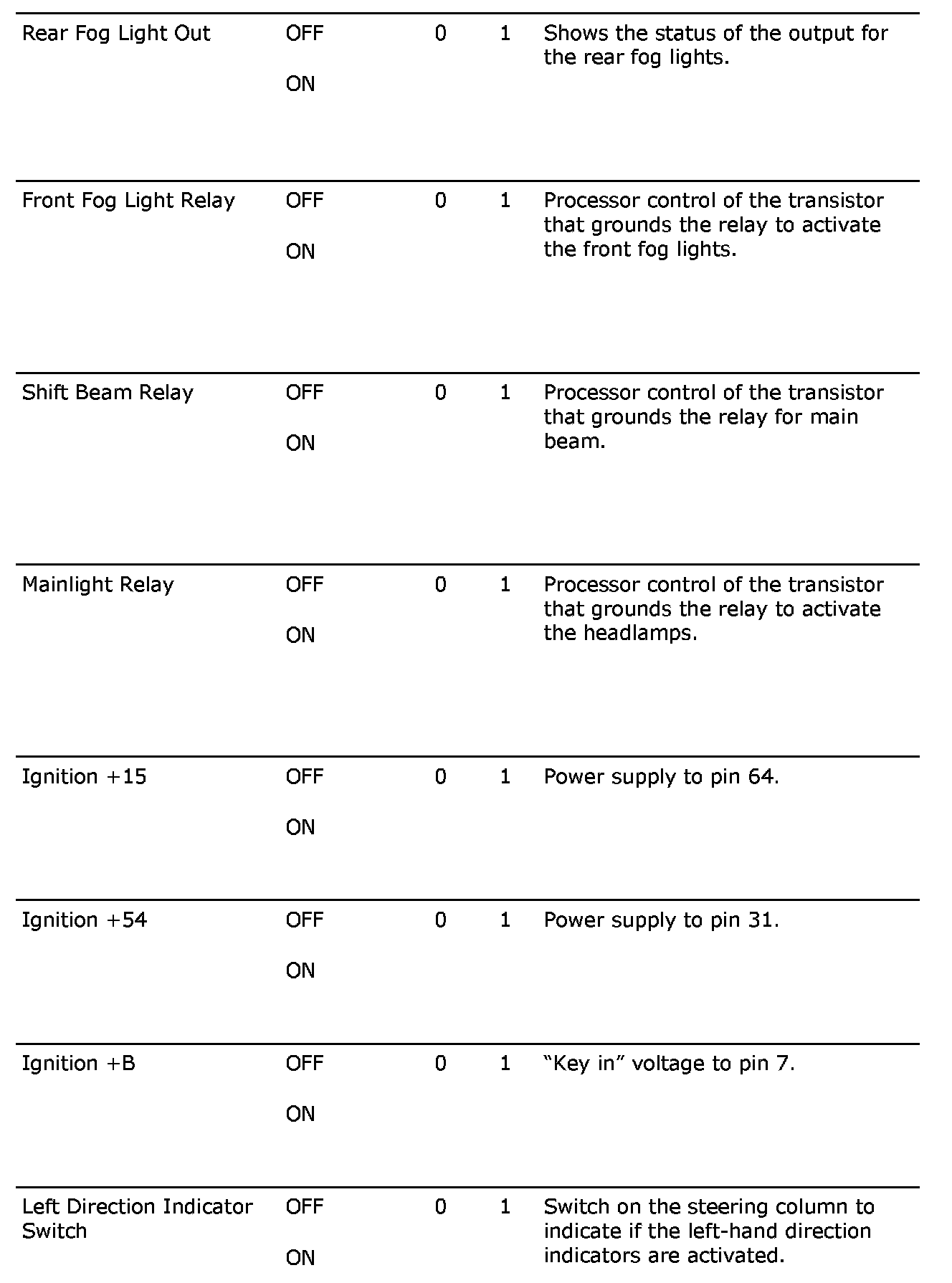

Part 2:

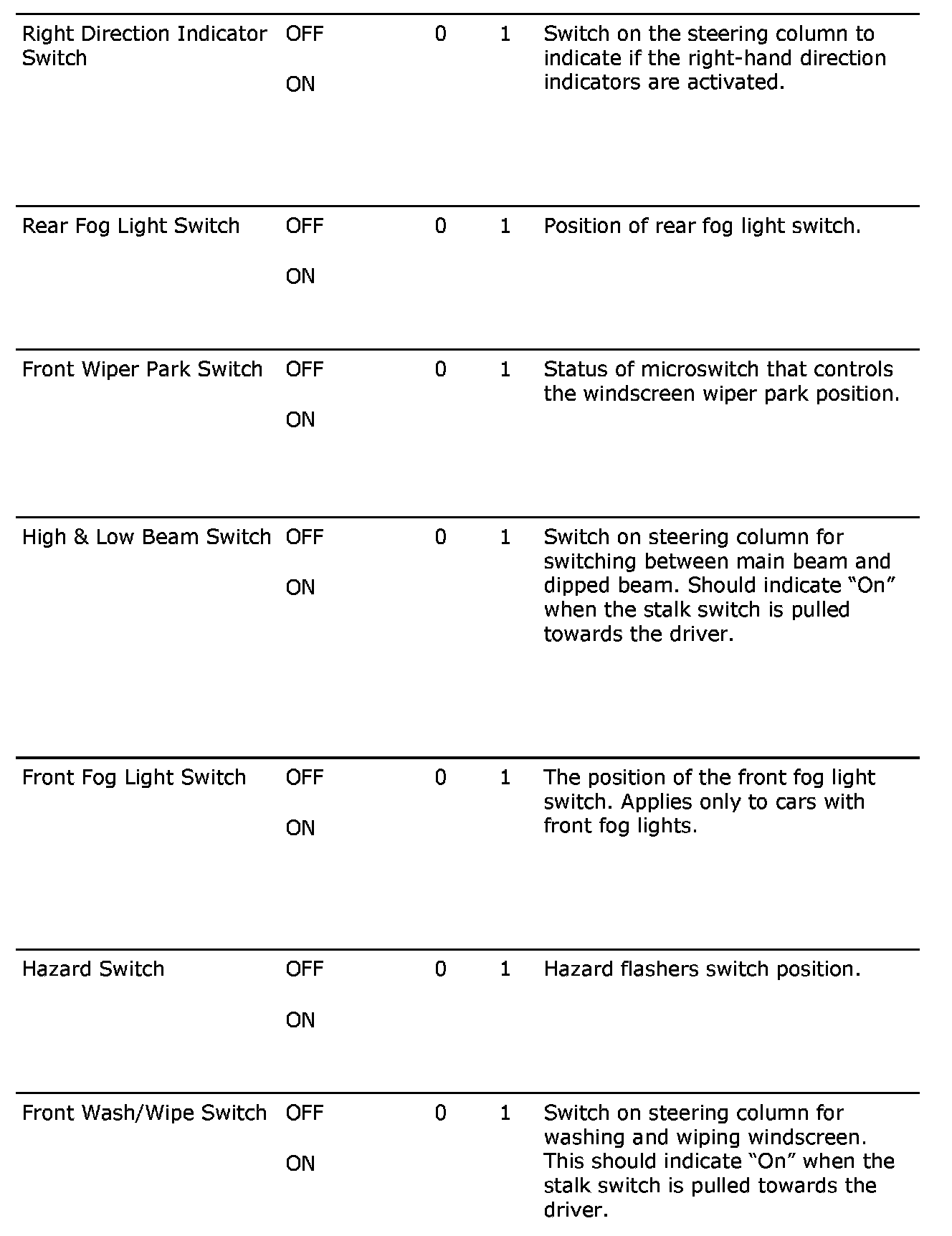

Part 3:

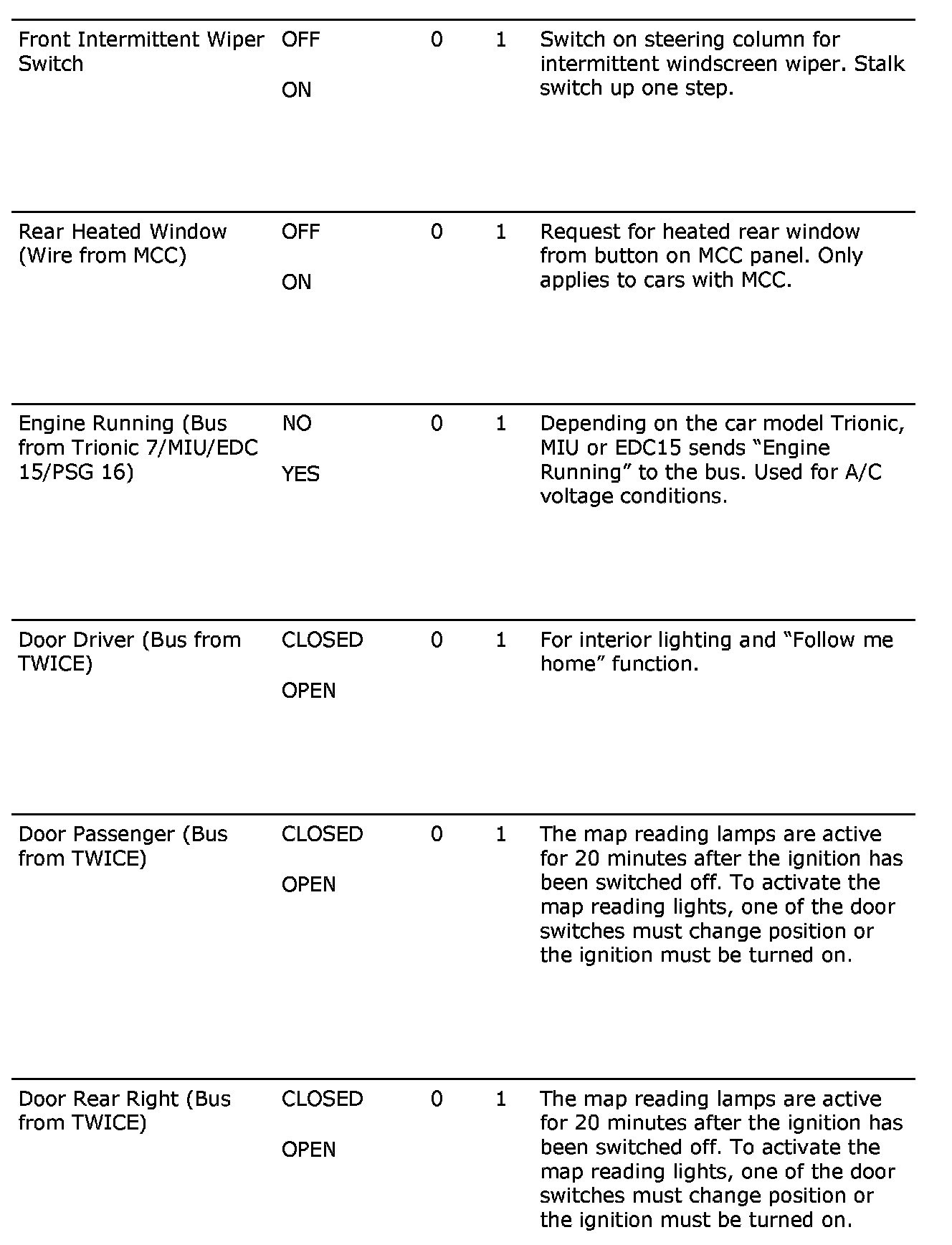

Part 4:

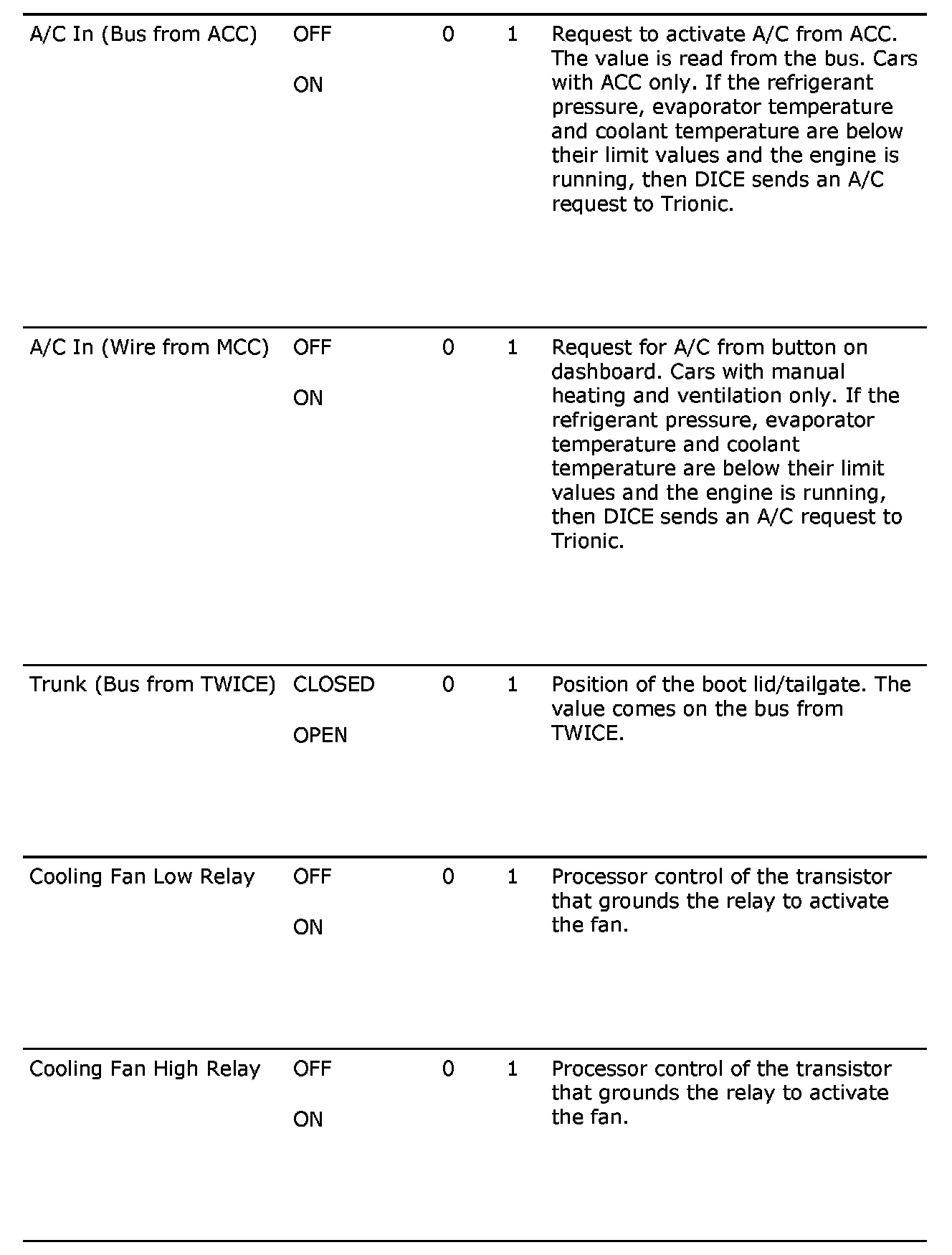

Part 5:

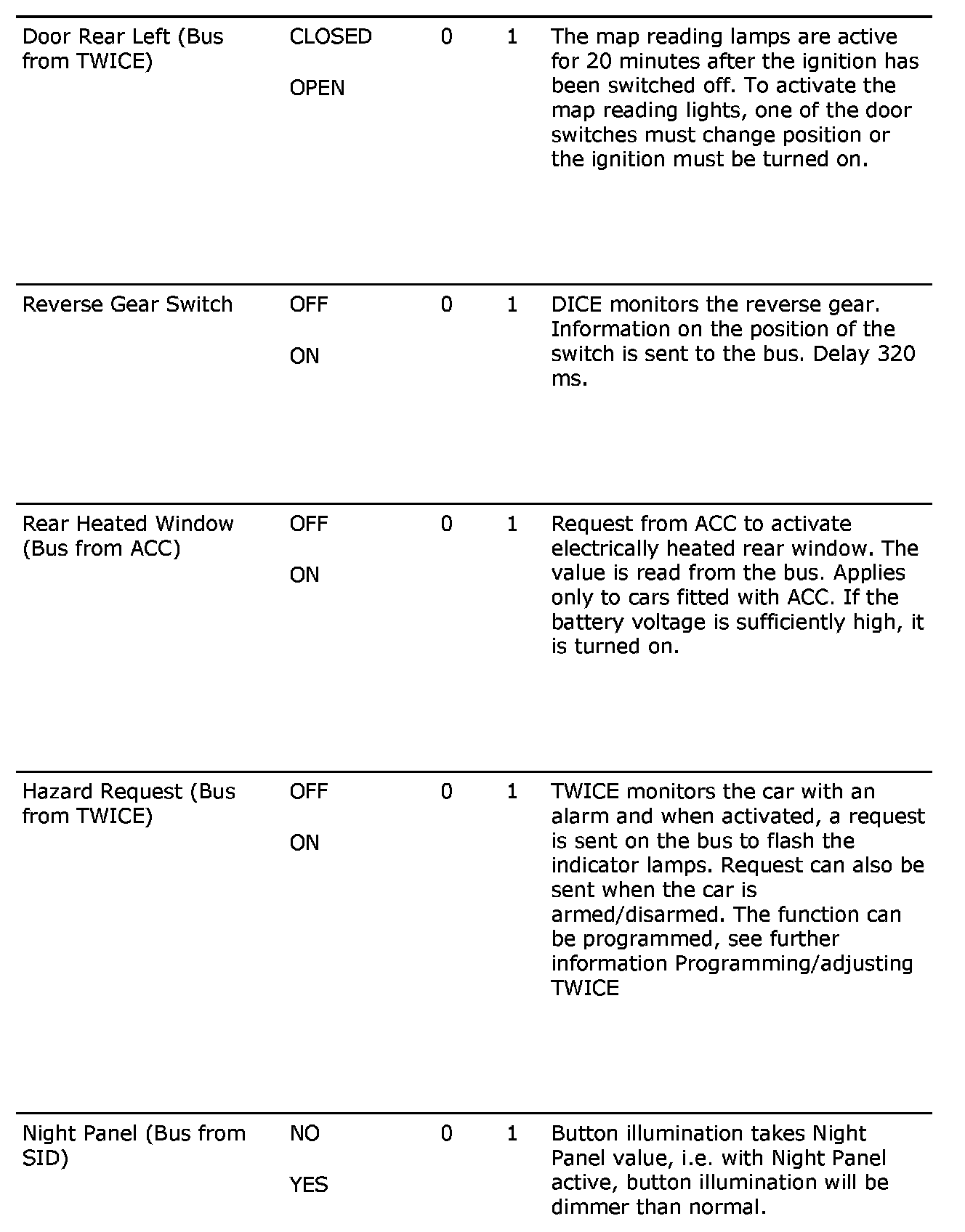

Part 6:




Part 7:




Part 8:

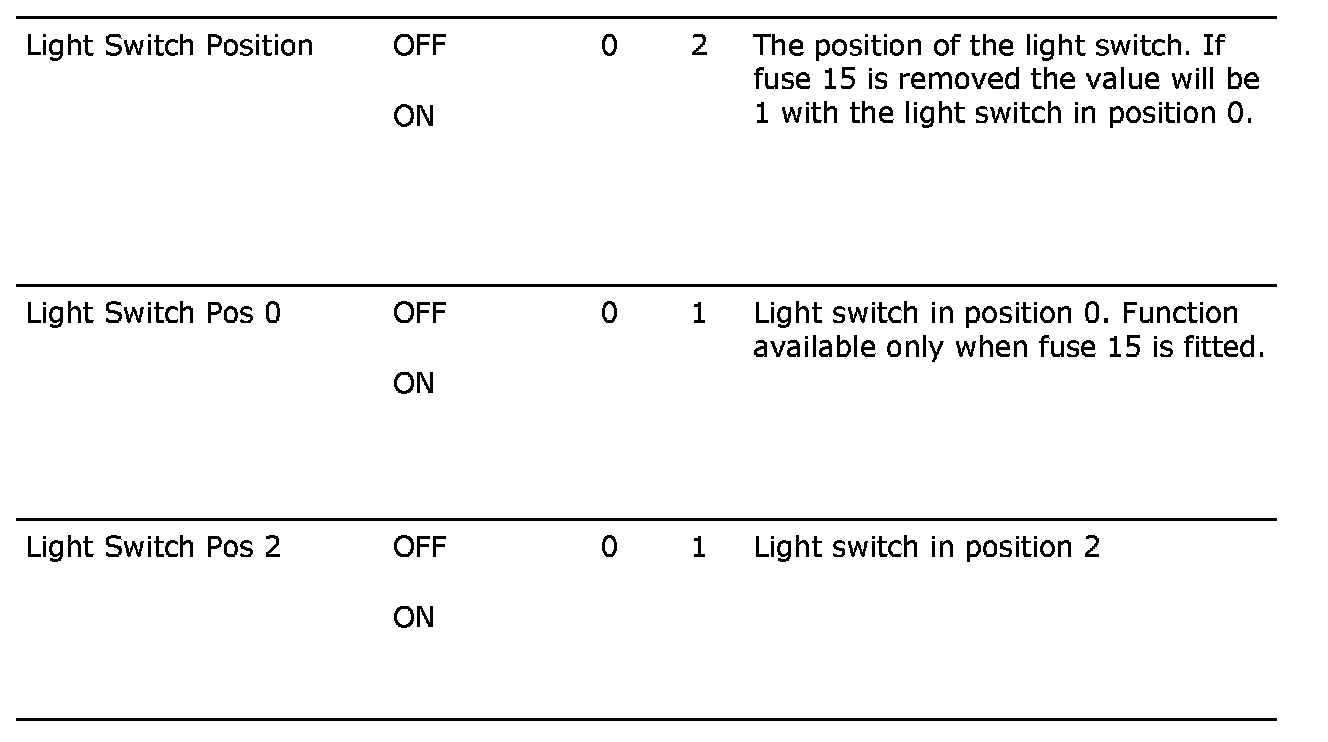

Part 9:
