Intermittent Wiper Operation, Windscreen

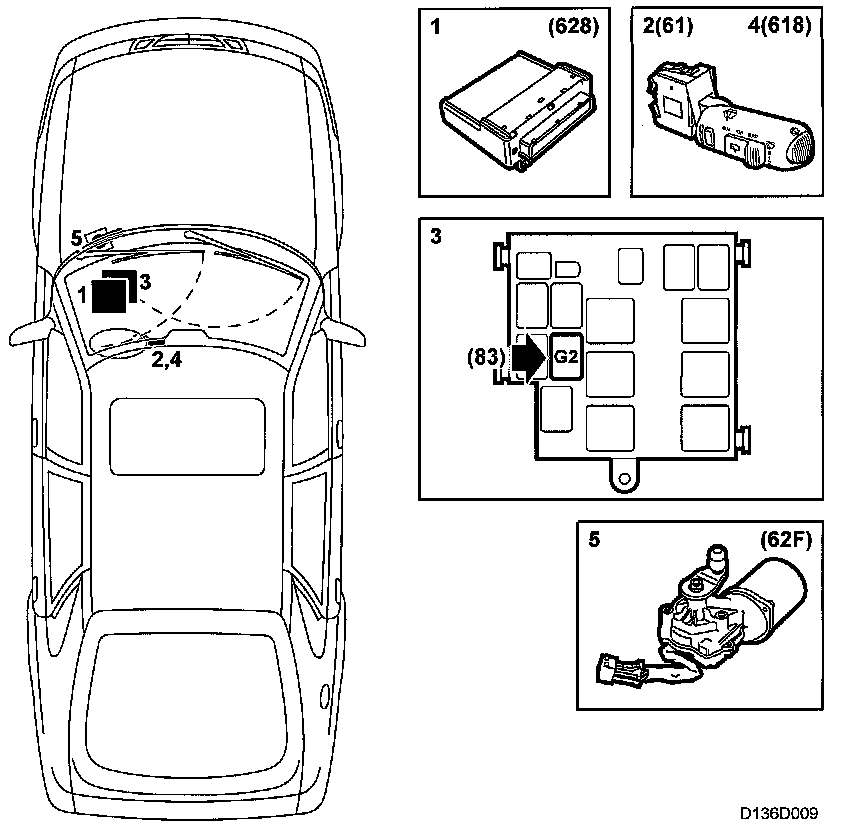

Main Components, Intermittent Wiper Operation, Windscreen







1. Control module, DICE (628)
2. Stalk switch, windscreen wipers (61)
3. Relay, intermittent wiper (83)
4. Rheostat, intermittent wiper (618)
5. Motor, windscreen wipers (62F)
