Control Module Outputs, Bus (Trionic T7)

Control Module Outputs, Bus (Trionic T7)







- A/C (on/off) used by MIU (540), T7 (430b)
- A/C Pressure (bar) used by T7 (430b)
- Power consumption (on/off) used by MIU (540), T7 (430b)
- Position lights (on/off) used by SID (541)
- Electrically heated rear window (on/off) used by ACC (216)
- Rear fog light defective (yes/no) used by SID (541)
- Direction indicators Left (on/off) used by MIU (540), SID (541)
- Direction indicators Right (on/off) used by MIU (540), SID (541)
- Rear fog lights (on/off) used by MIU (540)
- Sound (acoustic information) used by SID (541)
- Ignition +B (on/off) used by Audio (353), TWICE (632)
- Ignition +15 (on/off) used by TWICE (632)
- Ignition +54 (on/off) used by TWICE (632)
- Ignition +50 (on/off) used by ACC (216), TWICE (632)
- Diagnostics communication

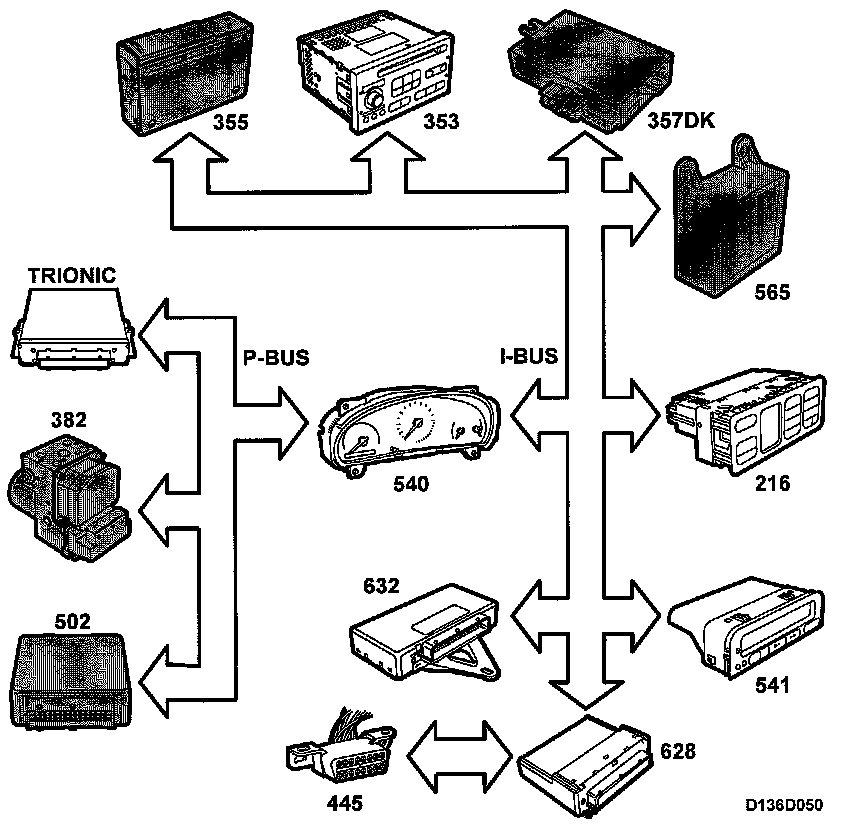

For further descriptions of the control module output information to the bus, see Bus communication

For a further description concerning diagnosis, see Bus and diagnostic communication
