Cabin Air Filter / Purifier: Service and Repair

Fresh Air Filter

Replacement

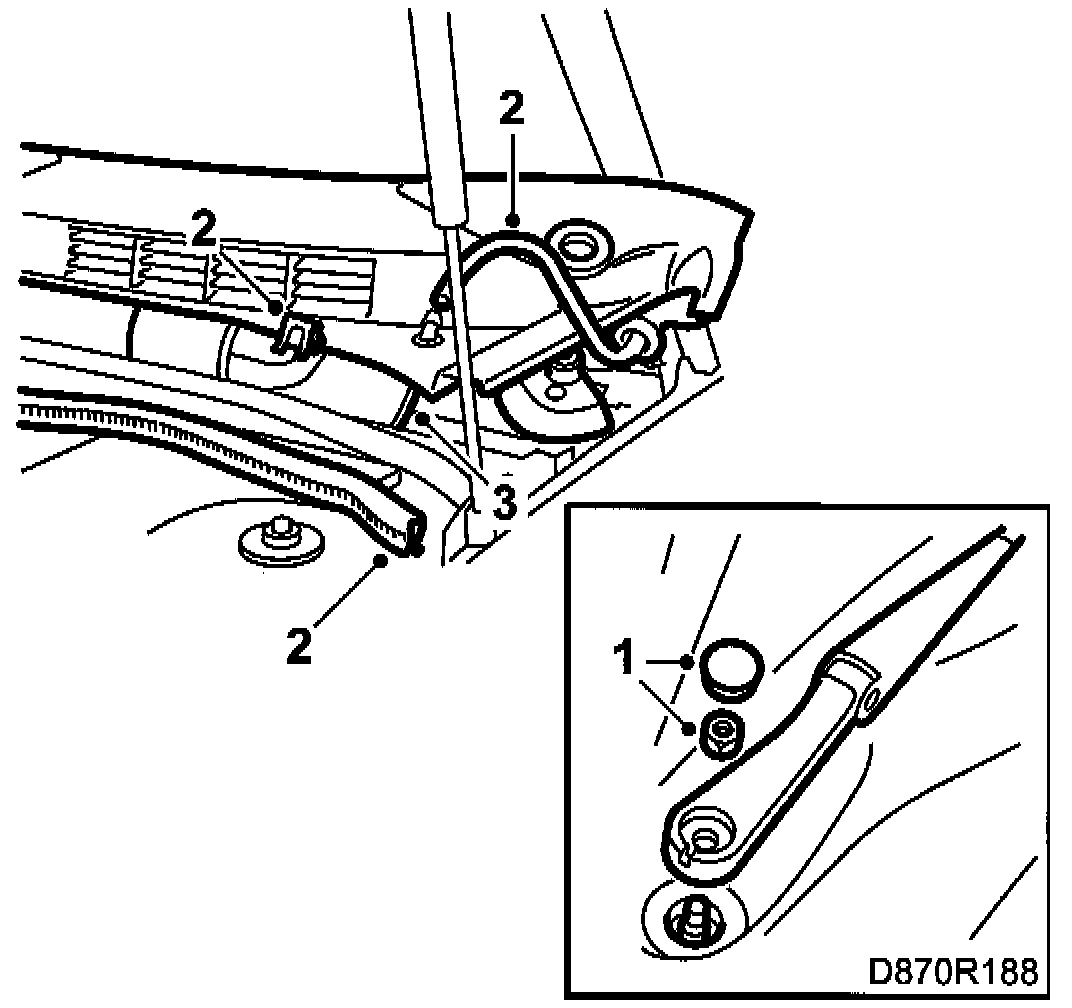

1. Remove the wiper arms.
2. Remove the cover over the bulkhead partition space
3. Remove the water cover.

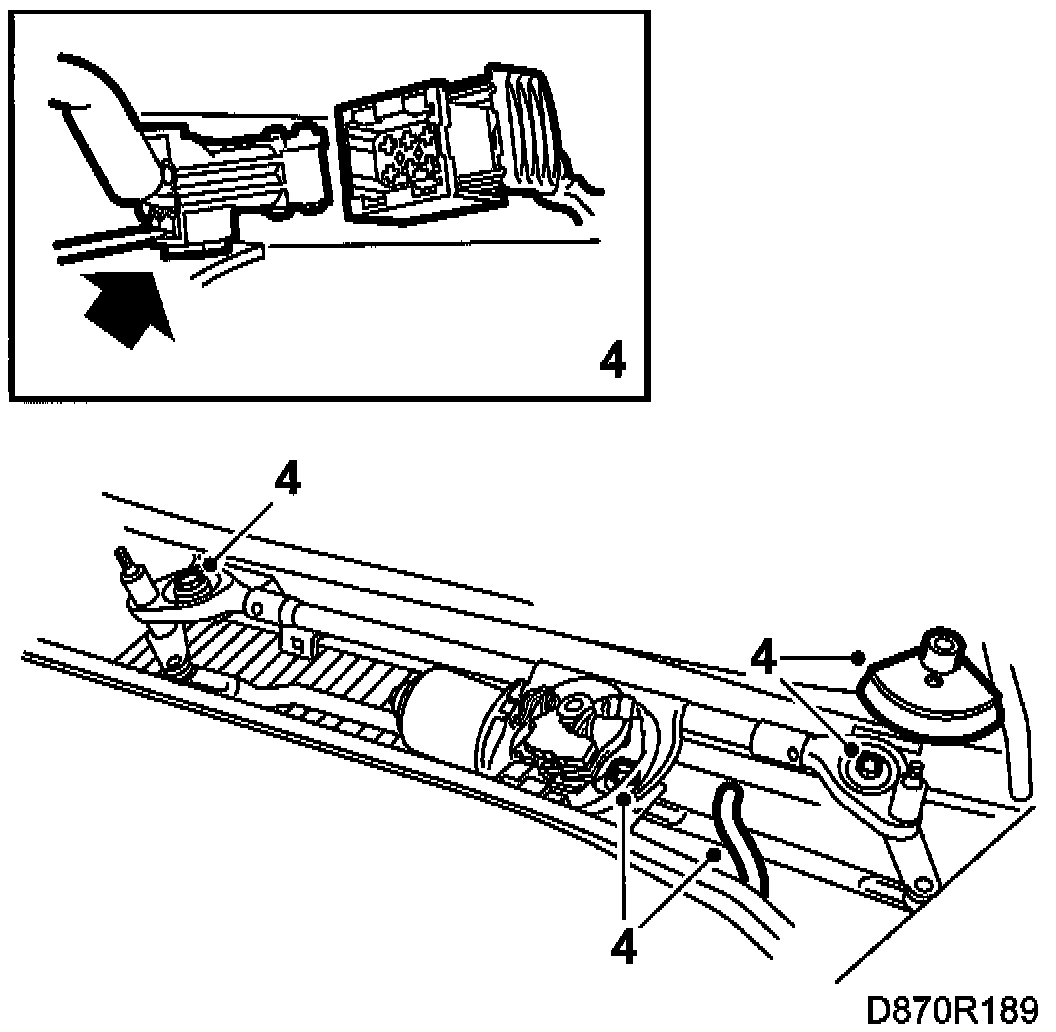

4. Remove the wiper unit.

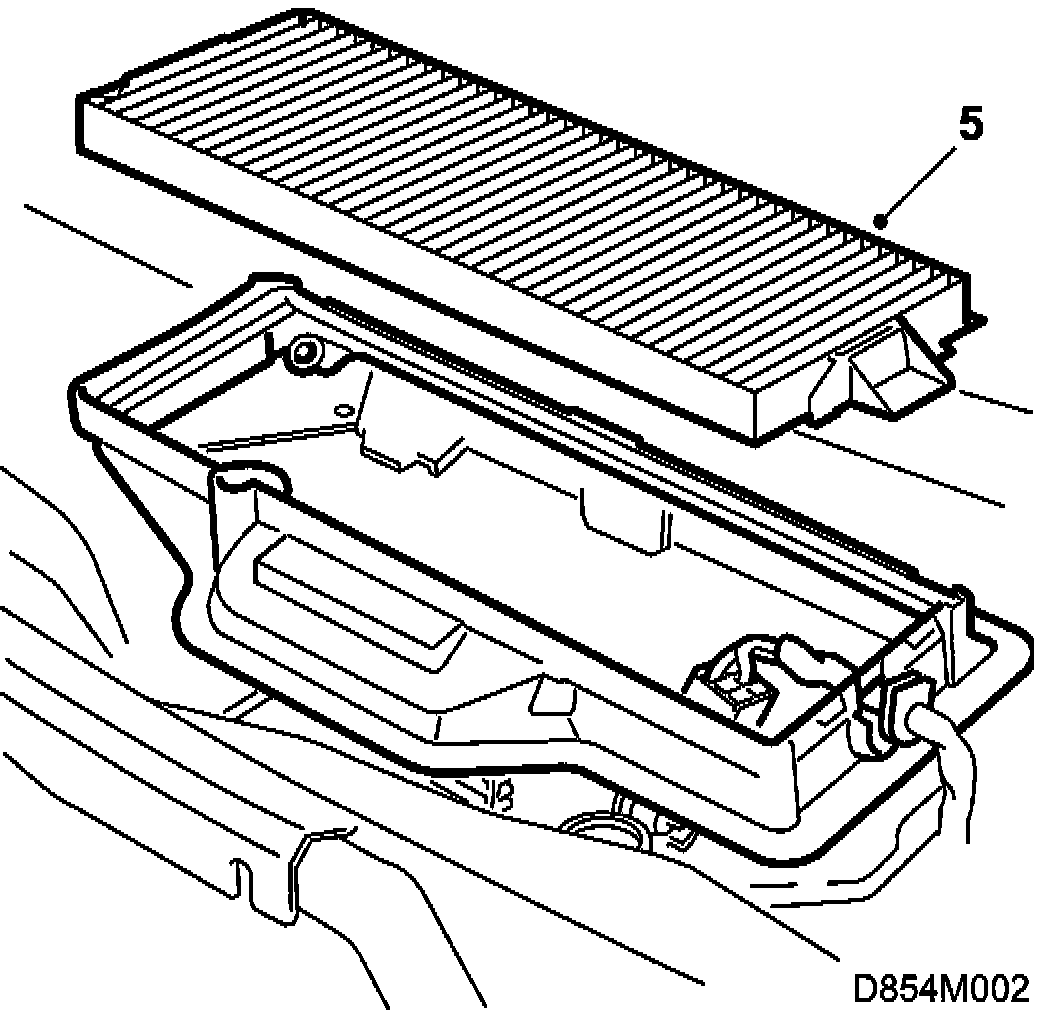

5. Replace the filter insert. When operating in extremely dirty environments or when allergies are a problem, replace the filter insert at shorter intervals.
6. Cars with A/C: Clean the drain hoses as necessary.

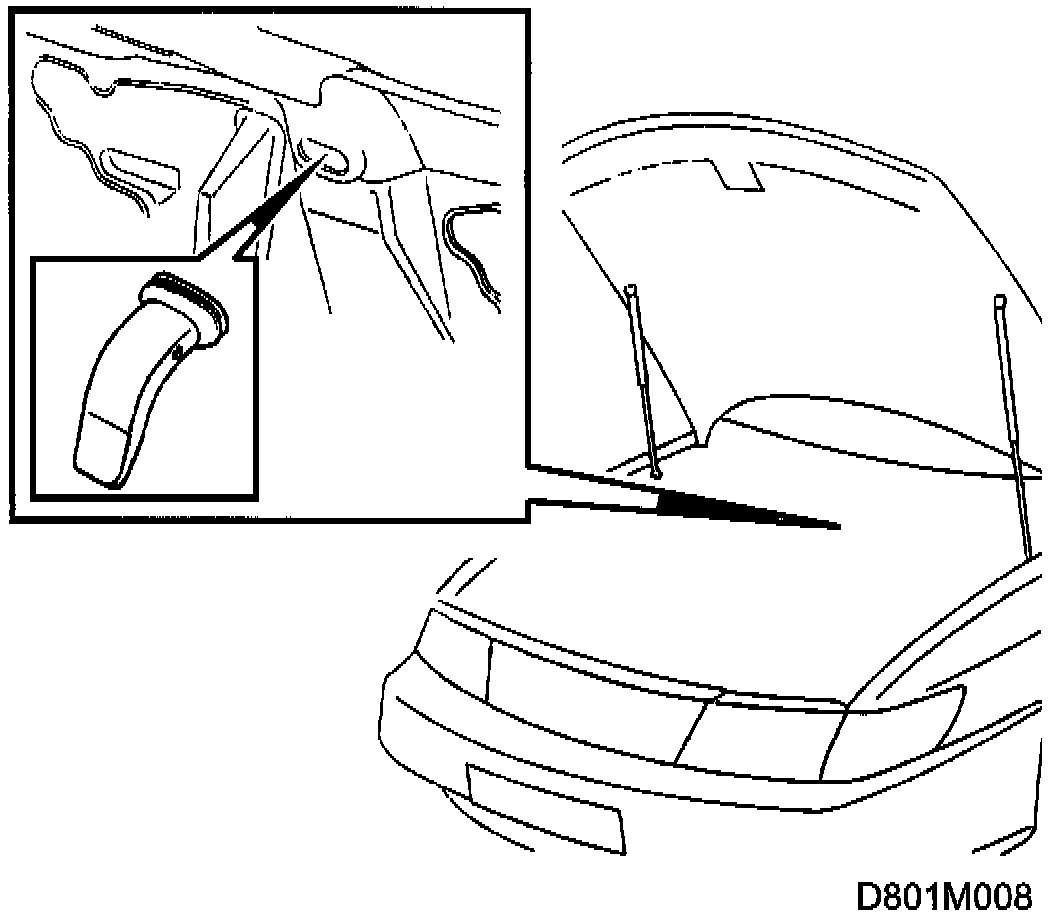

7. Detach the drain hose from the bulkhead partition space and clean it. Reattach the hose. Make sure it is properly secured.
